BULKHEAD ROUND DRIVER
DR DS-P- 10/220-240/350 BLKH
GTIN: 4099854286834
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Suitable for 3000 K and 4000 K luminaires and Multi Lumen function
Areas of application
- Suitable for BULKHEAD ROUND
Product features
- Type of protection: IP20
- UV-stabilized polycarbonate (PC) housing, PC-diffuser
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 10.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 0/50/60 Hz |
| Nominal current | 58 mA |
| Inrush current | 3.38 A |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 15 % |
| Protection class | II |
Dimensions & Weight
| Length | 79.00 mm |
| Height | 25.00 mm |
| Width | 45.00 mm |
| Product weight | 48.00 g |
Materials & Colors
| Product color | White |
| Body material | Plastic |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+50 °C |
| Temperature range at storage | -20…+80 °C |
| Type of protection | IP20 |
| Dimmable | No |
Lifespan
| Number of switching cycles | 100000 |
Control gear
| Nominal output current | 350 mA, 300 mA, 250 mA, 200 mA |
| ECG lifetime | 70000 h |
Certificates & Standards
| Standards | CE, CB, UKCA, EAC, ENEC |
Additional product data
| Added function | EVERLOOP |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854286834 | Folding box 1 |
30 mm x 55 mm x 85 mm | 56.00 g | 0.14 dm³ |
| 4099854286841 | Shipping box 160 |
460 mm x 320 mm x 185 mm | 9598.00 g | 27.23 dm³ |
User instruction / safety instructions
DR DS P
DR DS P
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Light Source Insert G11202326
Light Source Insert G11202326
Legal information
Safety Insert G11218810
Safety Insert G11218810
Declarations of conformity
DR DS-P
DR DS-P

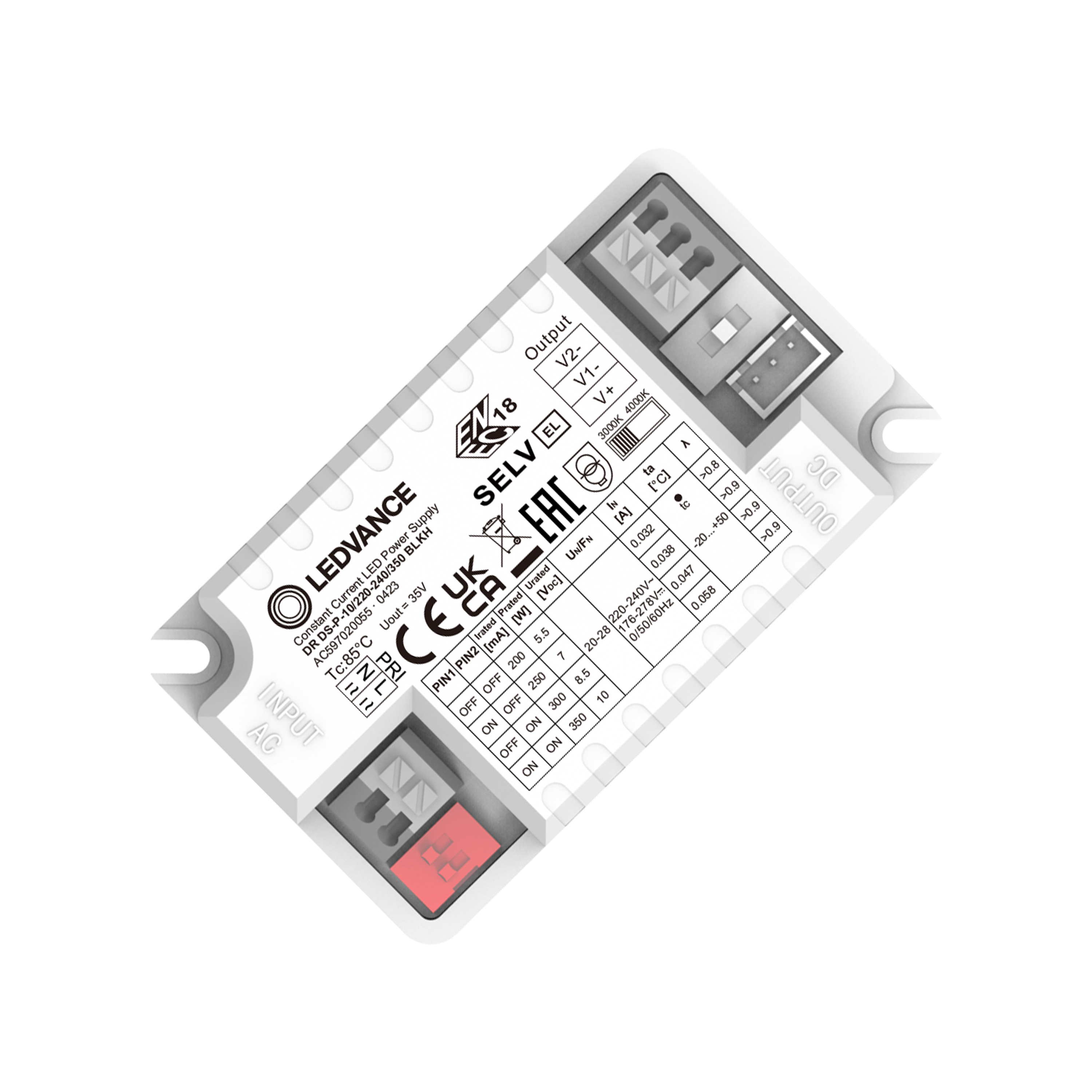

Product image: white background, diagonal
DRIVER DS-P 10W
DRIVER DS-P 10W

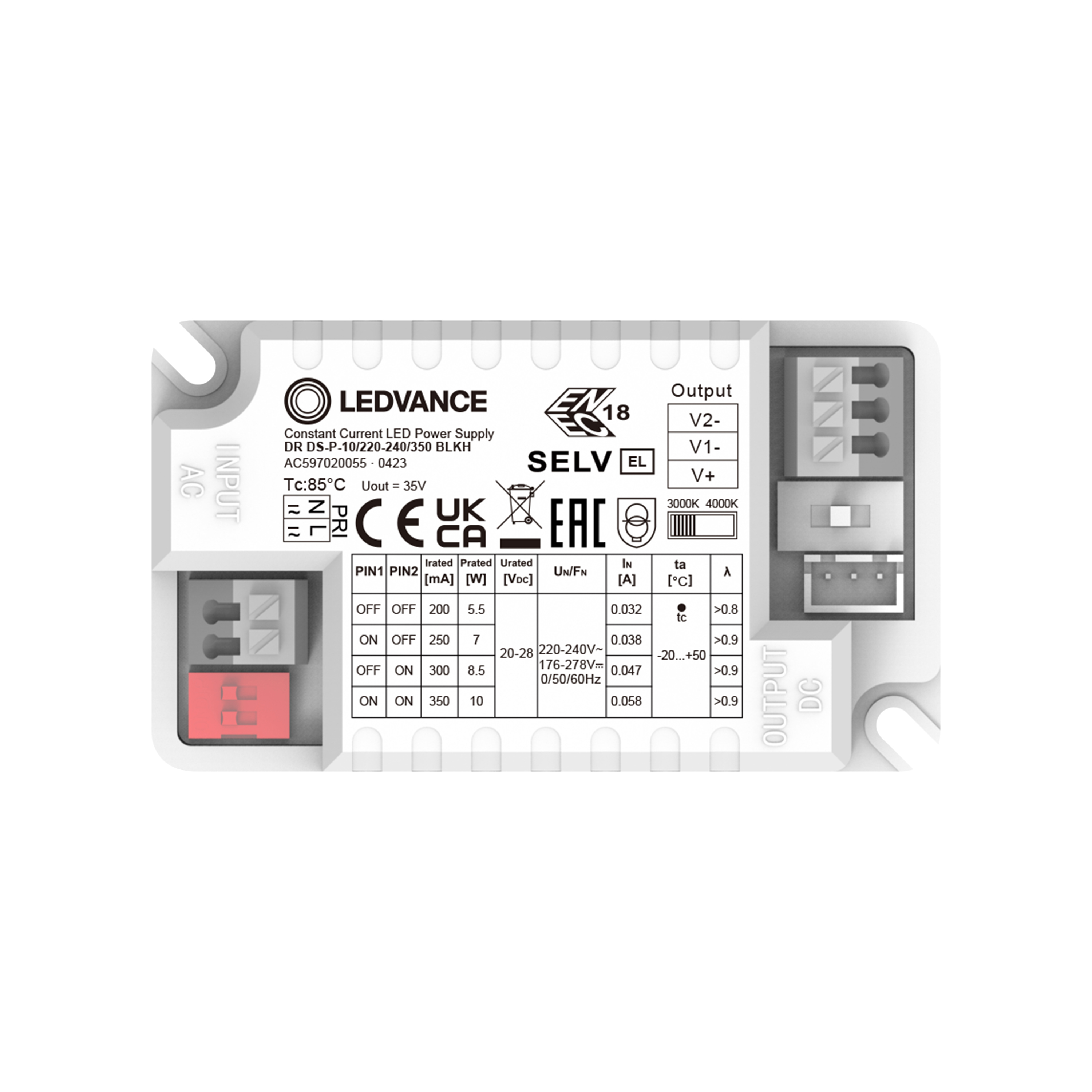

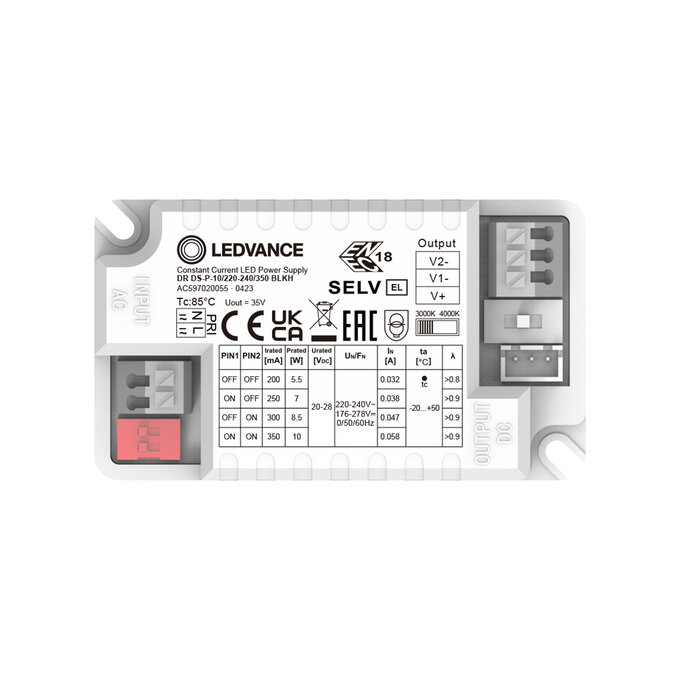

Product image: white background, horizontal
DRIVER DS-P 10W
DRIVER DS-P 10W
Product image: white background, internal view
Bulkhead Round Everloop
Bulkhead Round Everloop
Product line drawing with letters
DRIVER DS-P
DRIVER DS-P
Product line drawing with numbers
DRIVER DS-P
DRIVER DS-P

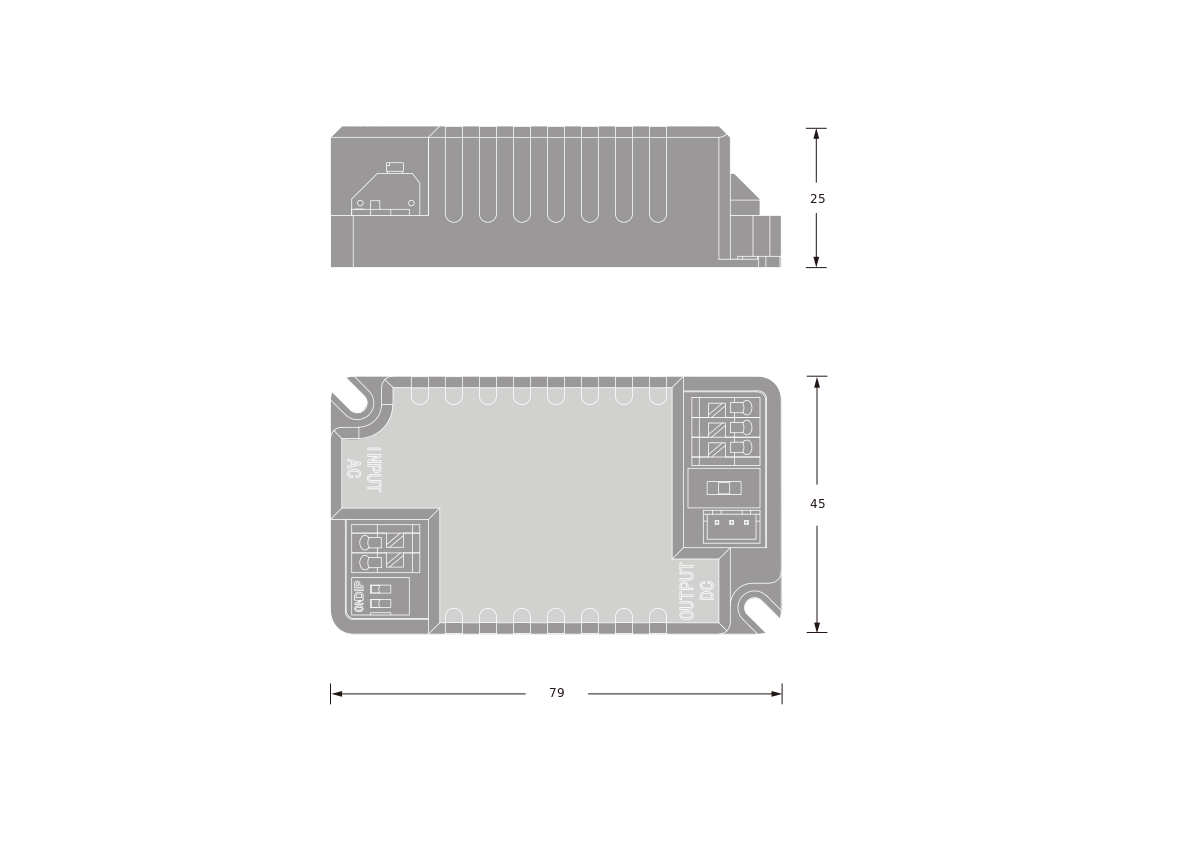

Product line drawing - technical
DRIVER DS-P
DRIVER DS-P

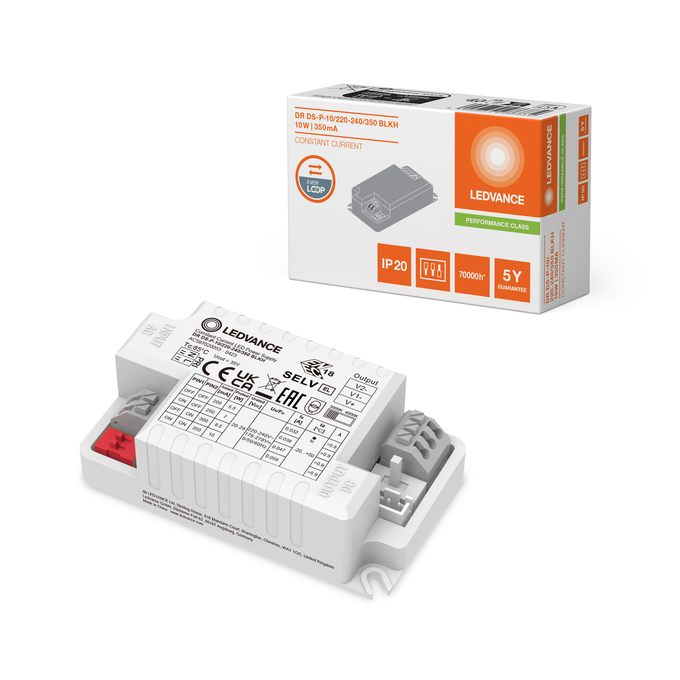

Combo Shot = Product Beauty Shot + Packaging Image
