SURFACE CIRCULAR FRAME
SF CIRCULAR 500 FRAME BK
GTIN: 4058075834200
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Design extension for a more decorative appearance
- Allows direct light as well as accentuated light to the ceiling
- Easy and quick installation
Areas of application
- Extension for SURFACE CIRCULAR 500
Product features
- Available in black / gold (like RAL790-5 / RAL260-M) and white (like RAL110-1) color
- Metal sheet frame
Equipment / Accessories
- Replacement cover optionally available
References / Links
- For Guarantee see www.ledvance.com/guarantee
Photometrical data
| Beam angle | 120 ° |
Dimensions & Weight
| Diameter | 560 mm |
| Height | 105.00 mm |
| Product weight | 2400.00 g |
Materials & Colors
| Product color | Black |
| Body material | Steel |
Application & Mounting
| Mounting type | Surface |
| Mounting location | Ceiling |
Certificates & Standards
| Ball shot safe | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075834200 | Folding box 1 |
112 mm x 567 mm x 560 mm | 2125.00 g | 35.56 dm³ |
| 4058075834217 | Shipping box 5 |
585 mm x 585 mm x 605 mm | 12515.00 g | 207.05 dm³ |

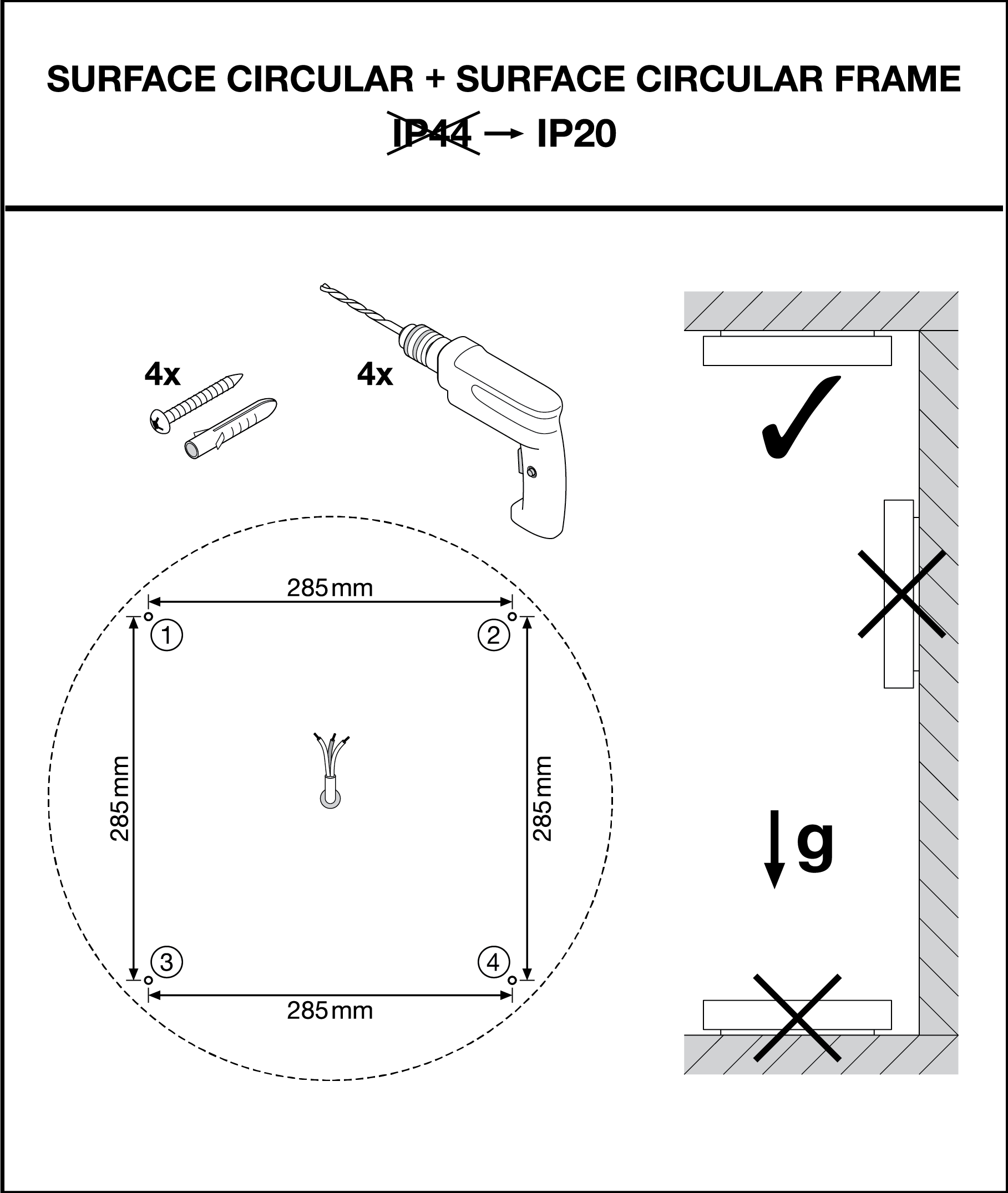

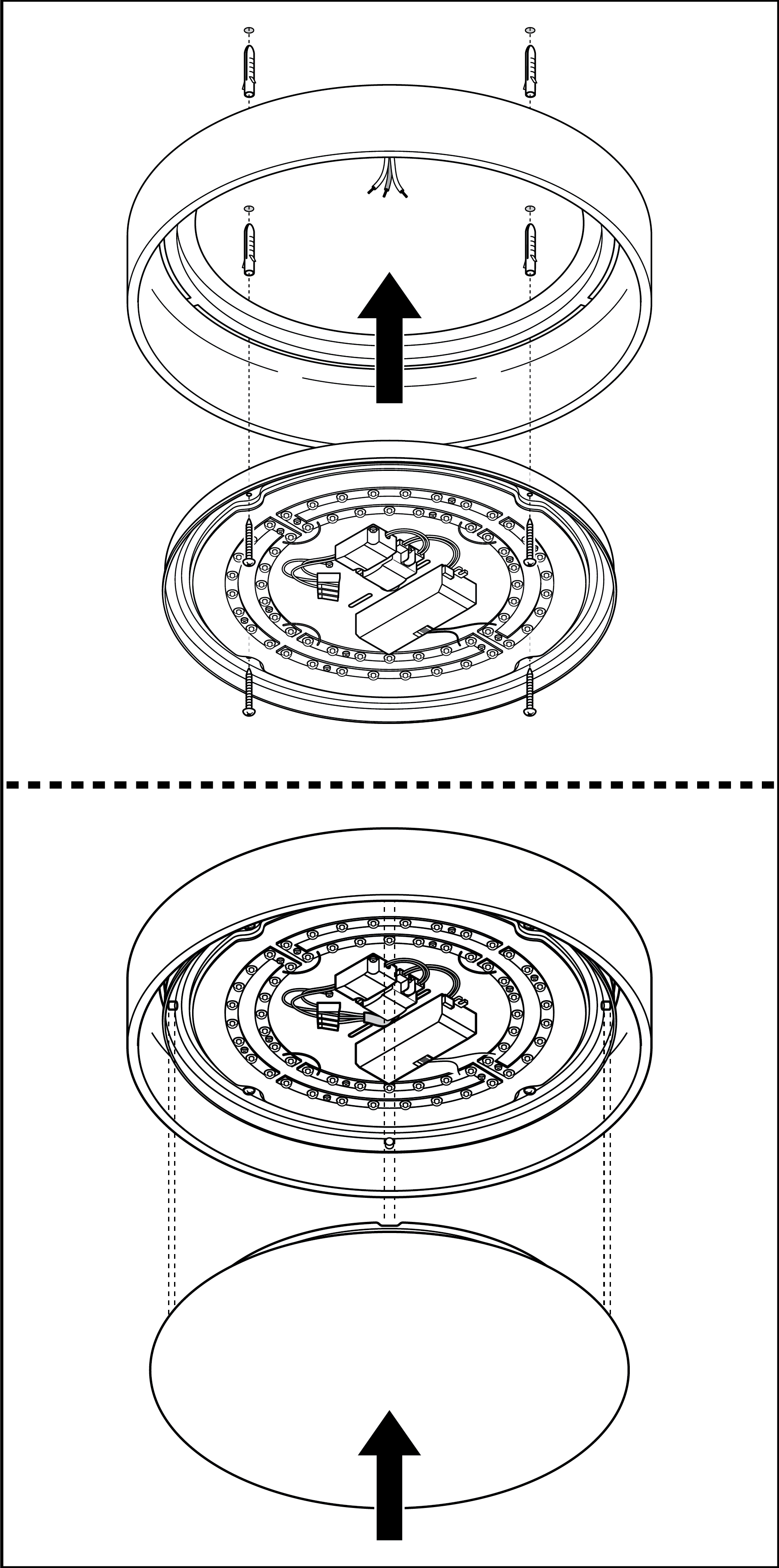

User instruction / safety instructions
UI SF CIRC FRAME
UI SF CIRC FRAME
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
SF CIRCULAR
SF CIRCULAR

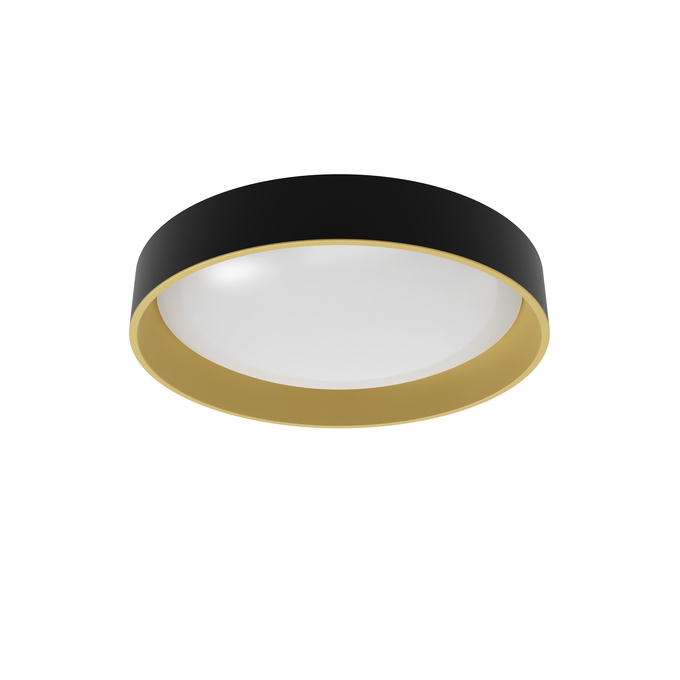

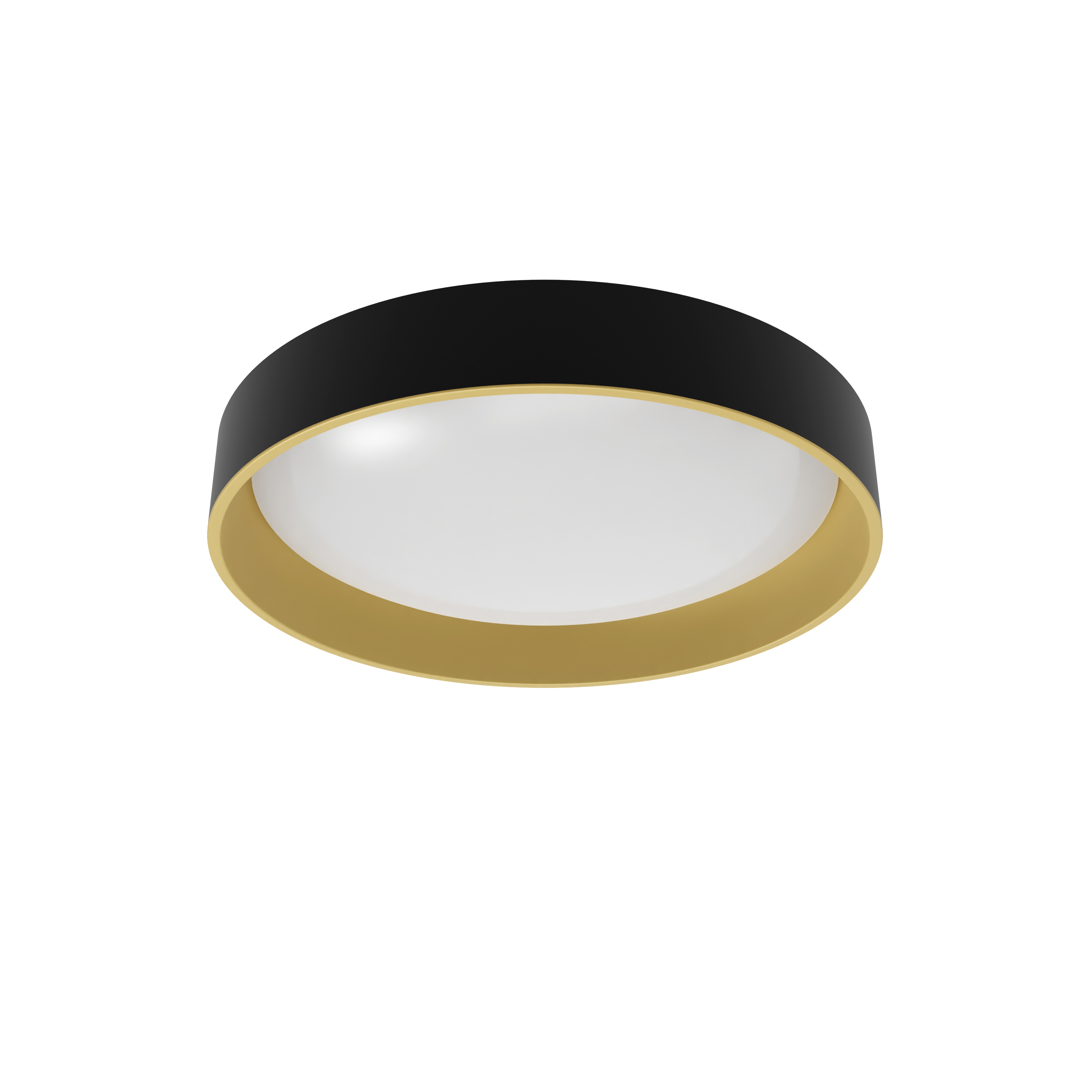

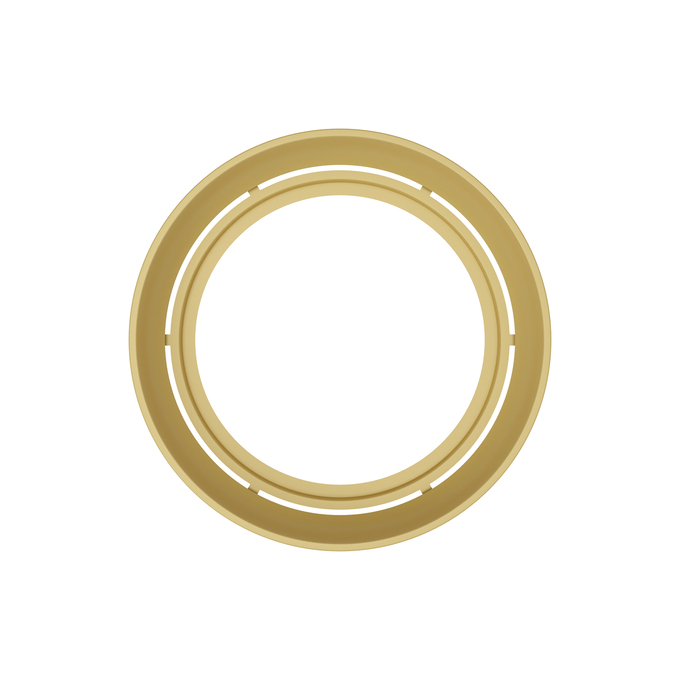

Product image: white background, upright
SF CIRCULAR 500 FRAME BK
SF CIRCULAR 500 FRAME BK

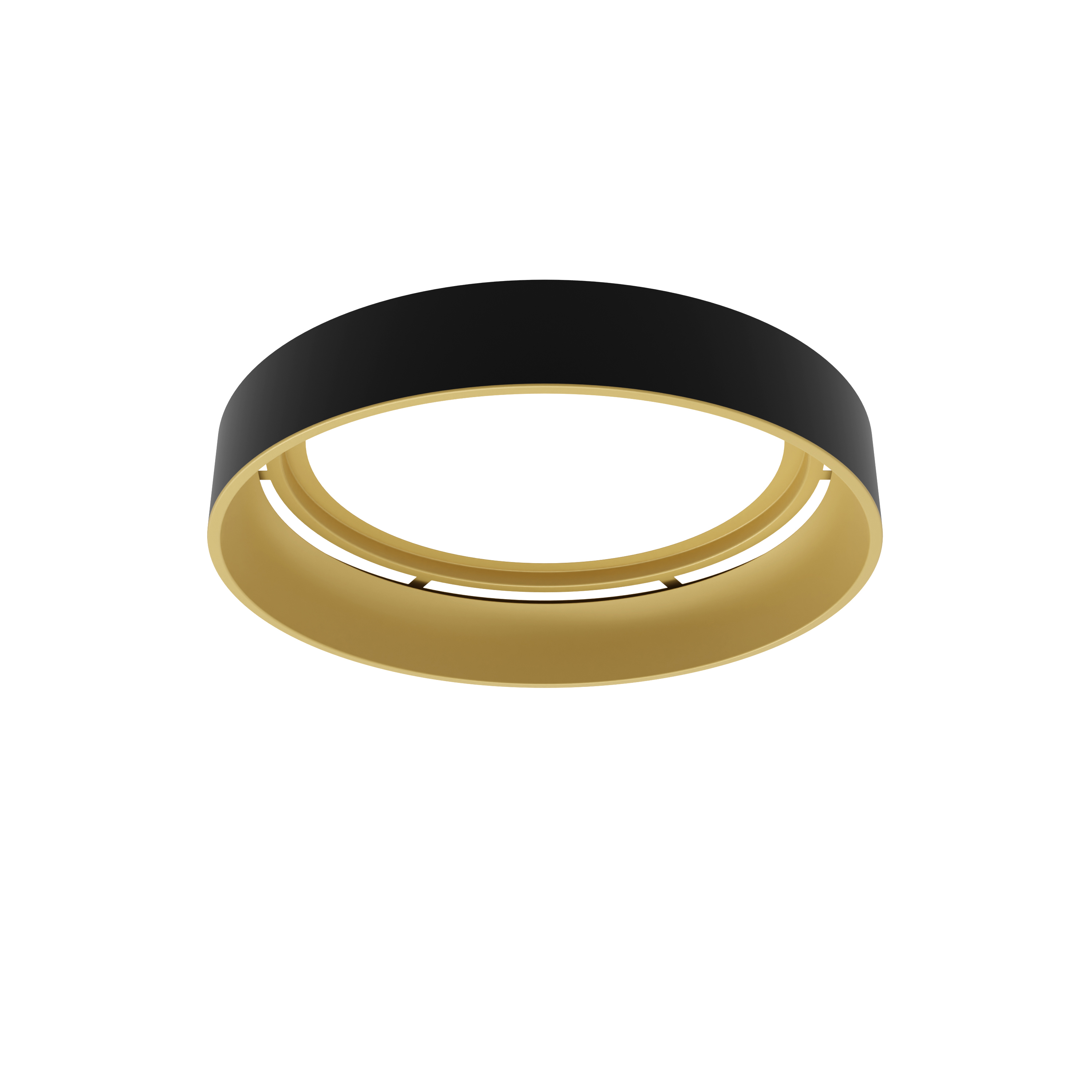

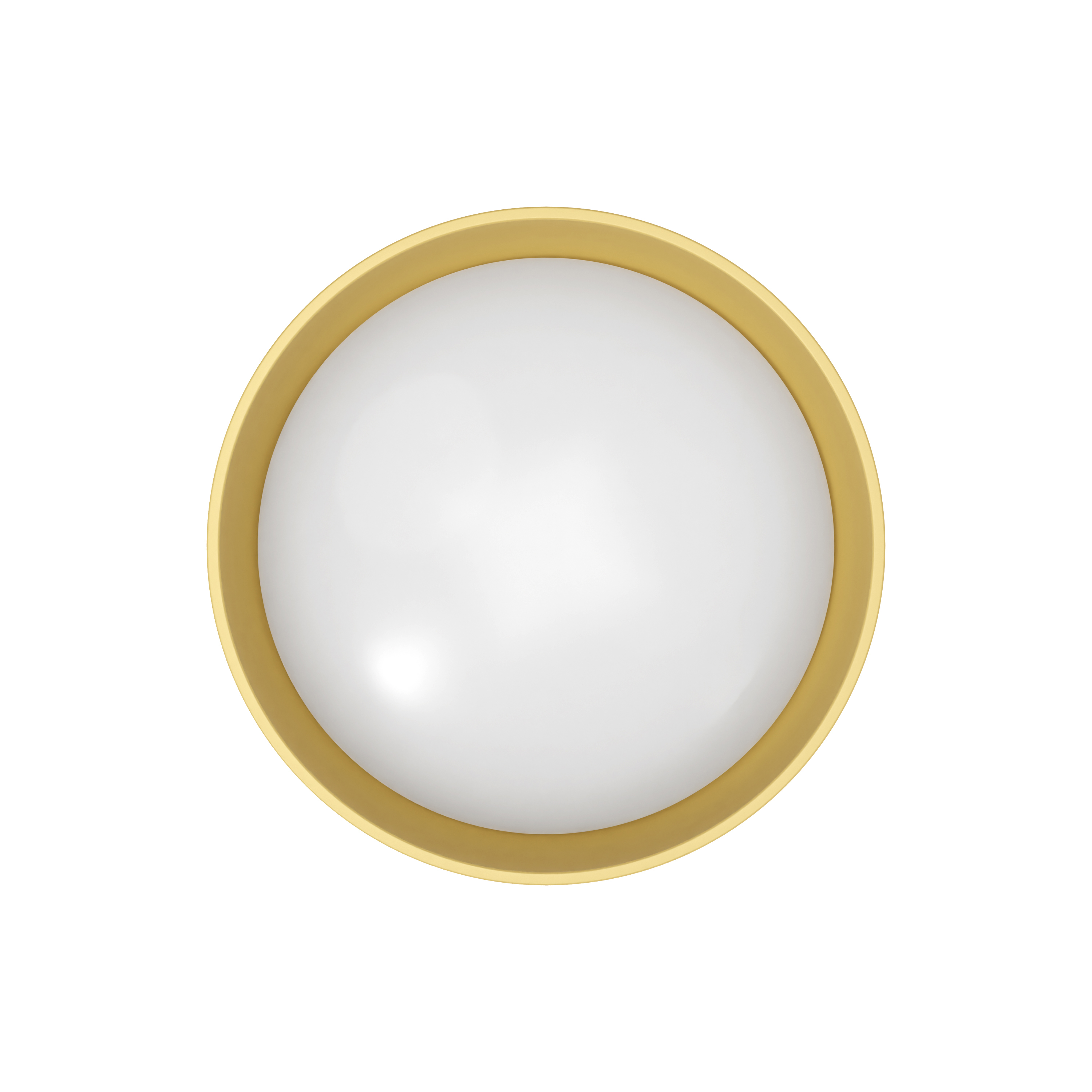

Product image: white background, with accessory, alternative image
SF CIRCULAR 500 FRAME BK
SF CIRCULAR 500 FRAME BK
Product image: white background, with accessory, alternative image
SF CIRCULAR 500 FRAME BK
SF CIRCULAR 500 FRAME BK
Product line drawing with letters
SF CIRCULAR 500 FRAME
SF CIRCULAR 500 FRAME
Product line drawing with numbers
SF CIRCULAR 500 FRAME
SF CIRCULAR 500 FRAME
Product line drawing - technical
SF CIRCULAR 500 FRAME
SF CIRCULAR 500 FRAME

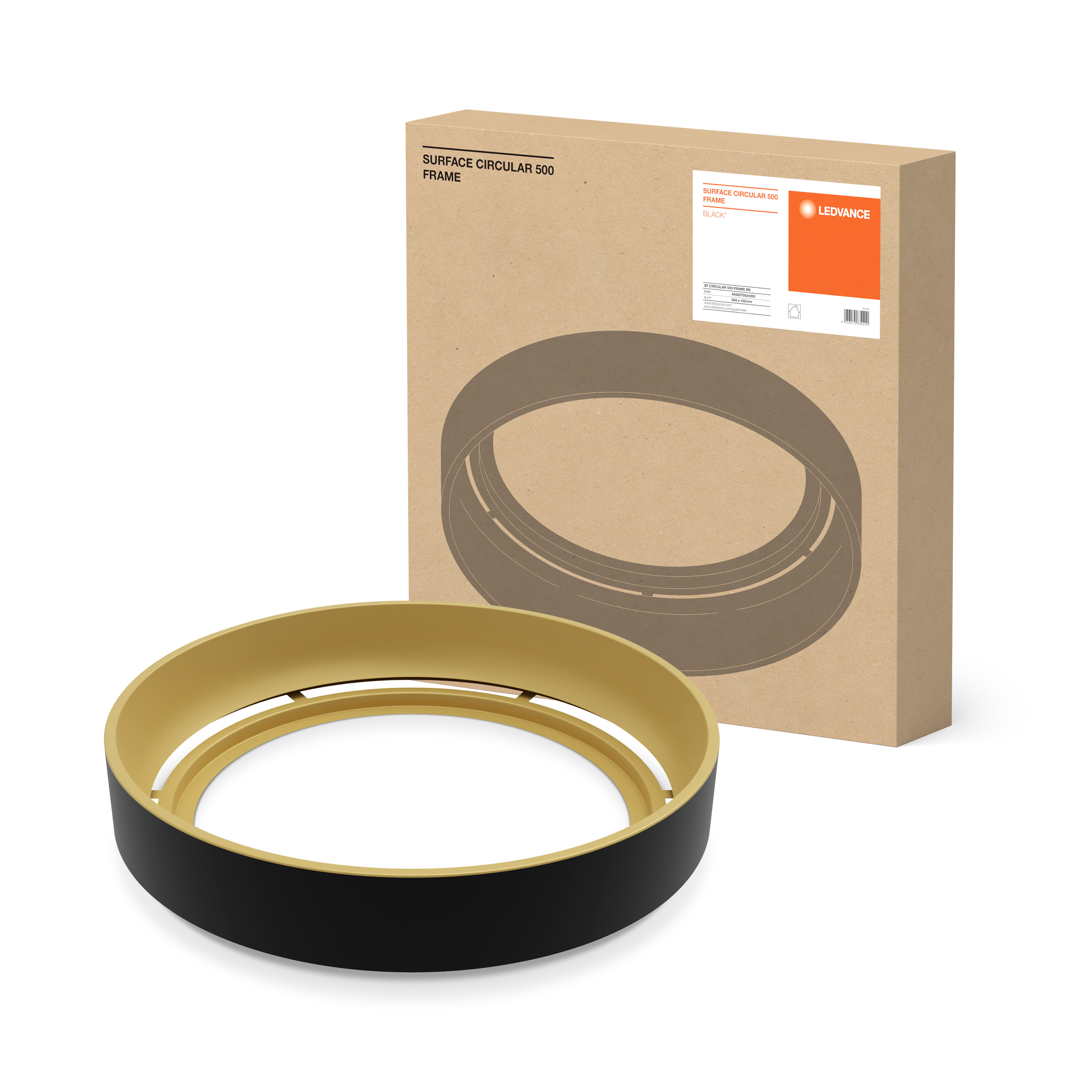

Combo Shot = Product Beauty Shot + Packaging Image
SURFACE CIRCULAR 500 FRAME BK
SURFACE CIRCULAR 500 FRAME BK
Packaging image, frontal
SURFACE CIRCULAR 500 FRAME BK
SURFACE CIRCULAR 500 FRAME BK
Packaging image, spacial
SURFACE CIRCULAR 500 FRAME BK
SURFACE CIRCULAR 500 FRAME BK
Catalog info 1
SF CIRCULAR 500 FRAME
SF CIRCULAR 500 FRAME
Catalog info 2
SF CIRCULAR 500 FRAME
SF CIRCULAR 500 FRAME
IES file (IES)
SF C 500 19W BLACK FRAME 1500lm
SF C 500 19W BLACK FRAME 1500lm
IES file (IES)
SF C 500 19W BLACK FRAME 1300lm
SF C 500 19W BLACK FRAME 1300lm
IES file (IES)
SF C 500 30W BLACK FRAME 2150lm
SF C 500 30W BLACK FRAME 2150lm
IES file (IES)
SF C 500 42W BLACK FRAME 3000lm
SF C 500 42W BLACK FRAME 3000lm
IES file (IES)
SF C 500 6W BLACK FRAME 500lm DALI EM
SF C 500 6W BLACK FRAME 500lm DALI EM
LDT file (Eulumdat)
SF C 500 19W BLACK FRAME 1500lm
SF C 500 19W BLACK FRAME 1500lm
LDT file (Eulumdat)
SF C 500 19W BLACK FRAME 1300lm
SF C 500 19W BLACK FRAME 1300lm
LDT file (Eulumdat)
SF C 500 30W BLACK FRAME 2150lm
SF C 500 30W BLACK FRAME 2150lm
LDT file (Eulumdat)
SF C 500 42W BLACK FRAME 3000lm
SF C 500 42W BLACK FRAME 3000lm
LDT file (Eulumdat)
SF C 500 6W BLACK FRAME 500lm DALI EM
SF C 500 6W BLACK FRAME 500lm DALI EM
UGR file (UGR table)
SF C 500 19W BLACK FRAME 1500lm
SF C 500 19W BLACK FRAME 1500lm

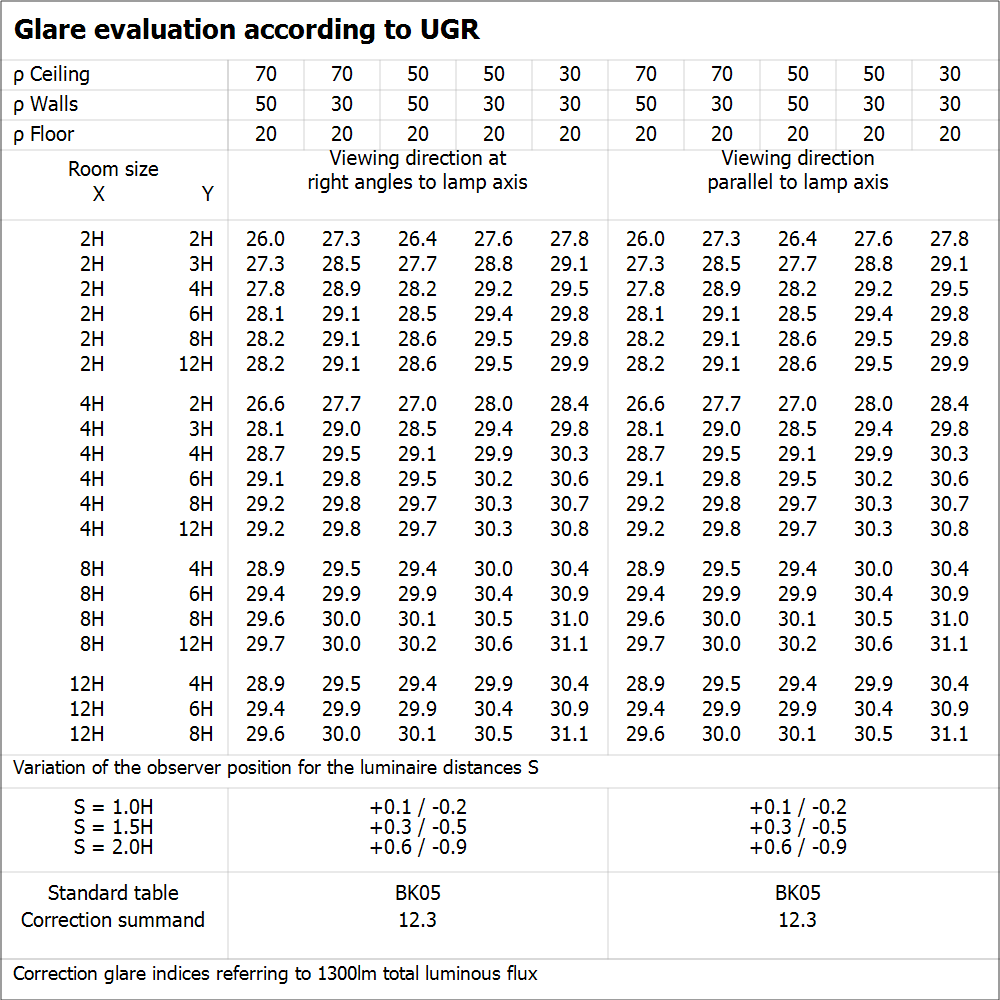

UGR file (UGR table)
SF C 500 19W BLACK FRAME 1300lm
SF C 500 19W BLACK FRAME 1300lm

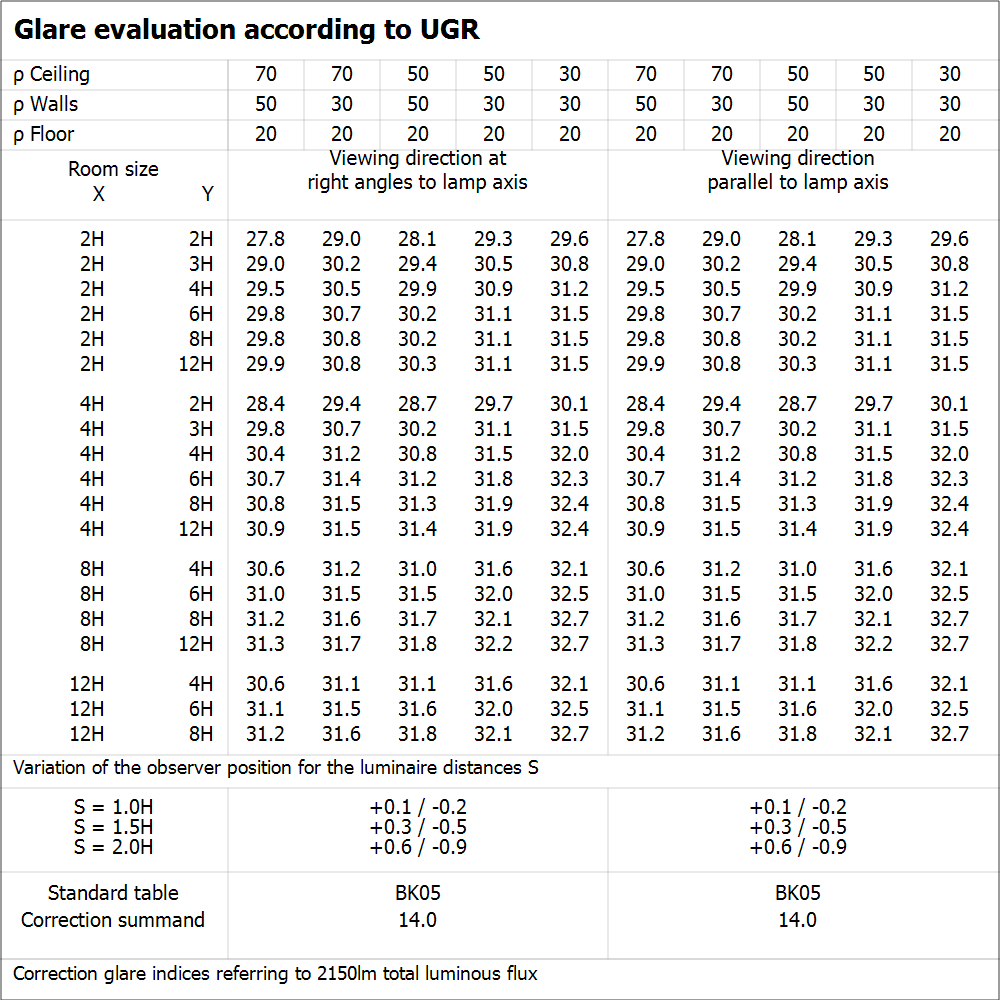

UGR file (UGR table)
SF C 500 30W BLACK FRAME 2150lm
SF C 500 30W BLACK FRAME 2150lm
UGR file (UGR table)
SF C 500 42W BLACK FRAME 3000lm
SF C 500 42W BLACK FRAME 3000lm
UGR file (UGR table)
SF C 500 6W BLACK FRAME 500lm DALI EM
SF C 500 6W BLACK FRAME 500lm DALI EM
Light distribution curve type cone
SF C 500 19W BLACK FRAME 1500lm
SF C 500 19W BLACK FRAME 1500lm
Light distribution curve type cone
SF C 500 19W BLACK FRAME 1300lm
SF C 500 19W BLACK FRAME 1300lm
Light distribution curve type cone
SF C 500 30W BLACK FRAME 2150lm
SF C 500 30W BLACK FRAME 2150lm
Light distribution curve type cone
SF C 500 42W BLACK FRAME 3000lm
SF C 500 42W BLACK FRAME 3000lm
Light distribution curve type cone
SF C 500 6W BLACK FRAME 500lm DALI EM
SF C 500 6W BLACK FRAME 500lm DALI EM
Light distribution curve type polar
SF C 500 19W BLACK FRAME 1500lm
SF C 500 19W BLACK FRAME 1500lm
Light distribution curve type polar
SF C 500 19W BLACK FRAME 1300lm
SF C 500 19W BLACK FRAME 1300lm
Light distribution curve type polar
SF C 500 30W BLACK FRAME 2150lm
SF C 500 30W BLACK FRAME 2150lm
Light distribution curve type polar
SF C 500 42W BLACK FRAME 3000lm
SF C 500 42W BLACK FRAME 3000lm
Light distribution curve type polar
SF C 500 6W BLACK FRAME 500lm DALI EM
SF C 500 6W BLACK FRAME 500lm DALI EM
Tender documents
SURFACE CIRCULAR FRAME 500 FRAME BK-EN
SURFACE CIRCULAR FRAME 500 FRAME BK-EN
Application pictures

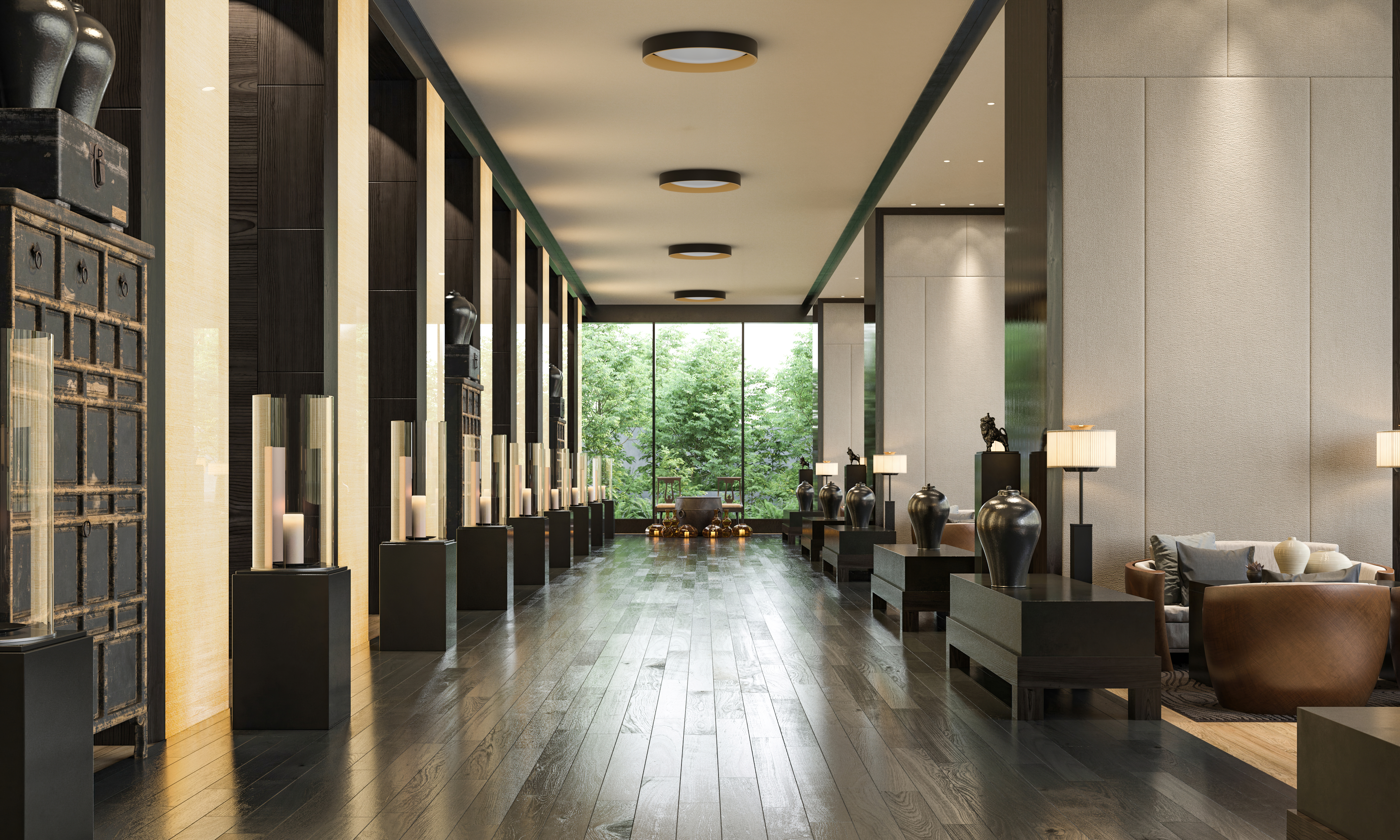

Surface Circular with frame in a lobby lights off
Surface Circular with frame in a lobby lights off
Application pictures Getty

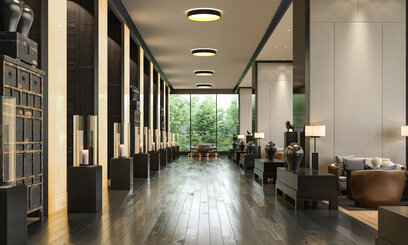

Surface Circular with frame in lobby lights on
Surface Circular with frame in lobby lights on
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075834200 | 7510807 | 4152028 | 3361428 | 941006100 |
