TruSys PERFORMANCE VERY WIDE
TruSys® PFM VW 50 W/4000 K
GTIN: 4058075398771
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Very wide light distribution for area lighting
- Easy installation, no tools required for connection
- Energy saving and cost-effective
- Flexible application due to a range of different lumen packages and beam angles
- Rows of up to 57 (On-Off) / 66 (DALI) luminaires possible
- Versions with DALI ECG available
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Industry halls, high rack warehouse, garages, hardware stores
- Discounters, supermarkets
Product features
- Beam angle very wide: 120°
- Click into place solution with smart click buttons
- Luminous efficacy: up to 160 lm/W
- Fixed luminare taps
- Lumen package 5600 lm, 8000 lm, 11200 lm
- Steel-sheet housing
- Lens material: PMMA
- Type of protection: IP20
- Common family design with LEDVANCE
- Lifetime (L80/B10): up to 60,000 h
Equipment / Accessories
- Mounting rail with fixed integrated 5- and 8-pole cable
Electrical data
| Nominal wattage | 50.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 270 mA |
| Inrush current | 30 A |
| Inrush current time Th50 | 400 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 8 |
| Max. number of luminaires per miniature circuit breaker C10 | 8 |
| Max. number of luminaires per miniature circuit breaker C16 | 13 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 8000 lm |
| Luminous efficacy | 160 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | ≤3 sdcm |
| Low flicker | Yes |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 120 ° |
| UGR | 23 |
Dimensions & Weight
| Length | 1500.00 mm |
| Height | 39.40 mm |
| Width | 66.80 mm |
| Product weight | 1660.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Steel |
| Cover material | Polymethylmethacrylate (PMMA) |
| Light emitting surface material | PMMA |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -25…+40 °C |
| Type of connection | Plug-In connection |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK04 |
| Dimmable | No |
| Mounting type | Suspended/Surface |
| Mounting location | Mounting rail |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 65000 h 1) |
| Lifespan L80/B10 at 25 °C | 60000 h 1) |
| Lifespan L90/B10 at 25 °C | 50000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 620 mA |
| ECG - Output ripple current | < 20 % |
Certificates & Standards
| Standards | CE, CB, ENEC, EAC |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Number of illuminants | - |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075398771 | Folding box 1 |
108 mm x 1,534 mm x 102 mm | 1835.00 g | 16.90 dm³ |
| 4058075398788 | Shipping box 4 |
1,547 mm x 218 mm x 231 mm | 8133.00 g | 77.90 dm³ |
User instruction / safety instructions
UI_TruSys® TRUNKING SYSTEM PFM ON/OFF
UI_TruSys® TRUNKING SYSTEM PFM ON/OFF
Legal information
LS Insert Trusys PFM
LS Insert Trusys PFM
Declarations of conformity
TRUSYS PFM
TRUSYS PFM
Product image: white background, diagonal
TRUSYS PFM LUM
TRUSYS PFM LUM
Product line drawing with letters
TRUSYS PFM
TRUSYS PFM
Product line drawing with numbers
TRUSYS PFM
TRUSYS PFM
Product line drawing, front, no dimensions
TRUSYS PFM
TRUSYS PFM
IES file (IES)
TRUSYS PFM 50W 4000K VW
TRUSYS PFM 50W 4000K VW
LDT file (Eulumdat)
TRUSYS PFM 50W 4000K VW
TRUSYS PFM 50W 4000K VW
ULD file (DIALux)
TRUSYS PFM 50W-4000K VW
TRUSYS PFM 50W-4000K VW
UGR file (UGR table)
TRUSYS PFM 50W 4000K VW
TRUSYS PFM 50W 4000K VW
Light distribution curve type cone
TRUSYS PFM 50W 4000K VW
TRUSYS PFM 50W 4000K VW
Light distribution curve type cone
TRUSYS PFM 50W 4000K VW 4x1 EUE LEDV
TRUSYS PFM 50W 4000K VW 4x1 EUE LEDV
Light distribution curve type polar
TRUSYS PFM 50W 4000K VW
TRUSYS PFM 50W 4000K VW
Light distribution curve type polar
TRUSYS PFM 50W 4000K VW 4x1 EUE LEDV
TRUSYS PFM 50W 4000K VW 4x1 EUE LEDV
Tender documents
TruSys PERFORMANCE VERY WIDE 50 W4000 K-EN
TruSys PERFORMANCE VERY WIDE 50 W4000 K-EN
Application pictures

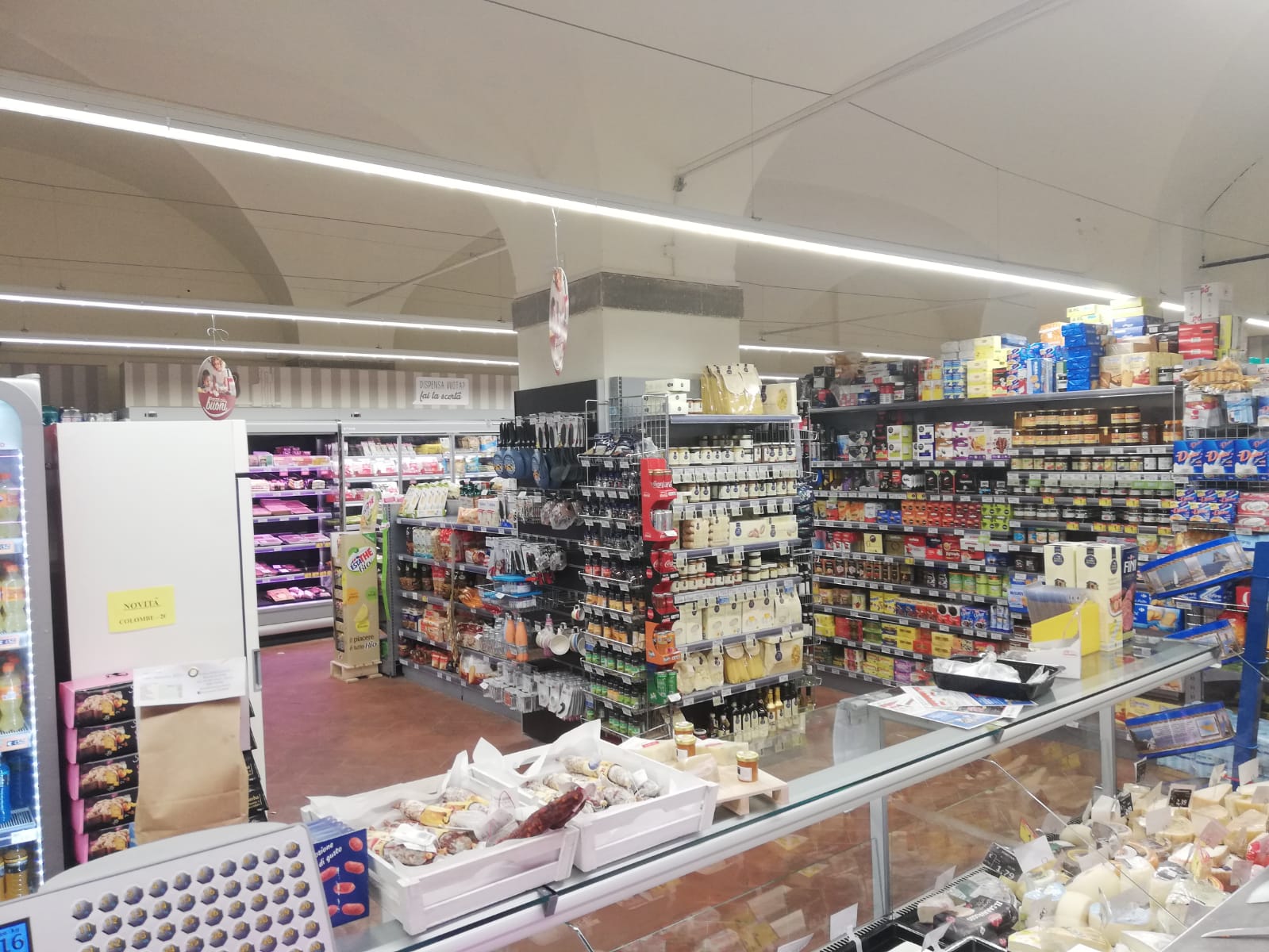

CARREFOUR STORE Italy Project Pisa (PI)
CARREFOUR STORE Italy Project Pisa (PI)
Application pictures

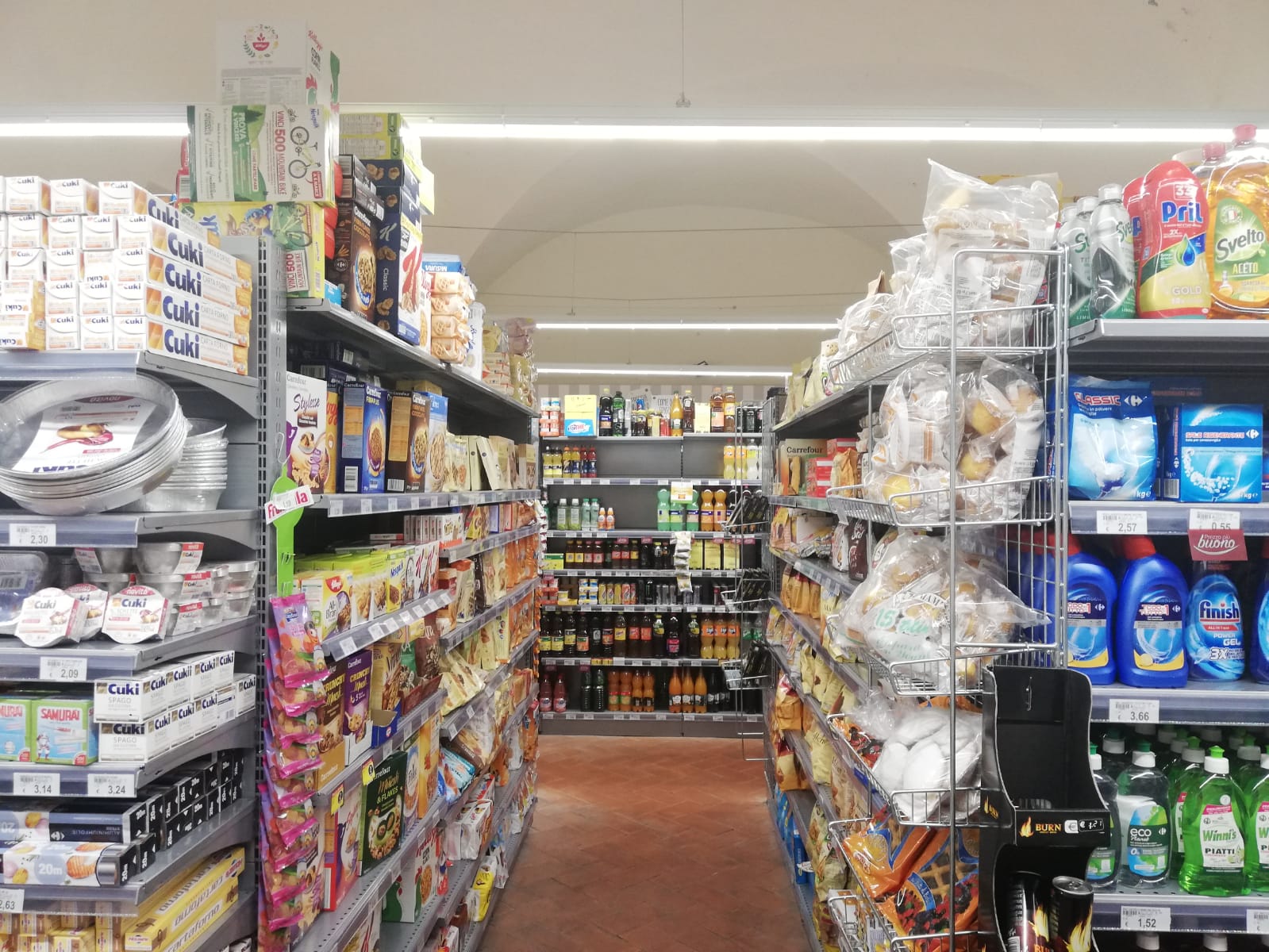

CARREFOUR STORE Italy Project Pisa (PI)
CARREFOUR STORE Italy Project Pisa (PI)
Application pictures

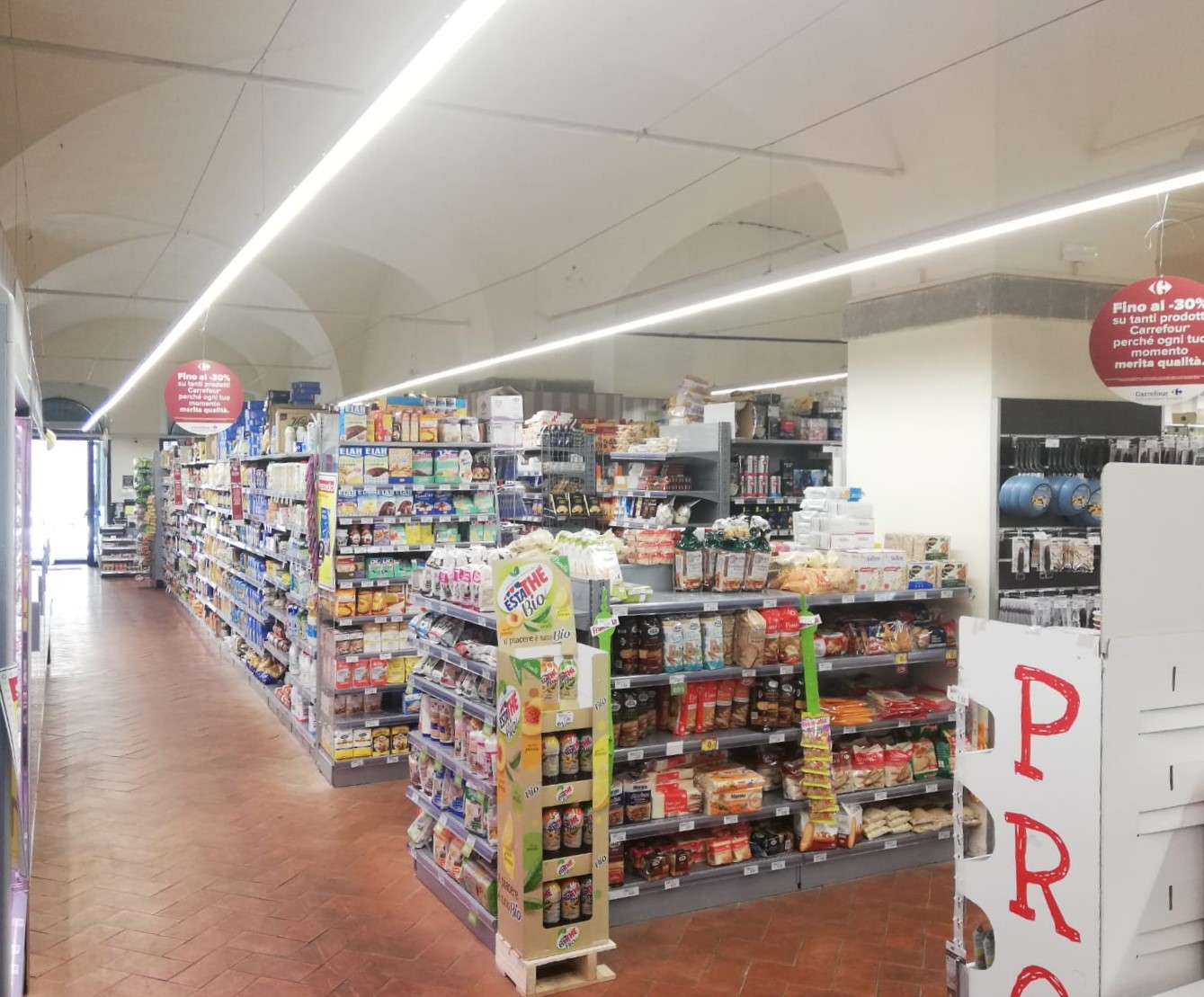

CARREFOUR STORE Italy Project Pisa (PI)
CARREFOUR STORE Italy Project Pisa (PI)
Application pictures

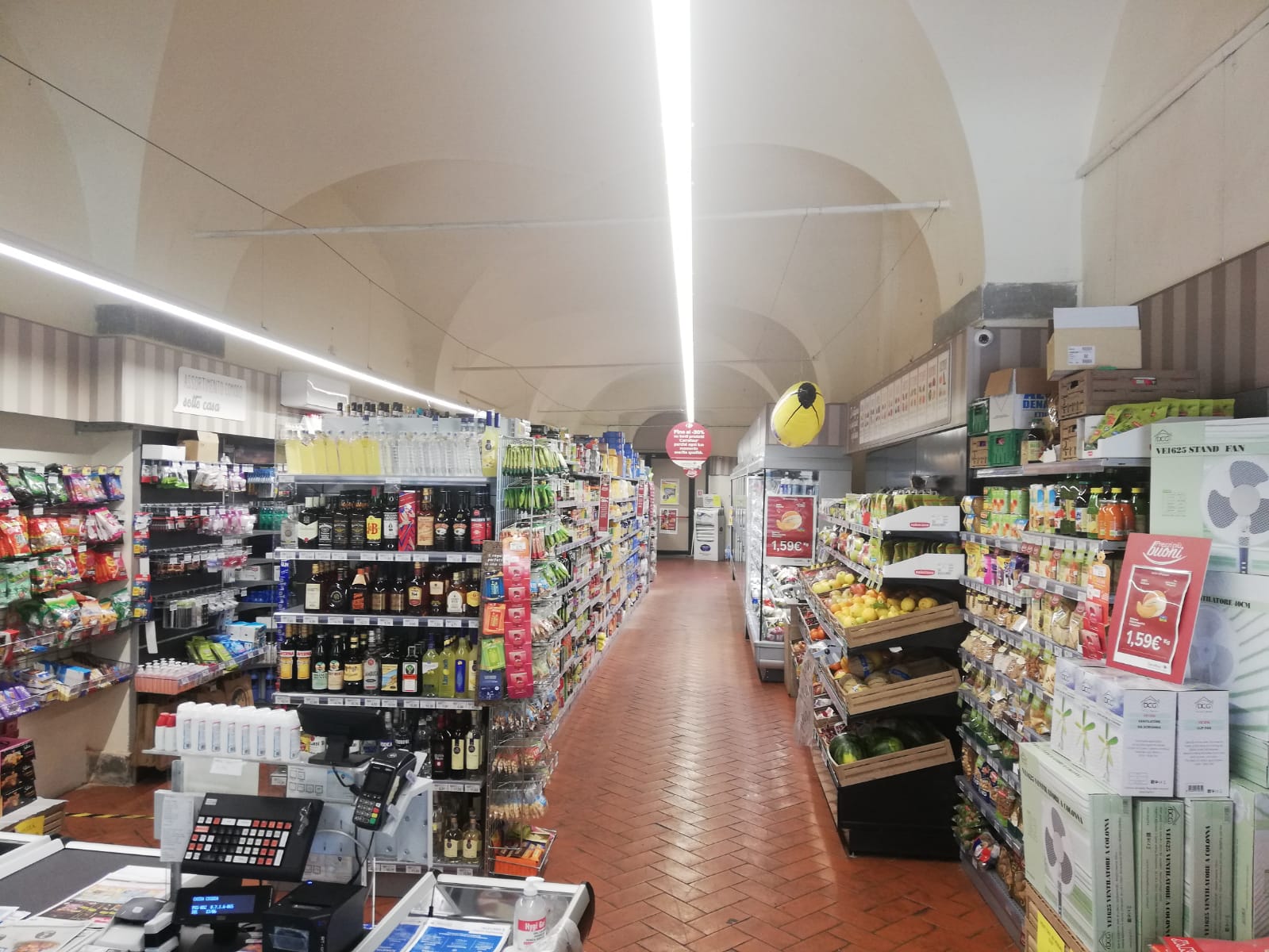

CARREFOUR STORE Italy Project Pisa (PI)
