LINEAR COMPACT BATTEN
LN COMP Batten 1500 25 W 3000 K
GTIN: 4058075099777
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Compact dimensions
- Little space required thanks to compact dimensions
- Seamless connection without visible cables when connected to Linear Compact High Output
- High lumen output up to 2500 lm
- Flexible application due to a wide range of available lengths of 600 to 1500 mm
- Low flicker light thanks to special electronic control gear
- 5 years guarantee
Areas of application
- Direct replacement for luminaires with fluorescent lamps
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Accent lighting
- Public areas
- Cove lighting
- Shelves, furniture integration or under cabinet mounting
- Seamless linear lighting
Product features
- Replacement for traditional T8 luminaires
- Wiring at back side of luminaire
- Translucent end caps
- Connectible at the beginning of a light line with Linear Compact High Output luminaire
- Versions with luminous flux 1000…2500 lm available
- 3 different lengths available
- High luminous efficacy: up to 100 lm/W
- Glow Wire Test according to IEC 60695-2-12: 850 °C
Equipment / Accessories
- Mounting clips included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 25.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 115 mA |
| Inrush current | 14.6 A |
| Inrush current time Th50 | 150 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 76 |
| Max. number of luminaires per miniature circuit breaker C10 | 61 |
| Max. number of luminaires per miniature circuit breaker C16 | 97 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 30 % |
| Protection class | II |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 2500 lm |
| Luminous efficacy | 100 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | < 5 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 140 ° |
Dimensions & Weight
| Length | 1475.00 mm |
| Height | 38.00 mm |
| Width | 27.00 mm |
| Product weight | 290.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Screw terminal, 2-Pole (L,N) |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK03 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 40000 h 1) |
| Lifespan L90/B10 at 25 °C | 30000 h |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, CB, TÜV SÜD, EAC, EPD |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| EPD | LEDV-00019-V01.01-EN |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075099777 | Folding box 1 |
29 mm x 1,480 mm x 42 mm | 360.00 g | 1.80 dm³ |
| 4058075099784 | Shipping box 25 |
1,518 mm x 242 mm x 175 mm | 11190.00 g | 64.29 dm³ |
User instruction / safety instructions
LINEAR COMPACT BATTEN
LINEAR COMPACT BATTEN
Legal information
LINEAR COMPACT BATTEN
LINEAR COMPACT BATTEN
Legal information
Legal insert LINEAR COMPACT AND ORBIS DISC
Legal insert LINEAR COMPACT AND ORBIS DISC
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
Linear Batten CE Declaration
Linear Batten CE Declaration
Declarations of conformity
CE Certificate Linear Comp Batten
CE Certificate Linear Comp Batten
EPD
EPD EN LINEAR COMPACT BATTEN
EPD EN LINEAR COMPACT BATTEN

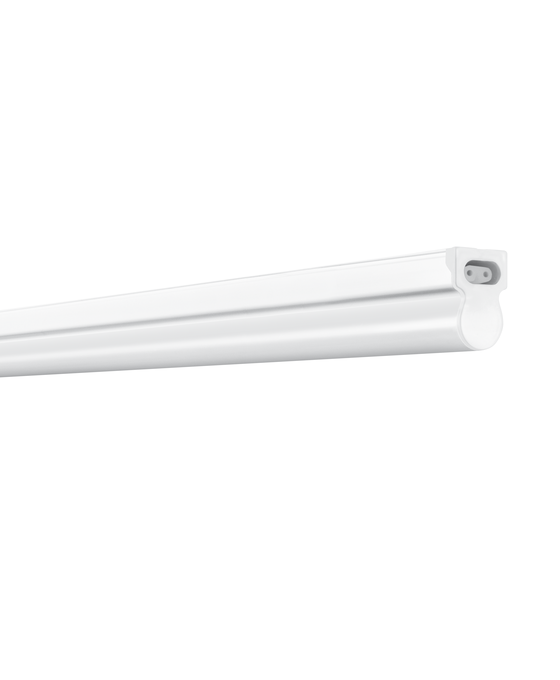

Product image: white background, diagonal, alternative image
LN COMP BATTEN 1500
LN COMP BATTEN 1500

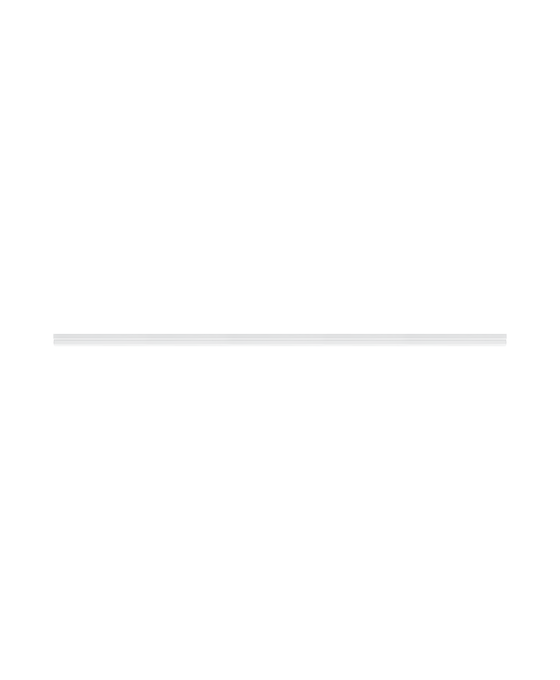

Product image: white background, horizontal
LN COMP BATTEN 1500
LN COMP BATTEN 1500

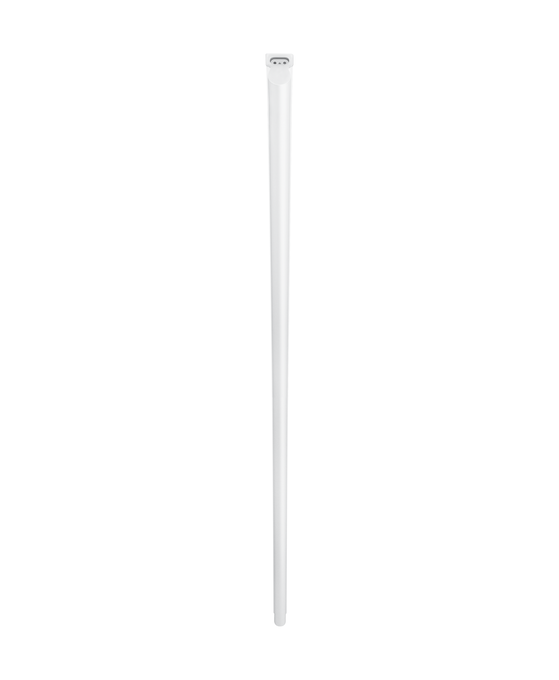

Product image: white background, spacial
