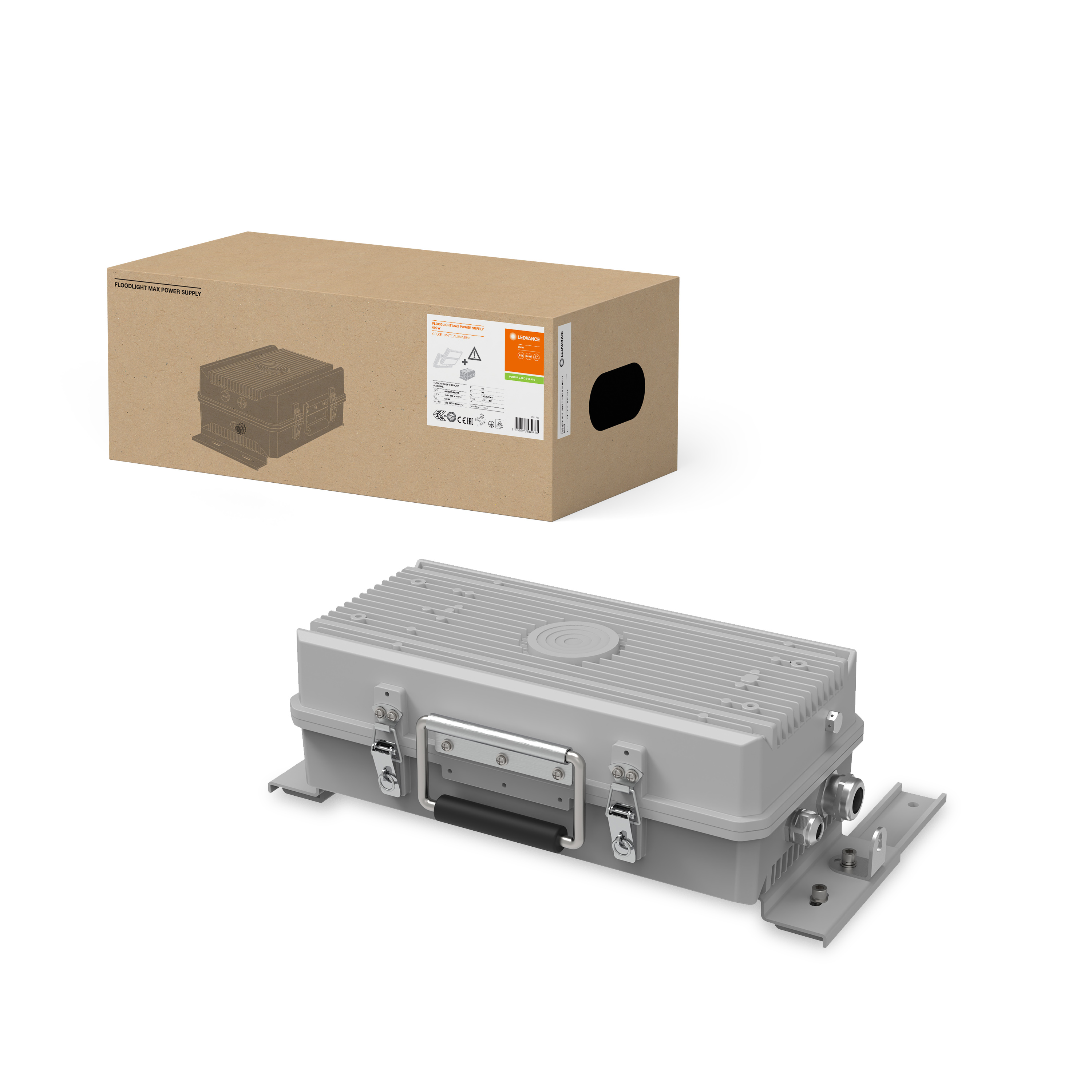

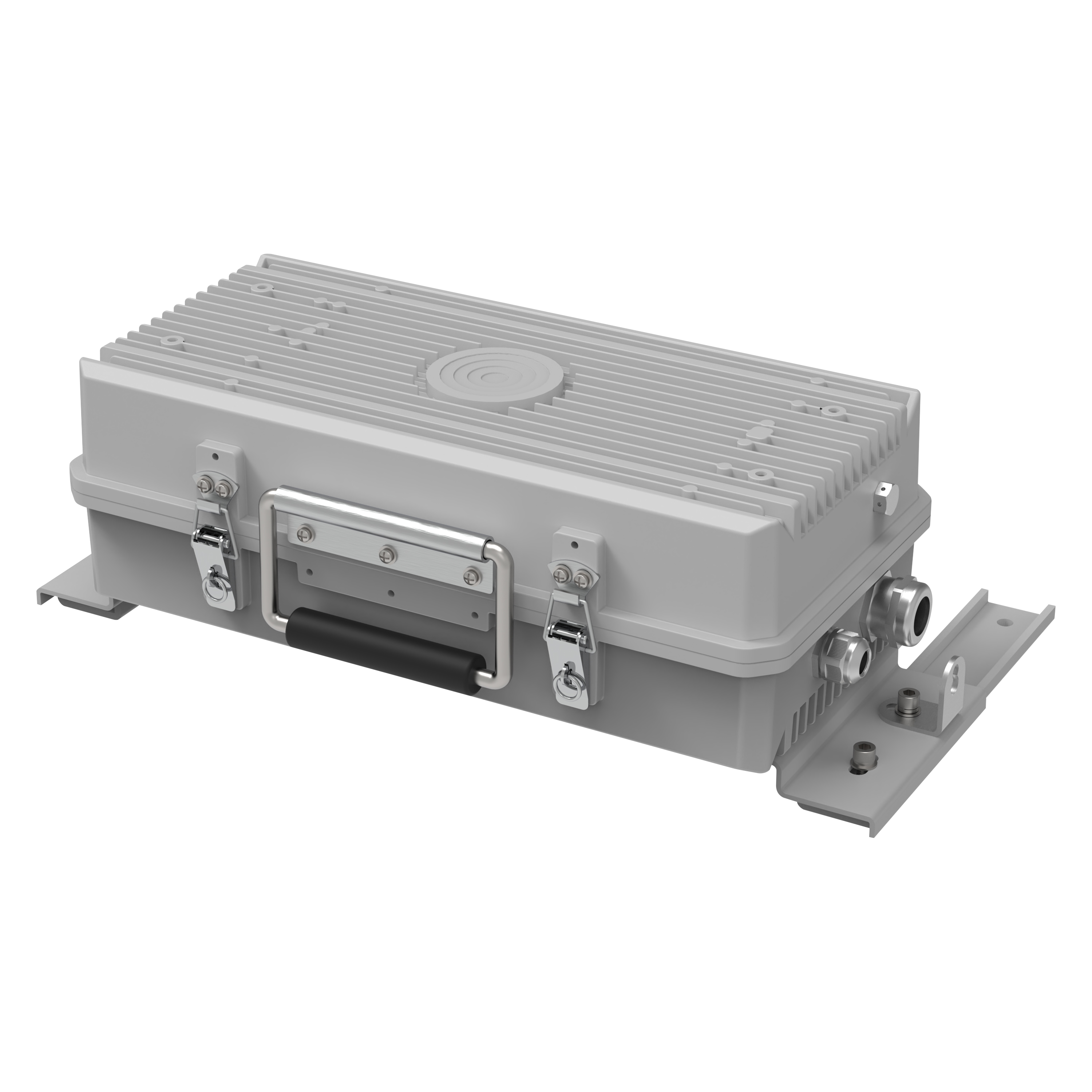

FL MAX POWER SUPPLY P 600W WAL

GTIN: 4058075580718 Folding box / 1 Show all packages

Contact sales

Highly robust and durable
Quick and easy wiring, due to tool-free housing opening
Optimized product logistic, luminaire heads and power supplies to be ordered separately in stand-alone packaging
5 years guarantee

Power supply for Floodlight Max luminaire heads
Joint or separate installation with Floodlight Max luminaire head with up to 40 m distance
M20 and M25 PG glands for mains cable feed-in
LED-module wiring by means of pre-installed fast quick release connector
High surge protection: up to 10 kV (L/N-PE and L-N)

Extension cables and mounting kit for pole installation of power supply in preparation

Floodlight Max Luminaire Heads must be operated with official Floodlight Max Power Supplies only, as described in the user manual.
If only one fixation point is used for luminaires installed higher >3m, a secondary fixation of luminaire and bracket (e.g. a restraining wire) is needed for safety reasons.
All electrical connections must be made by a qualified person.
Caution, risk of electric shock.
Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Do not stare at the operating light source: The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer that 4 m is not expected.

Nominal wattage	600.00 W
Nominal voltage	200…277 V
Mains frequency	50…60 Hz
Nominal current	2600 mA
Inrush current	90 A
Inrush current time T_h50	1200 µs
Max. number of luminaires per miniature circuit breaker C16	1
Power factor λ	0.95
Total harmonic distortion	< 20 %
Protection class	I

Luminous intensity	-
Flickering metric (Pst LM)	-
Stroboscope effect metric (SVM)	-

Cover material	Aluminium
Glow Wire Test according to IEC 60695-2-12	650 °C
Mercury content	0.0 mg

Ambient temperature range	-30…+50 °C
Temperature range at storage	-40…+70 °C
Type of protection	IP67
Protection class IK (shock resistance)	IK08
Dimmable	No
Mounting location	Wall, Pole, Floor
With light source	No

Number of switching cycles

100000

Output current

3160 mA

Standards	CE, CB, ENEC, EAC, EPD
Luminaire with limited surface temperature, "D sign"	No
Ball shot safe	Yes
EPD	LEDV-00007-V01.01-EN

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)
