DAMP PROOF
DP 1500 30 W 6500 K IP65 GY
GTIN: 4058075218048
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Uniform light distribution
- Energy savings of up to 50 % (compared to luminaires that use fluorescent lamps)
- Easy installation, no tools required for connection
- 5 years guarantee
Areas of application
- Industrial and storage facilities
- Car parks and underpasses
- Garages
- Workshops, assembly lines
Product features
- High luminous efficacy: up to 115 lm/W
- Beam angle: 105°
Equipment / Accessories
- Stainless steel clamps with safety screws included
- Mounting accessories included (suspension kit, theft protection kit)
References / Links
- For Guarantee see www.ledvance.com/guarantee
Electrical data
| Nominal wattage | 30.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 150 mA |
| Inrush current | 6 A |
| Inrush current time Th50 | 270 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 43 |
| Max. number of luminaires per miniature circuit breaker C10 | 41 |
| Max. number of luminaires per miniature circuit breaker C16 | 66 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
Photometrical data
| Luminous flux | 3500 lm |
| Luminous efficacy | 115 lm/W |
| Color temperature | 6500 K |
| Light color (designation) | Cool Daylight |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤5 sdcm |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 105 ° |
Dimensions & Weight
| Length | 1500.00 mm |
| Height | 78.00 mm |
| Width | 95.00 mm |
| Product weight | 2300.00 g |
Materials & Colors
| Product color | Gray |
| Housing color | Gray |
| Body material | Polycarbonate (PC) |
| Cover material | Polycarbonate (PC) |
| Light emitting surface material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 850 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -30…+40 °C |
| Type of connection | Terminal, 3-pin |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK08 |
| Dimmable | No |
| Mounting type | Suspended/Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
Lifespan
| Lifespan L70/B50 at 25 °C | 50000 h 1) |
| Lifespan L80/B10 at 25 °C | 35000 h 1) |
| Lifespan L90/B10 at 25 °C | 20000 h |
| Number of switching cycles | 25000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 350 mA |
Certificates & Standards
| Standards | CE, CB, TÜV SÜD, EAC, RoHS |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075218048 | Folding box 1 |
1,505 mm x 102 mm x 84 mm | 2528.00 g | 12.89 dm³ |
| 4058075218055 | Shipping box 6 |
1,525 mm x 333 mm x 192 mm | 16355.00 g | 97.50 dm³ |
Declarations of conformity
DAMP PROOF LED
DAMP PROOF LED
Product image: white background, upright
707950_LEDVANCE Damp Proof LED
707950_LEDVANCE Damp Proof LED
Product line drawing with letters
707588_LEDVANCE Damp Proof LED 1200 21W and 39W
707588_LEDVANCE Damp Proof LED 1200 21W and 39W
Product line drawing, front, no dimensions
707621_LEDVANCE Damp Proof LED 1200 21W and 39W
707621_LEDVANCE Damp Proof LED 1200 21W and 39W
Packaging image, spacial
DAMP PROOF 1500 30 W 6500 K GY Mich Side
DAMP PROOF 1500 30 W 6500 K GY Mich Side
Catalog info 1
DampProof DALI IP65
DampProof DALI IP65
Catalog info 2
DampProof DALI IP65
DampProof DALI IP65
IES file (IES)
DAMP PROOF LED 1500 30W 6500K IP65 LEDV
DAMP PROOF LED 1500 30W 6500K IP65 LEDV
LDT file (Eulumdat)
DAMP PROOF LED 1500 30W 6500K IP65 LEDV
DAMP PROOF LED 1500 30W 6500K IP65 LEDV

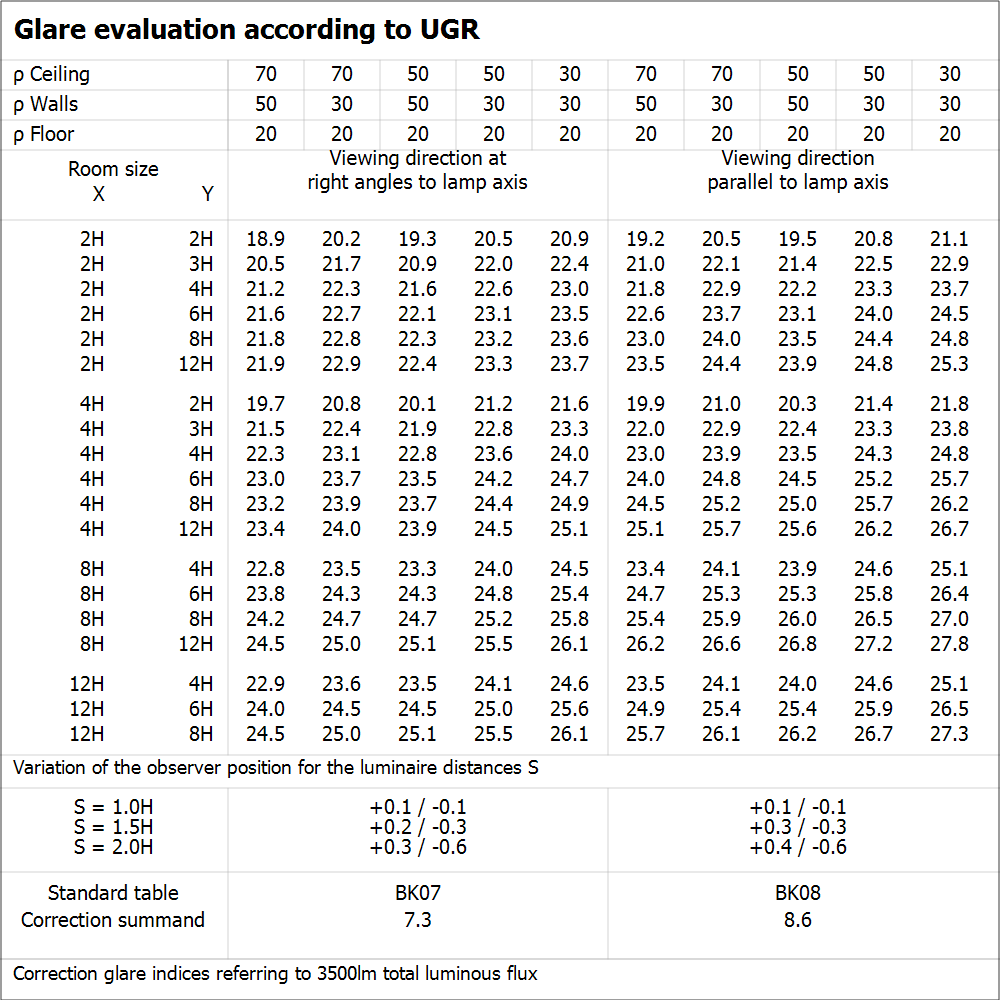

UGR file (UGR table)
DAMP PROOF LED 1500 30W 6500K IP65 LEDV
DAMP PROOF LED 1500 30W 6500K IP65 LEDV
Light distribution curve type cone
DAMP PROOF LED 1500 30W 6500K IP65 LEDV
DAMP PROOF LED 1500 30W 6500K IP65 LEDV
Light distribution curve type polar
DAMP PROOF LED 1500 30W 6500K IP65 LEDV
DAMP PROOF LED 1500 30W 6500K IP65 LEDV
Application pictures
Tirol Kliniken 2019 1
Tirol Kliniken 2019 1
Application pictures
Tirol Kliniken 2019 2
Tirol Kliniken 2019 2
Application pictures
Tirol Kliniken 2019 5
Tirol Kliniken 2019 5
Application pictures
Tirol Kliniken 2019 4
Tirol Kliniken 2019 4
Application pictures
Tirol Kliniken 2019 3
Tirol Kliniken 2019 3
| EAN | STK number | ELDAS number |
|---|---|---|
| 4058075218048 | 4315544 | 941000670 |
