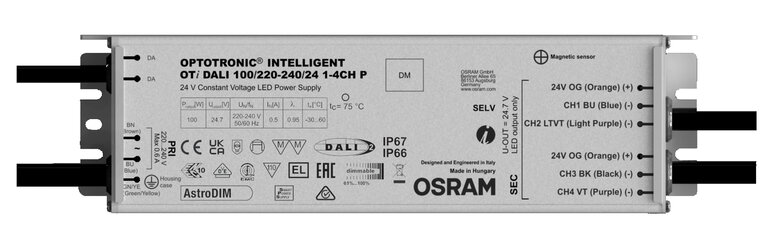

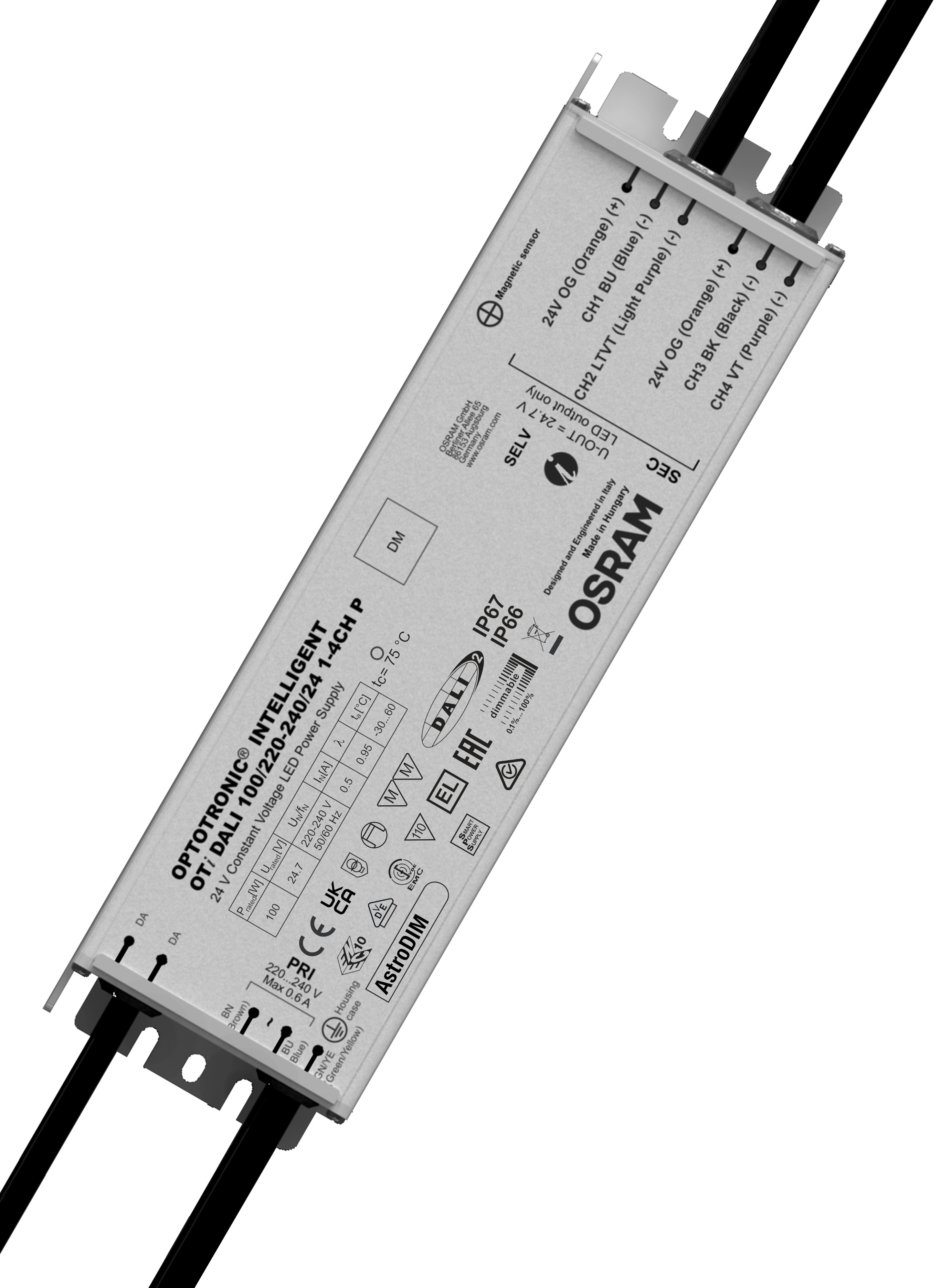

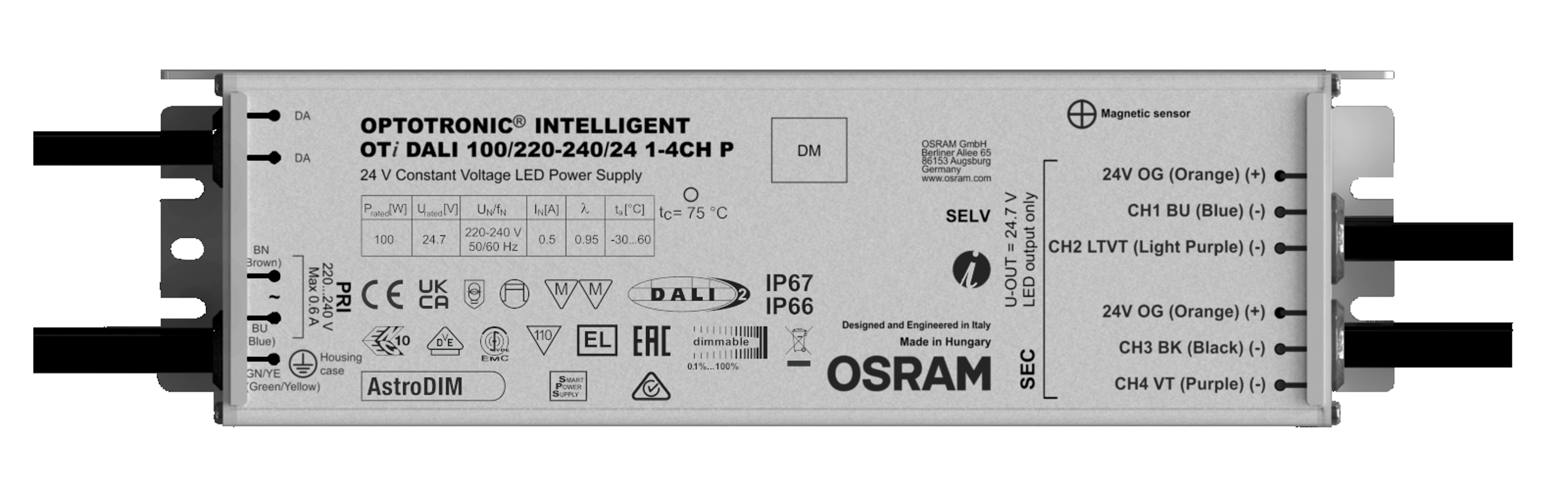

OTi DALI 100/220-240/24 1-4 CH P

GTIN: 4062172119191 Folding box / 1 Show all packages

Contact sales

1 to 4 DALI addressable channels
LED driver whose output power can be shared arbitrarily among the 2 or 4 channels
AstroDim functionality
Dimming range: 0/0, 1…100 %
Line frequency: 0 Hz | 50 Hz | 60 Hz
High level surge protection: up to 6 kV (L-N), 8 kV (L/N-PE)
Inrush current limiter circuit

Nominal wattage	100.00 W
Nominal output power	100 W
Nominal voltage	220…240 V
Nominal output voltage	24 V ¹⁾
Input voltage AC	198…264 V
Input voltage DC	176…276 V
U-OUT (working voltage)	24.7 V
Inrush current	55 A
Mains frequency	50/60 Hz
Total harmonic distortion	< 5 %
Power factor λ	> 0.95
ECG efficiency	93 %
Device power loss	7 W
Max. ECG no. on circuit breaker 10 A (B)	18
Max. ECG no. on circuit breaker 16 A (B)	29
Max. ECG no. on circuit breaker 25 A (B)	27
Surge capability (L/N-Ground)	8 kV
Surge capability (L-N)	6 kV
Galvanic isolation	SELV
Power loss in stand-by mode	< 0.5 W

¹⁾ DC voltage

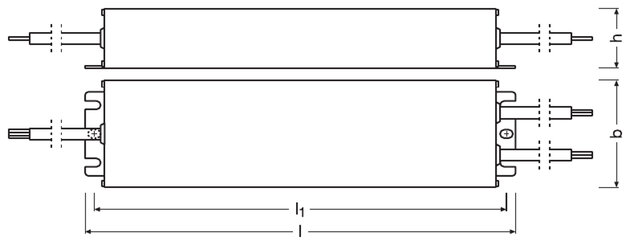

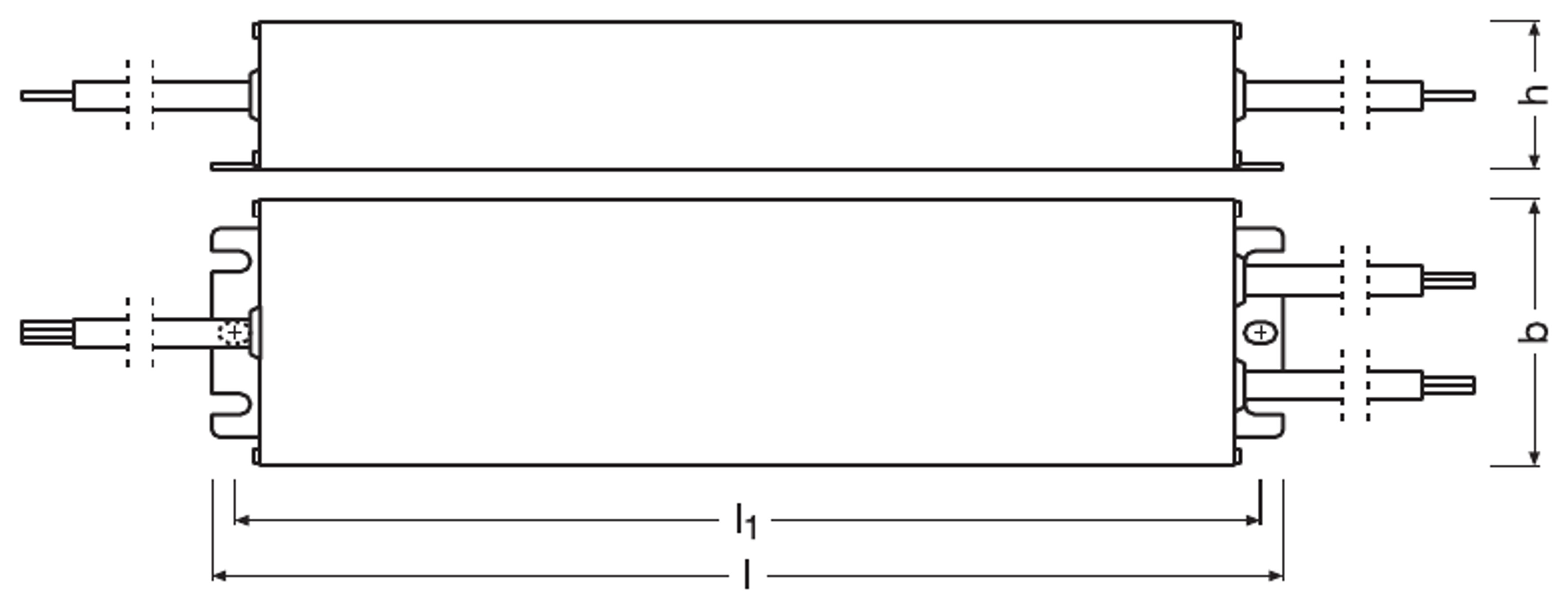

Length	237.00 mm
Mounting hole spacing, length	227,0 mm
Width	69.00 mm
Height	37.00 mm
Cable cross-section, input side	1 mm²
Cable cross-section, output side	1.5 mm²
Wire preparation length, input side	90 mm
Wire preparation length, output side	90 mm
Product weight	1150.00 g

Casing material	Aluminium
Body material	Aluminium

Ambient temperature range	-20…+60 °C
Maximum temperature at tc test point	75 °C
Max.housing temperature in case of fault	110 °C
Permitted rel. humidity during operation	5…85 % ¹⁾

¹⁾ Maximum 56 days/year at 85 %

ECG lifetime

50000 h

Product remark

Emergency lighting: EL sign

Dimmable	Yes
Dimming interface	DALI-2
Dimming range	0…100 %
Overheating protection	Automatic reversible
Overload protection	Automatic reversible
Short-circuit protection	Automatic reversible
No-load proof	Yes
Suitable for fixtures with prot. class	I
Type of connection, output side	Wires

Approval marks – approval	CE, EAC, ENEC 10, RCM, VDE, VDE-EMC
Standards	Acc. to EN 61347-2-13, Acc. to EN 61547, Acc. to EN 55015, Acc. to EN 61000-3-2, Acc. to EN 61000-3-3, Acc. to EN 61347-1, Acc. to EN 62493
Protection class	I
Type of protection	IP66/IP67

Temperature range at storage

-40…+85 °C

Networked standby power for CLS

< 0.50 W

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)
