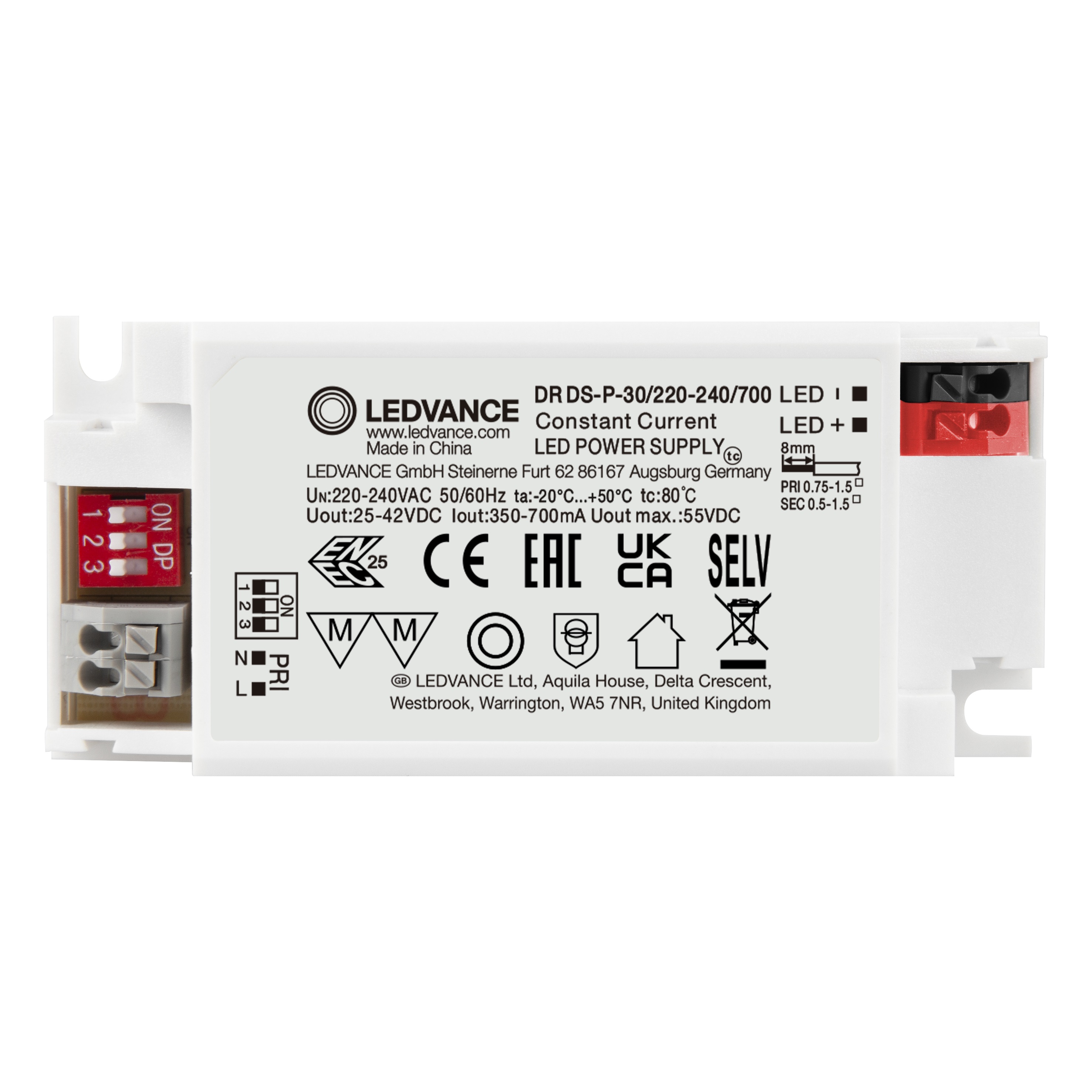

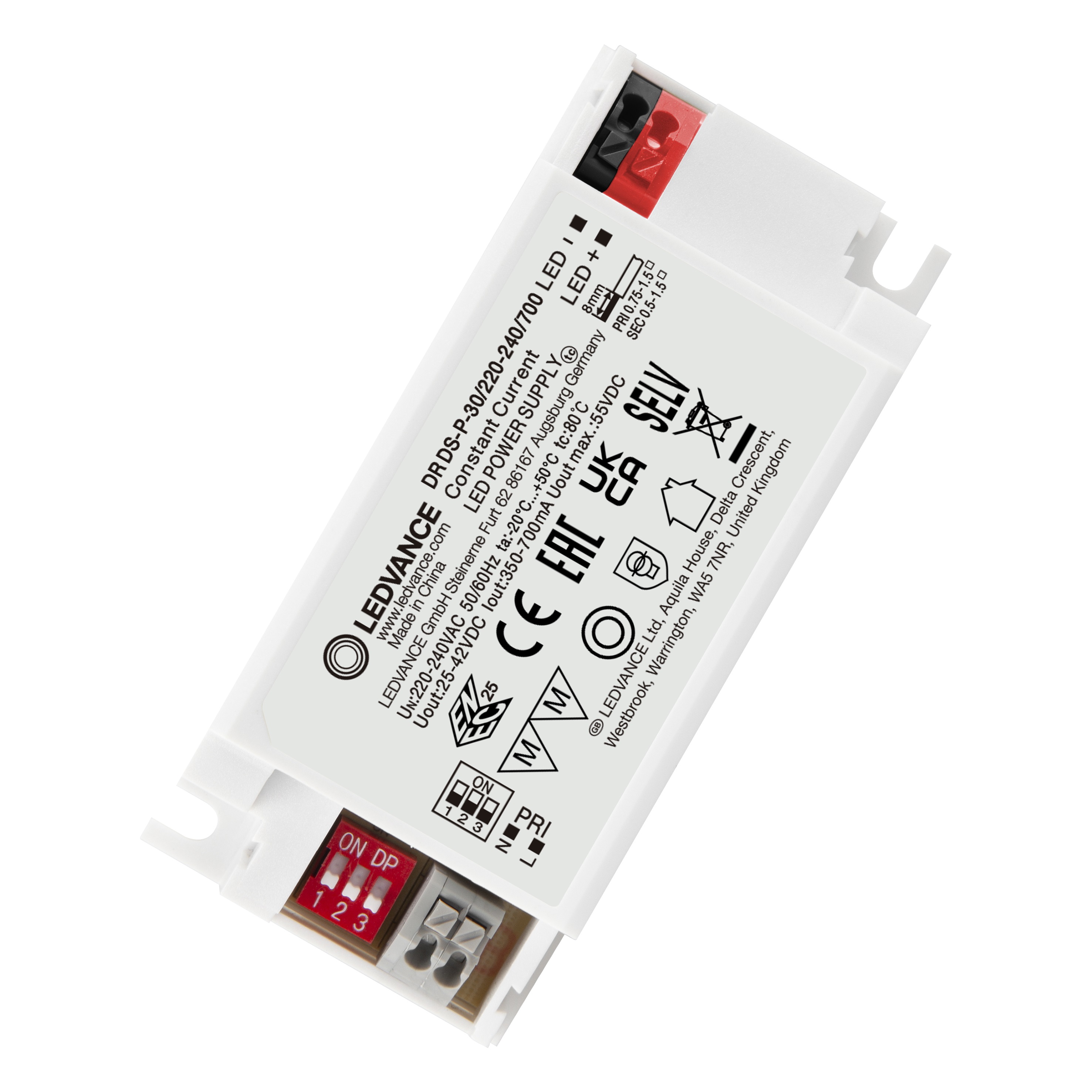

DR DS-P -30/220-240/700

GTIN: 4099854077081 Folding box / 1 Show all packages

Contact sales

Suitable for LED luminaires and LED modules
Applicable for luminaires of protection classes I and II
For indoor SELV installations
Offices, shopping centers, hospitals, restaurants, hotels
Suitable for a broad range of luminaires (by broad range of dip switch currents)

Nominal wattage	30.00 W
Nominal output power	30 W ¹⁾
Nominal voltage	220…240 V
Nominal output voltage	25…42 V ²⁾
Input voltage AC	198…264 V ³⁾
Input voltage DC	230…280 V
U-OUT (working voltage)	25…42 V
Type of current	AC/DC
Nominal current	200 mA
Nominal output current	350 mA, 400 mA, 450 mA, 500 mA, 550 mA, 600 mA, 650 mA, 700 mA ⁴⁾
Inrush current	20 A
Output current tolerance	+/- 5 %
Output ripple current (100 Hz)	≤ 5 %
Mains frequency	50/60 Hz
Total harmonic distortion	≤ 15 % ⁵⁾
Power factor λ	≥ 0.95 ⁵⁾
ECG efficiency	88 % ⁵⁾
Device power loss	4 W ⁵⁾
Max. ECG no. on circuit breaker 10 A (B)	30
Max. ECG no. on circuit breaker 16 A (B)	48
Max. ECG no. on circuit breaker 25 A (B)	75
Surge capability (L-N)	1.5 kV
Galvanic isolation	SELV

¹⁾ Partial load 9…30 W
²⁾ Maximum 55 V
³⁾ Permitted voltage range
⁴⁾ ±5%
⁵⁾ At full load, 220…240 V, 50 Hz

Length	97.80 mm
Mounting hole spacing, length	88.00 mm
Width	44.00 mm
Height	25.50 mm
Cable cross-section, input side	0.75…1.5 mm²
Cable cross-section, output side	0.5…1.5 mm²
Prewired	No
Wire preparation length, input side	8.0…9.0 mm
Wire preparation length, output side	8.0 mm
Product weight	70.00 g

Ambient temperature range	-20…+50 °C
Maximum temperature at tc test point	< 80 °C
Max.housing temperature in case of fault	< 90 °C
Temperature range in operation	-20…+50 °C
Permitted rel. humidity during operation	10…93 %

ECG lifetime	50000 h
Number of switching cycles	25000

Encapsulated

Dimmable	No
Overheating protection	No
Overload protection	Yes
Short-circuit protection	Yes
Max. cable length to lamp/LED module	2,0 m
Suitable for fixtures with prot. class	I,II
Suitable for emergency lighting	No
Type of connection, output side	Push terminal

Approval marks – approval	CE, CB, ENEC, EAC
Standards	Acc. to EN 61347-2-13, Acc. to EN 61347-1, Acc. to EN 55015, Acc. to EN 61547, Acc. to EN 61000-3-2, Acc. to EN 62384
Protection class	II
Type of protection	IP20

Temperature range at storage

-20…+85 °C

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage	Lead (7439-92-1)

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4099854077081	Folding box 1	106 mm x 47 mm x 31 mm	85.00 g	0.15 dm³
4099854077098	Shipping box 10	235 mm x 205 mm x 80 mm	1064.00 g	3.85 dm³
4099854077104	Shipping box 50	470 mm x 255 mm x 240 mm	5320.00 g	28.76 dm³
