QUICKTRONIC DIM T8
QT 2X36 DIM
GTIN: 4008321645838
Unpacked / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Same luminous flux with direct and alternating current
- Perfect lamp start for applications with motion sensors
- Dimming of amalgam lamps without flickering or reduced lifespan
- Very high energy efficiency due to cut-off technology
- Automatic restart after lamp replacement
- ECGs comply with MINERGIE standard due to very low standby consumption
Areas of application
- Suitable for use in emergency lighting systems as per EN 50172/DIN VDE 0108-100
- Installation in emergency lighting systems according to IEC 61347-2-3, appendix J
- Industry
- Open-plan offices, corridors and storage rooms
- Public buildings
- Suitable for luminaires of protection class I
Product features
- Control via 1…10 V interface
- Supply voltage: 220…240 V
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Line voltage: 198…264 V
- Dimming range: 1…100 % luminous flux
- Lamp start: within 0.6 s
- Lifetime: > 100,000 h (for T = 65 °C at Tc)
- Automatic shutdown of defective lamps and at end of life (EoL T.2)
- Energy Efficiency Index EEI: A1 BAT
- Power boost for stable lamp operation
- Overtemperature protection: Thermal management at high tc temperatures
- Safety: to EN 61347-2-3
Electrical data
| Nominal wattage | 72.00 W |
| Nominal voltage | 220…240 V |
| Input voltage AC | 198…264 V |
| Input voltage DC | 154…276 V |
| Type of current | AC/DC |
| Inrush current | 28 A |
| Mains frequency | 50/60 Hz |
| Max. ECG no. on circuit breaker 10 A (B) | 12 1) |
| Max. ECG no. on circuit breaker 16 A (B) | 19 1) |
| Operating frequency | 44…120 kHz |
1) Type B
Light technical data
| Starting time [PIM] | 0.6 s |
Dimensions & Weight
| Length | 423.00 mm |
| Mounting hole spacing, length | 415,0 mm |
| Width | 30.00 mm |
| Height | 21.00 mm |
| Wire preparation length, input side | 8.0…9.0 mm 1) |
| Wire preparation length, output side | 8.0…9.0 mm 1) |
| Product weight | 330.00 g |
1) Combi wiring
Colors & materials
| Casing material | Metal |
| Body material | Metal |
Temperatures & operating conditions
| Ambient temperature range | -20…+60 °C |
| Maximum temperature at tc test point | 75 °C |
| Max.housing temperature in case of fault | 110 °C |
| Permitted rel. humidity during operation | 5…85 % 1) |
1) Maximum 56 days/year at 85 %
Lifespan
| ECG lifetime | 100000 h 1) |
1) At Tcase = 65°C at Tc point / 10% failure rate
Capabilities
| Dimmable | Yes |
| Dimming interface | 1…10 V |
| Dimming range | 1…100 % 1) |
| Overheating protection | Yes |
| Overload protection | Yes |
| Max. cable length to lamp/LED module | 1.0 m / 1.5 m |
| Suitable for fixtures with prot. class | I |
| End of lamp life safety shutdown | EOL T.2 |
1) Luminous flux
Certificates & Standards
| Approval marks – approval | VDE, VDE-EMC, EAC, CCC |
| Standards | Acc. to EN 55015; EN 55022, Acc. to EN 61547, Acc. to IEC 61000-3-2/EN 61000-3-2 |
| Protection class | I |
| Type of protection | IP20 |
| Energy efficiency class | A1 |
| EEI – Energy Label | A1 BAT |
LOGISTICAL DATA
| Temperature range at storage | -40…+85 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4008321645838 | Unpacked 1 |
330.00 g | ||
| 4008321645845 | Shipping box 20 |
447 mm x 160 mm x 101 mm | 6794.00 g | 7.22 dm³ |
User instruction / safety instructions
493509_Technical application guide QUICKTRONIC Intelligent DALI DIM (GB)
493509_Technical application guide QUICKTRONIC Intelligent DALI DIM (GB)
User instruction / safety instructions
592415_EAC-QT T8 DIM
592415_EAC-QT T8 DIM
Declarations of conformity
709432_Declaration of Conformity
709432_Declaration of Conformity
Certificates
335097_INOTEC
335097_INOTEC
Certificates
554891_EAC PT family
554891_EAC PT family
PRODUCT DATASHEET
502785_ECG lifetime - QUICKTRONIC (DALI) DIM
502785_ECG lifetime - QUICKTRONIC (DALI) DIM
Product image: white background, diagonal

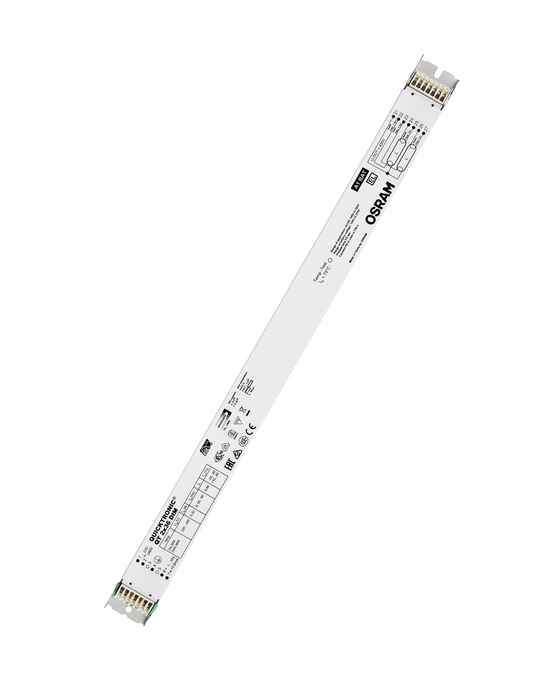

721473_QT 2X36/220-240 DIM
721473_QT 2X36/220-240 DIM
Product image: white background, horizontal

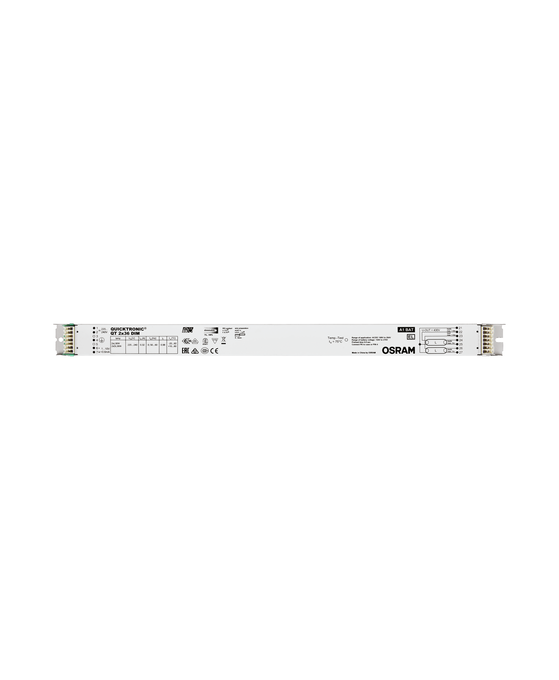

721602_QT 2X36/220-240 DIM
