LED STRIP P HIGH VOLTAGE 230V
LS P AC 1300 840 50M IP66
GTIN: 4099854584442
Unpacked / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Great scope of design options due to 50 m long and flexible LED strips
- Easy mounting on many smooth surfaces thanks to self-adhesive tape
- Maximum flexibility due to large range of accessories with integrated over-current protection (3.15A)
- Simple connection thanks to integrated cables with fast twist lock connectors
- Suitable for use in damp conditions thanks to high type of protection
Areas of application
- General indoor illumination
- General outdoor illumination
- Industry and construction site
- Offices, retail outlets and conference rooms
- Architecture lighting
- Decorative illumination
Product features
- Direct power supply with 220-240V AC mains
- Flexible and cuttable LED strip
- Smallest cuttable unit: 100 mm
- Lifetime (L70/B50): up to 50,000 h at Ta: 45°C
- Luminous flux: 1300 lm/m
- Prewired LED strip with 200 mm long fast twist lock connector for 220-240V AC mains supply connection
- Type of protection: IP66
Equipment / Accessories
- Connectors for several mounting options available
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Disconnect mains before installation.
Electrical data
| Nominal wattage | 550.00 W 1) |
| Construction wattage | 12.00 W 1) |
| Nominal wattage per meter | 12 W 2) |
| Nominal voltage | 220…240 V |
| Type of current | AC/DC |
| Nominal current | 2400 mA 3) |
| Inrush current | 12 A |
| Mains frequency | 50/60 Hz |
| Power factor λ | > 0.90 |
| Max. ECG no. on circuit breaker 10 A (B) | 3 |
| Max. ECG no. on circuit breaker 25 A (B) | 8 |
1) W (50m) AC: 550 DC: 510
2) W (1m) AC: 12 DC: 10
3) mA (50m) AC: 2400 DC: 2230
2) W (1m) AC: 12 DC: 10
3) mA (50m) AC: 2400 DC: 2230
Photometrical data
| Luminous efficacy | 111 lm/W 1) |
| Luminous flux | 60300 lm 2) |
| Luminous flux per meter | 1340 lm 3) |
| Color temperature | 4000 K |
| Color rendering index Ra | > 80 |
| Light color (designation) | Cool White |
| Standard deviation of color matching | 6 sdcm |
1) lm/W: AC: 111 DC: 143
2) lm (50m) AC: 60300 DC: 64350
3) lm (1m) AC: 1340 DC: 1430
2) lm (50m) AC: 60300 DC: 64350
3) lm (1m) AC: 1340 DC: 1430
Light technical data
| Beam angle | 120 ° |
LED MODULE INFORMATION
| Number of LEDs per meter | 120 |
Dimensions & Weight
| Length | 50000.00 mm |
| Length – smallest unit | 100 mm |
| Cable length | 266.000 |
| Width | 12.00 mm |
| Height | 4.50 mm |
| Product weight | 69.4 g 1) |
1) Product weight 50m 3470.00 g
Colors & materials
| Product color | Transparent |
| Body material | Silicone |
Temperatures & operating conditions
| Ambient temperature range | -20…+45 °C |
| Temperature range in operation | -20…+45 °C |
| Permitted rel. humidity during operation | 0…93 % |
Lifespan
| Nominal lamp life time | 50000 h |
Additional product data
| Product remark | Suitable for DC input only in combination with LED DRIVER - DR P 500W 220-240V 215V P , EAN10 represents a length of 1 meter of LED strip out of the entire 50 m role. The minimum order quantity for EAN10 is 50 pieces and a multiple of 50., Available from April 2025 |
Capabilities
| Dimmable | No |
| Dimming interface | Not dimmable |
| Lowest bending radius | 30 mm |
| Self-adhesive | Yes |
Certificates & Standards
| Approval marks – approval | CE, UKCA, EAC, DEKRA |
| Protection class | II |
| Type of protection | IP66 |
| Energy class of contained light source | E |
LOGISTICAL DATA
| Temperature range at storage | -20…+80 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4099854584442 | Unpacked 1 |
252 mm x 252 mm x 136 mm | 69.40 g | 8.64 dm³ |
| 4099854584459 | Shipping box 50 |
271 mm x 271 mm x 175 mm | 4195.00 g | 12.85 dm³ |
User instruction / safety instructions
LED STRIP HIGH VOLTAGE 230V
LED STRIP HIGH VOLTAGE 230V
Legal information
LSI LED STRIP HIGH VOLTAGE 230V
LSI LED STRIP HIGH VOLTAGE 230V
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety Insert G11215928
Safety Insert G11215928
Legal information
LI_JO_L1
LI_JO_L1
Declarations of conformity
LS P AC 1300
LS P AC 1300
Declarations of conformity
LS LUM
LS LUM
Product image: white background, diagonal
LS P AC 1200
LS P AC 1200
Product image: white background, upright
LS P AC 1200
LS P AC 1200
Product line drawing with letters
LS P AC 1200
LS P AC 1200
Product line drawing with numbers
LS P AC 1200
LS P AC 1200
Product line drawing - technical
LS P AC 1200
LS P AC 1200

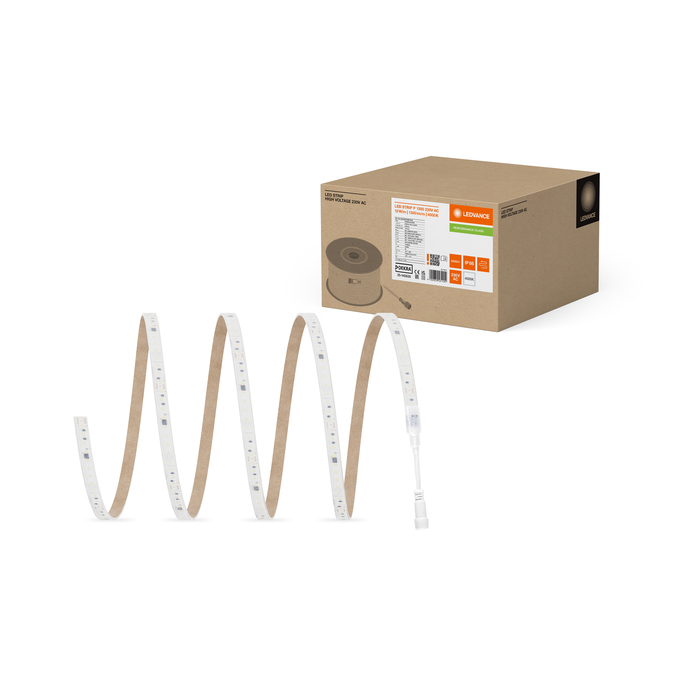

Combo Shot = Product Beauty Shot + Packaging Image
