LS PFM -1000/COB/927/5 | LED STRIP PERFORMANCE COB -1000 | LEDVANCE

LED STRIP PERFORMANCE COB -1000

LS PFM -1000/COB/927/5

GTIN: 4058075597525 Folding box / 1 Show all packages

Download data sheet

Contact sales

Our warranty conditions

Tools

Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits

Excellent homogenous light, without visible light points thanks to COB technology
Great design freedom thanks to flexibility and cuttability of module
Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
Simple connection thanks to integrated cables on both sides
Maximum flexibility due to large range of accessories
Easy installation, no tools required for connection

Areas of application

General illumination
Cove lighting
Bars, restaurants, hotels
Offices
Residential interiors

Product features

Flexible and cuttable LED strip
Luminous flux: 1000 lm/m
Very good color rendering index R_a: > 90
Smallest cuttable unit: 62.5 mm
Large range of color temperatures: from warm white to cool daylight
Dimmable with suitable drivers, see also www.ledvance.com/dim

Equipment / Accessories

Connectors, profiles and covers for several mounting options available

Electrical data

Nominal wattage	38.00 W
Construction wattage	38.00 W
Nominal wattage per meter	11.0 W ¹⁾
Nominal voltage	24 V
Input voltage range	23…25 V
Reverse Voltage	144 V
Type of current	DC
Nominal current	1600 mA

¹⁾ Value based on first meter of the product

Photometrical data

Luminous efficacy	92 lm/W ¹⁾
Luminous flux	2850 lm
Luminous flux per meter	1010 lm ¹⁾
Color temperature	2700 K
Color rendering index Ra	> 90
Light color LED	Warm White
Light color (designation)	2700 K
Standard deviation of color matching	≤5 sdcm

¹⁾ Value based on first meter of the product

Light technical data

Beam angle

140 °

LED MODULE INFORMATION

Number of LEDs per meter	384
Number of LEDs per module	384
Number of LEDs per smallest unit	24

Dimensions & Weight

Length	5000.00 mm
Length – smallest unit	62.5 mm
Cable length	500.000
Width	8.00 mm
Height	1.70 mm
Prewired	Yes
Conductor cross section	0.5 mm²
Short pitch	Yes
Product weight	188.00 g

Temperatures & operating conditions

Ambient temperature range	-20…+55 °C
Maximum temperature at tc test point	75 °C
Temperature range in operation	-20…+55 °C

Lifespan

Nominal lamp life time

50000 h

Capabilities

Dimmable	Yes ¹⁾
Lowest bending radius	10 mm
Self-adhesive	Yes

¹⁾ Dimmable with suitable drivers, see also www.ledvance.com/dim

Certificates & Standards

Approval marks – approval	CE, TUV
Protection class	III
Type of protection	IP00
Energy consumption	5.50 kWh/1000h ¹⁾
Energy class of contained light source	F
Salt mist resistance acc. IEC 60068-2-52	No
UV resistance acc. IEC 60068-2-5	No

¹⁾ Value based on 0.5 meter

LOGISTICAL DATA

Temperature range at storage

-40…+85 °C

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Quantity of precious metals	Contains at least 10 mg
Quantity of rare earths	Contains at least 1 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No

¹⁾ According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product code	Packaging unit (Pieces/Unit)	Dimensions (length x width x height)	Gross weight	Volume
4058075597525	Folding box 1	242 mm x 242 mm x 26 mm	335.00 g	1.52 dm³
4058075600713	Shipping box 10	260 mm x 260 mm x 265 mm	3741.00 g	17.91 dm³
4058075600720	Shipping box 40	567 mm x 535 mm x 281 mm	16184.00 g	85.24 dm³

Product image	Product name	EAN
	LS AY -PF02/U/16X5/10/1	4058075278226
	LS AY -PM04/UW/23X15,5/10/1	4058075278400
	LS AY -PM02/R/18X15,5/10/1	4058075278349
	LS AY -PM01/UW/21,5X12/10/1	4058075278318
	LS AY -PM06/E/18X18/12/1	4058075279308
	LS AY -PF01/UW/22X6/10/1	4058075278196
	LS AY -PM05/U/17,5X14,5/10/1	4058075279278
	LS AY -PF01/UW/22X6/10/2	4058075401532
	LS AY -PF02/U/16X5/10/2	4058075401563
	LS AY -PF04/U/17X7/12/1	4058075278288
	LS AY -PM03/E/19X19/10/1	4058075278370
	LS AY -PW01/U/26X8/14/2	4058075401440
	LS AY -PW03/U/26X26/14/2	4058075401501
	LS AY -PW01/U/26X8/14/1	4058075278103
	LS AY -PF03/UW/25X7/12/1	4058075278257
	LS AY -PW02/UW/39X26/14/1	4058075278134
	LS AY -PW02/UW/39X26/14/2	4058075401471
	LS AY -PW03/U/26X26/14/1	4058075278165
	DR-PFM -250/220-240/24/P	4058075240032
	DR-PFM -100/220-240/24/P	4058075239937
	DR-PFM -150/220-240/24/P	4058075239975
	DR-PFM -60/220-240/24/P	4058075239913
	DR DIM-PFM -250/220-240/24/P	4058075240155
	DR DIM-PFM -150/220-240/24/P	4058075240117
	DR DIM-PFM -100/220-240/24/P	4058075240070
	LS AY PFM -CSW-P2-50-COB	4058075654099
	LS AY PFM -CP-P2-500 COB	4058075654075
	DR DIM-PFM -60/220-240/24/P	4058075379190

User instruction / safety instructions
LED STRIP PERFORMANCE-1000 COB -1000

Legal information
LED STRIP COB

Declarations of conformity
LS PFM COB

PDF (189.53 KB)

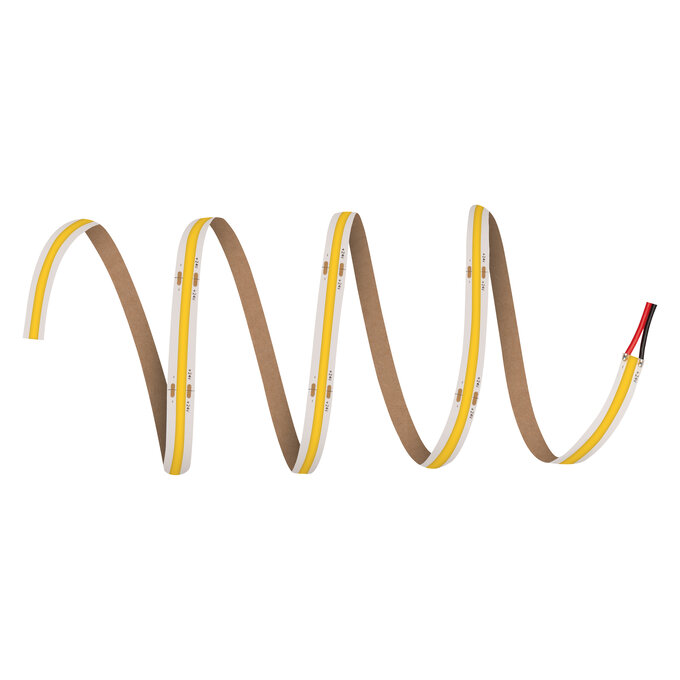

Product image: white background, diagonal
LED STRIP PERFORMANCE-1000 COB

Product image: white background, horizontal
LED STRIP PERFORMANCE-1000 COB

Product line drawing with letters
LED STRIP PERFORMANCE-1000 COB

Product line drawing with numbers
LED STRIP PERFORMANCE-1000 COB

Product line drawing - technical
LED STRIP PERFORMANCE-1000 COB

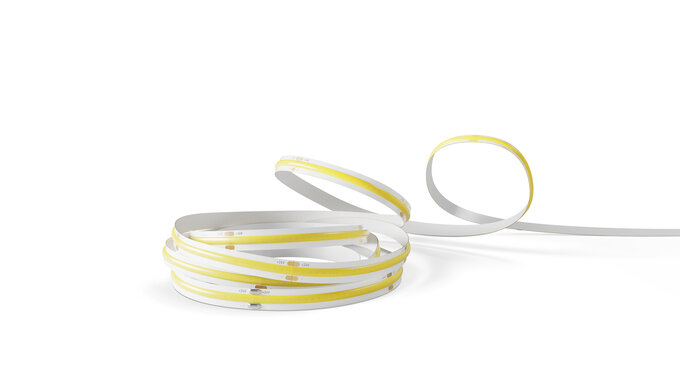

Beauty Shot
LED STRIP COB Beautyshot

IES file (IES)
LS PFM-1000-COB-927-5

LDT file (Eulumdat)
LS PFM-1000-COB-927-5

Light distribution curve type polar
LS PFM-1000-COB-927-5

Tender documents
LED STRIP PERFORMANCE COB 1000 COB 927 5-EN

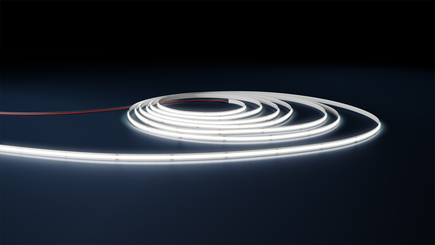

Application pictures
