LED STRIP VALUE-600 30 meter reel

LS VAL -600/840/30/IP65

GTIN: 4058075597471 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Long LED strips for customized solutions made to measure
  • Great design freedom thanks to flexibility and cuttability of module
  • Suitable for use in damp conditions thanks to high type of protection
  • Easy mounting on many smooth surfaces thanks to self-adhesive tape at the back
  • Maximum flexibility due to large range of accessories
  • Easy installation, no tools required for connection
Areas of application
  • General outdoor illumination
  • Cove lighting
  • Bars, restaurants, hotels
  • Residential interiors
Product features
  • Flexible and cuttable LED strip
  • Luminous flux: 600 lm/m
  • Color rendering index Ra: > 80
  • Lifetime (L70/B50): up to 20,000 h at Tc max.: 75°C
  • Smallest cuttable unit: 100 mm
  • Available with color temperature: 3,000 K, 4,000 K, 6,500 K
  • Type of protection: IP65
  • Dimmable with suitable drivers, see also www.ledvance.com/dim
Equipment / Accessories
  • Connectors, profiles and covers for several mounting options available
Electrical data
Nominal wattage 27.50 W
Construction wattage 27.50 W
Nominal wattage per meter 6.1 W 1)
Nominal voltage 24 V
Input voltage range 23…25 V
Reverse Voltage 30 V
Type of current DC
Nominal current 230 mA
1) Value based on first meter of the product
Photometrical data
Luminous efficacy 94 lm/W 1)
Luminous flux 2740 lm
Luminous flux per meter 580 lm 1)
Color temperature 4000 K
Color rendering index Ra > 80
Light color LED Cool White
Light color (designation) Cool White
Standard deviation of color matching ≤5 sdcm
1) Value based on first meter of the product
Light technical data
Beam angle 110 °
LED MODULE INFORMATION
Number of LEDs per meter 60
Number of LEDs per smallest unit 6
Dimensions & Weight
Length 30000.00 mm
Length – smallest unit 100 mm
Cable length 500.000
Width 10.00 mm
Height 4.00 mm
Prewired Yes
Conductor cross section 0.5 mm²
LED pitch 16.67 mm
Short pitch No
Product weight 2200.00 g
Colors & materials
Cover material Silicone
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 75 °C
Temperature range in operation -20…+40 °C
Lifespan
Nominal lamp life time 20000 h
Capabilities
Dimmable Yes 1)
Lowest bending radius 15,0 mm
Self-adhesive Yes
1) Dimmable with suitable drivers, see also www.ledvance.com/dim
Certificates & Standards
Approval marks – approval CE
Protection class III
Type of protection IP65
Energy consumption 3.10 kWh/1000h 1)
Energy class of contained light source F
Salt mist resistance acc. IEC 60068-2-52 No
UV resistance acc. IEC 60068-2-5 Yes
1) Value based on 0.5 meter
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075597471 Folding box
1		 242 mm x 242 mm x 26 mm 2626.00 g 1.52 dm³
4058075600867 Shipping box
3		 516 mm x 496 mm x 332 mm 8872.00 g 84.97 dm³
Legal information
LED STRIP VALUE 30m IP65
PDF (1.3 MB)
Declarations of conformity
LS VAL Big Reel
PDF (219.03 KB)
Product image: white background, diagonal
LS VAL Protected
JPG (1.39 MB)
Product image: white background, horizontal
LS VAL Protected
JPG (1.24 MB)
Product line drawing with letters
LS VAL Protected
SVG (54.24 KB)

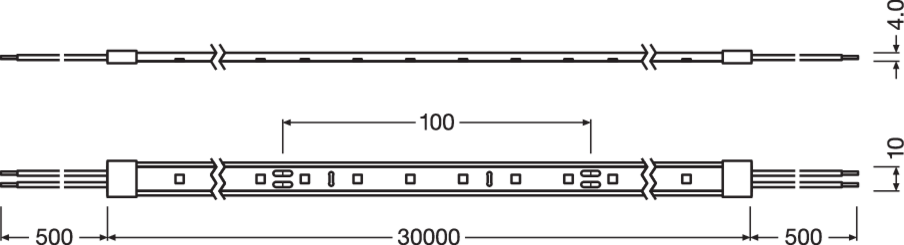

Product line drawing with numbers
LS VAL PROTECTED 30M
EPS (2.34 MB)
Product line drawing, front, no dimensions
LS VAL Protected
SVG (45.04 KB)

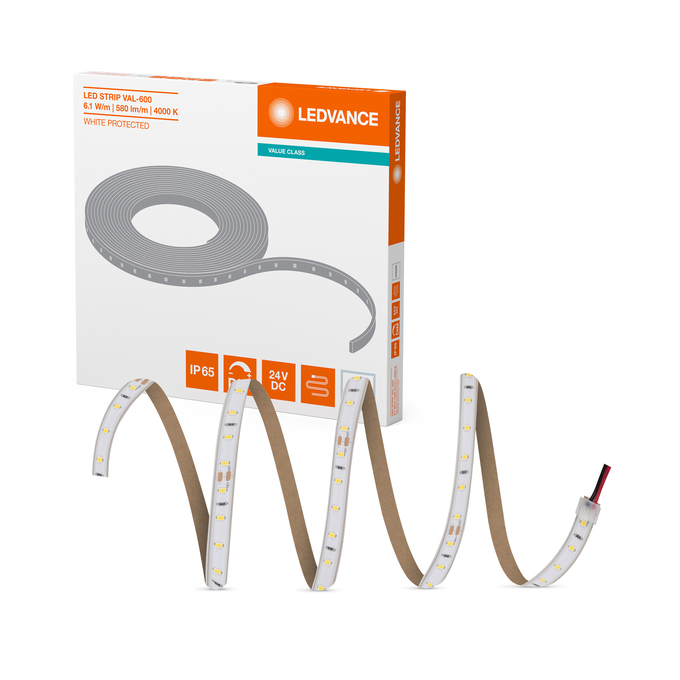

Combo Shot = Product Beauty Shot + Packaging Image
