LC RF TOUCH PANEL RGBW

LC RF TOUCH PANEL RGBW 220-240

GTIN: 4058075435896 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Ultra sensitive high strength glass touch panel with touch color slide in the middle and backlighting.
  • Dimming of the set light colors RGB and white
  • 10 pre-installed color gradients
  • Control up to 4 zones
  • Separate control of the colors red, green, blue and white
  • Easy replaceable for standard light switch
Areas of application
  • General illumination
  • Architecture lighting
  • Dynamic light as an architectural effect in public zones
  • Cove lighting
  • Hotels
  • Offices
  • Residential interiors
Product features
  • Radio wall control Touch panel for controlling RGBW LED modules
  • Output signal: 2.4 GHz
  • Input voltage: 100…240 V
Electrical data
Nominal wattage 23.00 W
Nominal voltage 100…240 V
Type of current AC
Mains frequency 50…60 Hz
Operating frequency 2.4 GHz
Dimensions & Weight
Length 86.00 mm
Width 86.00 mm
Height 33.00 mm
Product weight 230.00 g
Colors & materials
Product color White
Temperatures & operating conditions
Ambient temperature range -30…+55 °C
Additional product data
Mounting location Wall
Capabilities
Dimmable No
Overheating protection No
Type of installation Mounting/Wall
Transmitter range 30 m
Certificates & Standards
Approval marks – approval CE, EMC, LVD, RED, RF
Protection class II
Type of protection IP20
LOGISTICAL DATA
Temperature range at storage -30…+55 °C
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075435896 Folding box
1		 110 mm x 110 mm x 50 mm 259.00 g 0.61 dm³
4058075435902 Shipping box
10		 265 mm x 120 mm x 235 mm 2736.00 g 7.47 dm³
4058075509832 Shipping box
40		 500 mm x 280 mm x 260 mm 11592.00 g 36.40 dm³
User instruction / safety instructions
LC RF TOUCH PANEL RGBW
PDF (4.16 MB)
Legal information
LC RF Legal Insert
PDF (2.69 MB)
Declarations of conformity
LC RF TOUCH PANEL RGBW, TW
PDF (178.08 KB)
Product image: white background, horizontal
LC RF TOUCH PANEL RGBW
PNG (2.29 MB)
Product line drawing with letters
LC RF TOUCH PANEL
SVG (8.83 KB)
Product line drawing with letters
LC RF TOUCH PANEL RGBW
SVG (8.83 KB)
Product line drawing with numbers
LC RF TOUCH PANEL
SVG (14.44 KB)
Product line drawing with numbers
LC RF TOUCH PANEL RGBW
SVG (14.44 KB)
Product line drawing, front, no dimensions
LC RF TOUCH PANEL
SVG (4.59 KB)
Product line drawing, front, no dimensions
LC RF TOUCH PANEL RGBW
SVG (4.59 KB)
Application pictures

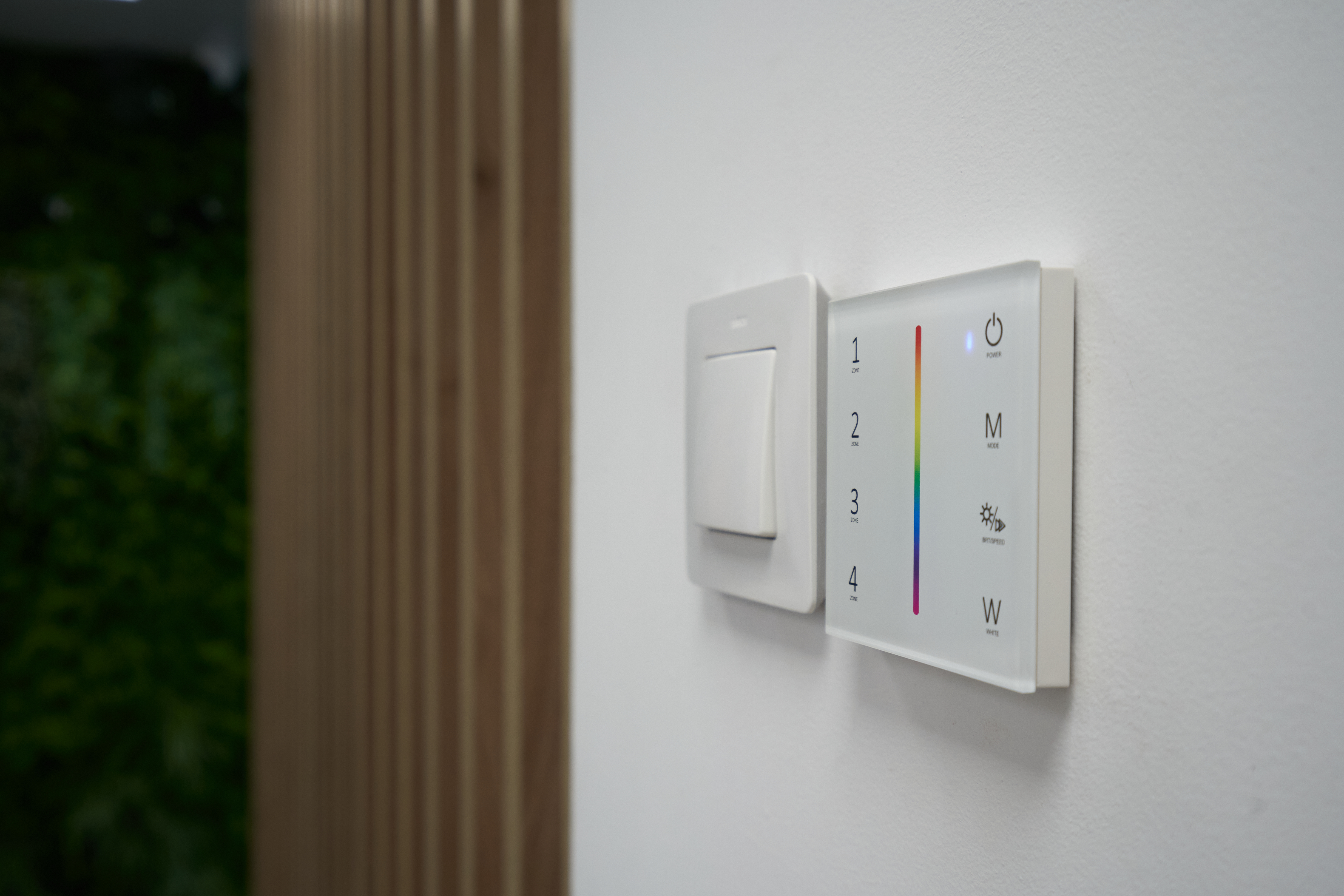

CS Fenie Energia - Touch Panel
