Connectors for TW LED Strips
LS AY SUP -CP/P3/500/P
GTIN: 4058075451414
BAG / 2
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy installation of connector, no manual wiring required
- Tool-free installation
Areas of application
- General indoor illumination
Electrical data
| Nominal voltage | 0…36 V |
| Nominal current | 5000 mA |
Dimensions & Weight
| Length | 26.0 mm |
| Cable length | 500 mm |
| Width | 17.0 mm |
| Height | 7.2 mm |
| Cable cross-section, input side | 0.35…0.75 mm² |
| Product weight | 14.00 g |
Colors & materials
| Product color | Transparent |
Temperatures & operating conditions
| Ambient temperature range | -20…+55 °C |
| Temperature range in operation | -20…+55 °C |
Certificates & Standards
| Type of protection | IP66 |
LOGISTICAL DATA
| Temperature range at storage | -35…+85 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075451414 | BAG 2 |
80 mm x 120 mm x 5 mm | 29.00 g | 0.05 dm³ |
| 4058075451421 | Shipping box 100 |
250 mm x 100 mm x 250 mm | 1598.00 g | 6.25 dm³ |
| 4058075451438 | Shipping box 1,000 |
520 mm x 520 mm x 270 mm | 30042.00 g | 73.01 dm³ |
Declarations of conformity
LED STRIP ACCESSORIES
LED STRIP ACCESSORIES

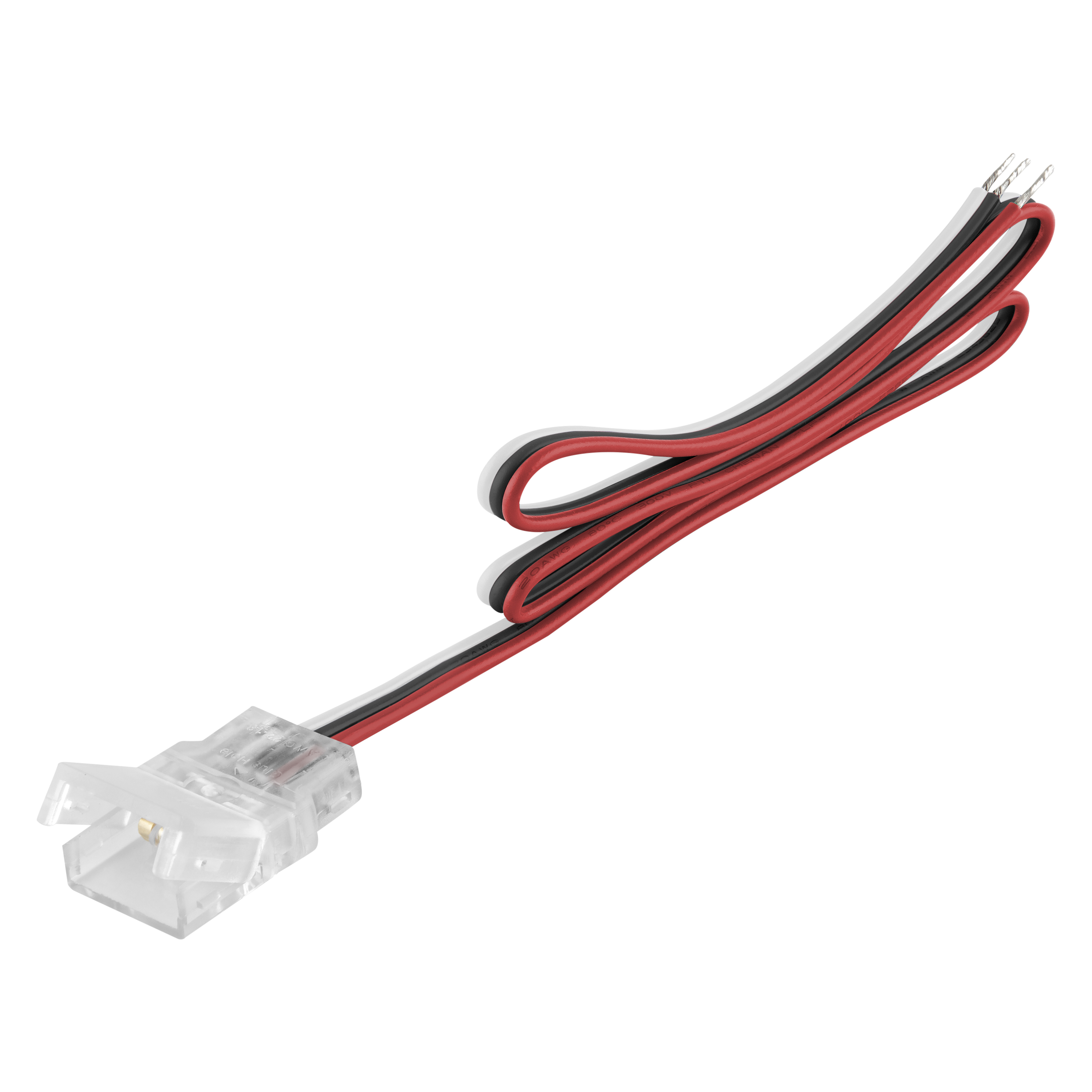

Product image: white background, diagonal
LS AY SUP-CP/P3/500/P
LS AY SUP-CP/P3/500/P
Product line drawing with letters
LS AY SUP CP/P3/500/P Power Feeder
LS AY SUP CP/P3/500/P Power Feeder
Product line drawing - technical
LS AY SUP CP/P3/500/P Power Feeder
LS AY SUP CP/P3/500/P Power Feeder
Tender documents
Connectors for TW LED Strips CPP3500P-EN
Connectors for TW LED Strips CPP3500P-EN
| EAN | STK number | EFO number | ELDAS number |
|---|---|---|---|
| 4058075451414 | 4125458 | 3254391 | 941189750 |
