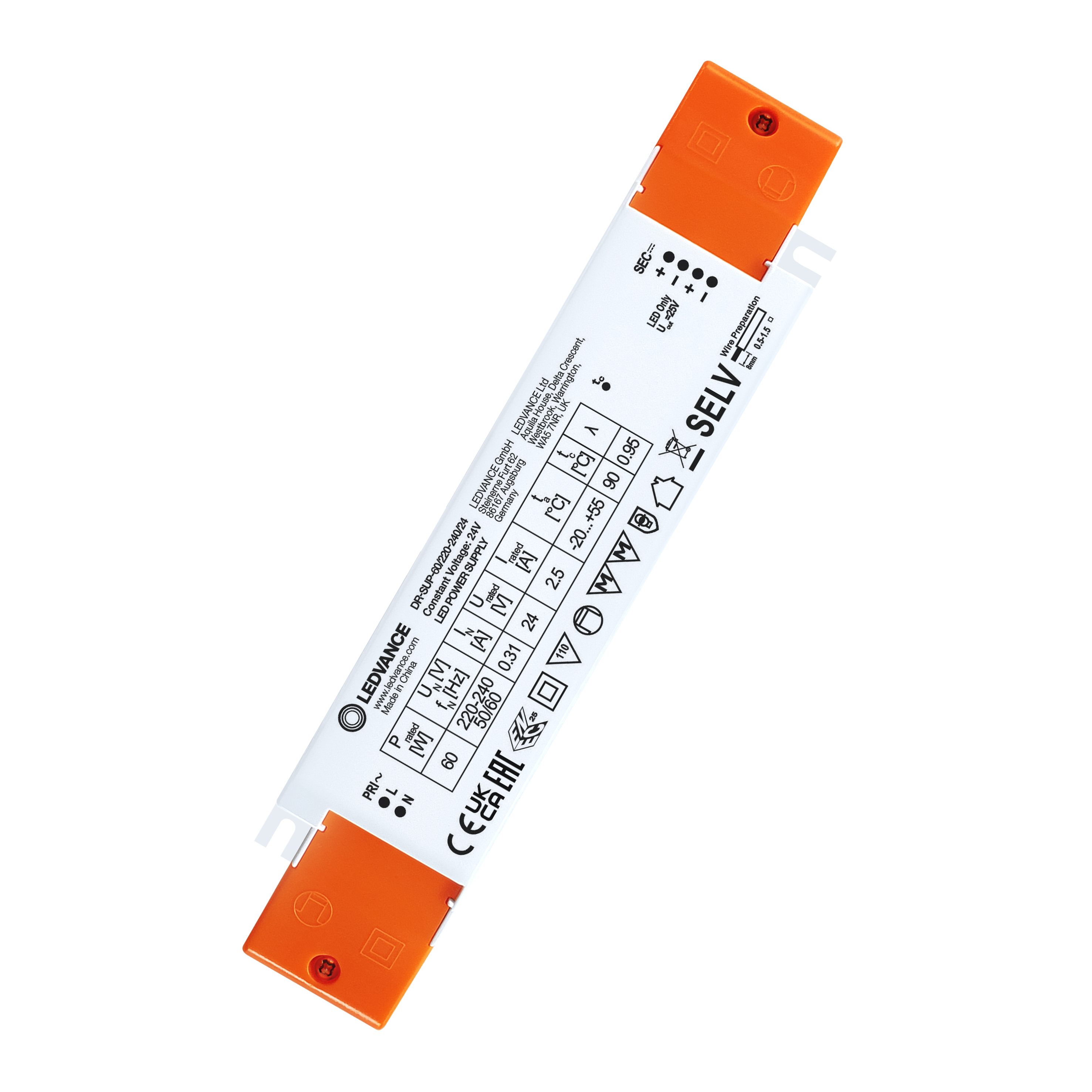

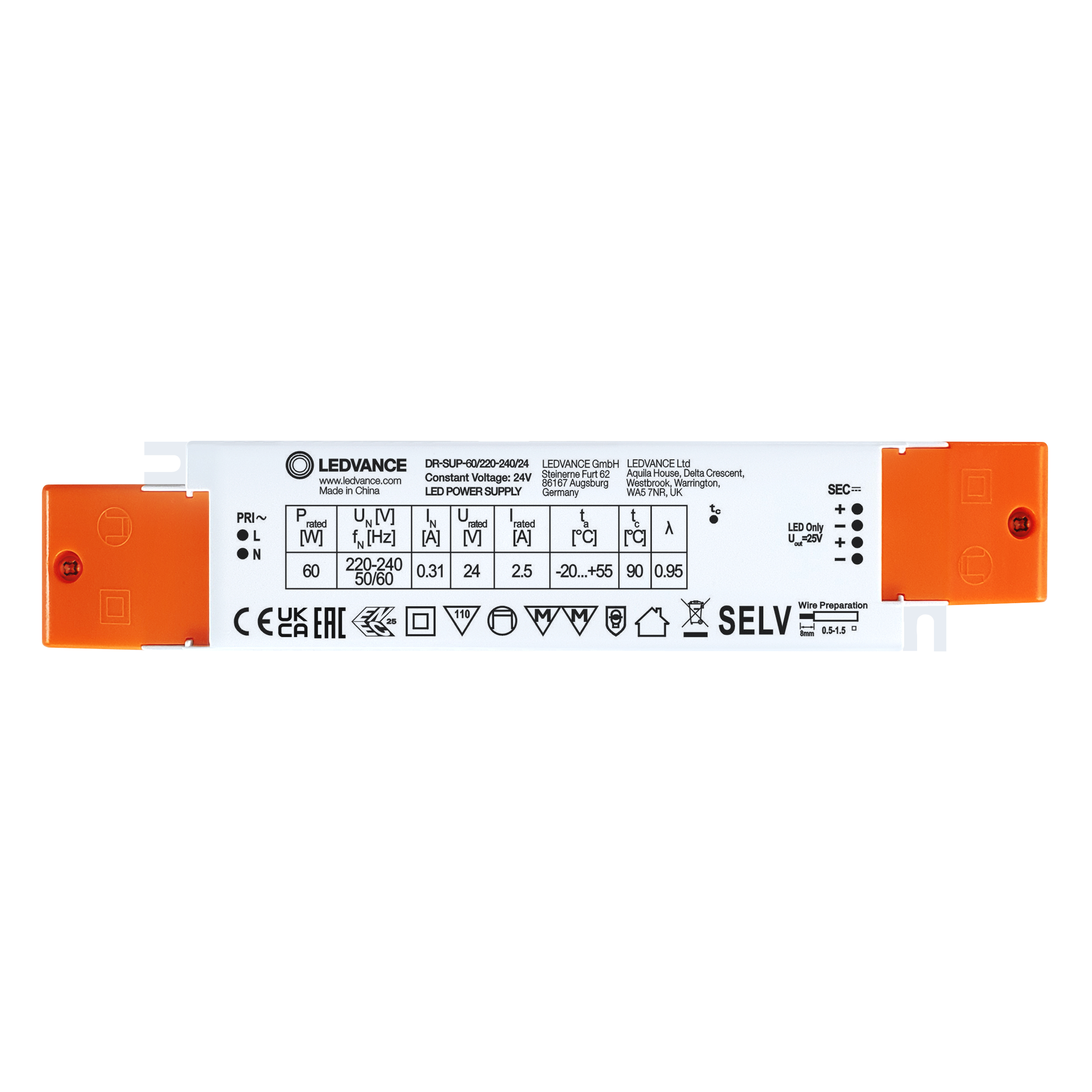

DR-SUP -60/220-240/24

GTIN: 4058075437807 Folding box / 1 Show all packages

Contact sales

Nominal wattage	60.00 W
Nominal output power	60 W ¹⁾
Nominal voltage	220…240 V
Nominal output voltage	24 V ²⁾
Input voltage AC	198…264 V ³⁾
U-OUT (working voltage)	25 V
Type of current	DC
Nominal current	310 mA
Nominal output current	2500 mA
Inrush current	34 A
Output ripple current (100 Hz)	1.5 %
Mains frequency	50…60 Hz
Total harmonic distortion	< 10 % ⁴⁾
Power factor λ	0.95 ⁴⁾
ECG efficiency	85 % ⁵⁾
Device power loss	9 W ⁶⁾
Max. ECG no. on circuit breaker 10 A (B)	14
Max. ECG no. on circuit breaker 16 A (B)	22
Max. ECG no. on circuit breaker 25 A (B)	34
Surge capability (L-N)	1 kV
Galvanic isolation	SELV

¹⁾ From 1 to 60 W
²⁾ Maximum 24 V
³⁾ Permitted voltage range
⁴⁾ At full load
⁵⁾ At full load and 230 V
⁶⁾ At maximum LED load of 60 W

Length	198.00 mm
Mounting hole spacing, length	141 mm
Width	43.00 mm
Height	30.00 mm
Cable cross-section, input side	0.5…1.5 mm²
Cable cross-section, output side	0.5…1.5 mm²
Prewired	No
Wire preparation length, input side	8,0 mm
Wire preparation length, output side	8,0 mm
Product weight	192.00 g

Ambient temperature range	-20…+55 °C
Maximum temperature at tc test point	90 °C
Max.housing temperature in case of fault	110 °C
Temperature range in operation	-20…+55 °C
Permitted rel. humidity during operation	5…85 %

ECG lifetime

60000 h ¹⁾

¹⁾ At maximum T_c = 80°C / 10% failure rate

Encapsulated

Dimmable	No
Dimming interface	Not dimmable
Overheating protection	Yes
Overload protection	Yes
Short-circuit protection	Yes
Max. cable length to lamp/LED module	2,0 m
Suitable for fixtures with prot. class	II
Suitable for emergency lighting	No
Type of connection, output side	Fixed connection (terminal)

Approval marks – approval	CE, CB, ENEC
Standards	Acc. To IEC/EN61347-1, Acc. to IEC 61347-2-13, Acc. to GB 19510.1, Acc. to GB 19510.14, Acc. to EN 55015, Acc. to IEC 61000-3-2, Acc. to IEC 61000-3-3, Acc. to IEC 61000-4-2, 3, 4, 5, 6, 8, 11, Acc. to IEC 61547, Acc. to IEC 62384
Protection class	II
Type of protection	IP20

Temperature range at storage

-40…+85 °C

Quantity of precious metals	0 mg
Quantity of rare earths	0 mg
Minimum rate of recycled material in packaging	80 % ¹⁾
Minimum percentage of recycled content in the product	0 % ¹⁾
Product recyclability	Mostly recyclable product ¹⁾
Packaging recyclability	Mostly recyclable packaging ¹⁾
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage	No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage	No
