QUICKTRONIC PROFESSIONAL 5
QTP5 3X14,4X14
GTIN: 4008321484598
Unpacked / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Long lamp life
- No adverse effect from frequent on/off switching
- Perfect lamp start for applications with motion sensors
- Automatic restart after lamp replacement
- VDE/VDE EMC certified system
- Very high energy efficiency due to cut-off technology
Areas of application
- Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
- Industry
- Open-plan offices, corridors and storage rooms
- Public buildings
- Sports halls and factories
- Strip lighting
- Suitable for emergency lighting (DC operation)
- Modernization of existing systems
- Suitable for luminaires of protection classes I and II
Product features
- Supply voltage: 220…240 V
- Line voltage: 198…264 V
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Lamp start with optimum filament preheating
- Lifetime: up to 100,000 h (temperature at Tc = 65 °C, max. 10 % failure rate)
- Energy Efficiency Index EEI: A2 BAT
- Automatic shutdown of defective lamps and at end of life (EoL T.2)
- Safety: to EN 61347-2-3
- Lamp operation: to EN 60929
Electrical data
| Nominal wattage | 62.00 W |
| Nominal voltage | 220…240 V |
| Input voltage DC | 176…276 V |
| U-OUT (working voltage) | 430 V |
| Inrush current | 40 A |
| Mains frequency | 50/60 Hz |
| Max. ECG no. on circuit breaker 10 A (B) | 12 1) |
| Max. ECG no. on circuit breaker 16 A (B) | 19 1) |
| Operating frequency | 40…50 kHz |
1) Type B
Light technical data
| Starting time [PIM] | 1 s |
Dimensions & Weight
| Length | 280.00 mm |
| Mounting hole spacing, length | 270,0 mm |
| Width | 40.00 mm |
| Height | 21.00 mm |
| Product weight | 211.00 g |
Colors & materials
| Casing material | Metal |
| Body material | Metal |
Temperatures & operating conditions
| Ambient temperature range | -20…+50 °C |
| Maximum temperature at tc test point | 75 °C |
| Max.housing temperature in case of fault | 110 °C |
| Permitted rel. humidity during operation | 5…85 % 1) |
1) Maximum 56 days/year at 85 %
Lifespan
| ECG lifetime | 100000 h 1) |
1) At Tcase = 65°C at Tc point / 10% failure rate
Capabilities
| Dimmable | No |
| Max. cable length to lamp/LED module | 1.0 m / 1.5 m |
| Suitable for fixtures with prot. class | I, II |
| End of lamp life safety shutdown | EOL T.2 |
Certificates & Standards
| Approval marks – approval | VDE, VDE-EMC, ENEC 10, CE |
| Standards | Acc. to EN 61347-2-3, Acc. to EN 55015:2006 + A1:2007, Acc. to EN 61000-3-2, Acc. to EN 61547 |
| Protection class | I/II |
| Type of protection | IP20 |
| Energy efficiency class | A2 BAT |
| EEI – Energy Label | A2 BAT |
LOGISTICAL DATA
| Temperature range at storage | -40…+85 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4008321484598 | Unpacked 1 |
211.00 g | ||
| 4008321484604 | Shipping box 20 |
304 mm x 115 mm x 171 mm | 4475.00 g | 5.98 dm³ |
User instruction / safety instructions
334142_Technical guide - ECGs for T5-lamps
334142_Technical guide - ECGs for T5-lamps
User instruction / safety instructions
592499_EAC QTP5
592499_EAC QTP5
Declarations of conformity
339525_Declaration of Conformity (GB)
339525_Declaration of Conformity (GB)
Certificates
335098_CEAG
335098_CEAG
Certificates
335169_Manufacturer´s declaration – Lamp/ECG combinations: Frequent switching
335169_Manufacturer´s declaration – Lamp/ECG combinations: Frequent switching
Certificates
554891_EAC PT family
554891_EAC PT family
Certificates
335101_ENEC-VDE-Marks approval
335101_ENEC-VDE-Marks approval
Certificates
504210_VDE-EMC-Certifi cate QT5
504210_VDE-EMC-Certifi cate QT5
Certificates
335128_VDE Quality Tested Simplified luminaire approbation
335128_VDE Quality Tested Simplified luminaire approbation
Certificates
335097_INOTEC
335097_INOTEC
PRODUCT DATASHEET
334048_QUICKTRONIC PROFESSIONAL – QTP5
334048_QUICKTRONIC PROFESSIONAL – QTP5
PRODUCT DATASHEET
321542_ATI QTP5 3X14,4X14 (G+GB)
321542_ATI QTP5 3X14,4X14 (G+GB)

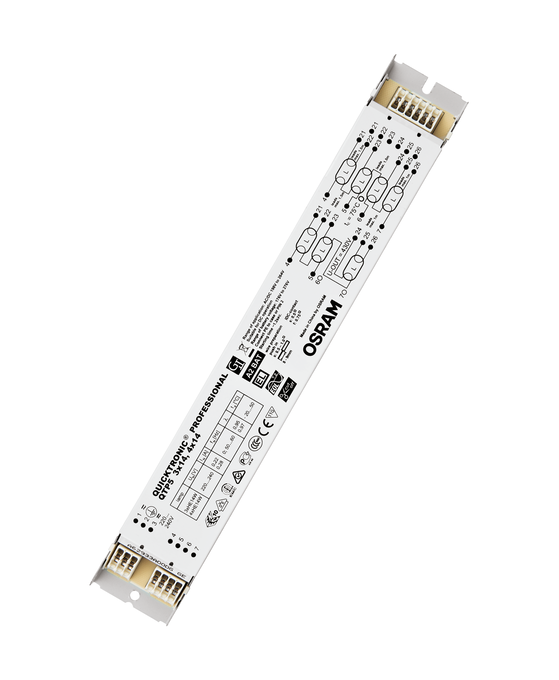

Product image: white background, diagonal
721507_QTP5 3X14,4X14/220-240
721507_QTP5 3X14,4X14/220-240

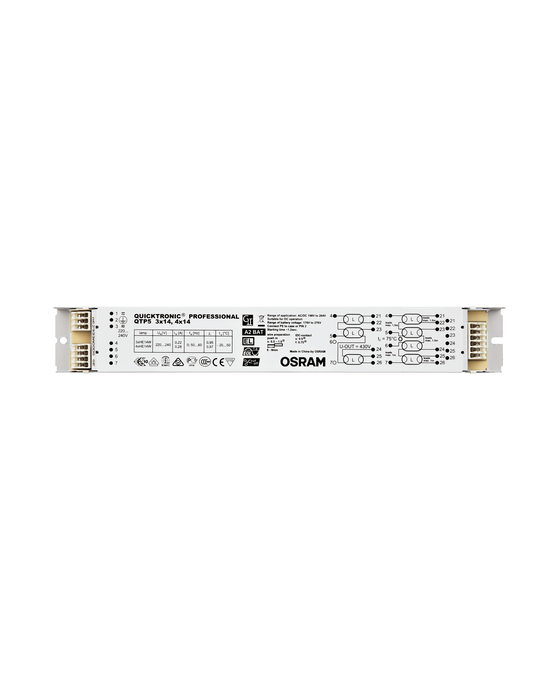

Product image: white background, horizontal
721636_QTP5 3X14,4X14/220-240
721636_QTP5 3X14,4X14/220-240
Product line drawing with letters
35984_QTP5 1x14, 1x49
35984_QTP5 1x14, 1x49

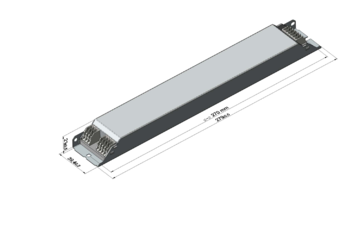

CAD data 3D PDF
