QUICKTRONIC MULTIWATT
QTP-M 2X26…32
GTIN: 4008321329158
Unpacked / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Long lamp life
- No adverse effect from frequent on/off switching
- Automatic restart after lamp replacement
- Perfect lamp start for applications with motion sensors
- Separate installations thanks to optional cable clamp for K2 and K3 casings
- VDE/VDE EMC certified system
Areas of application
- Emergency lighting systems acc. to EN 50172 / DIN VDE 0108-100
- Public buildings
- Sports halls and factories
- Suitable for luminaires of protection class I
Product features
- Supply voltage: 220…240 V
- Line voltage: 198…264 V
- Line frequency: 0 Hz | 50 Hz | 60 Hz
- Lamp start with optimum filament preheating
- Energy Efficiency Index EEI: A2
- Automatic shutdown of defective lamps and at end of life (EoL T.2)
- Lamp operation: to EN 60929
- Safety: to EN 61347-2-3
Electrical data
| Nominal wattage | 71.00 W |
| Nominal voltage | 220…240 V |
| Input voltage AC | 198…264 V |
| Input voltage DC | 176…276 V |
| U-OUT (working voltage) | 430 V |
| Inrush current | 25 A |
| Mains frequency | 50/60 Hz 1) |
| Max. ECG no. on circuit breaker 10 A (B) | 11 2) |
| Max. ECG no. on circuit breaker 16 A (B) | 19 2) |
| Operating frequency | 45 kHz |
1) Approximately
2) Type B
2) Type B
Light technical data
| Starting time [PIM] | 1 s |
Dimensions & Weight
| Length | 123.00 mm |
| Mounting hole spacing, length | 111,0 mm |
| Width | 79.00 mm |
| Height | 33.00 mm |
| Cable cross-section, input side | 0.5…1.5 mm² |
| Cable cross-section, output side | 0.5…1.5 mm² |
| Product weight | 180.00 g |
Colors & materials
| Casing material | Plastic |
| Body material | Plastic |
Temperatures & operating conditions
| Ambient temperature range | -20…+50 °C |
| Maximum temperature at tc test point | 70 °C |
| Max.housing temperature in case of fault | 110 °C |
| Permitted rel. humidity during operation | 5…85 % 1) |
1) Maximum 56 days/year at 85 %
Lifespan
| ECG lifetime | 50000 h 1) |
1) At Tcase = 70°C at Tc point / 10% failure rate
Additional product data
| Product remark | Optional cable clamp, see chapter ECG mountings - cable clamp |
Capabilities
| Dimmable | No |
| Max. cable length to lamp/LED module | 2.0 m / 1.0 m |
| Suitable for fixtures with prot. class | I, II |
| End of lamp life safety shutdown | EOL T.2 |
Certificates & Standards
| Approval marks – approval | VDE, VDE-EMC, ENEC 10, GOST, RCM |
| Standards | Acc. to EN 61347-2-3, Acc. to EN 60929, Acc. to EN 55015:2006 + A1:2007, Acc. to EN 61000-3-2, Acc. to EN 61547 |
| Protection class | I/II |
| Type of protection | IP20 |
| Energy efficiency class | A2 |
| EEI – Energy Label | A2 |
LOGISTICAL DATA
| Temperature range at storage | -40…+85 °C |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4008321329158 | Unpacked 1 |
180.00 g | ||
| 4008321329165 | Shipping box 20 |
428 mm x 88 mm x 257 mm | 3860.00 g | 9.68 dm³ |
User instruction / safety instructions
334142_Technical guide - ECGs for T5-lamps
334142_Technical guide - ECGs for T5-lamps
User instruction / safety instructions
596698_EAC QTP-M
596698_EAC QTP-M
Declarations of conformity
334807_Declaration of conformity – QTP-M
334807_Declaration of conformity – QTP-M
Declarations of conformity
339525_Declaration of Conformity (GB)
339525_Declaration of Conformity (GB)
Certificates
334956_EMC-Marks approval – QTP-M
334956_EMC-Marks approval – QTP-M
Certificates
504211_VDE-EMC-Certifi cate QT-M
504211_VDE-EMC-Certifi cate QT-M
Certificates
335126_CEAG requirements Compatibility to modules of manufacturers for emergency lighti
335126_CEAG requirements Compatibility to modules of manufacturers for emergency lighti
Certificates
335169_Manufacturer´s declaration – Lamp/ECG combinations: Frequent switching
335169_Manufacturer´s declaration – Lamp/ECG combinations: Frequent switching
Certificates
334982_ENEC-Marks approval QT-M
334982_ENEC-Marks approval QT-M
Certificates
335181_VDE Quality Tested – Simplyfied luminaire approbation
335181_VDE Quality Tested – Simplyfied luminaire approbation
Certificates
334981_EMC-Marks approval QT-M
334981_EMC-Marks approval QT-M
Certificates
335097_INOTEC
335097_INOTEC
Certificates
335101_ENEC-VDE-Marks approval
335101_ENEC-VDE-Marks approval
PRODUCT DATASHEET
321429_ATI QTP-M 2X26-32 (GB)
321429_ATI QTP-M 2X26-32 (GB)

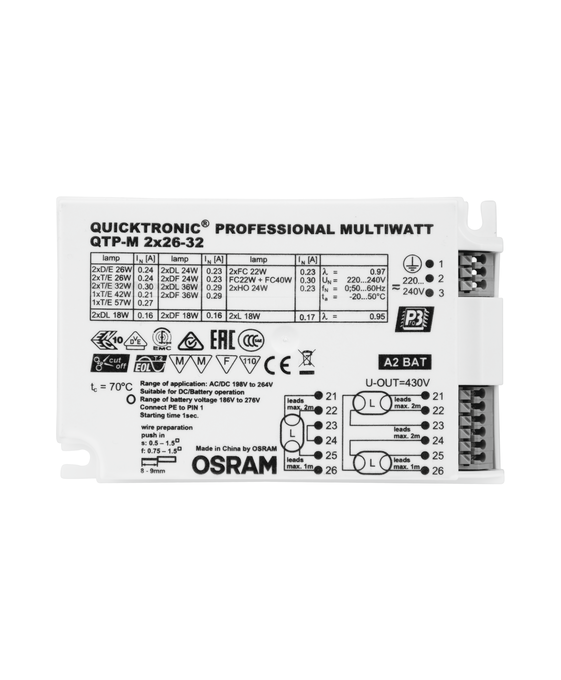

Product image: white background, diagonal
