SubstiTUBE T8 UNIVERSAL VALUE
ST8V-UN 19 W/4000 K 1500 mm
GTIN: 4058075137547
Sleeve / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- No bending thanks to glass technology
- Also suitable for operation at low temperatures
- Easy installation
Areas of application
- General illumination within ambient temperatures from -20…+45 °C
- Corridors, stairways, parking garages
- Warehouses
Product features
- T8 LED tube made of glass with G13 base
- Compatible with conventional and many common electronic control gears (see also compatibility list) and line voltage
- Low flicker according to EU 2019/2020
- Uniform illumination
- Lifetime up to 30,000 h
- Mercury-free lamps
Legal advice
- When used to replace a T8 fluorescent lamp the total energy efficiency and light distribution depends on the design of the lighting system.
Safety advice
- Operation in outdoor applications in suitable damp-proof luminaires possible according to data sheet and installation instruction.
- The operating temperature range of LED tube is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
- For operation of LED TUBE T8 UN with a conventional control gear, the existing starter must be exchanged with the including LED starter in the LED tube packaging.
- All electrical connections must be made by a qualified person.
- Not suitable for emergency lighting.
References / Links
- For current information see www.ledvance.com/substitube
Electrical data
| Nominal wattage | 19 W |
| Construction wattage | 19.00 W |
| Nominal voltage | 220…240 V |
| Operating mode | Electronic control gear (ECG), Conventional control gear (CCG), Line voltage |
| Nominal current | 90 mA 1) |
| Type of current | AC |
| Inrush current | 37 A |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz 2) |
| Max. lamp number on MCB B10 A | 43 |
| Max. lamp number on MCB B10 A - CCG without compensation | 43 |
| Max. lamp number on MCB B10 A - CCG with compensation | 37 |
| Max. lamp number on MCB B16 A | 69 |
| Max. lamp number on MCB B16 A - CCG without compensation | 69 |
| Max. lamp number on MCB B16 A - CCG with compensation | 62 |
| Power factor λ | > 0.90 |
1) 475 mA for ECG (HF)
2) 20-75KHz for ECG (HF)
2) 20-75KHz for ECG (HF)
Photometrical data
| Luminous flux | 2000 lm |
| Luminous efficacy | 105 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Cool White |
| Color temperature | 4000 K |
| Color rendering index Ra | ≥80 |
| Light color | 840 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated LLMF at 6,000 h | 0.80 |
Light technical data
| Beam angle | 160 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 1500.00 mm |
| Length with base excl. base pins/connection | 1498 mm |
| Diameter | 28.00 mm |
| Tube diameter | 26,7 mm |
| Base diameter | 28,0 mm |
| Maximum diameter | 28 mm |
| Product weight | 284.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+45 °C |
| Maximum temperature at tc test point | 62 °C |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h |
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Base (standard designation) | G13 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy efficiency class | F 1) |
| Energy consumption | 19.00 kWh/1000h |
| Type of protection | IP20 |
| Standards | CE |
1) Energy efficiency class (EEC) on a scale of A++ (highest efficiency) to E (lowest efficiency)
Country-specific categorizations
| Order reference | ST8V-1.5M 19W/8 |
LOGISTICAL DATA
| Temperature range at storage | -20…+80 °C |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | G13 |
| Length | 1500.00 mm |
| Height | 28.00 mm |
| Width | 28.00 mm |
| EPREL ID | 1582633 |
| Model number | AC11163 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075137547 | Sleeve 1 |
1,605 mm x 29 mm x 29 mm | 318.00 g | 1.35 dm³ |
| 4058075137554 | Shipping box 10 |
1,652 mm x 210 mm x 115 mm | 4020.00 g | 39.90 dm³ |
Extended installation guide
Installation instructions for SubstiTube
Installation instructions for SubstiTube
Extended installation guide
SubstiTUBE® T8 T5
SubstiTUBE® T8 T5

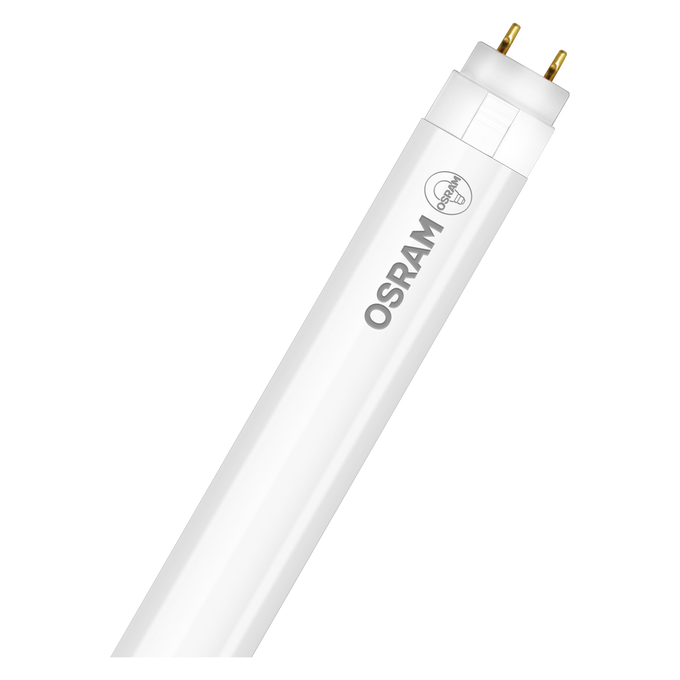

Product image: white background, diagonal with OSRAM logo
SubstiTUBE T8
SubstiTUBE T8

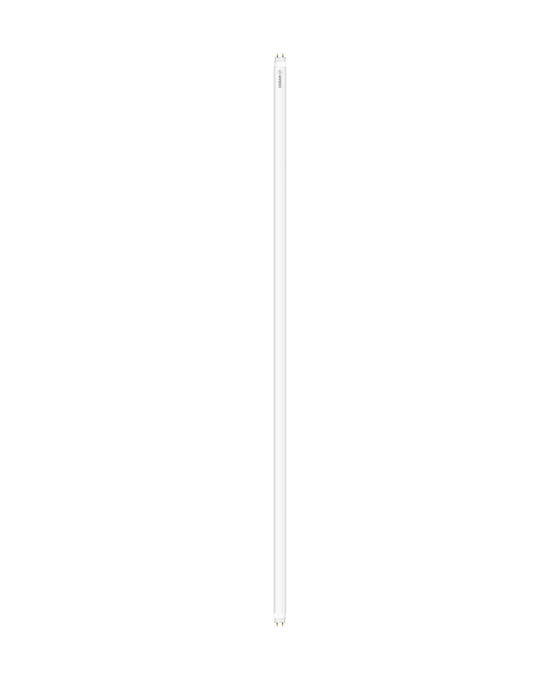

Product image: white background, upright, OSRAM logo
SubstiTUBE T8
SubstiTUBE T8
Product line drawing with letters
product drawings T8
product drawings T8
IES file (IES)
ST8V 1,5M 19W 840 UN
ST8V 1,5M 19W 840 UN
LDT file (Eulumdat)
ST8V 1,5M 19W 840 UN
ST8V 1,5M 19W 840 UN
Light distribution curve type polar
ST8V 1,5M 19W 840 UN
ST8V 1,5M 19W 840 UN
| EAN | SEG number | STK number | EFO number | ELDAS number |
|---|---|---|---|---|
| 4058075137547 | 8293896 | 4731021 | 3719049 | 941804260 |
