LED STAR GROW T LAMP

LED Star Grow Lamp T 80 20W Clear E27

GTIN: 4058075845800 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Special color spectrum which promotes growth of plants

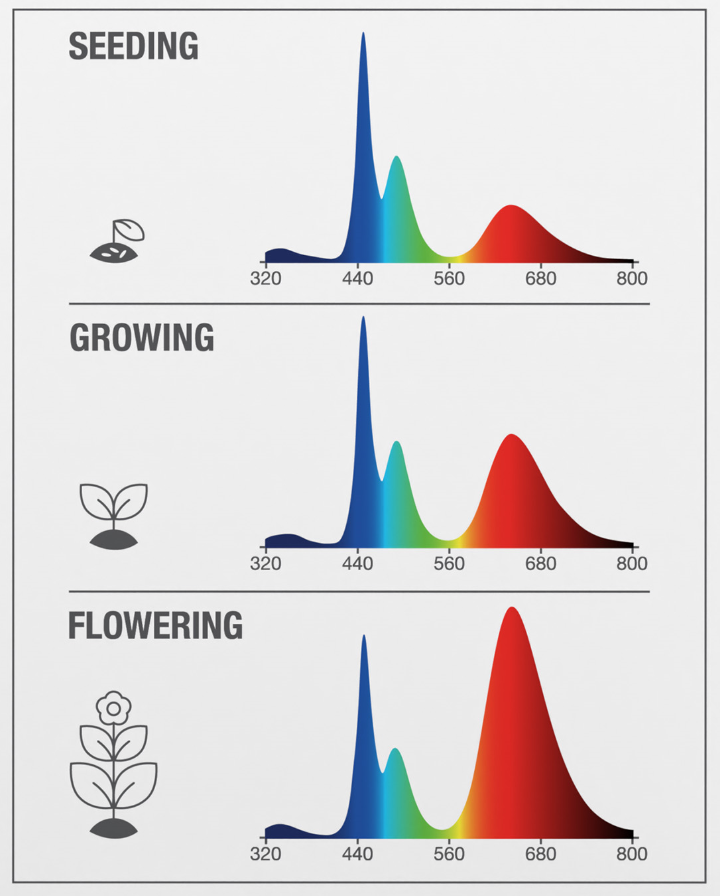

  • Adjustable for 3 different stages of flower and vegetable growth: Seeding, Growing, and Flowering
  • Reduced green and yellow light to a level that plants can absorb, decreasing unnecessary energy consumption.
Areas of application
  • Indoor applications: living area, green house or winter garden
  • Outdoor use in outdoor luminaires only (minimum IP65)
Product features
  • LED grow light bulb
  • Offering 3 different light spectrum options, adjustable via the integrated switch
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
References / Links
Electrical data
Nominal wattage 20 W
Construction wattage 20.00 W
Nominal voltage 220…240 V
Operating mode AC Mains
Nominal current 160 mA
Type of current AC
Inrush current 7.9 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp number on MCB B10 A 20
Max. lamp number on MCB B16 A 26
Total harmonic distortion 138 %
Power factor λ 0.54
Photometrical data
Luminous flux 650 lm
Luminous efficacy 32 lm/W
Lumen main.fact.at end of nom.life time 0.96
Color rendering index Ra 80
Light color 8
Flickering metric (Pst LM) 1
Stroboscope effect metric (SVM) 0.4
Light technical data
Beam angle 110 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 118.00 mm
Diameter 80.00 mm
Maximum diameter 80 mm
Product weight 83.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Lifespan
Lifespan L70/B50 at 25 °C 25000 h
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.96
Additional product data
Base (standard designation) E27
Mercury content 0.0 mg
Mercury-free Yes
Capabilities
Dimmable No
Certificates & Standards
Energy consumption 20.00 kWh/1000h
Type of protection IP20
Standards LVD, EMC, RoHS, REACH
Photobiological safety group acc. to EN62778 RG1
Country-specific categorizations
Order reference LEDS T80GROW 20
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
Energy labelling regulation data acc EU 2019/2015
Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E27
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Standby power No
Networked standby power for CLS No
Claim of equivalent power No
Length 118.00 mm
Height 80.00 mm
Width 80.00 mm
Beam angle correspondence SPHERE_360
Survival factor 0.9
Displacement factor 0.914
LED light source replaces a fluorescent light source No
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075845800 Folding box
1		 81 mm x 81 mm x 170 mm 117.00 g 1.12 dm³
4058075845817 Shipping box
6		 265 mm x 180 mm x 137 mm 928.00 g 6.53 dm³
Declarations of conformity
Grow lamps Classic T
PDF (294.36 KB)

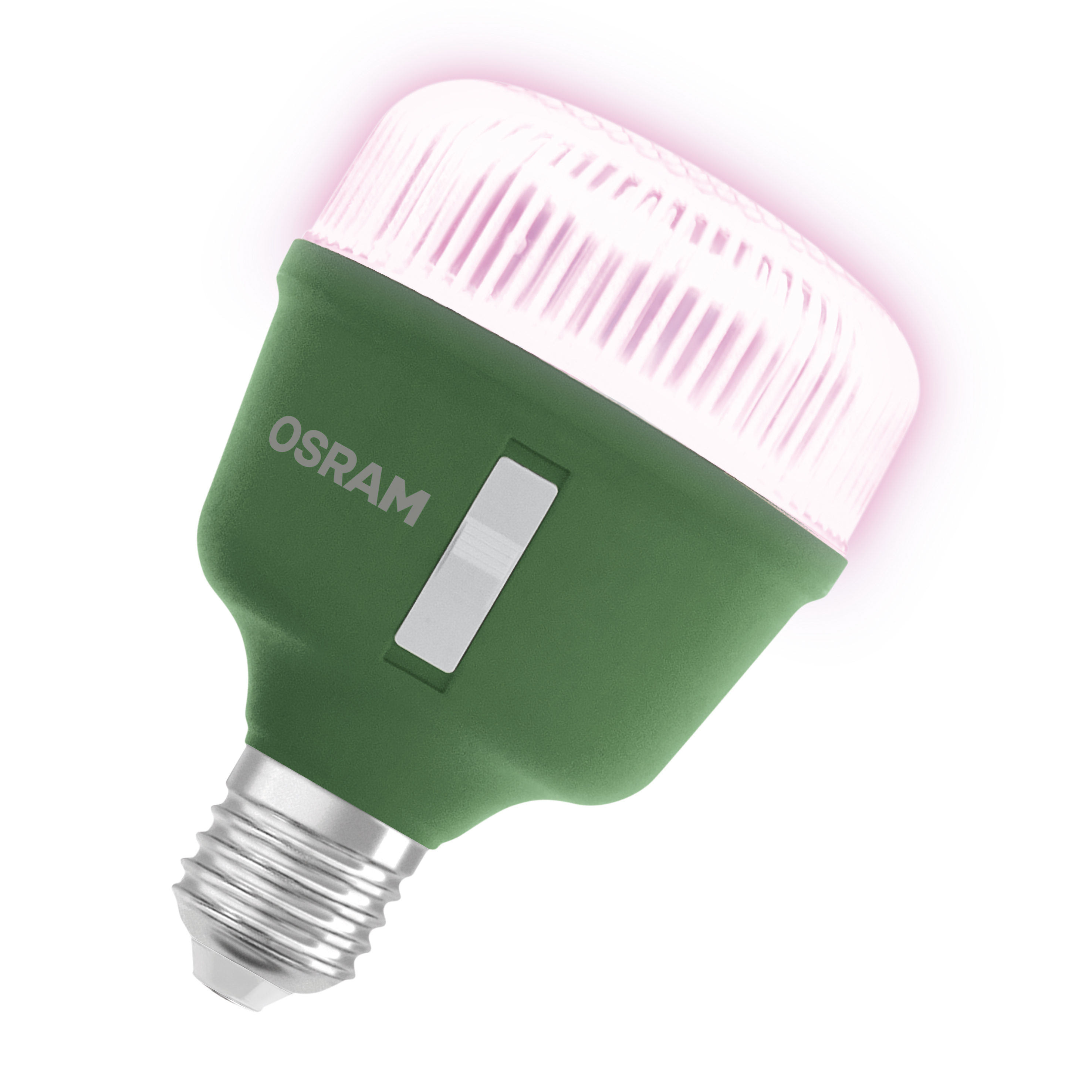

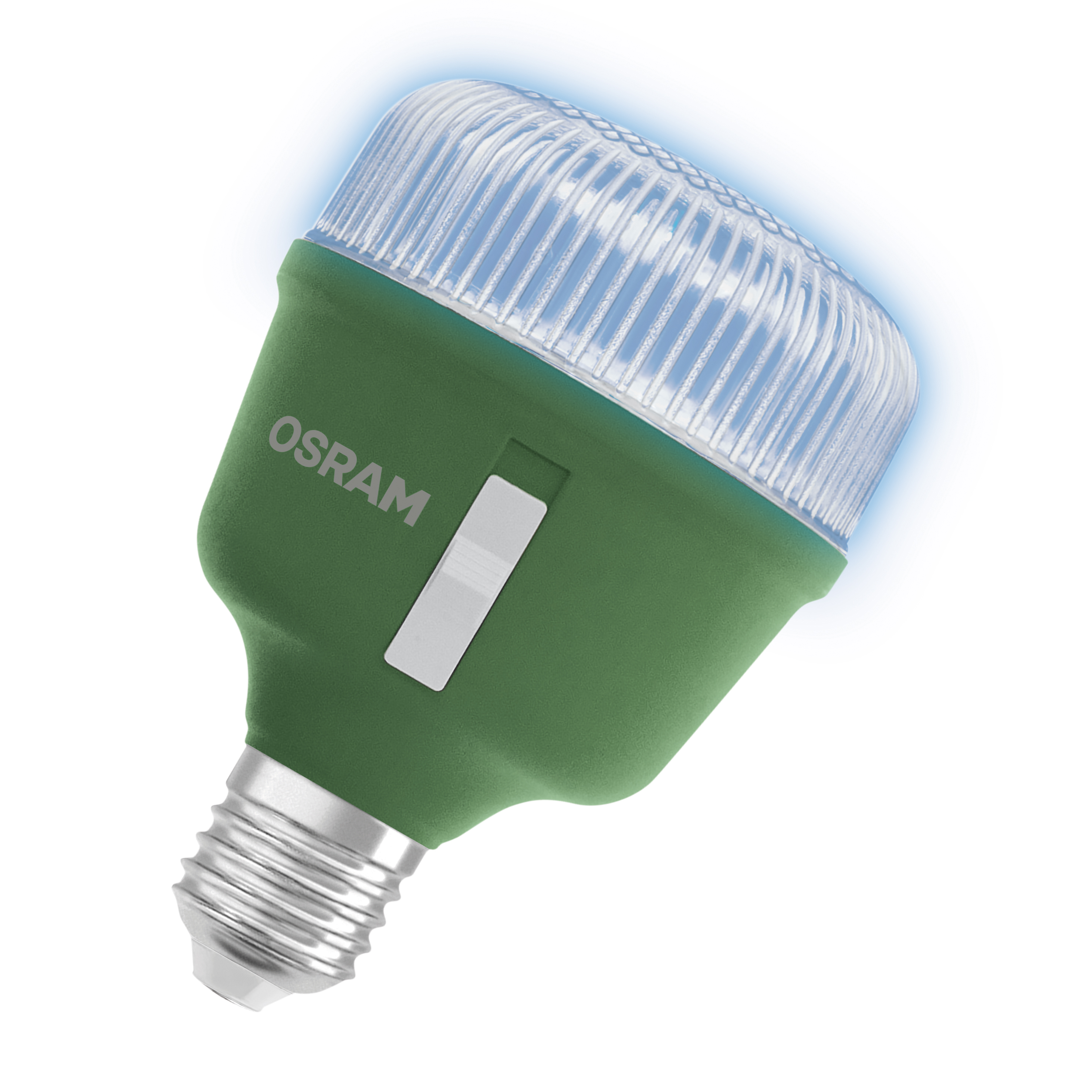

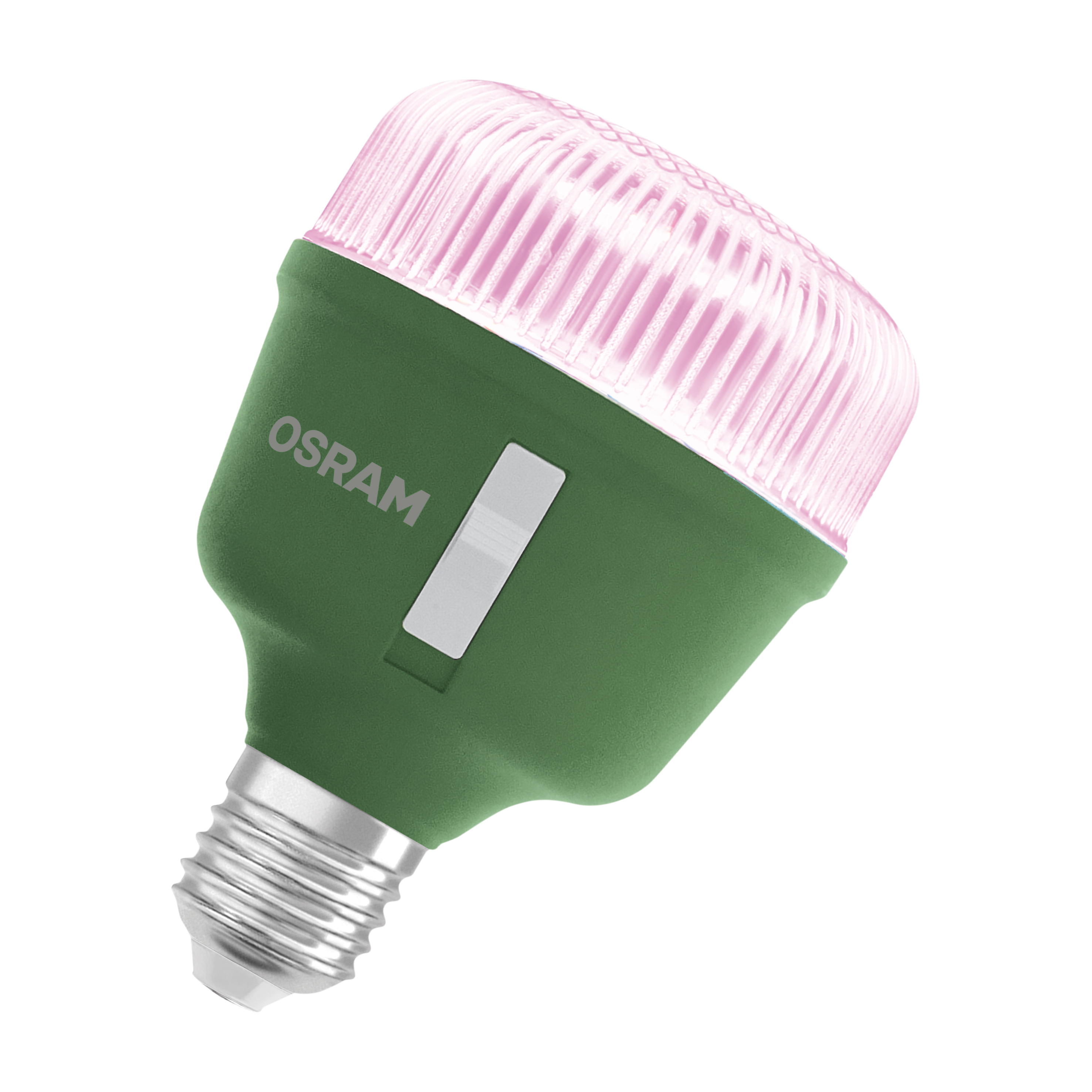

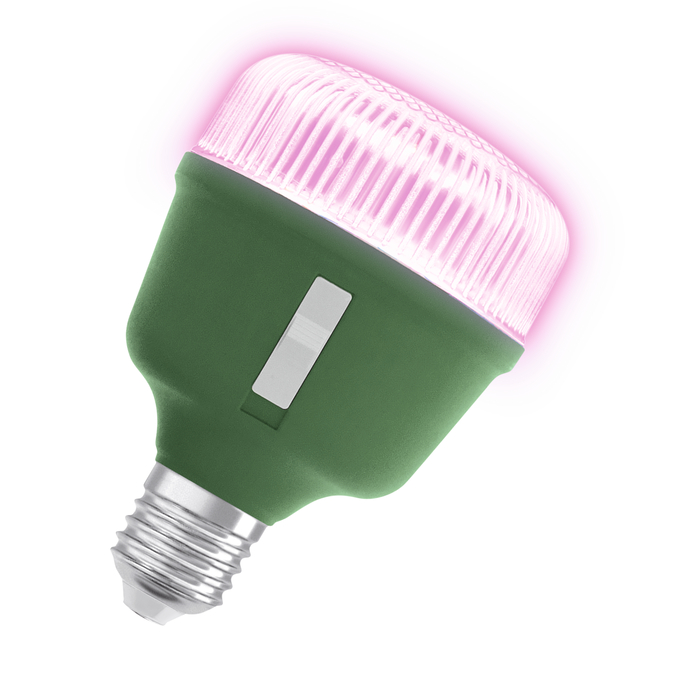

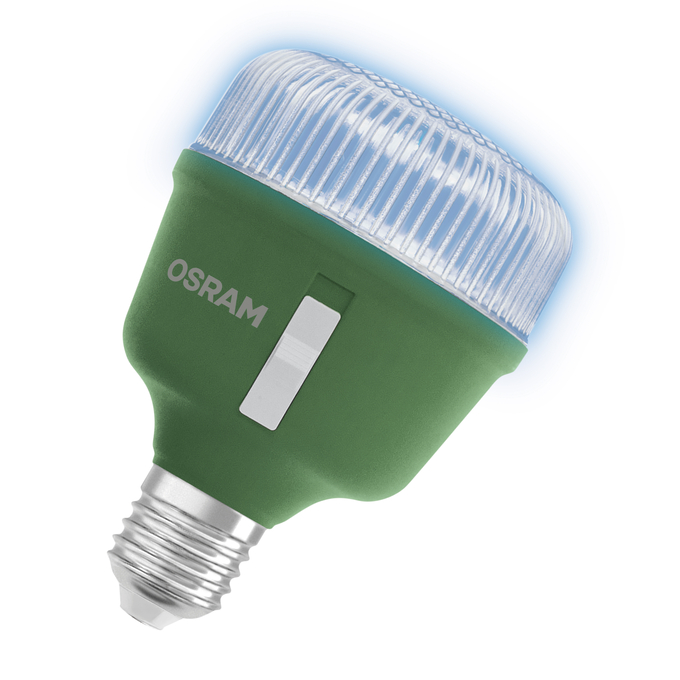

Product image: white background, diagonal with OSRAM logo
LEDS T80GROW 20W 230V CL E27
JPG (1.51 MB)

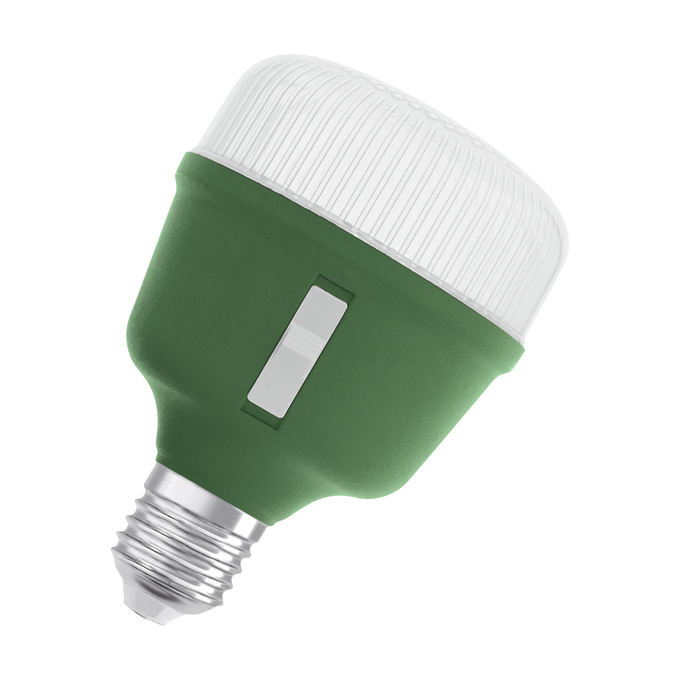

Product image: white background, diagonal with OSRAM logo
LEDS T80GROW 20W 230V CL E27
JPG (1.95 MB)

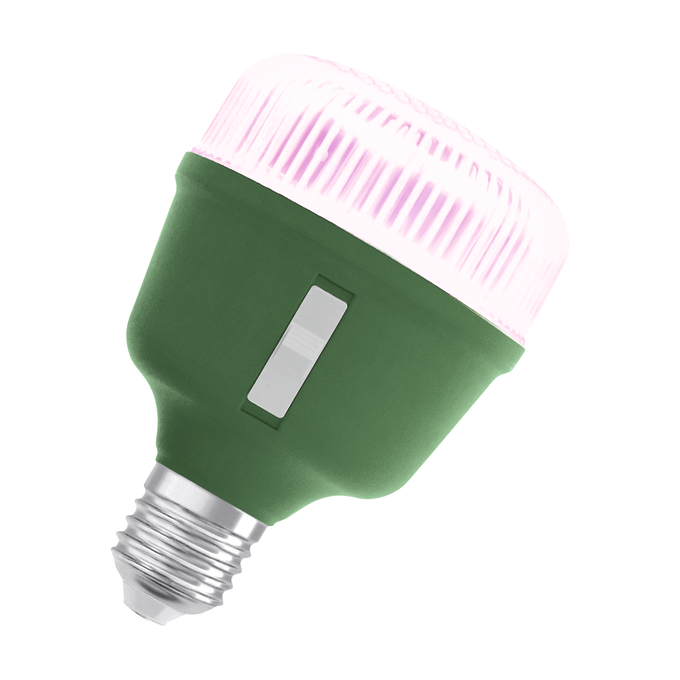

Product image: white background, diagonal with OSRAM logo
LEDS T80GROW 20W 230V CL E27
JPG (1.64 MB)
Product image: white background, diagonal with OSRAM logo
LEDS T80GROW 20W 230V CL E27
JPG (1.73 MB)

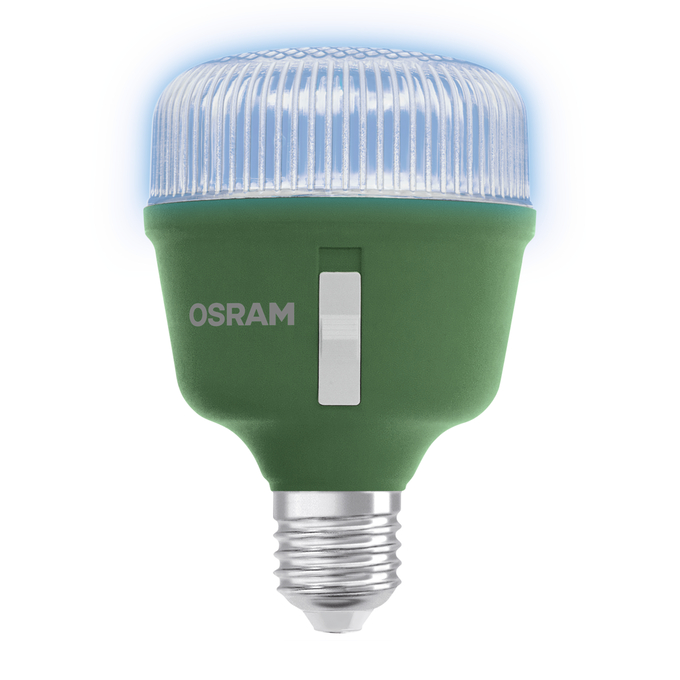

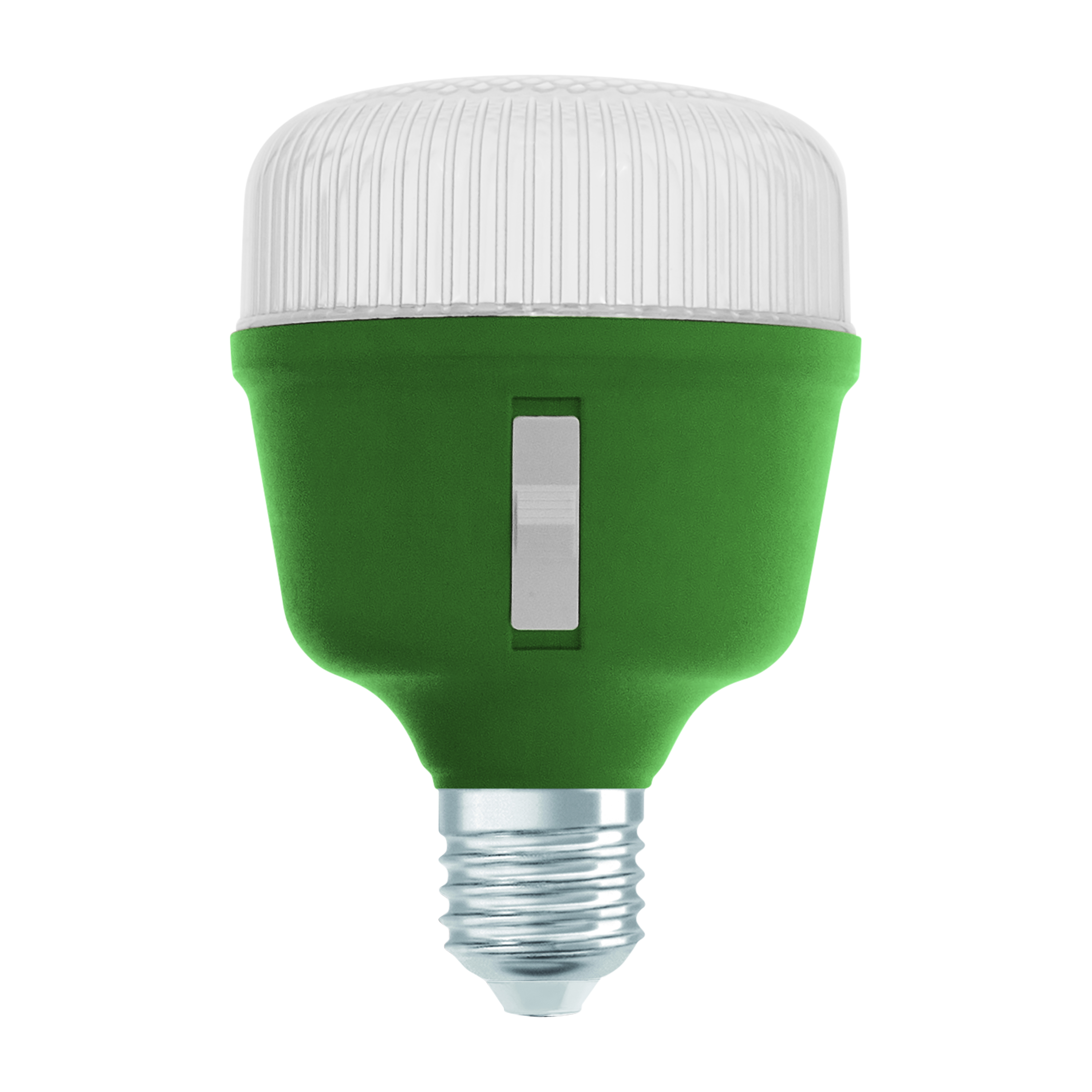

Product image: white background, upright, OSRAM logo
LEDS T80GROW 20W 230V CL E27
JPG (1.83 MB)
Product image: white background, upright, OSRAM logo
LEDS T80GROW 20W 230V CL E27
JPG (2.37 MB)
Product image: white background, upright, OSRAM logo
LEDS T80GROW 20W 230V CL E27
JPG (1.9 MB)
Product image: white background, upright, OSRAM logo
LEDS T80GROW 20W 230V CL E27
JPG (2.18 MB)

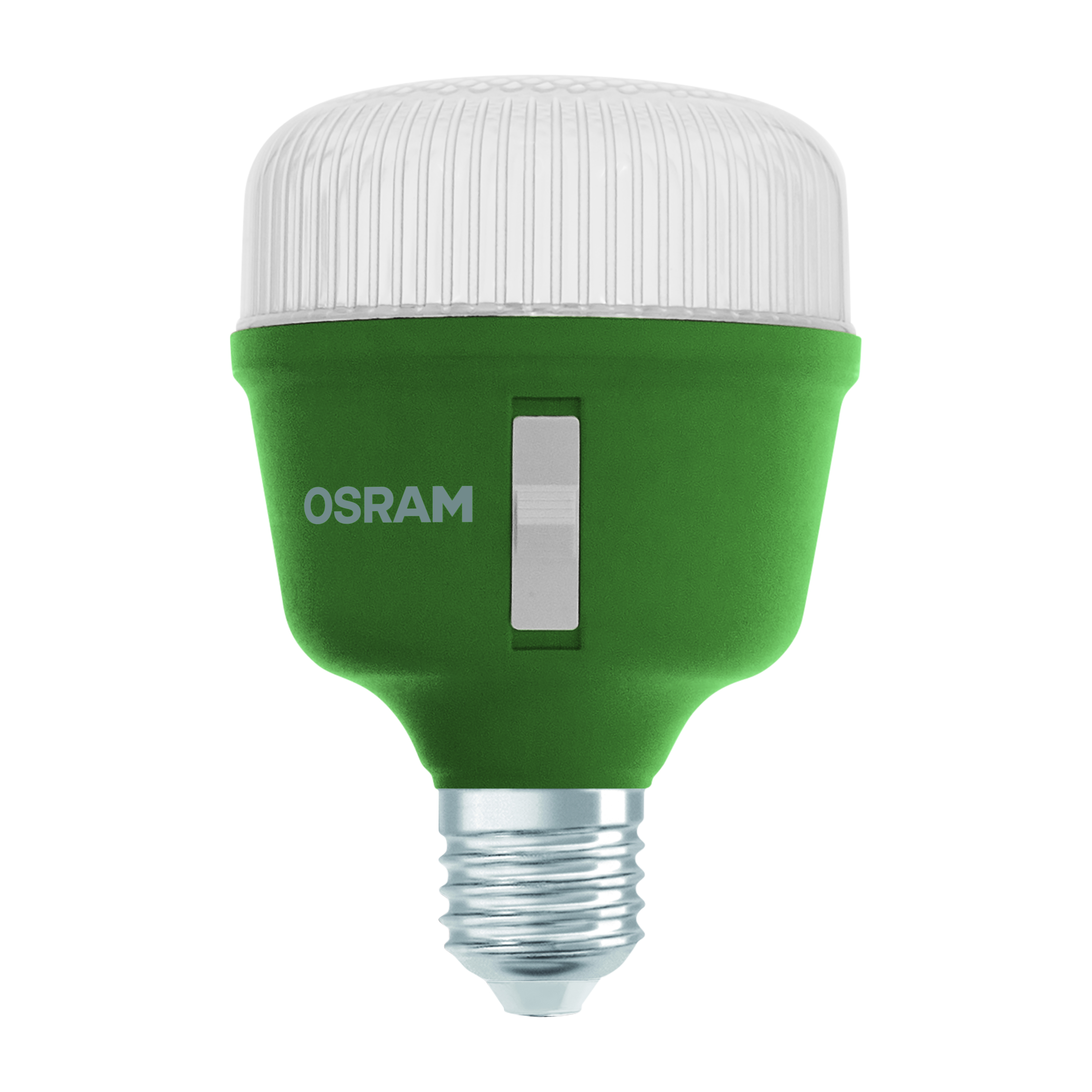

Product image: white background, upright
LEDS T80GROW 20W 230V CL E27
JPG (1.8 MB)

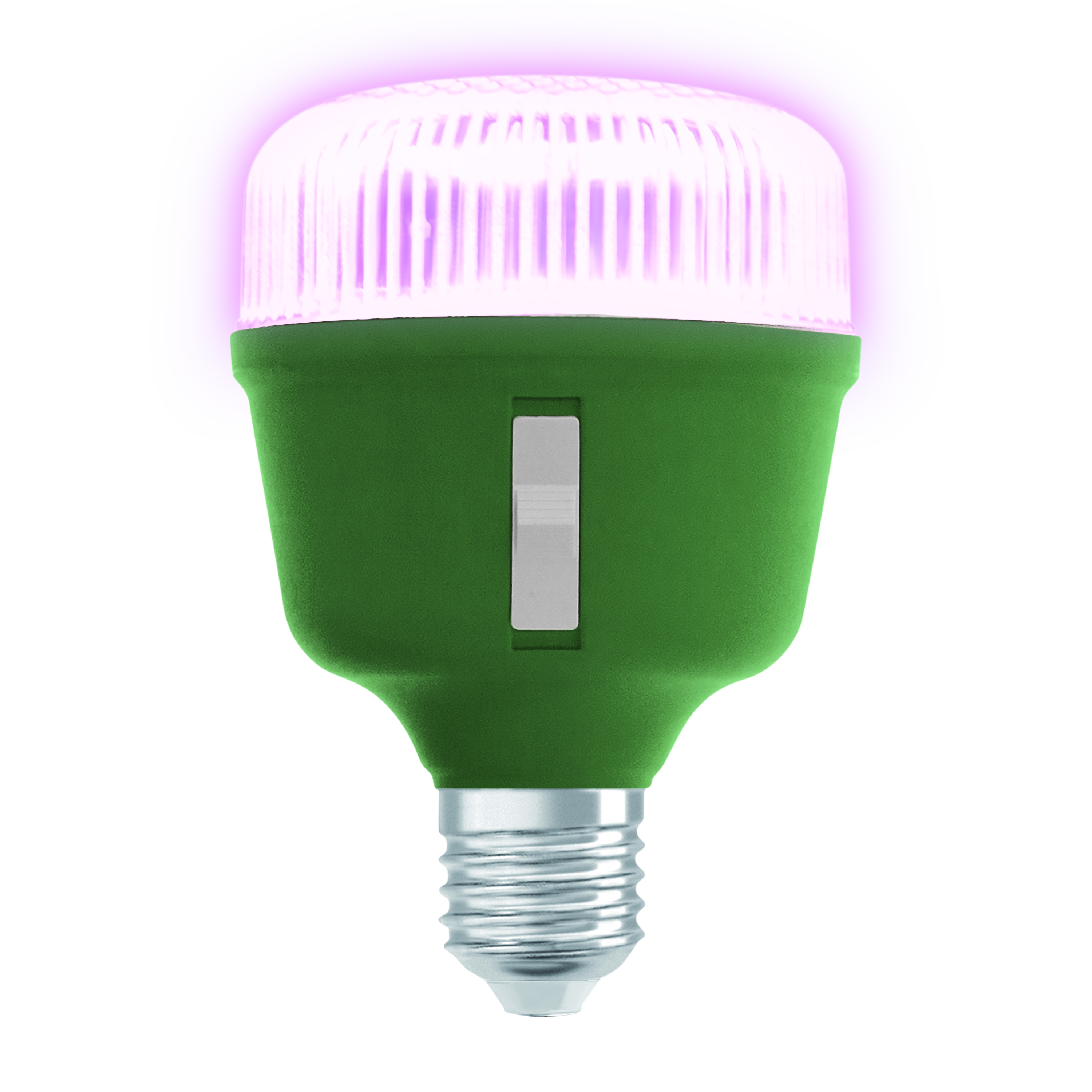

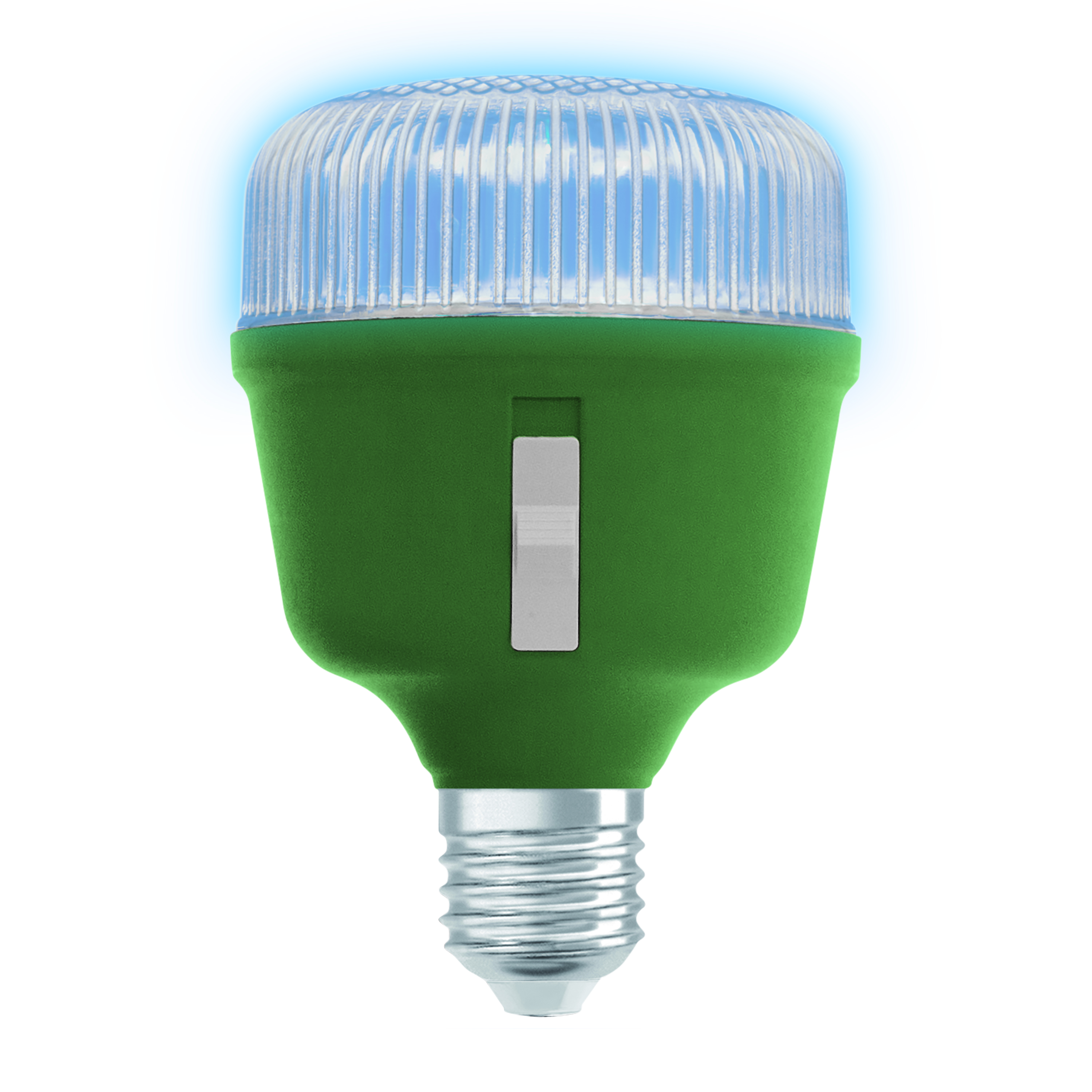

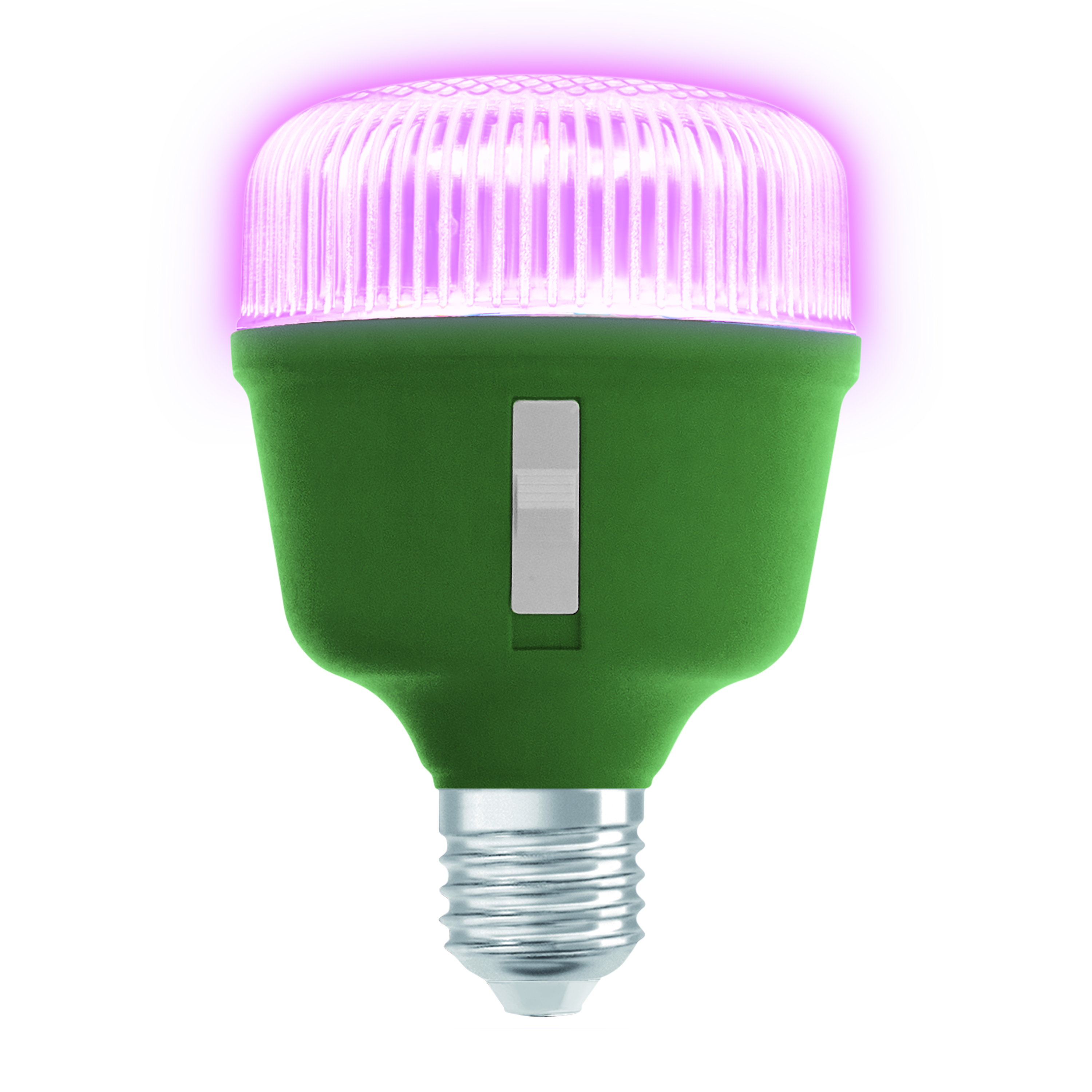

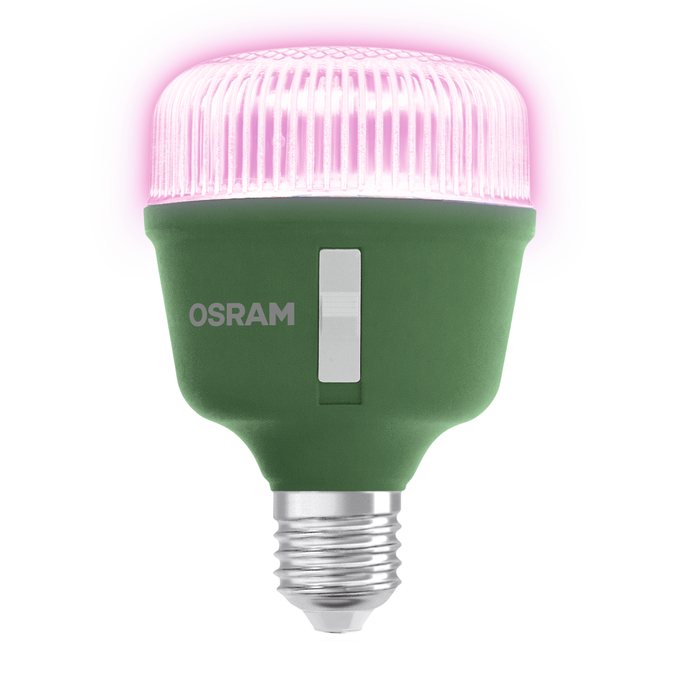

Product image: white background, upright, switched on
LEDS T80GROW 20W 230V CL E27
JPG (2.34 MB)

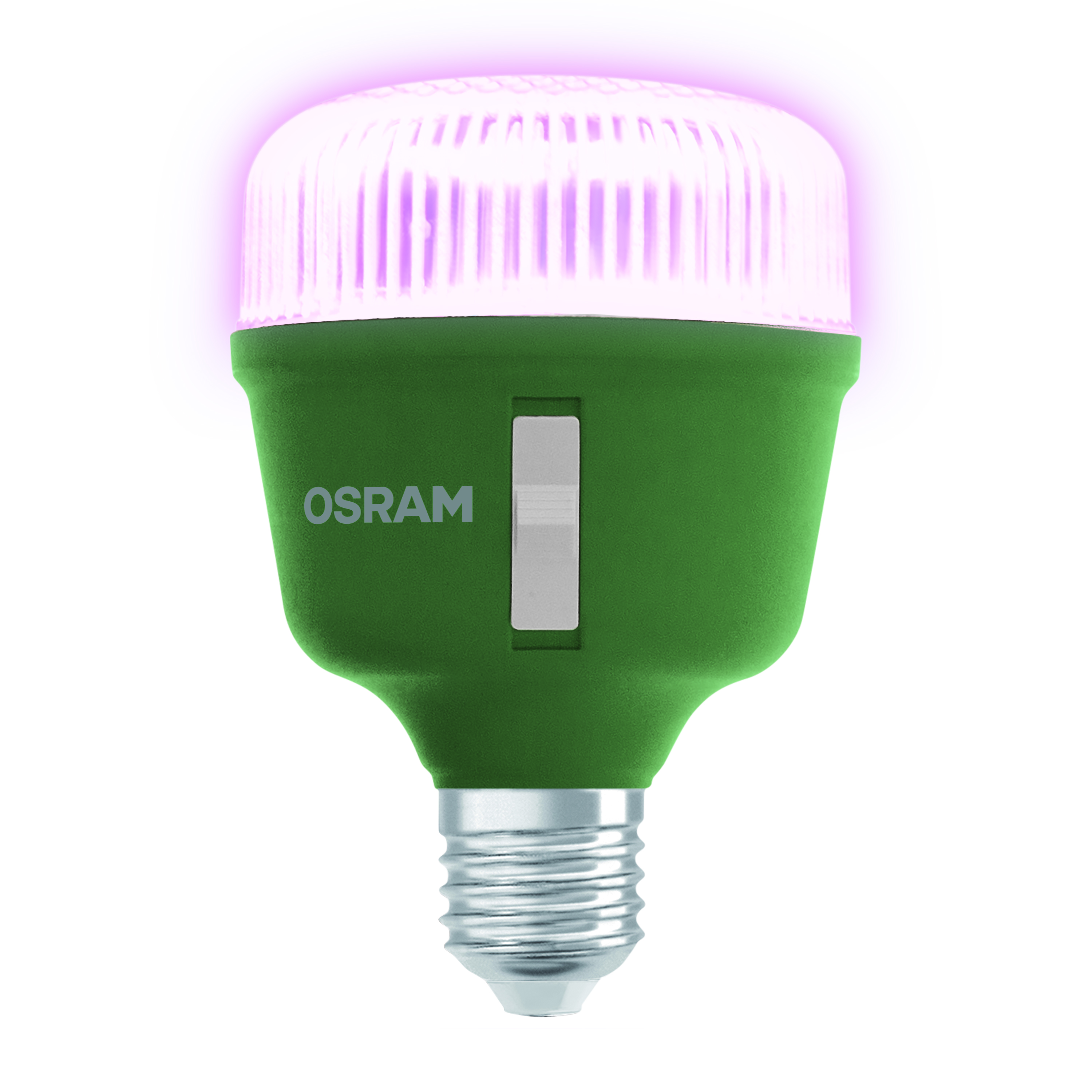

Product image: white background, upright, switched on
LEDS T80GROW 20W 230V CL E27
JPG (1.87 MB)

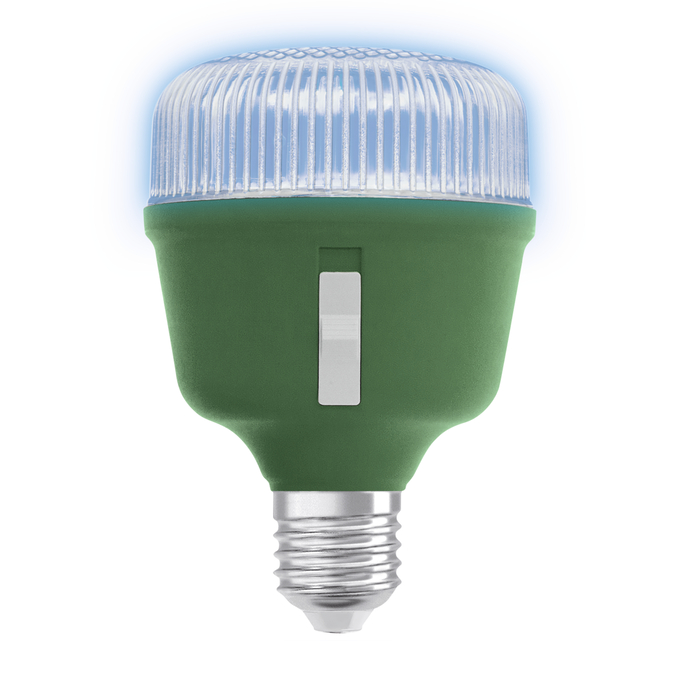

Product image: white background, upright, switched on
LEDS T80GROW 20W 230V CL E27
JPG (2.16 MB)
Product image: white background, spacial
LEDS T80GROW 20W 230V CL E27
JPG (1.88 MB)
Product line drawing with letters
LEDS T80GROW 20W 230V CL E27
SVG (15.37 KB)
Product line drawing with numbers
LEDS T80GROW 20W 230V CL E27
SVG (17.32 KB)
Product line drawing - technical
LEDS T80GROW 20W 230V CL E27
SVG (10.93 KB)

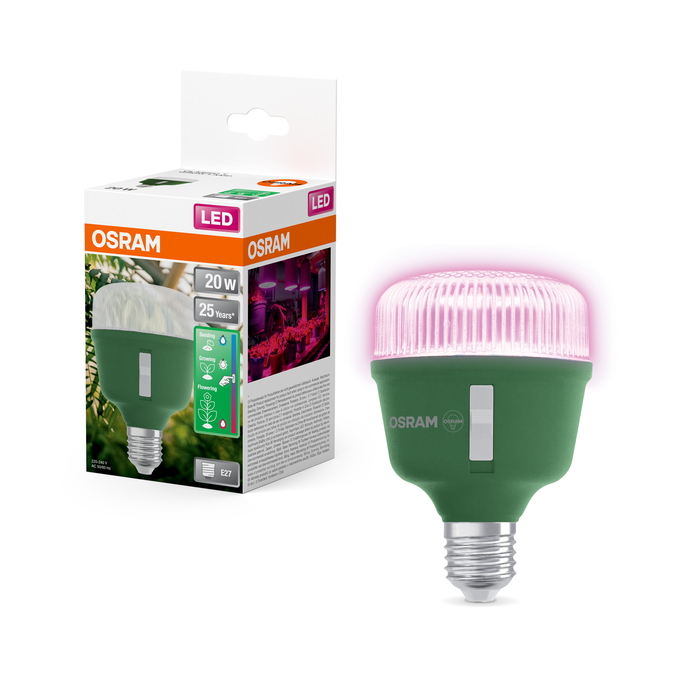

Combo Shot = Product Beauty Shot + Packaging Image
FC1 LED SST PLUS CLT 80 GROW 20W CL E27
JPG (900.6 KB)
Packaging image, frontal
FC1 LED SST PLUS CLT 80 GROW 20W CL E27
JPG (634.84 KB)
Packaging image, spacial
FC1 LED SST PLUS CLT 80 GROW 20W CL E27
JPG (826.76 KB)
Catalog info 1
Grow lamps
PNG (289.19 KB)

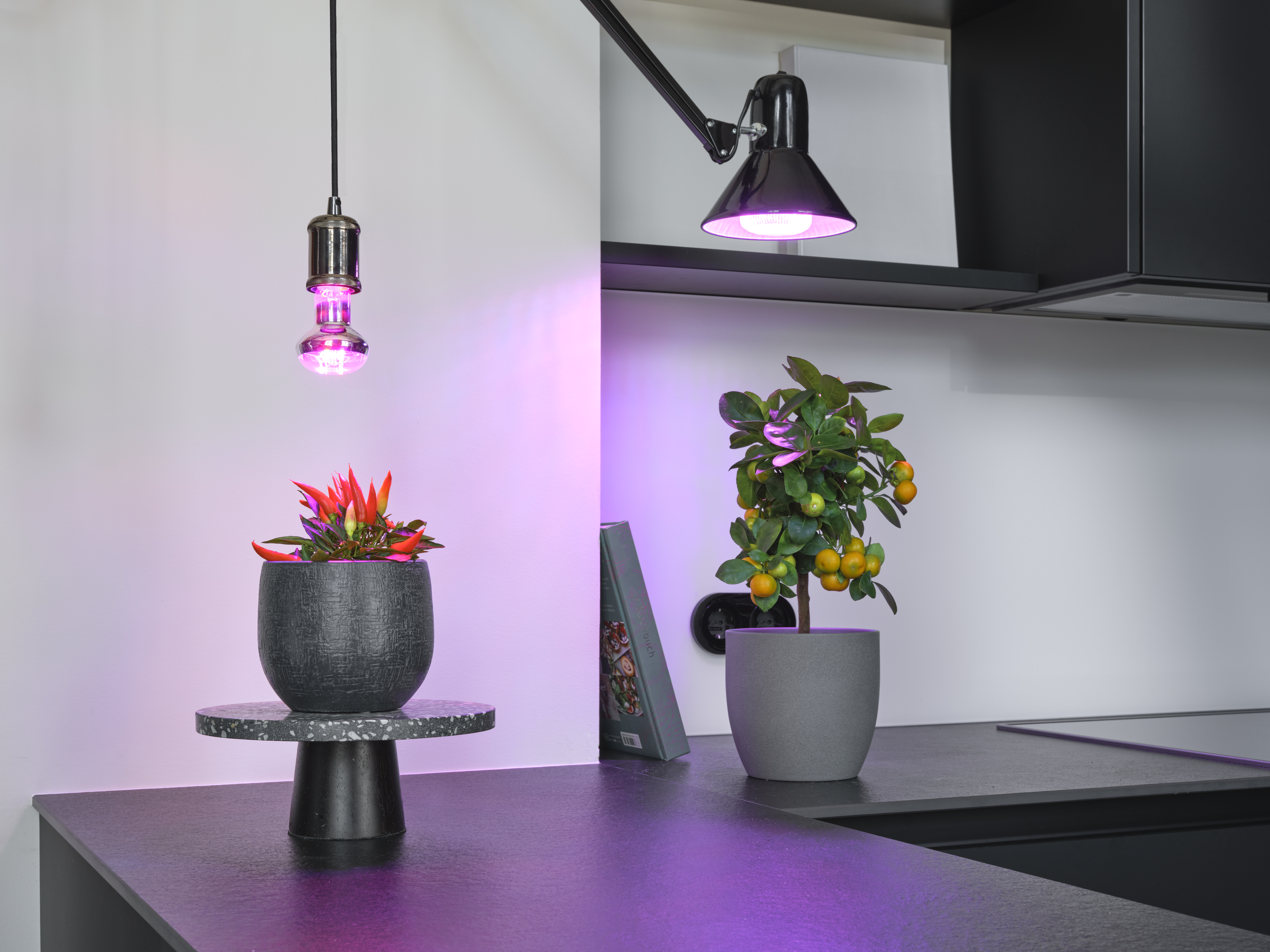

Application pictures
Grow lamps Family
JPG (19.16 MB)

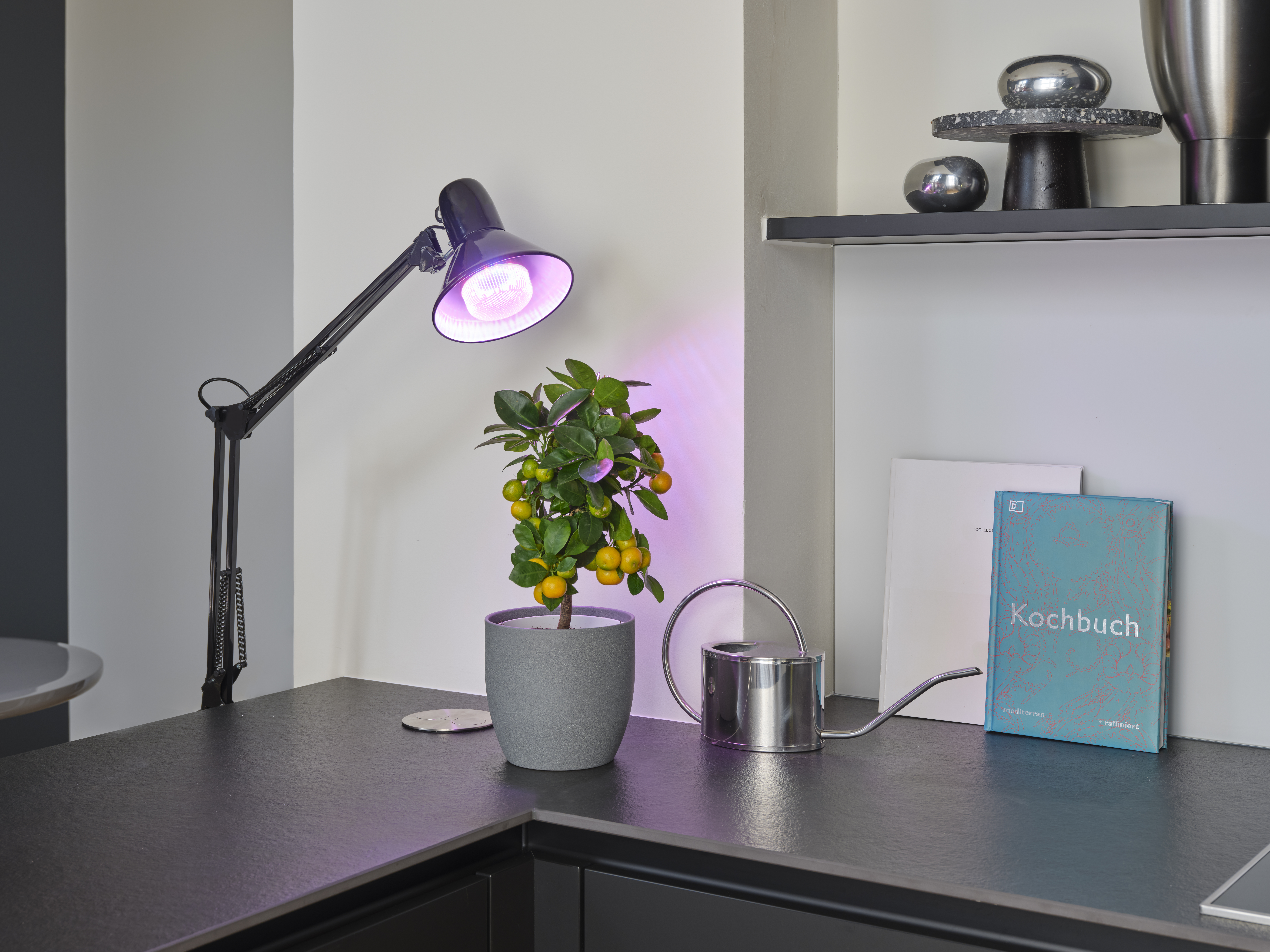

Application pictures
One for all Grow lamp Ambient
JPG (18.41 MB)

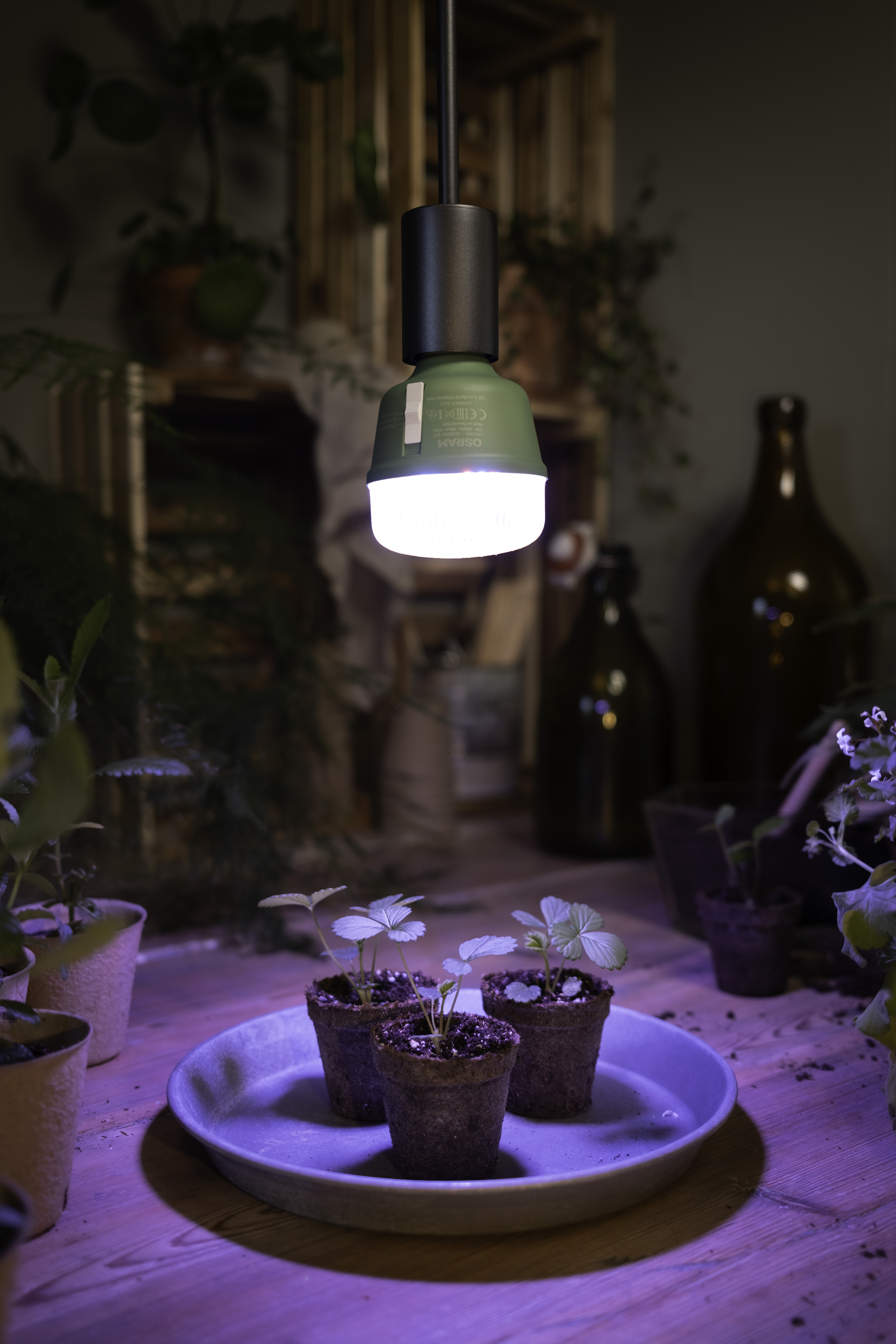

Application pictures

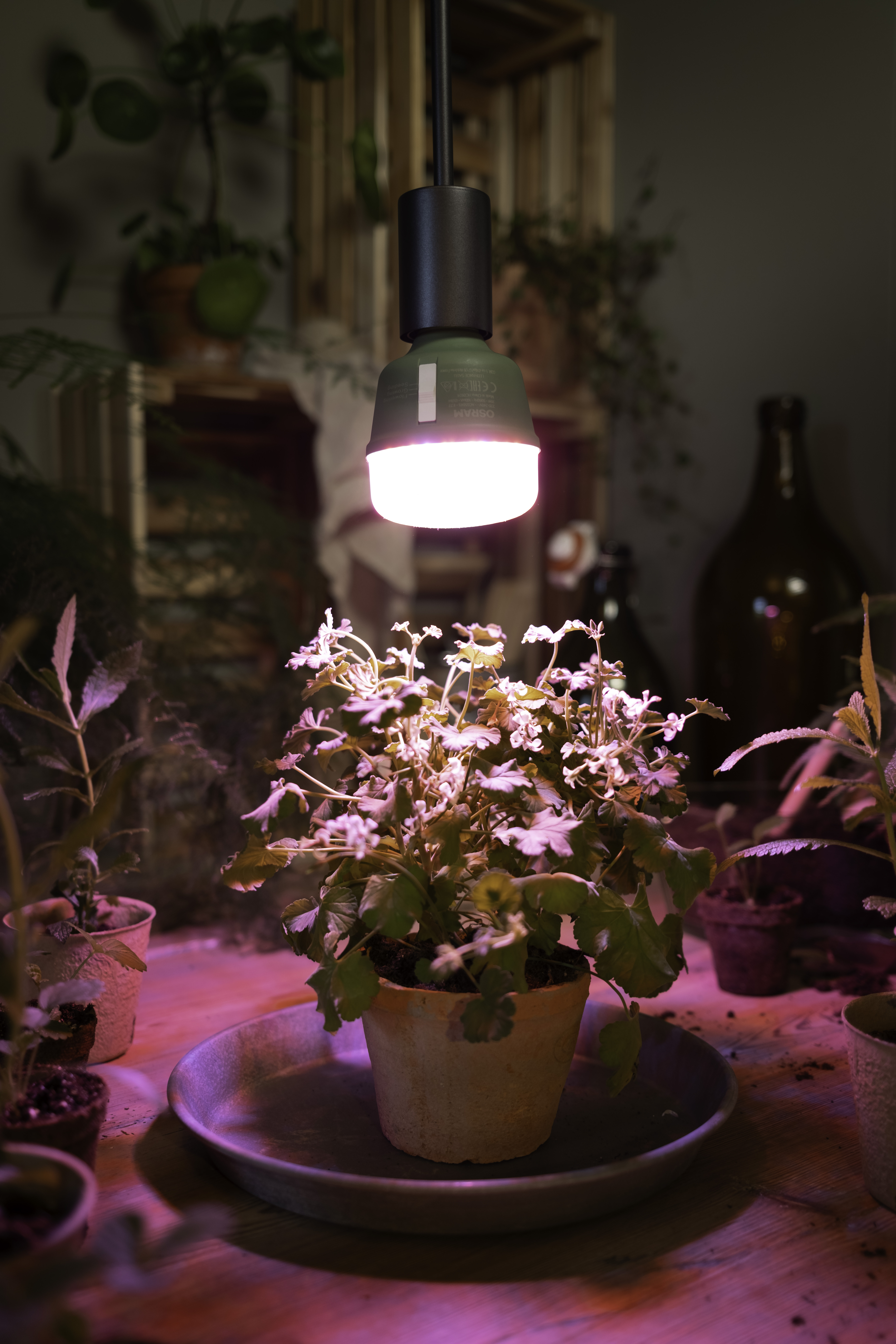

LED Star Grow Lamp 20W
JPG (4.98 MB)

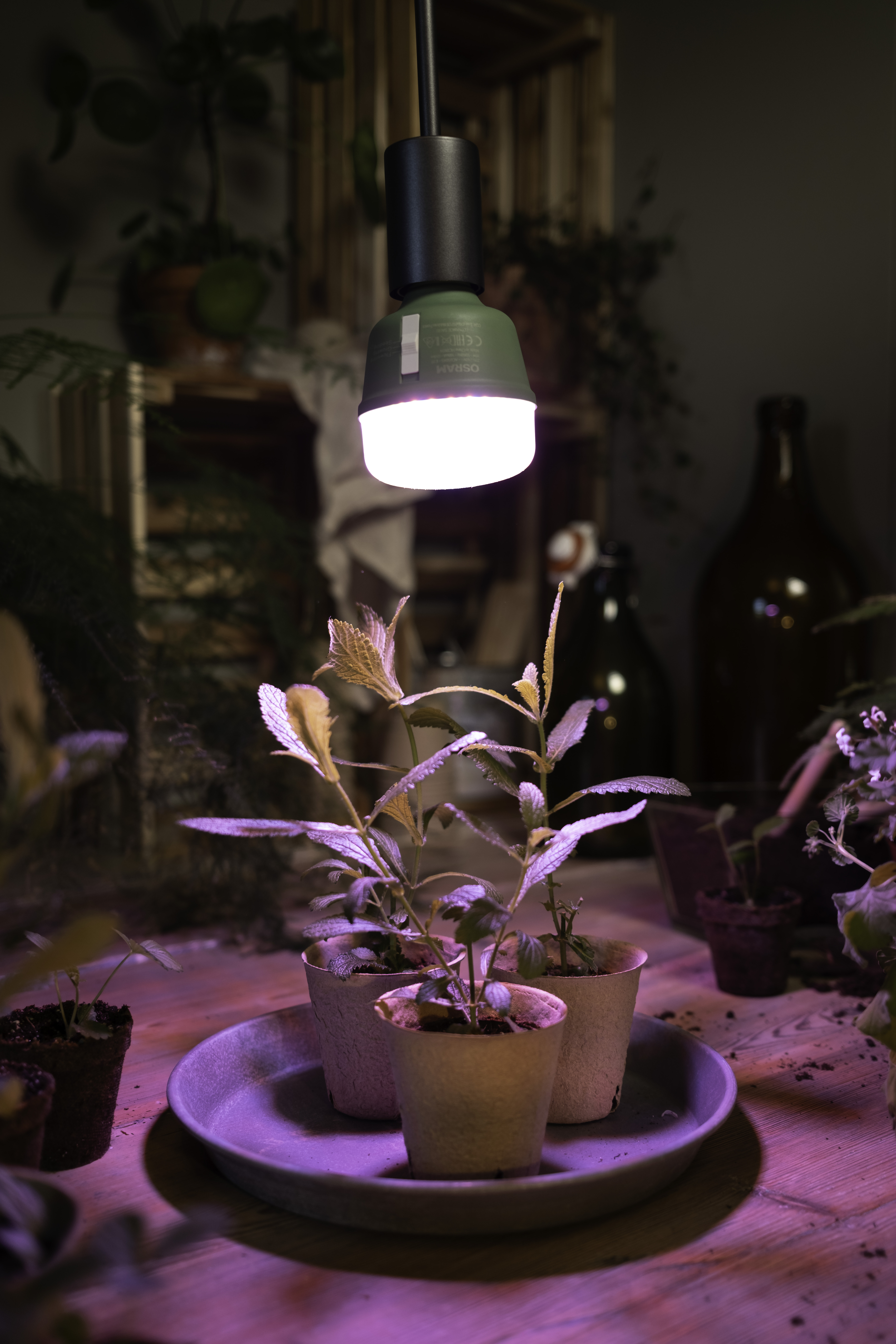

Application pictures
LED Star Grow Lamp 20W
JPG (4.99 MB)
Application pictures
LED Star Grow Lamp 20W
JPG (4.62 MB)

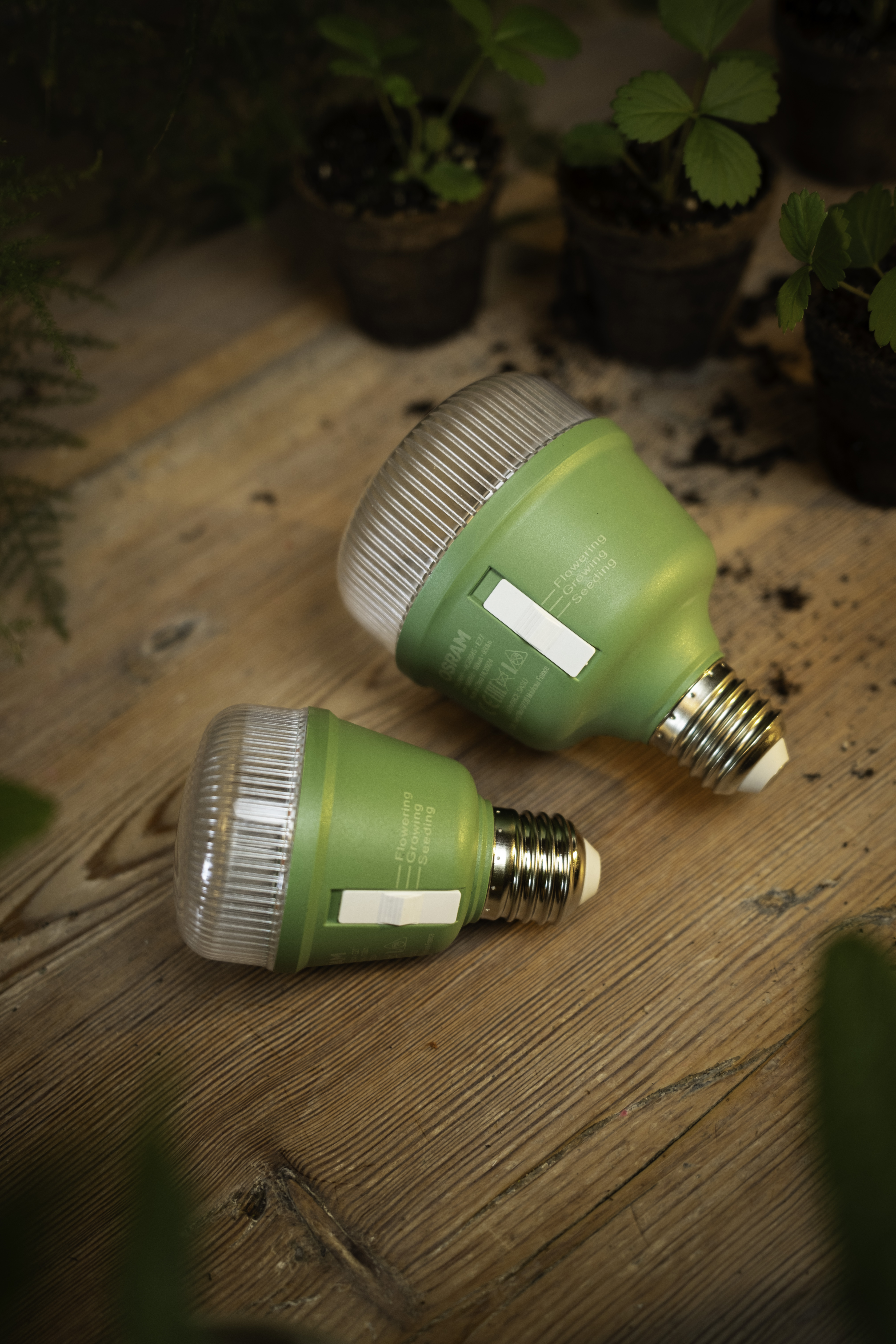

Application pictures
