DULUX LED L HF & AC MAINS V
DULUX LED L24 HF & AC MAINS V 12W 830 2G11
GTIN: 4058075822092
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy installation
- Low energy consumption
- Not suitable for operation with conventional control gear
- Easy relamping thanks to compact design
- Operation directly on 230 V AC mains possible
Areas of application
- General illumination within ambient temperatures from -20…+45 °C
- Offices, public buildings
- Shops
- Hotels, restaurants
- Industry
Product features
- LED replacement for conventional compact fluorescent lamps for use in ECG luminaires or on AC mains
- Lifetime up to 30,000 h
- Single-ended four-pin plug-in 2G11 base
- Type of protection: IP20
- Mercury-free lamps
Safety advice
- Always check the latest update of the compatibility list available on www.ledvance.com/ecg-compatibility.
- Not suitable for operation with conventional control gear.
- The operating temperature range of DULUX LED is restricted. In case of doubt regarding suitability of the application please measure Tc temperature on the product prior to installation.
- Lamp not suitable for emergency operation.
- Do not touch the lamp if broken.
- Must not be used if outer bulb is defective.
Electrical data
| Nominal wattage | 12 W |
| Construction wattage | 12.00 W |
| Nominal voltage | 220…240 V |
| Operating mode | ECG, AC Mains 1) |
| Nominal current | 52 mA |
| Type of current | AC |
| Inrush current | 6 A |
| Suitable for DC input | Yes |
| Input voltage DC | 186…260 V 2) |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Max. lamp number on MCB B10 A | 75 |
| Max. lamp number on MCB B16 A | 120 |
| Total harmonic distortion | ≤ 30 % |
1) Check ECG compatibility at ledvance.com/compatibility
2) Permitted voltage range
2) Permitted voltage range
Photometrical data
| Luminous flux | 1350 lm |
| Luminous efficacy | 112 lm/W |
| Light color (designation) | Warm White |
| Color temperature | 3000 K |
| Color rendering index Ra | 80 |
| Light color | 830 |
| Rated LLMF at 6,000 h | 0.90 |
| Flickering metric (Pst LM) | 1.0 |
| Stroboscope effect metric (SVM) | 0.4 |
Dimensions & Weight
| Overall length | 324.50 mm |
| Diameter | 44.00 mm |
| Tube diameter | 17,0 mm |
| Product weight | 104.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+45 °C 1) |
| Maximum temperature at tc test point | 70 °C |
1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h |
Additional product data
| Base (standard designation) | 2G11 |
| Mercury-free | Yes |
| Design / version | Frosted |
Certificates & Standards
| Type of protection | IP20 |
| Standards | CE, EAC, UKCA |
| Photobiological safety group acc. to EN62778 | RG0 |
Country-specific categorizations
| Order reference | DULUX LED L24 H |
LOGISTICAL DATA
| Temperature range at storage | -20…+80 °C |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | LED |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | 2G11 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Standby power | 0 W |
| Claim of equivalent power | No |
| Length | 324.50 mm |
| Height | 44.00 mm |
| Width | 44.00 mm |
| Chromaticity coordinate x | 0.433 |
| Chromaticity coordinate y | 0.403 |
| R9 Colour rendering index | 0.00 |
| Beam angle correspondence | SPHERE_360 |
| Survival factor | 0.90 |
| Displacement factor | 0.90 |
| LED light source replaces a fluorescent light source | No |
| EPREL ID | 1404778,2206839 |
| Model number | AC46440,AC71197 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075822092 | Folding box 1 |
47 mm x 27 mm x 373 mm | 191.00 g | 0.47 dm³ |
| 4058075822108 | Shipping box 10 |
379 mm x 100 mm x 147 mm | 2067.00 g | 5.57 dm³ |
User instruction / safety instructions
DULUX LED L HF V
DULUX LED L HF V
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Declarations of conformity
DULUX LED
DULUX LED
Declarations of conformity
LEDTUBE
LEDTUBE

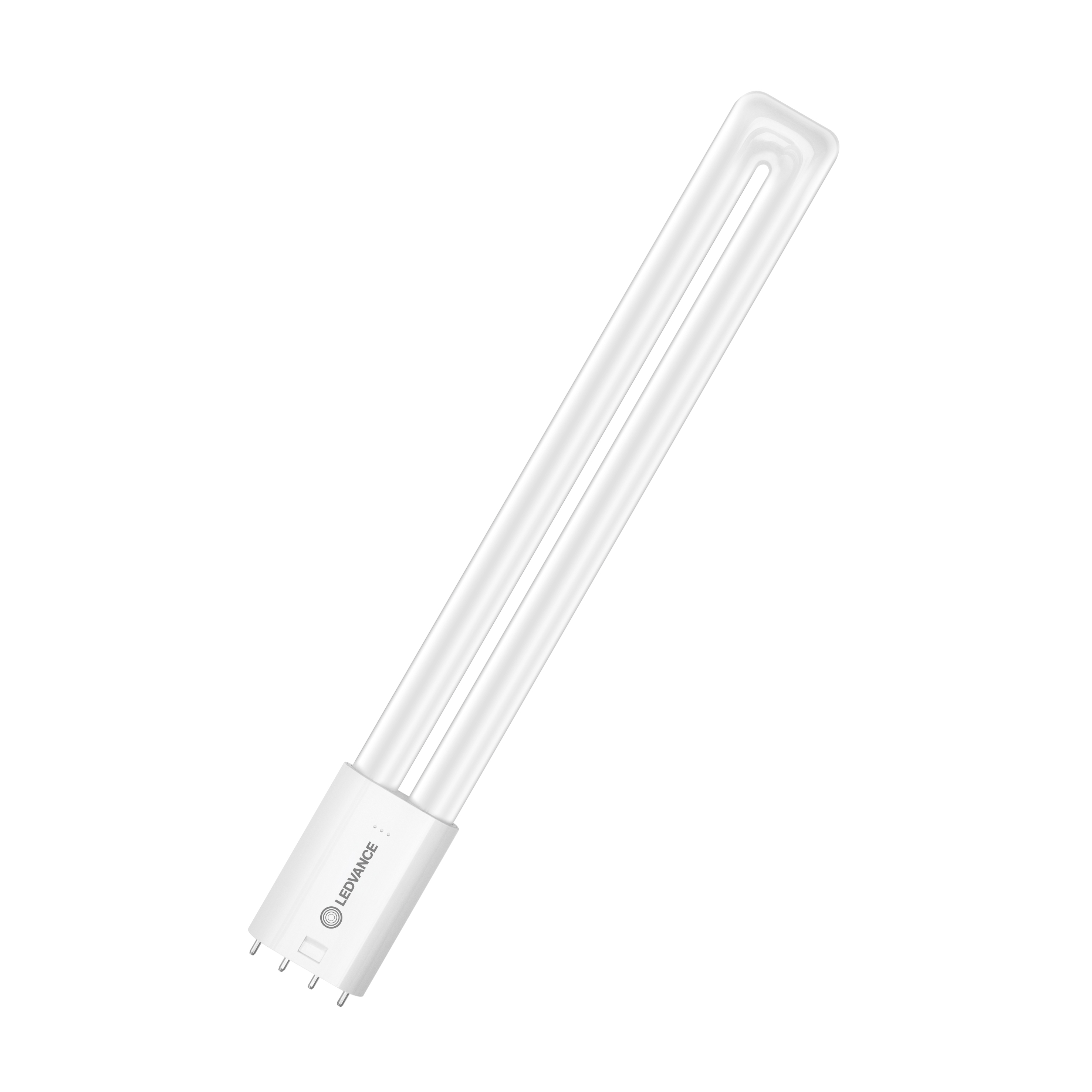

Product image: white background, diagonal with LEDVANCE logo
DULUX LED L24 HF V
DULUX LED L24 HF V

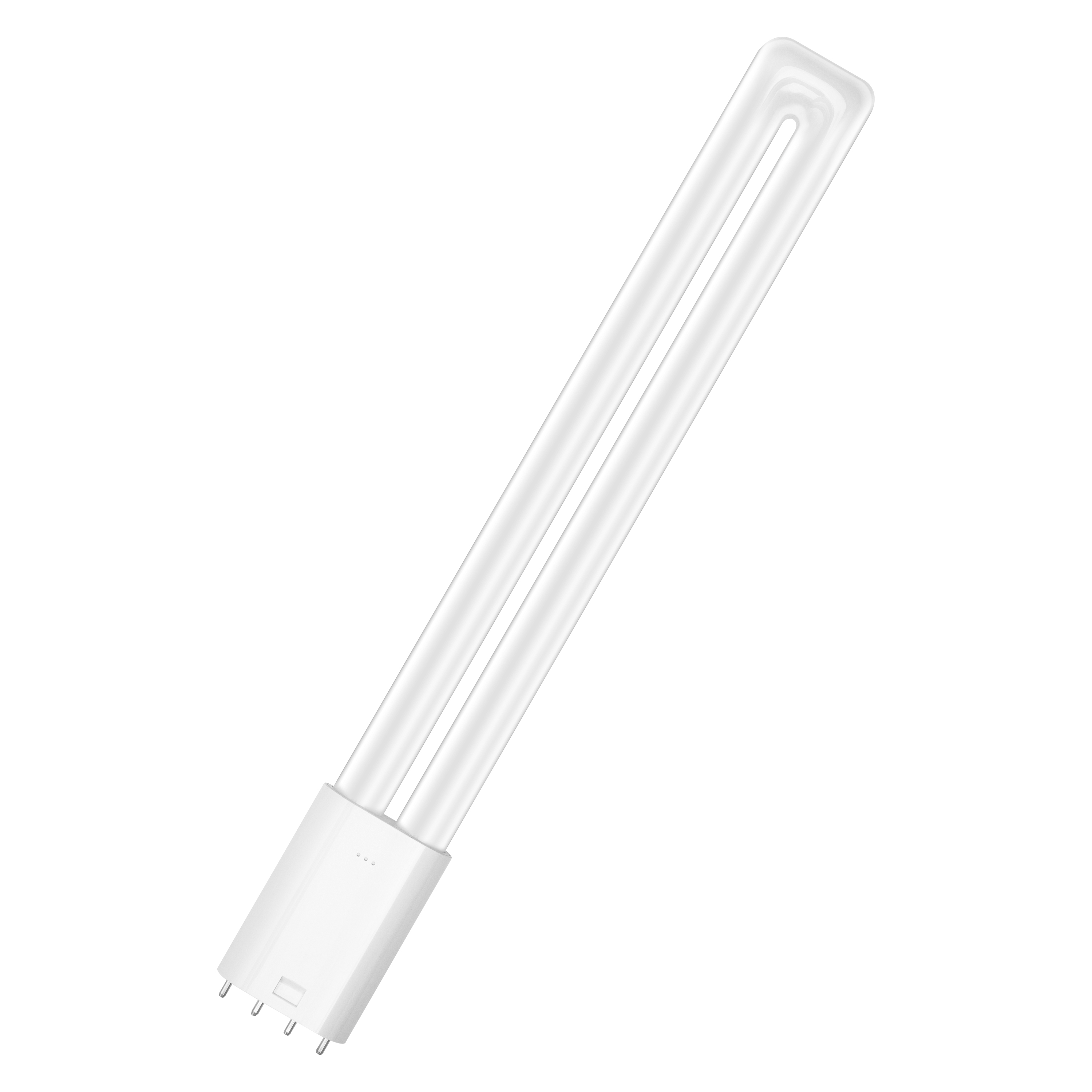

Product image: white background, diagonal
DULUX LED L24 HF 12W
DULUX LED L24 HF 12W

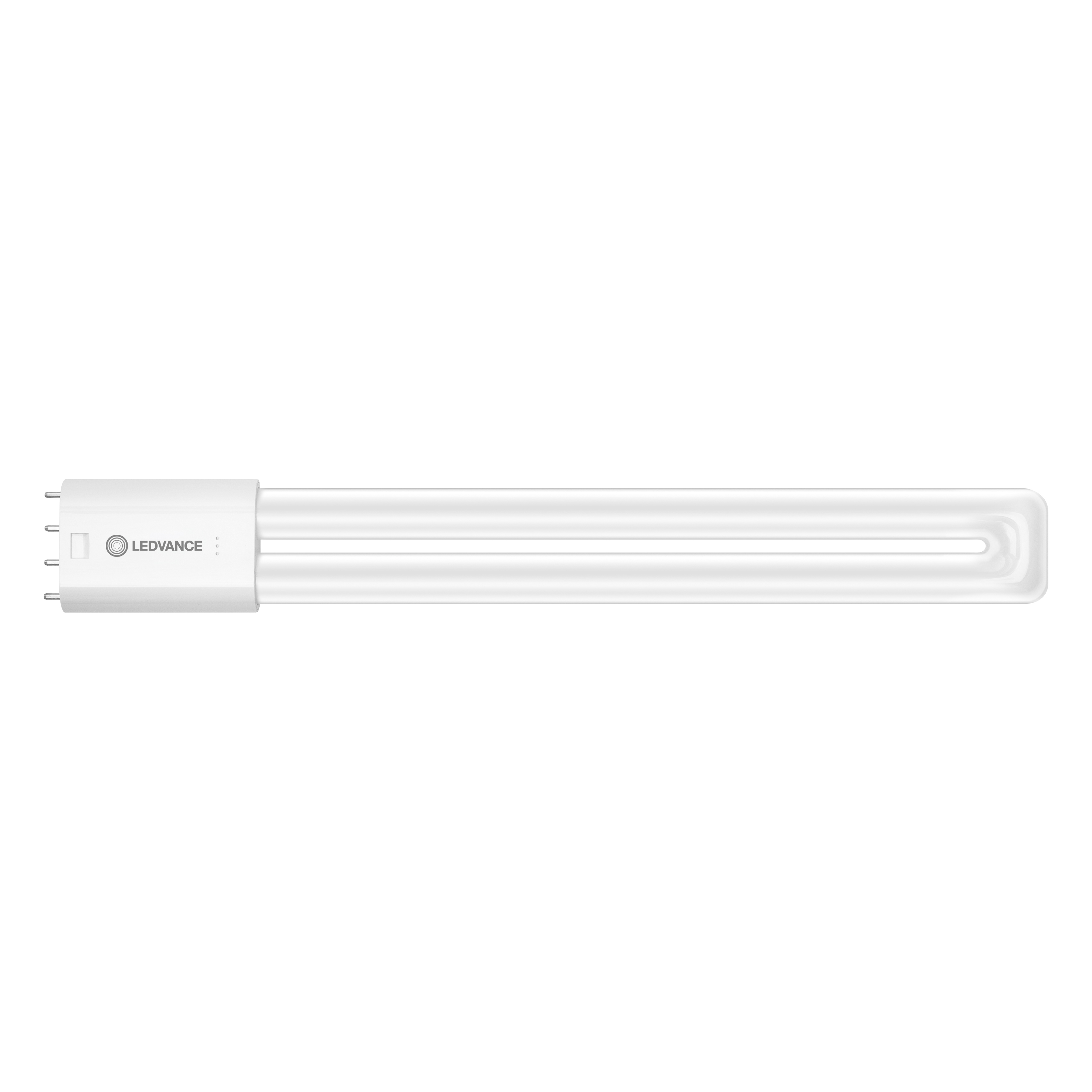

Product image: white background, horizontal, LEDVANCE logo
DULUX LED L24 HF V
DULUX LED L24 HF V

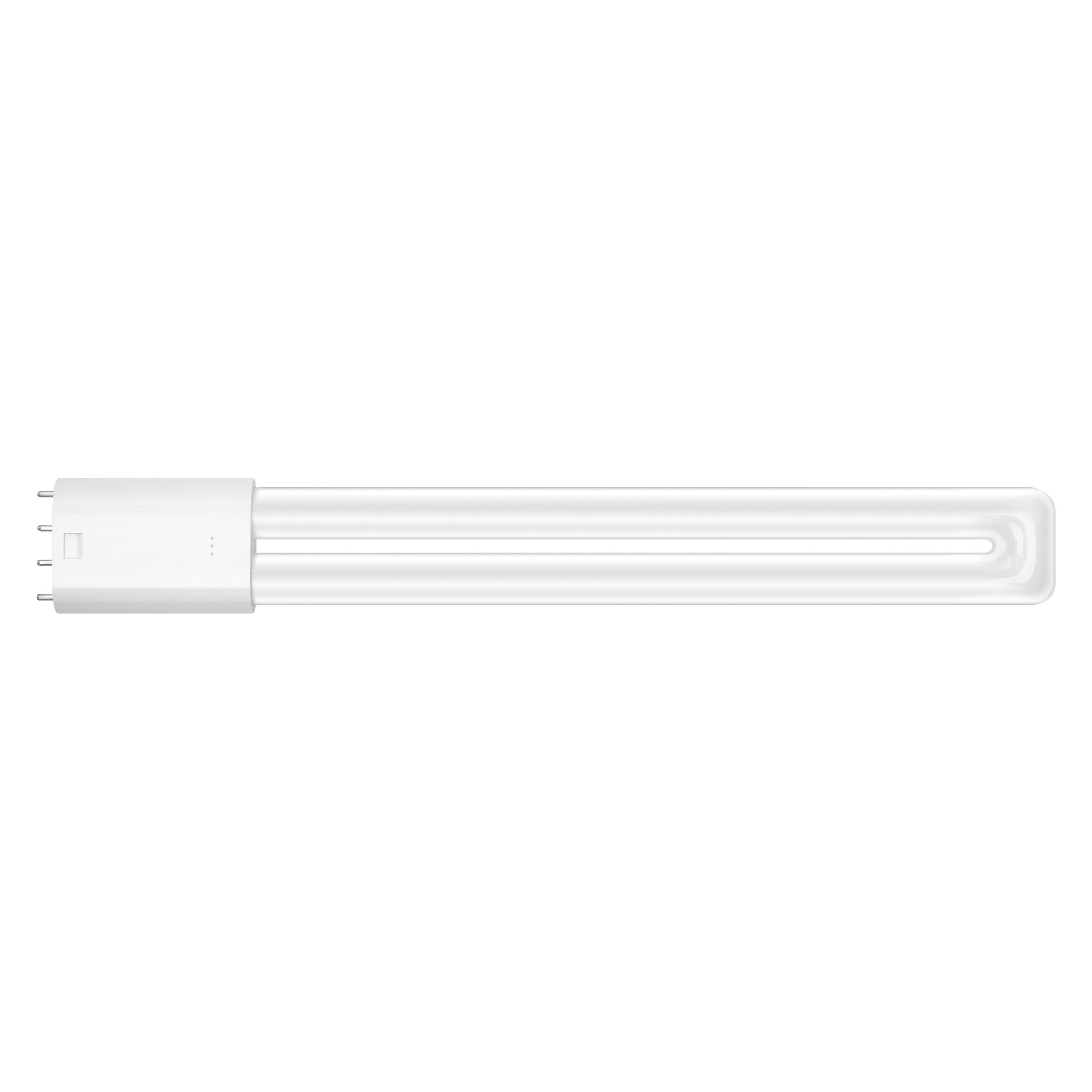

Product image: white background, horizontal
DULUX LED L24 HF 12W
DULUX LED L24 HF 12W

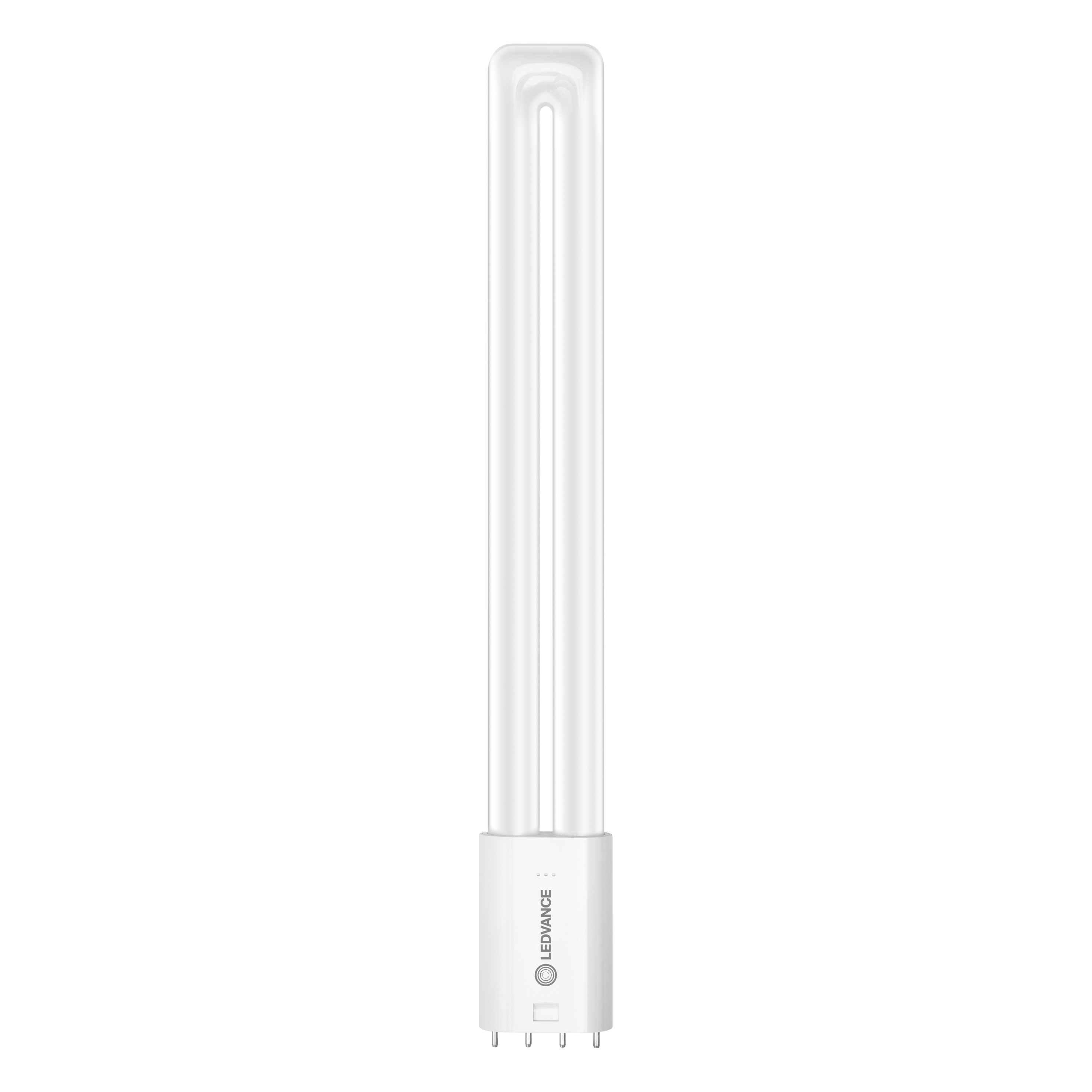

Product image: white background, upright LEDVANCE logo
DULUX LED L24 HF V
DULUX LED L24 HF V

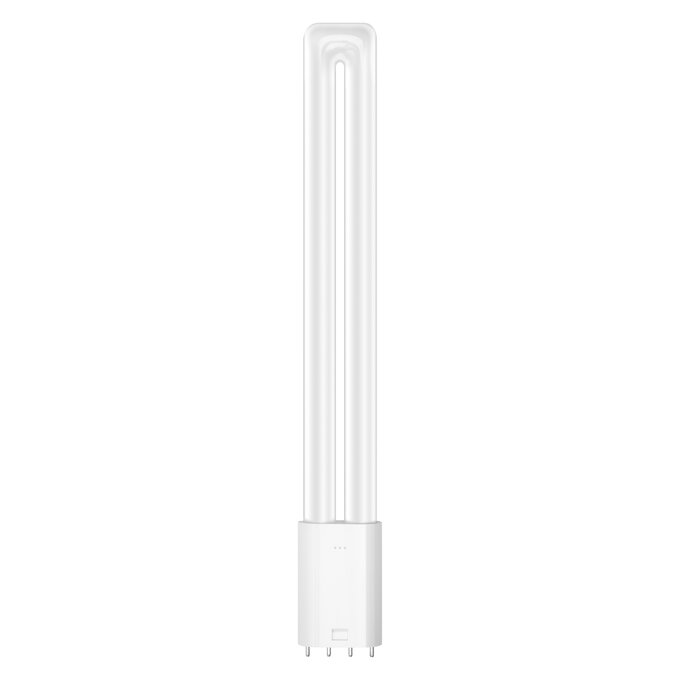

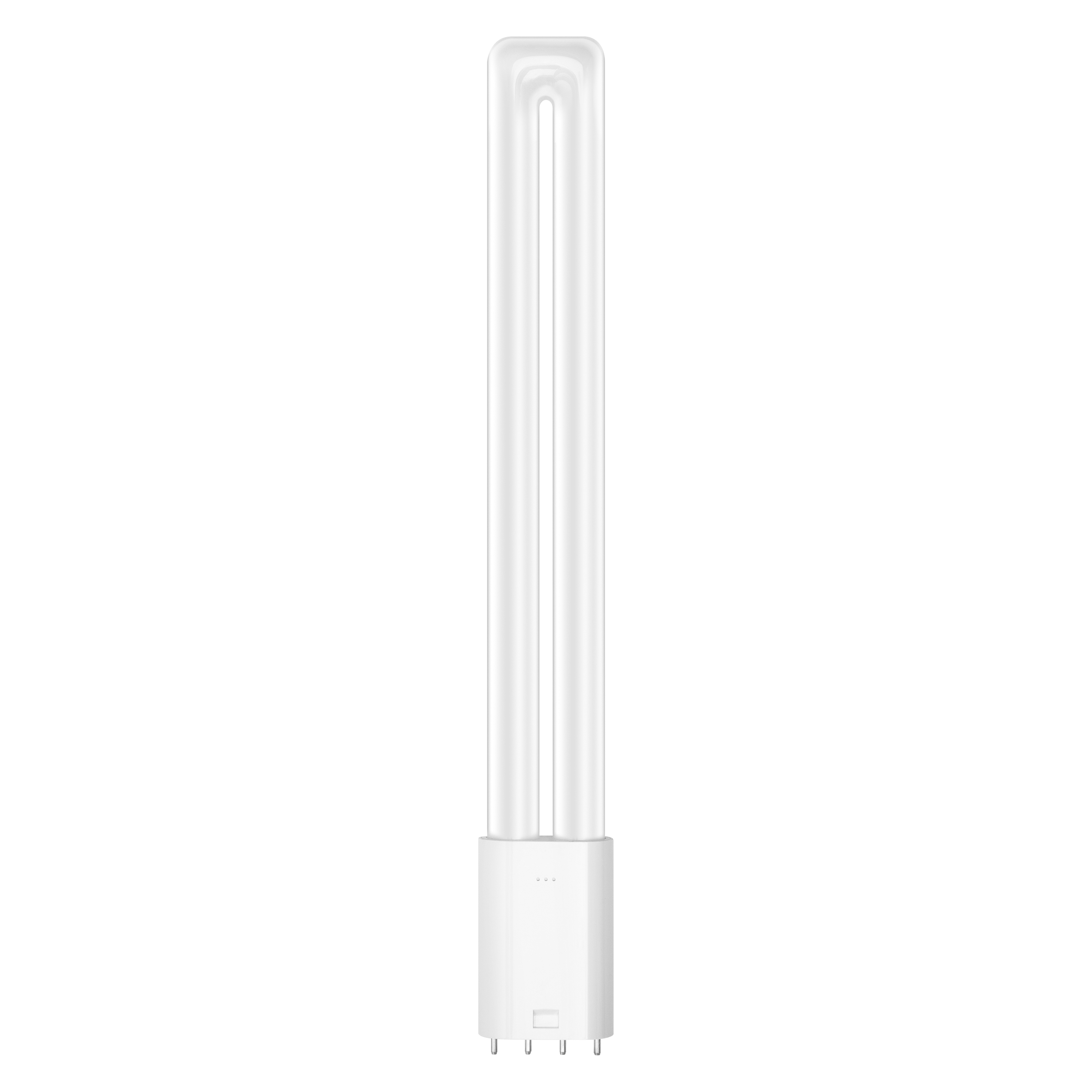

Product image: white background, upright
