POWERSTAR HQI-T 1000…2000 W

HQI-T 1000 W/N

GTIN: 4008321528285 Round wrap / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • High efficiency
  • E40 screw base for simple lamp handling
  • UV values significantly below the maximum permitted thresholds to IEC 61167 thanks to UV filter
Areas of application
  • Factories and workshops
  • Sports halls and multi-purpose halls
  • Industrial installations
  • Airports
  • Docks and port facilities
  • Marshaling yards, container transshipment facilities
  • Approved only for use in enclosed luminaires
  • Outdoor applications only in suitable luminaires
Product features
  • POWERSTAR® quartz technology
  • Light colors: neutral white (N), daylight (D)
Electrical data
Nominal wattage 1000 W
Nominal voltage 130 V
Ignition voltage 4.0/5.0 kVp 1)
Operating mode Conventional control gear (CCG) and ignitor
Nominal current 9 A
PFC capacitor at 50 Hz 85 µF
1) Minimum / Maximum
Photometrical data
Luminous flux 110000 lm
Luminous efficacy 104 lm/W
Light color (designation) Neutral White
Color temperature 3350 K
Color rendering index Ra 64
Light color 633
Rated LLMF at 2,000 h 0.91
Rated LLMF at 4,000 h 0.86
Rated LLMF at 6,000 h 0.82
Rated LLMF at 8,000 h 0.78
Rated LLMF at 12,000 h 0.70
Rated lamp efficacy (standard co.) 104 lm/W
UV protection Yes
Dimensions & Weight
Overall length 345.00 mm
Length 345.00 mm
Light center length (LCL) 220,0 mm
Diameter 76 mm
Maximum diameter 76 mm
Product weight 413.5 g
Temperatures & operating conditions
Maximum permitted outer bulb temperature 500 °C
Maximum permitted base edge temperature 250 °C
Lifespan
Rated lamp survival factor at 2,000 h 0.99
Rated lamp survival factor at 4,000 h 0.95
Rated lamp survival factor at 6,000 h 0.83
Rated lamp survival factor at 8,000 h 0.62
Rated lamp survival factor at 12,000 h 0.16
Lifespan B50 9000 h
Additional product data
Base (standard designation) E40
Mercury content 110.0 mg
Mercury-free No
Design / version Clear
Capabilities
Dimmable No
Burning position p30
Enclosed luminaire required Yes
Hot restart No
Certificates & Standards
Energy efficiency class A+
Energy consumption 1160.50 kWh/1000h
Country-specific categorizations
ILCOS MT/UB-1000/635-H/E/SL-E40-76/345/H
Order reference HQI-T 1000W/N E
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4008321528285 Round wrap
1		 750 mm x 375 mm 490.00 g
4008321528292 Shipping box
6		 440 mm x 210 mm x 300 mm 3514.00 g 27.72 dm³
User instruction / safety instructions
High-Intensity-Dischar ge lamps. Operation instructions
PDF (563.46 KB)

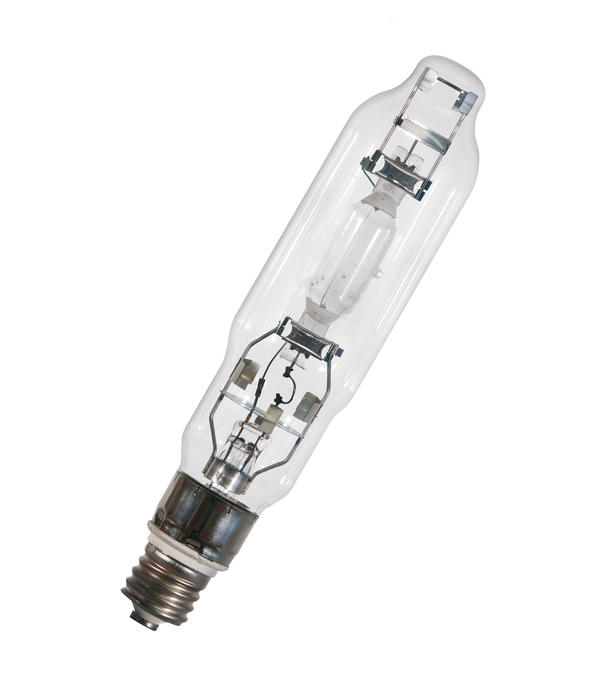

Product image: white background, diagonal
41243_POWERSTAR HQI-T
TIF (20.56 MB)

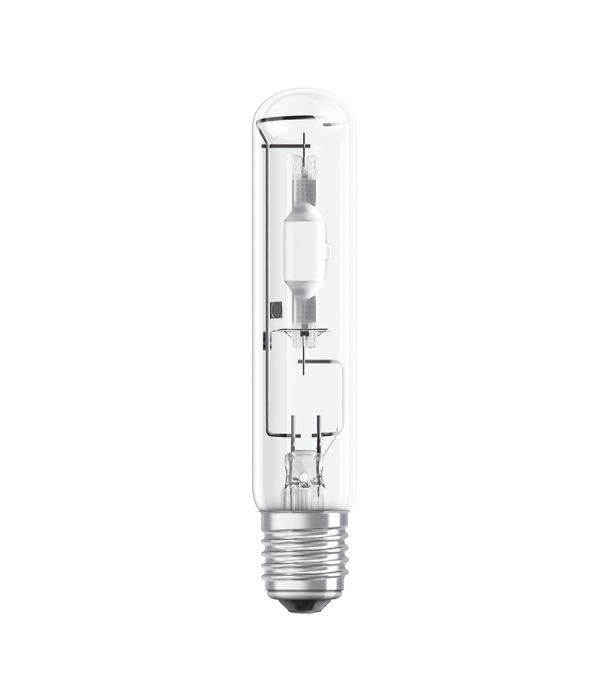

Product image: white background, upright
320571_POWERSTAR HQI-T 250W D PRO
TIF (23.26 MB)
Product line drawing with letters
2008_METAL HALIDE LAMPS POWERSTAR HQI-T
SVG (18.47 KB)
Product line drawing, front, no dimensions
303394_POWERSTAR HQI-T 1000W
SVG (13.69 KB)
Spectral power distribution
384078_HQI_T_N_E40
PNG (92.86 KB)
EAN SEG number STK number EFO number ELDAS number
4008321528285 8332839 4834468 3810291 948811580
