Colorful garden lighting with smart and intelligent control options
Combines the functionality of general lighting and mood lighting
Areas of application
Building facades
Product features
Controllable via voice control available: Google Assistant or Amazon Alexa
RGB color control, approx. 16 million color options adjustable
Dimmable
Color temperature: 3,000 K (Warm White)
Network protocol: WiFi
Mounting bracket for up to 180° tilting
Type of protection: IP65
Connection via 0.5 m cable, wiring required
Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Equipment / Accessories
Mounting bracket included
Mounting screws and dowels included
Control via app or voice control requires compatible Smart home system
For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
All electrical connections must be made by a qualified person.
Caution, risk of electric shock.
Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
References / Links
Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal wattage
20.0 W
Nominal voltage
220…240 V
Mains frequency
50…60 Hz
Nominal current
90.000 mA
Inrush current
15 A
Max. number of luminaires per miniature circuit breaker C10
15
Power factor λ
> 0.90
Protection class
I
Operating mode
Mains voltage
Photometrical data
Luminous flux
1600 lm
Luminous efficacy
63 lm/W
Color temperature
3000 K
Light color (designation)
Warm White
Color rendering index Ra
≥80
Standard deviation of color matching
< 6 sdcm
Flickering metric (Pst LM)
≤1 %
Stroboscope effect metric (SVM)
≤0.4
Photobiological safety group acc. to EN62778
RG1
Photobiological safety group acc. to EN62471
RG1
Beam angle
100 °
Dimensions & Weight
Length
152.00 mm
Height
28.00 mm
Width
125.00 mm
Product weight
419.00 g
Materials & Colors
Product color
Dark gray
Housing color
Dark gray
Body material
Aluminum
Cover material
Polycarbonate (PC)
Mercury content
0.0 mg
Application & Mounting
Ambient temperature range
-20…+40 °C
Temperature range at storage
-20…+80 °C
Type of connection
Terminal, 3-Pole (L, N, PE)
Type of protection
IP65
Protection class IK (shock resistance)
IK05
Dimmable
Yes
Type of dimming
WiFi
Mounting type
Surface
Mounting location
Wall
Application environment
Outdoor
With light source
Yes
Lifespan
Lifespan L70/B50 at 25 °C
25000 h
Number of switching cycles
30000
Emergency lighting
Type of emergency light operation
Non-maintained
Type of emergency operation test
None
Luminous flux in maintained operation mode
-
Luminous flux in emergency operation mode
-
Integrated test switch
No
Certificates & Standards
Standards
CE, UKCA
Luminaire with limited surface temperature, "D sign"
No
Replaceable light source (EPREL)
Not replaceable
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals
Contains at least 10 mg
Quantity of rare earths
Contains at least 1 mg
Minimum rate of recycled material in packaging
80 %
1)
Minimum percentage of recycled content in the product
0 %
1)
Product recyclability
Mostly recyclable product 1)
Packaging recyclability
Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage
No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage
Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
Dodecamethylcyclohexasiloxane [D6] (540-97-6)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code
Packaging unit (Pieces/Unit)
Dimensions (length x width x height)
Gross weight
Volume
4058075576674
Folding box 1
204 mm x 40 mm x 164 mm
621.00 g
1.34 dm³
4058075576681
Shipping box 6
264 mm x 229 mm x 208 mm
4176.00 g
12.57 dm³

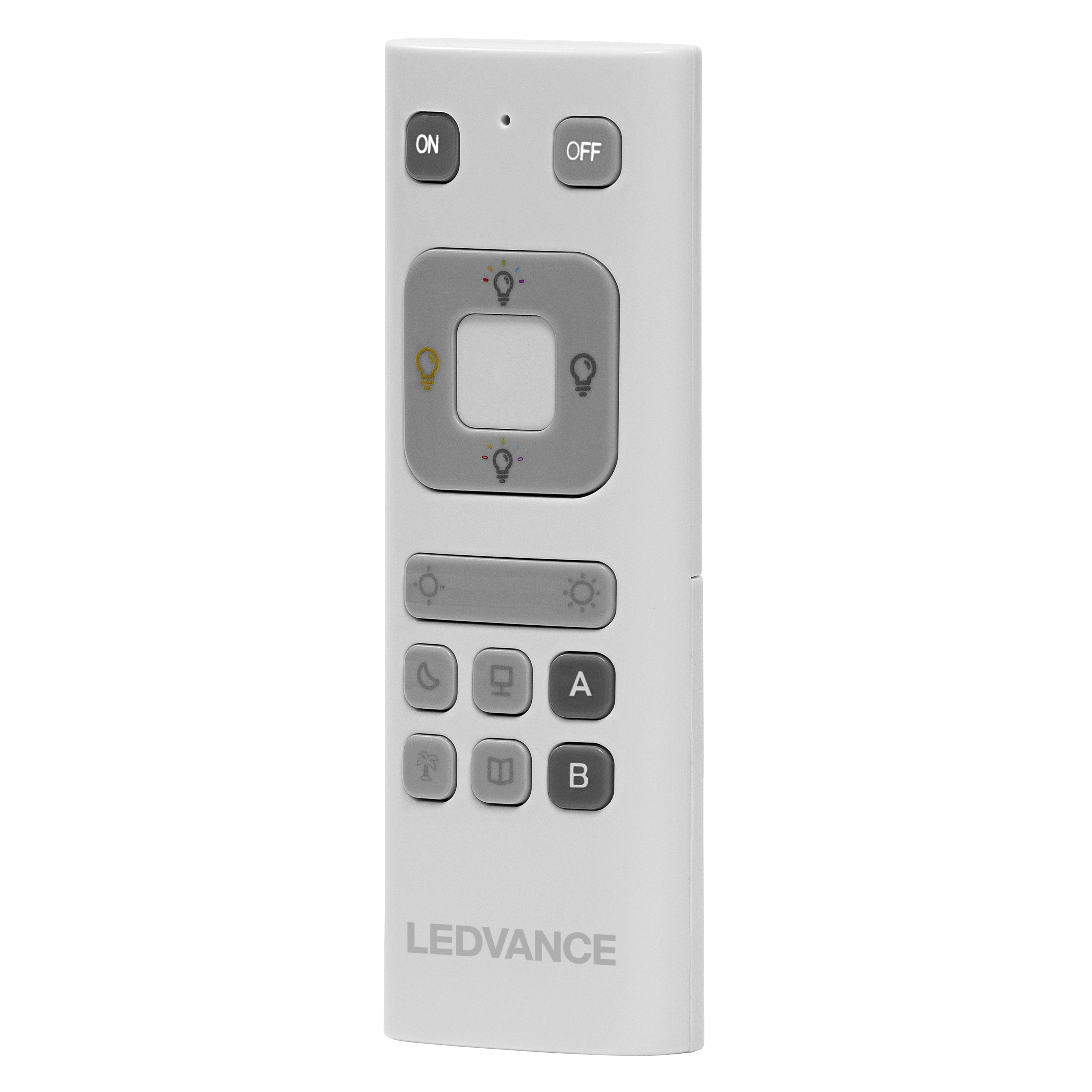

User instruction / safety instructions Smart Wifi Flood RGBW
and Remote
