Smart+ Camera Globe Track & Trace
SMART+ Globe Camera Track & Trace
GTIN: 4058075763425
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick installation
- Increased perception of safety thanks to high brightness
- The recorded data is saved on the unit's memory card or cloud storage
- High-quality materials
Areas of application
- Outdoor use (IP44)
- Garages
- Entrance areas
Product features
- Controllable via voice control available: Google Assistant or Amazon Alexa
- Built in speaker and alarm siren
- HD Live view camera
- Network protocol: WiFi
- Type of protection: IP44
- Camera has Track and Trace Function to follow peoples movements
- 3 MP camera
- Talk from mobile phone to camera
- Automatic night mode
- Motion sensor with activity schedule
- Auto record of motions (SD card required)
- Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Equipment / Accessories
- No light sources included
- Mounting screws and dowels included
- SD card not supplied
- Compatible with SD card type (SD/SDHC/SDXC)
- SD Class recommended 120-160MB/s
- Minimum card capacity 8GB/Maximum 128GB
- For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
- Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Protection class | II |
Photometrical data
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
Dimensions & Weight
| Length | 175.00 mm |
| Height | 314.00 mm |
| Width | 197.50 mm |
| Product weight | 1100.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Polycarbonate (PC) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Terminal, 3-Pole (L, N, PE) |
| Type of protection | IP44 |
| Dimmable | No |
| Mounting type | Surface |
| Application environment | Outdoor |
| With light source | No |
| Holder designation | E27 |
Sensor
| Type of sensor | Motion, Daylight |
| Sensor controlled switching time | 60 s |
| Detection range of motion sensor | 3…7 m |
| Detection threshold of daylight sensor | 0…20 lx |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
Additional product data
| Product remark | Maximum bulb wattage: 15 W, Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times. |
| Number of illuminants | 1 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075763425 | Folding box 1 |
195 mm x 220 mm x 310 mm | 1314.00 g | 13.30 dm³ |
| 4058075763432 | Shipping box 2 |
410 mm x 240 mm x 330 mm | 3199.00 g | 32.47 dm³ |
User instruction / safety instructions
SMART+ GLOBE CAMERA TRACE
SMART+ GLOBE CAMERA TRACE
Legal information
Legal insert I-Outdoor
Legal insert I-Outdoor
Declarations of conformity
SMART OUTD WIFI GLOBE CAM TRACE
SMART OUTD WIFI GLOBE CAM TRACE

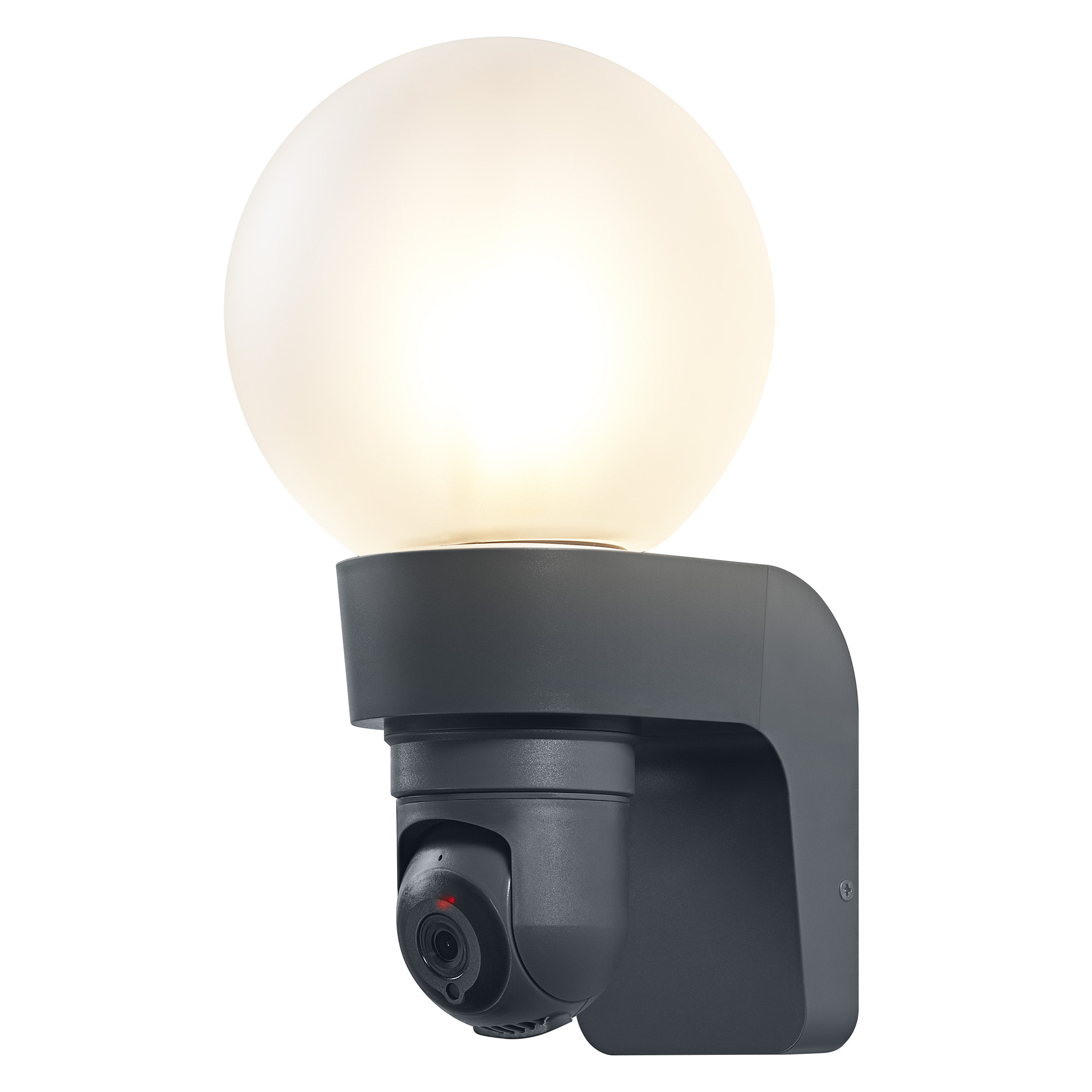

Product image: white background, upright
SMART OUTD WIFI GLOBE CAM TRACE E27
SMART OUTD WIFI GLOBE CAM TRACE E27

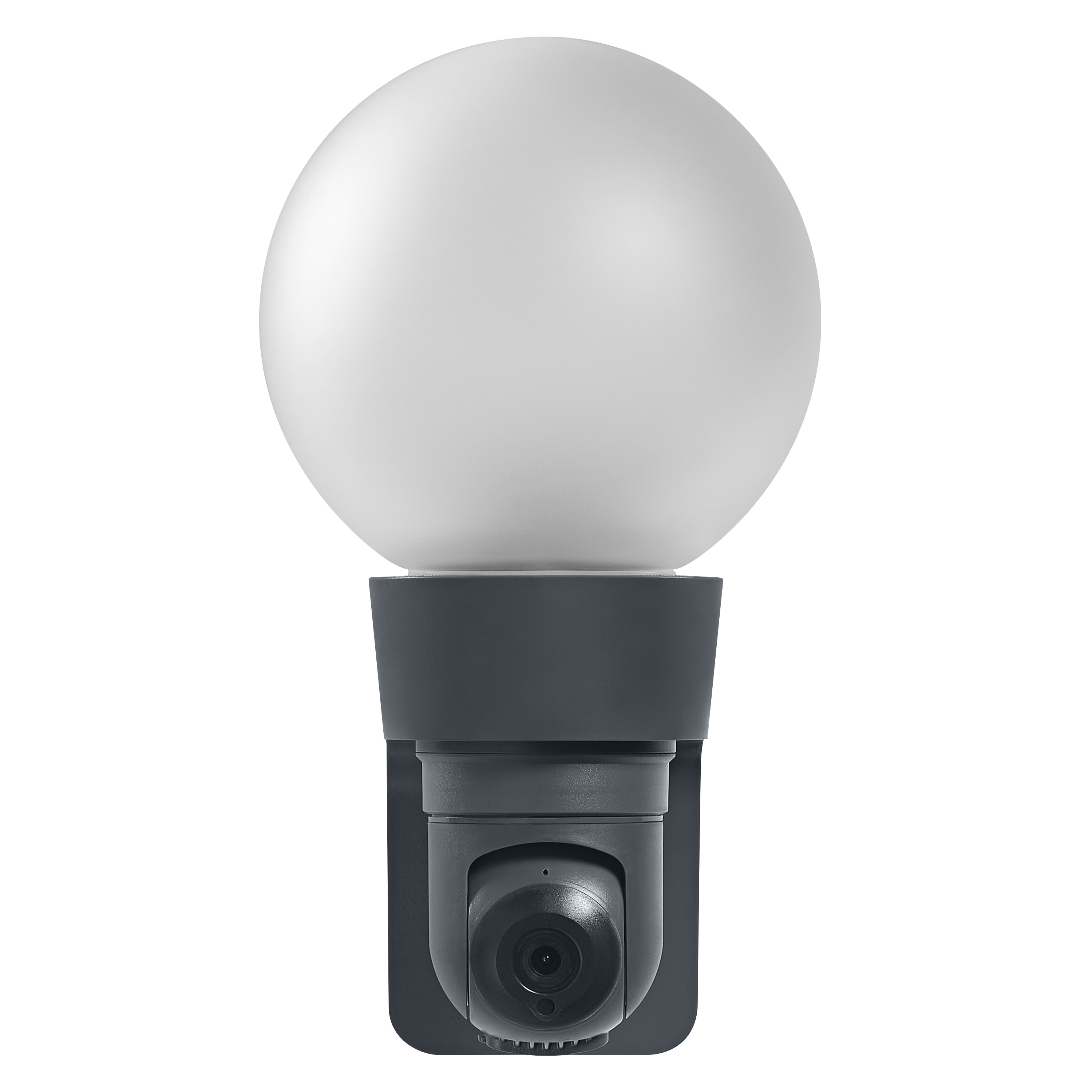

Product image: white background, upright, alternative image
SMART OUTD WIFI GLOBE CAM TRACE E27
SMART OUTD WIFI GLOBE CAM TRACE E27

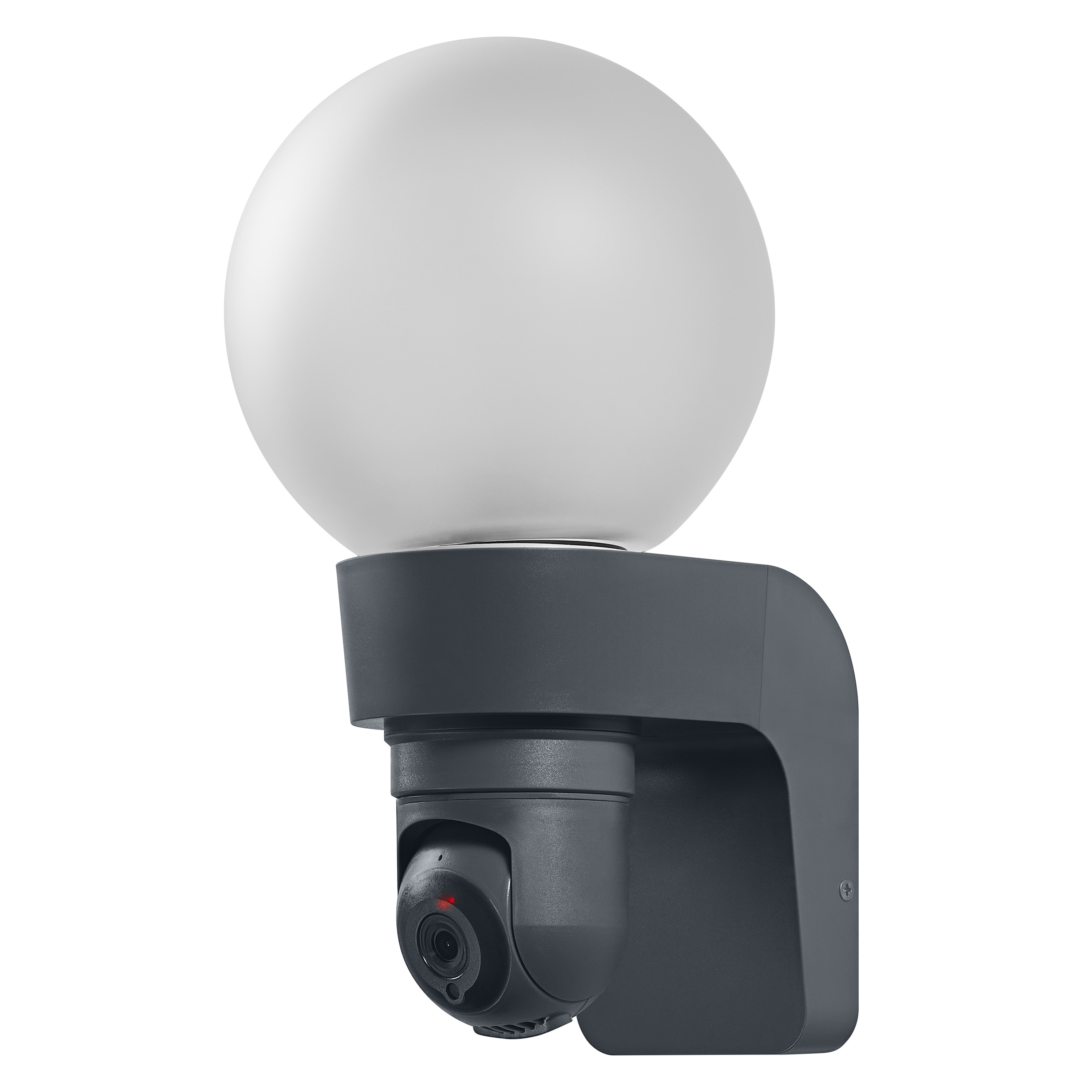

Product image: white background, upright, switched on
SMART OUTD WIFI GLOBE CAM TRACE E27
SMART OUTD WIFI GLOBE CAM TRACE E27
Product infographic (application image with text and graphic)
SmartPlus Kameraleuchten assortment E-Com-Grafik 1200x1200 2023 EN
SmartPlus Kameraleuchten assortment E-Com-Grafik 1200x1200 2023 EN
Product infographic (application image with text and graphic)
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN

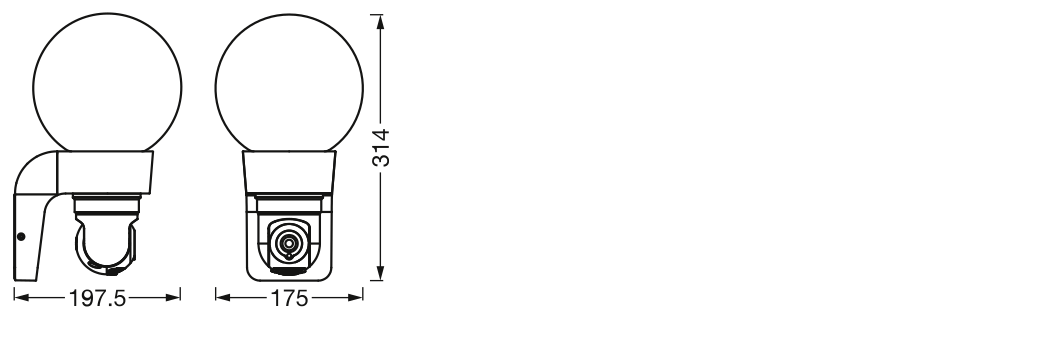

Product line drawing with letters
SMART OUTD WIFI GLOBE CAM TRACE E27
SMART OUTD WIFI GLOBE CAM TRACE E27
Product line drawing with numbers
SMART OUTD WIFI GLOBE CAM TRACE E27
SMART OUTD WIFI GLOBE CAM TRACE E27
Product line drawing, front, no dimensions
SMART OUTD WIFI GLOBE CAM TRACE E27
SMART OUTD WIFI GLOBE CAM TRACE E27

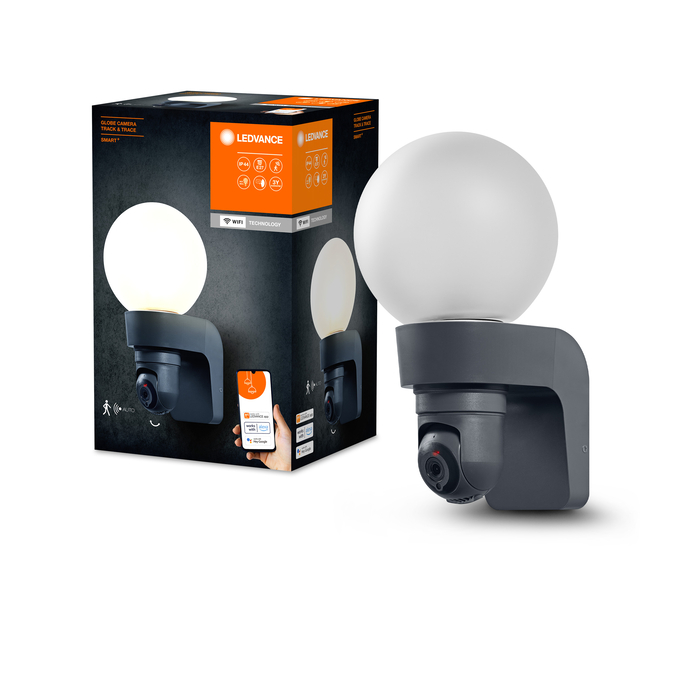

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI GLOBE CAM TRACE E27 MiPRC
SH FC WIFI GLOBE CAM TRACE E27 MiPRC
Packaging image, frontal
SH FC WIFI GLOBE CAM TRACE E27 MiPRC
SH FC WIFI GLOBE CAM TRACE E27 MiPRC
Packaging image, spacial
SH FC WIFI GLOBE CAM TRACE E27 MiPRC
SH FC WIFI GLOBE CAM TRACE E27 MiPRC

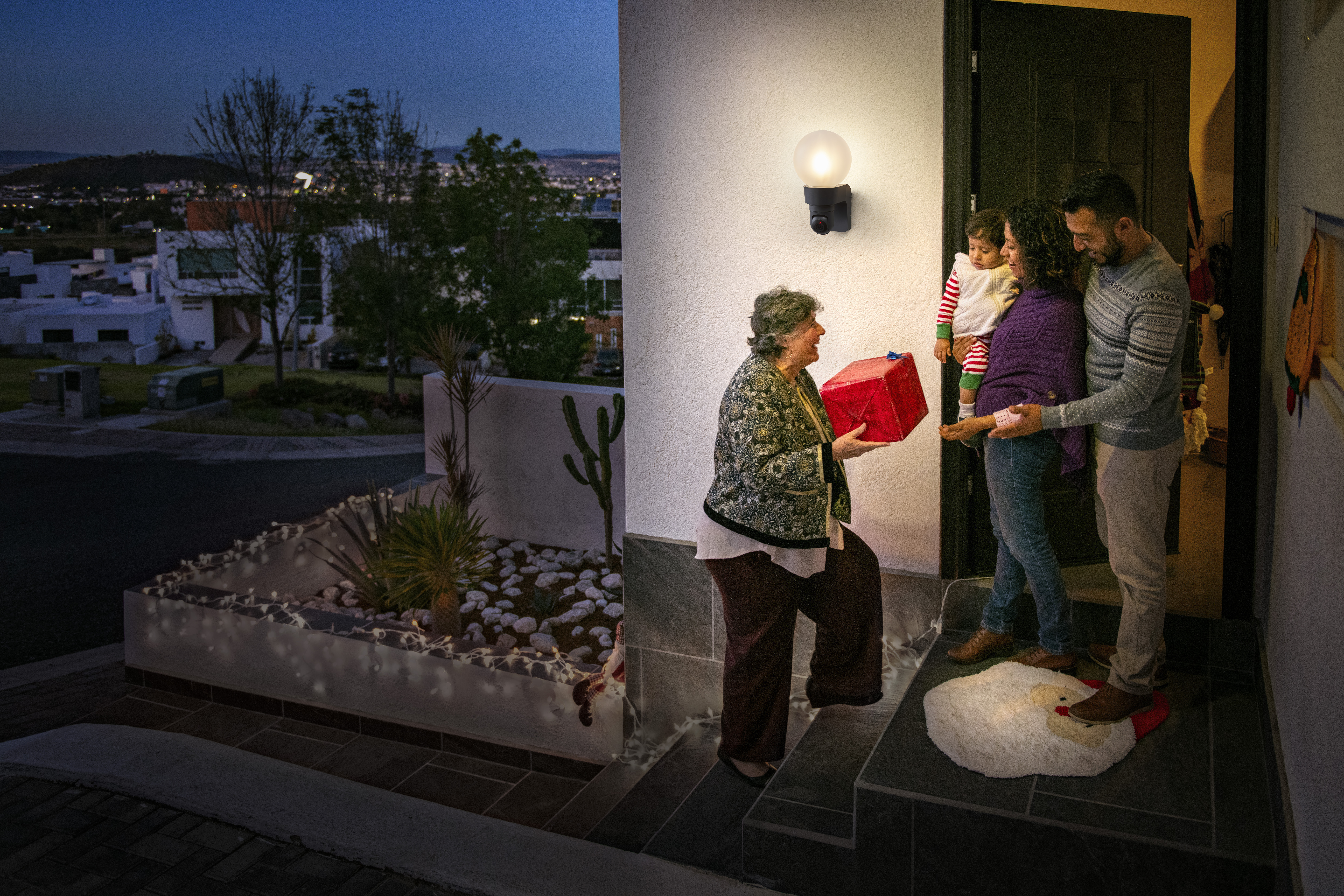

Application pictures Getty
SMART OUTDOOR WIFI GLOBE E27 CAMERA CONTROL
SMART OUTDOOR WIFI GLOBE E27 CAMERA CONTROL
| EAN | ELDAS number |
|---|---|
| 4058075763425 | 941005110 |
