Smart+ Camera Circle Cam Control
SMART+ Wifi Circle Camera Control
GTIN: 4058075763500
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Easy and quick installation
- Increased perception of safety thanks to high brightness
- The recorded data is saved on the unit's memory card or cloud storage
- High-quality materials
Areas of application
- Outdoor use (IP44)
- Garages
- Entrance areas
Product features
- Controllable via voice control available: Google Assistant or Amazon Alexa
- Built in speaker and alarm siren
- Dimmable
- Color temperature: 3,000 K (Warm White)
- Network protocol: WiFi
- Type of protection: IP44
- HD Live view camera
- The camera can be adjusted
- Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Equipment / Accessories
- Mounting screws and dowels included
- For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
References / Links
- Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
| Nominal wattage | 22.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 102.000 mA |
| Power factor λ | > 0.5 |
| Total harmonic distortion | ≤ 20 % |
| Protection class | II |
Photometrical data
| Luminous flux | 1600 lm |
| Total luminous flux of contained light sources | 2450 lm |
| Luminous efficacy | 72 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | > 80 |
| Standard deviation of color matching | ≤6 sdcm |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG0 |
| Beam angle | 112 ° |
| UGR | < 25 |
Dimensions & Weight
| Diameter | 280.00 mm |
| Height | 112.00 mm |
| Product weight | 1200.00 g |
Materials & Colors
| Product color | Dark gray |
| Housing color | Dark gray |
| Body material | Acrylonitrile butadiene styrene (ABS) |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP44 |
| Protection class IK (shock resistance) | IK05 |
| Dimmable | Yes |
| Type of dimming | WiFi |
| Mounting type | Surface |
| Application environment | Outdoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 30000 h |
| Number of switching cycles | 100000 |
Sensor
| Type of sensor | Motion, Daylight |
| Sensor detection angle | 340 ° |
| Sensor controlled switching time | 5 s…6 min |
| Detection range of motion sensor | 3…5 m |
| Detection threshold of daylight sensor | 10…500 lx |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Replaceable light source (EPREL) | Not replaceable |
Additional product data
| Product remark | Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times. |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075763500 | Folding box 1 |
322 mm x 322 mm x 157 mm | 1381.00 g | 16.28 dm³ |
| 4058075763517 | Shipping box 4 |
660 mm x 340 mm x 342 mm | 6585.00 g | 76.74 dm³ |
User instruction / safety instructions
SMART WIFI CIRCLE CAM CON
SMART WIFI CIRCLE CAM CON
Declarations of conformity
SMART OUTD WIFI
SMART OUTD WIFI

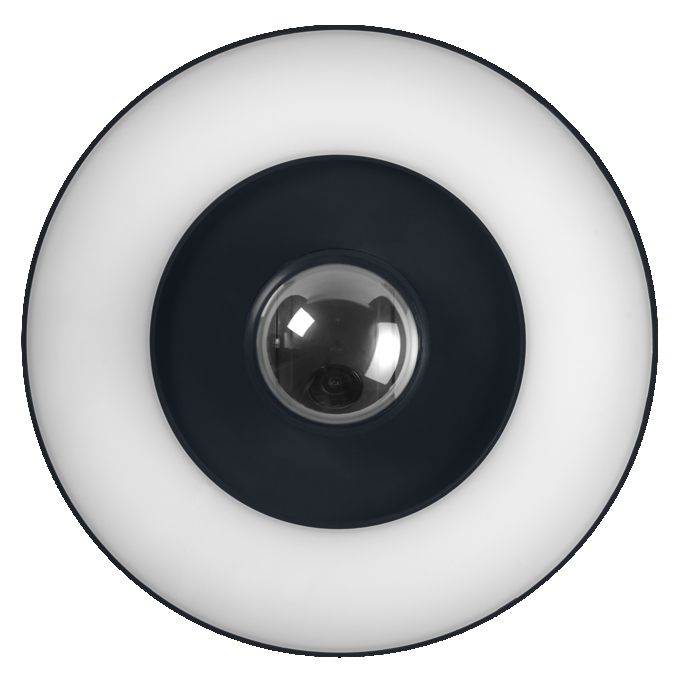

Product image: white background, upright
SMART OUTD WIFI CIRCLE CAM CON
SMART OUTD WIFI CIRCLE CAM CON

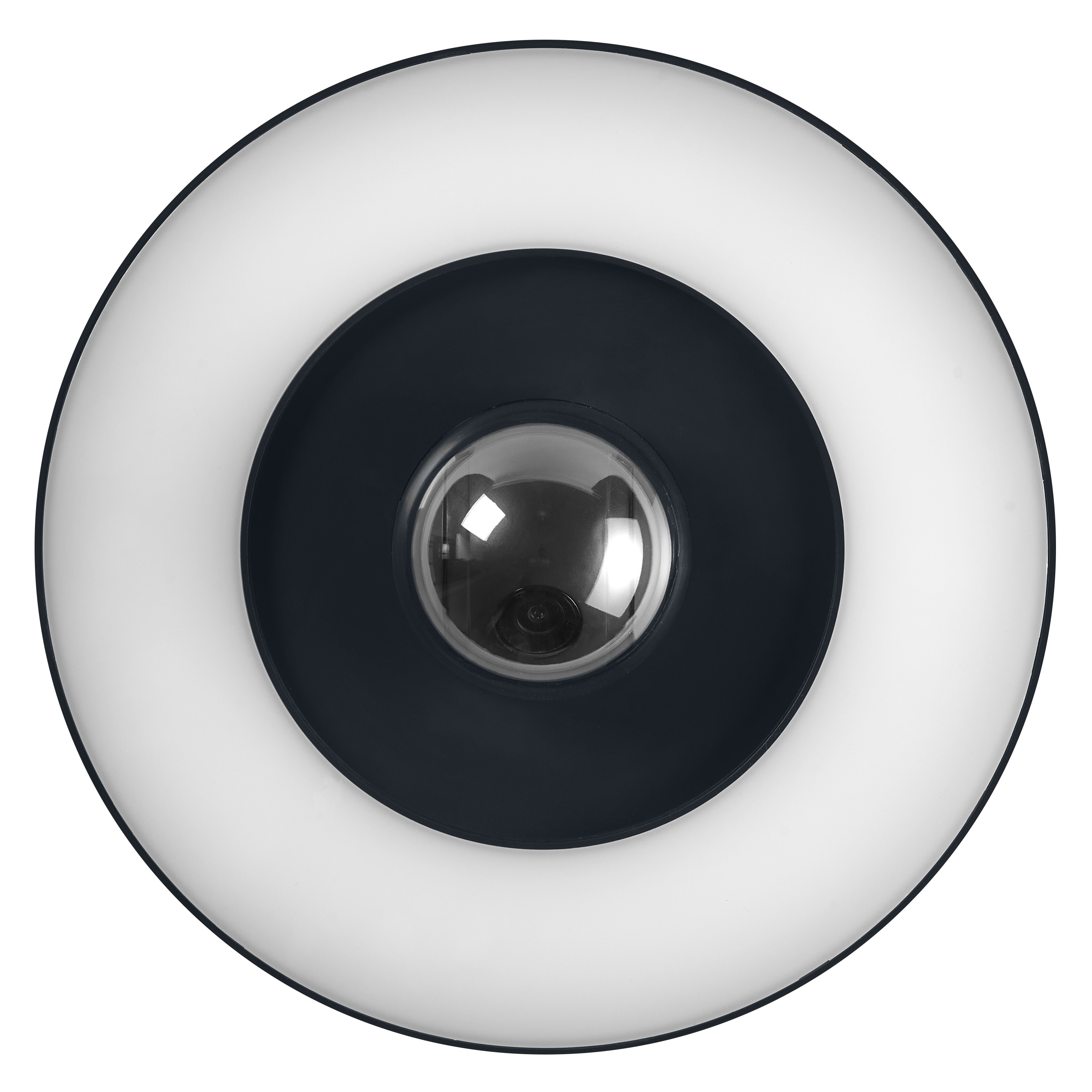

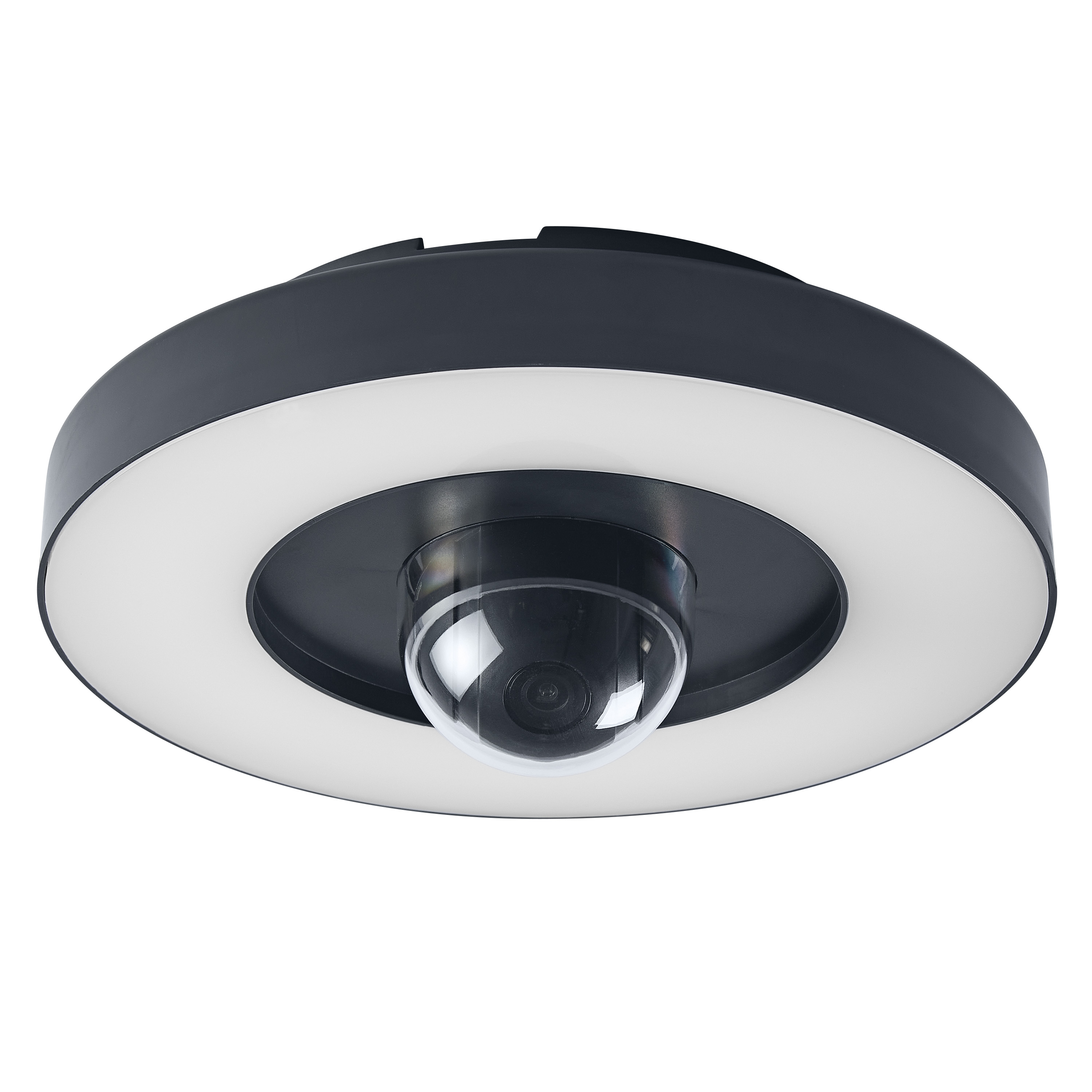

Product image: white background, upright, alternative image
SMART OUTD WIFI CIRCLE CAM CON
SMART OUTD WIFI CIRCLE CAM CON

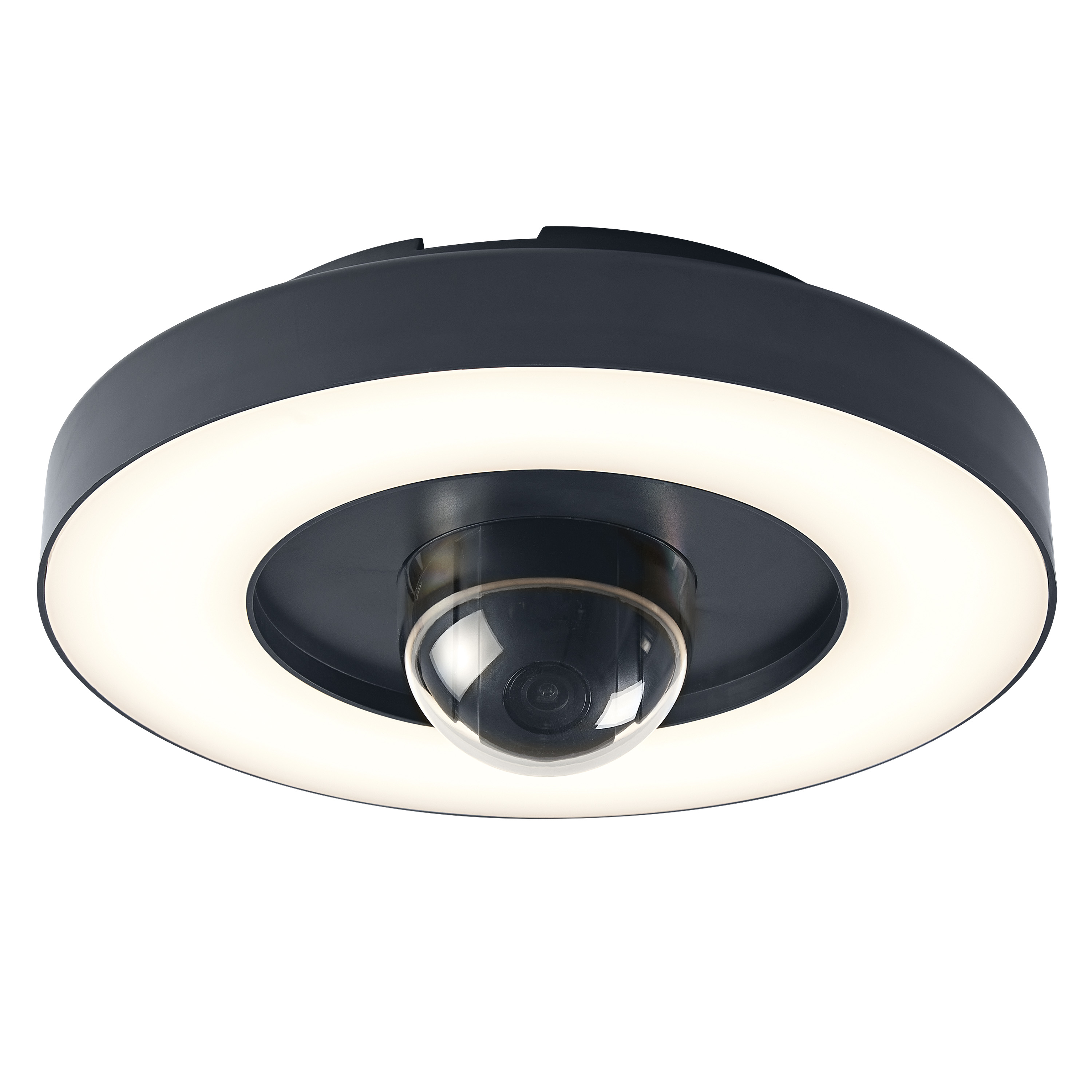

Product image: white background, upright, switched on
SMART OUTD WIFI CIRCLE CAM CON
SMART OUTD WIFI CIRCLE CAM CON
Product infographic (application image with text and graphic)
SmartPlus Kameraleuchten assortment E-Com-Grafik 1200x1200 2023 EN
SmartPlus Kameraleuchten assortment E-Com-Grafik 1200x1200 2023 EN
Product infographic (application image with text and graphic)
SmartPlus assortment E-Com-Grafik V3 1200x1200 2023 EN
SmartPlus assortment E-Com-Grafik V3 1200x1200 2023 EN
Product infographic (application image with text and graphic)
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN
Solar assortment E-Com-Grafik V2 1200x1200 2023 EN
Product line drawing with letters
SMART OUTD WIFI CIRCLE CAM CON
SMART OUTD WIFI CIRCLE CAM CON
Product line drawing with numbers
SMART OUTD WIFI CIRCLE CAM CON
SMART OUTD WIFI CIRCLE CAM CON
Product line drawing, front, no dimensions
SMART OUTD WIFI CIRCLE CAM CON
SMART OUTD WIFI CIRCLE CAM CON

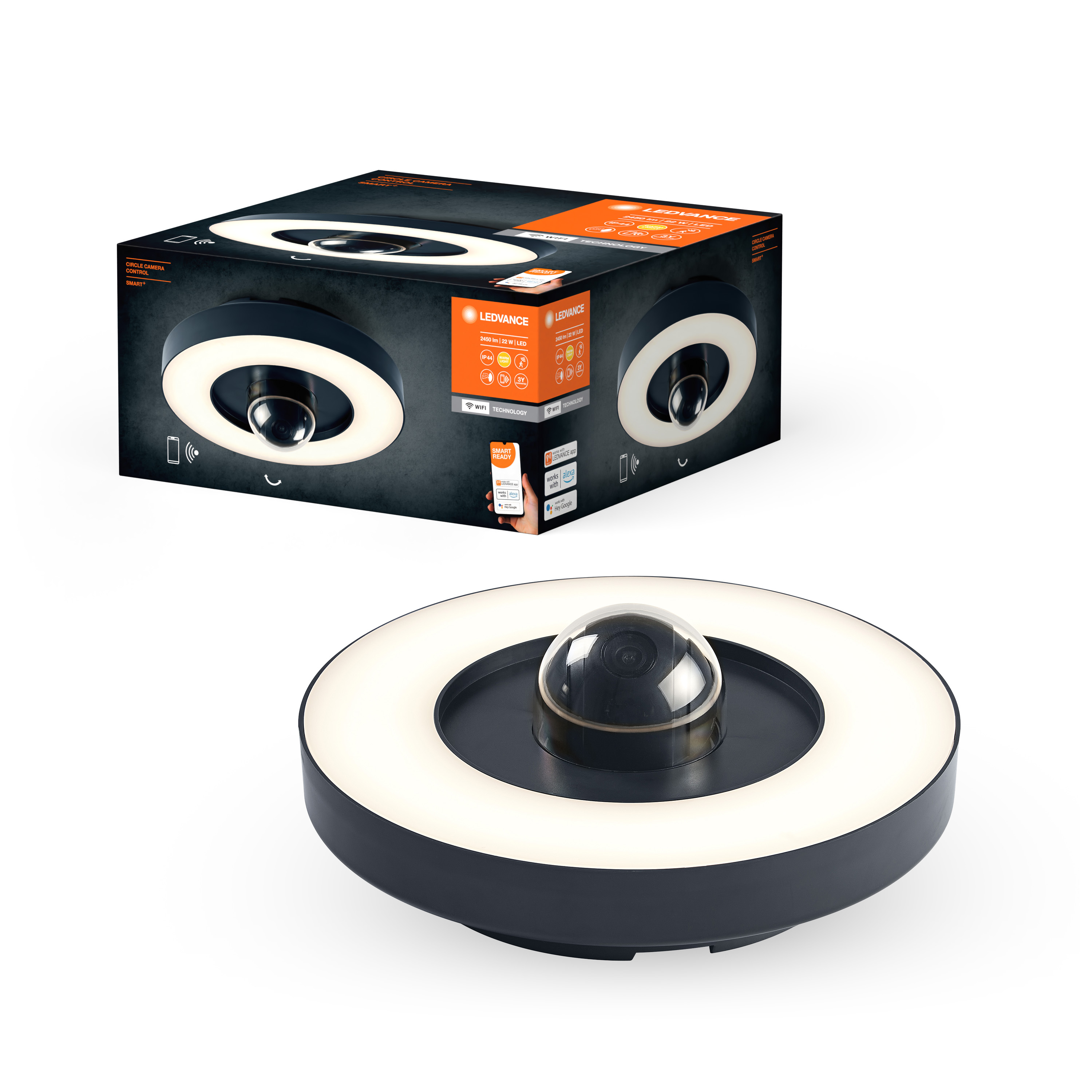

Combo Shot = Product Beauty Shot + Packaging Image
Circle Camera Control
Circle Camera Control
Packaging image, frontal
SH FC OUTD WIFI CIRCLE CAM CON MiPRC
SH FC OUTD WIFI CIRCLE CAM CON MiPRC
Packaging image, spacial
SH FC OUTD WIFI CIRCLE CAM CON MiPRC
SH FC OUTD WIFI CIRCLE CAM CON MiPRC
Application pictures

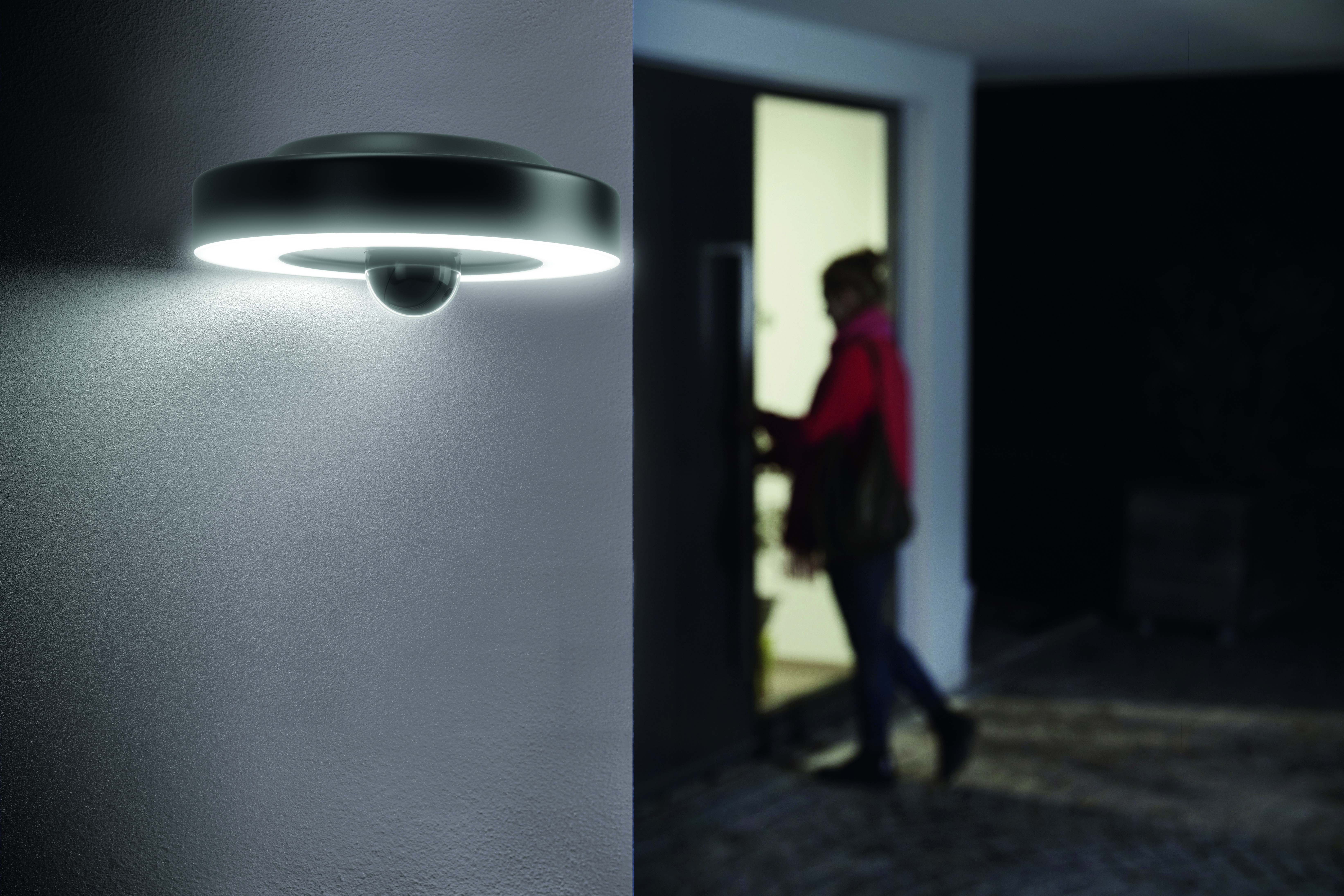

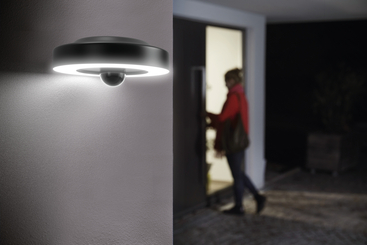

OUTDOOR SMART+ Wifi Circle Camera Control
OUTDOOR SMART+ Wifi Circle Camera Control

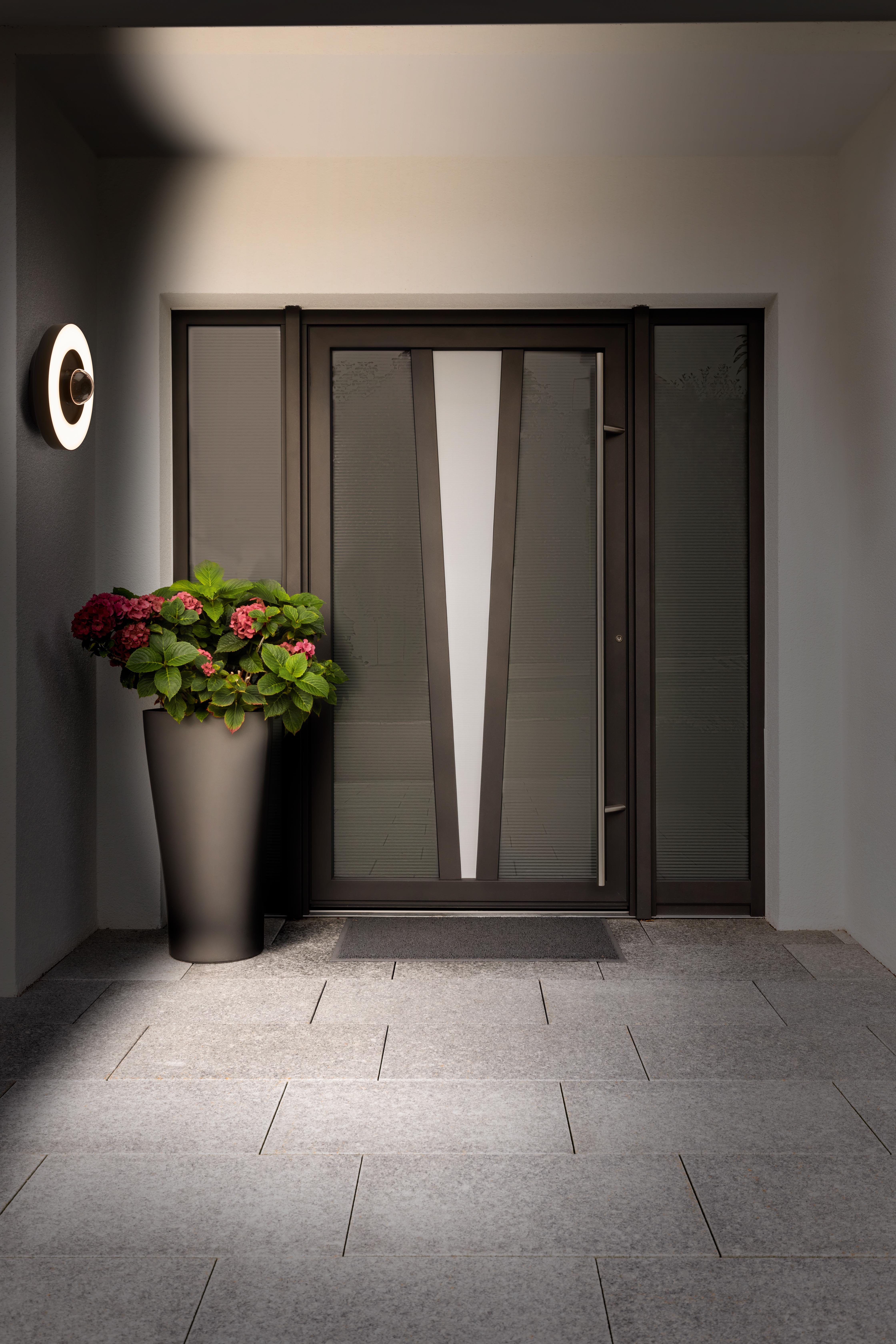

Application pictures Getty
SMART+ Wifi Outd Circle Camera Control Wall
SMART+ Wifi Outd Circle Camera Control Wall

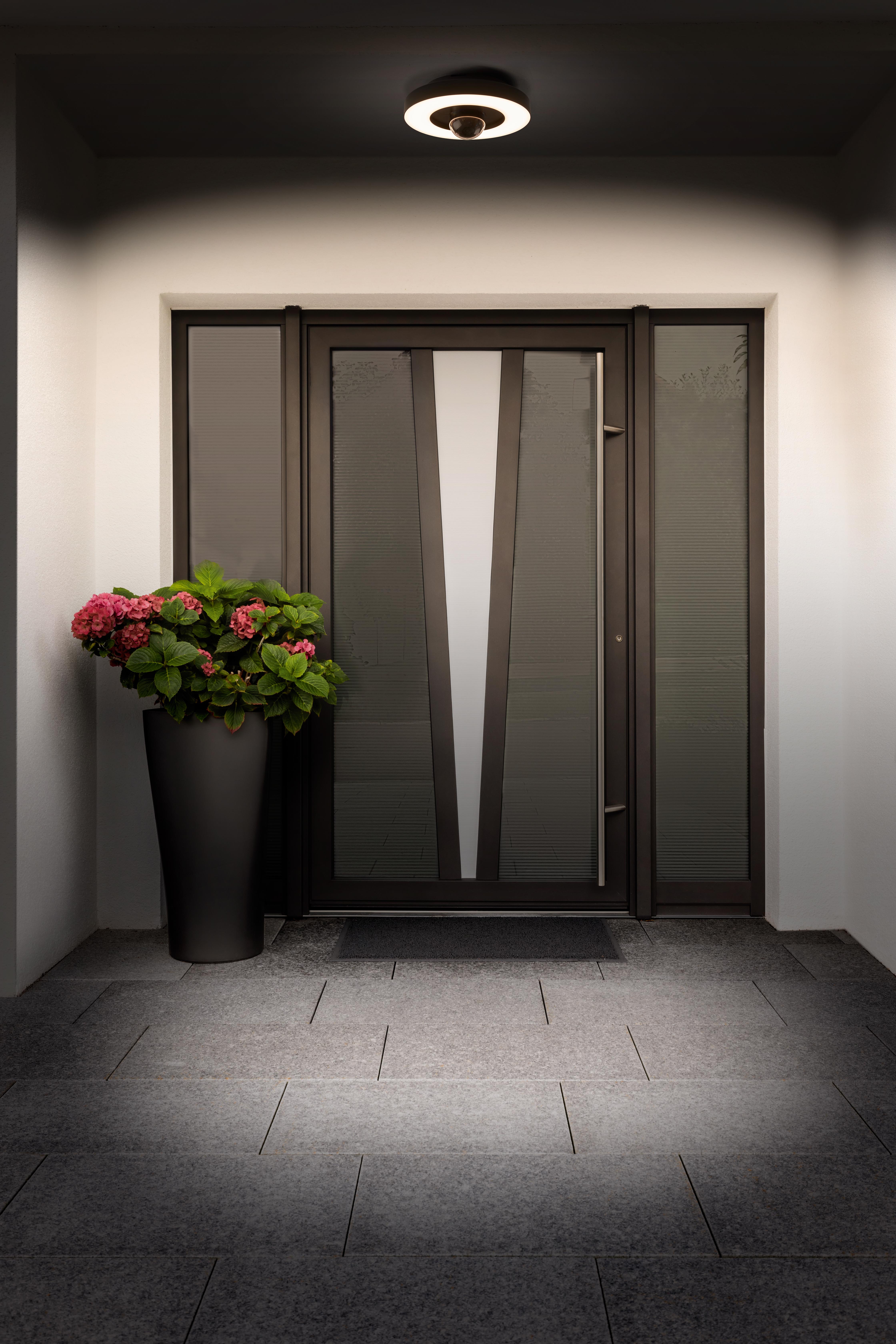

Application pictures Getty
