SMART+ WIFI MAGIC RGB FLEX WITH REMOTE CONTROL

Smart+ Wifi Flex Magic RGB 5M + RC

GTIN: 4099854095146 Folding box / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Easy and quick installation
  • Magic RGB Color Control for maximum flexible selection
Areas of application
  • Living areas
  • Indirect lighting
Product features
  • Dimmable
  • RGB color control, approx. 16 million color options adjustable
  • DIY function: You can adjust the color segment per segment and create your own lighting scenes or just use already available lighting scenes
  • Flexible, bendable LED strips
  • Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Equipment / Accessories
  • Control via app or voice control requires compatible Smart home system
  • Complete mounting and connecting accessories included
  • Remote control and battery included
  • For control via SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
  • Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
  • Do not connect the rope light to the supply while it is wound onto a reel. Do not use the lightstrip when covered or recessed into a surface. The string of lights may not be operated within the packaging. Do not open the lightstrip.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Electrical data
Nominal wattage 24.00 W
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Nominal current 130.000 mA
Inrush current 24 mA
Power factor λ > 0.5
Total harmonic distortion < 100 %
Protection class II
Photometrical data
Light color (designation) Red, Green, Blue
Standard deviation of color matching < 6 sdcm
Photobiological safety group acc. to EN62778 RG1
Beam angle 120 °
Dimensions & Weight
Length 5000.00 mm
Height 3.00 mm
Width 10.00 mm
Product weight 330.00 g
Materials & Colors
Product color White
Housing color White
Body material Polyurethane (PU)
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…80 °C
Type of connection Plug type C (EU)
Type of protection IP20
Dimmable Yes
Type of dimming WiFi
Mounting type Surface
Application environment Indoor
Lifespan
Lifespan L70/B50 at 25 °C 30000 h
Number of switching cycles 15000
BATTERY
Battery size [GMS] CR2025
Certificates & Standards
Standards CE
Replaceable light source (EPREL) Not replaceable
Additional product data
Product remark Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times.
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854095146 Folding box
1
70 mm x 170 mm x 160 mm 450.00 g 1.90 dm³
4099854095153 Shipping box
4
340 mm x 195 mm x 160 mm 2115.00 g 10.61 dm³
User instruction / safety instructions
UI SMART WIFI FLEX MGC RGB RC
Legal information
Legal Insert FLEX
Declarations of conformity
SMART WIFI FLEX 3M AND 5M
Product image: white background, upright
SMART WIFI FLEX 5M MGC RGB RC

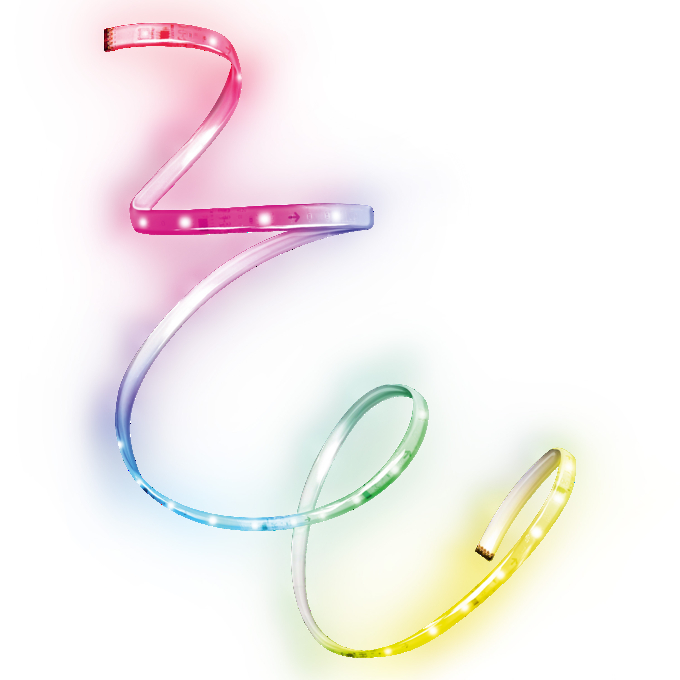

Product image: white background, upright, switched on
SMART WIFI FLEX 5M MGC RGB RC

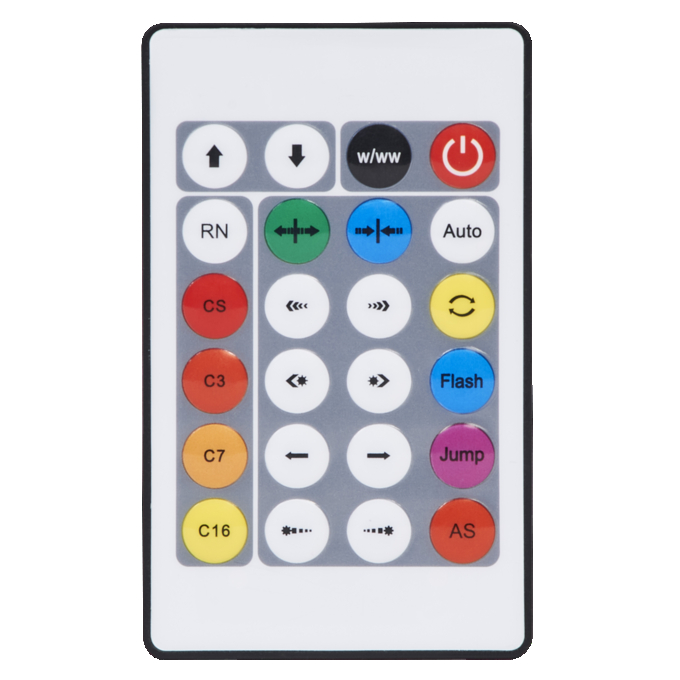

Product image: white background, with accessory, alternative image
SMART WIFI FLEX RC
Product infographic (application image with text and graphic)
SmartP Wifi Magic E-Com_Grafik 1200x1200px 2023 EN
Product infographic (application image with text and graphic)
Entertainment E-Com Grafik 1200x1200px 2024 EN
Product line drawing with letters
SMART WIFI FLEX 5M MGC RGB RC
Product line drawing with numbers
SMART WIFI FLEX 5M MGC RGB RC
Product line drawing, front, no dimensions
SMART WIFI FLEX 5M MGC RGB RC

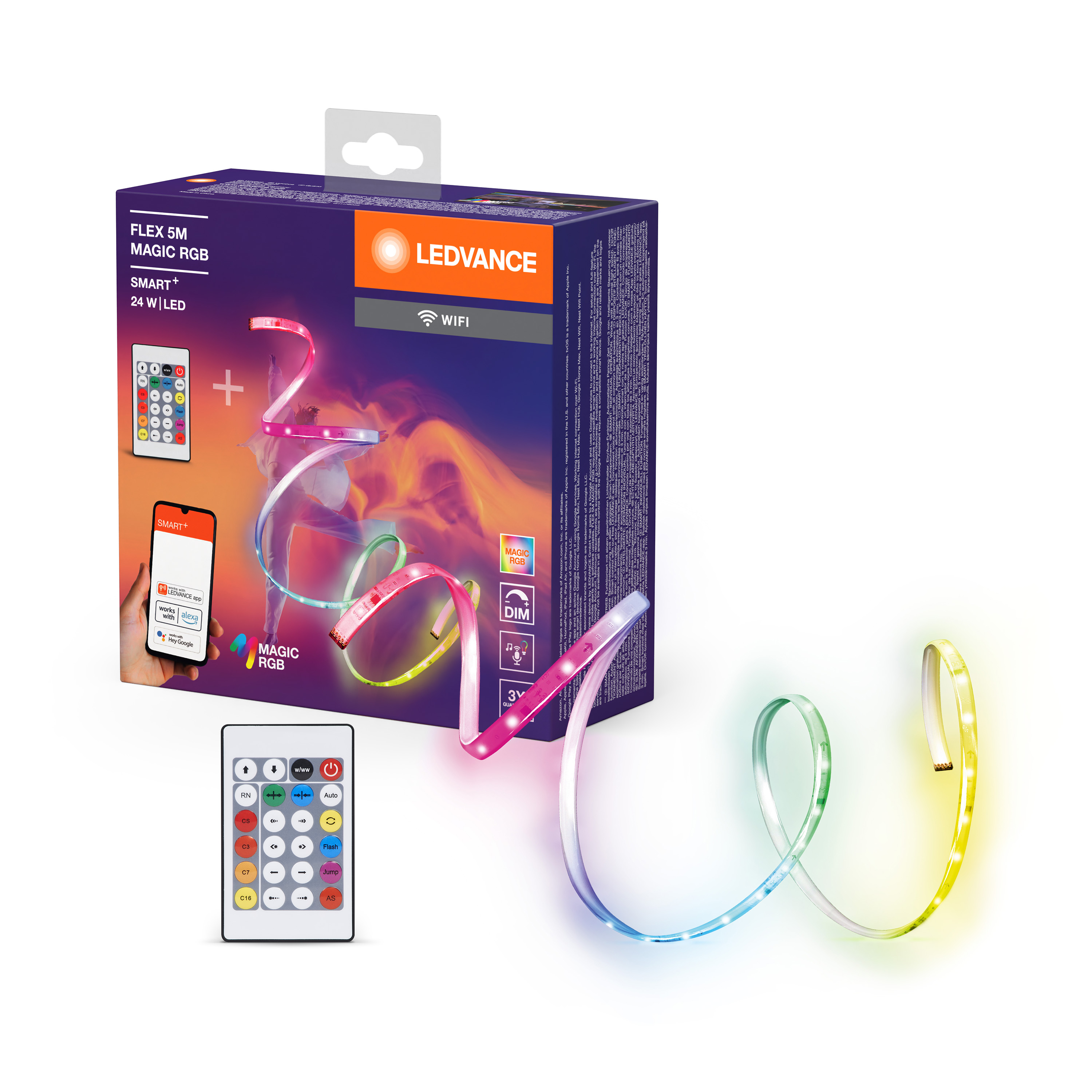

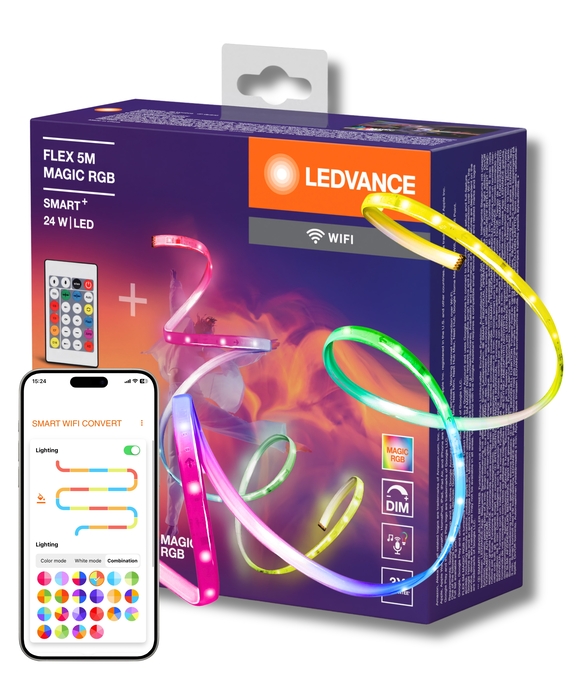

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI FLEX 5M MGC RGB RC MiPRC
Packaging image, frontal
SH FC WIFI FLEX 5M MGC RGB RC MiPRC

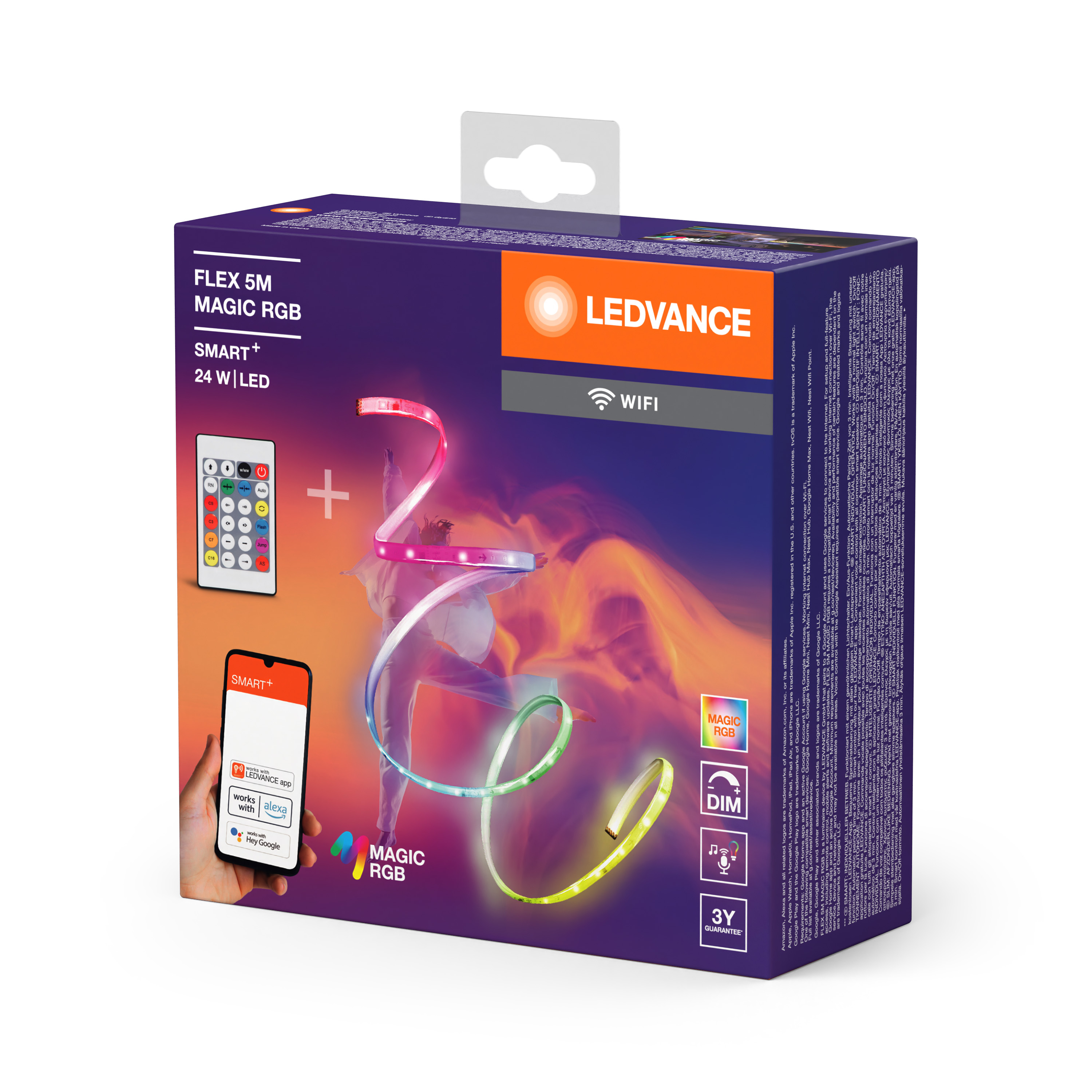

Packaging image, spacial
SH FC WIFI FLEX 5M MGC RGB RC MiPRC

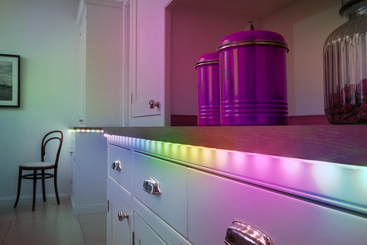

Application pictures
SMART+ Wifi Flexible Light Strips Colored
Application pictures
Building a DIY cloud with led strips
Application pictures
DIY Cloud glueing cotton wool on wires

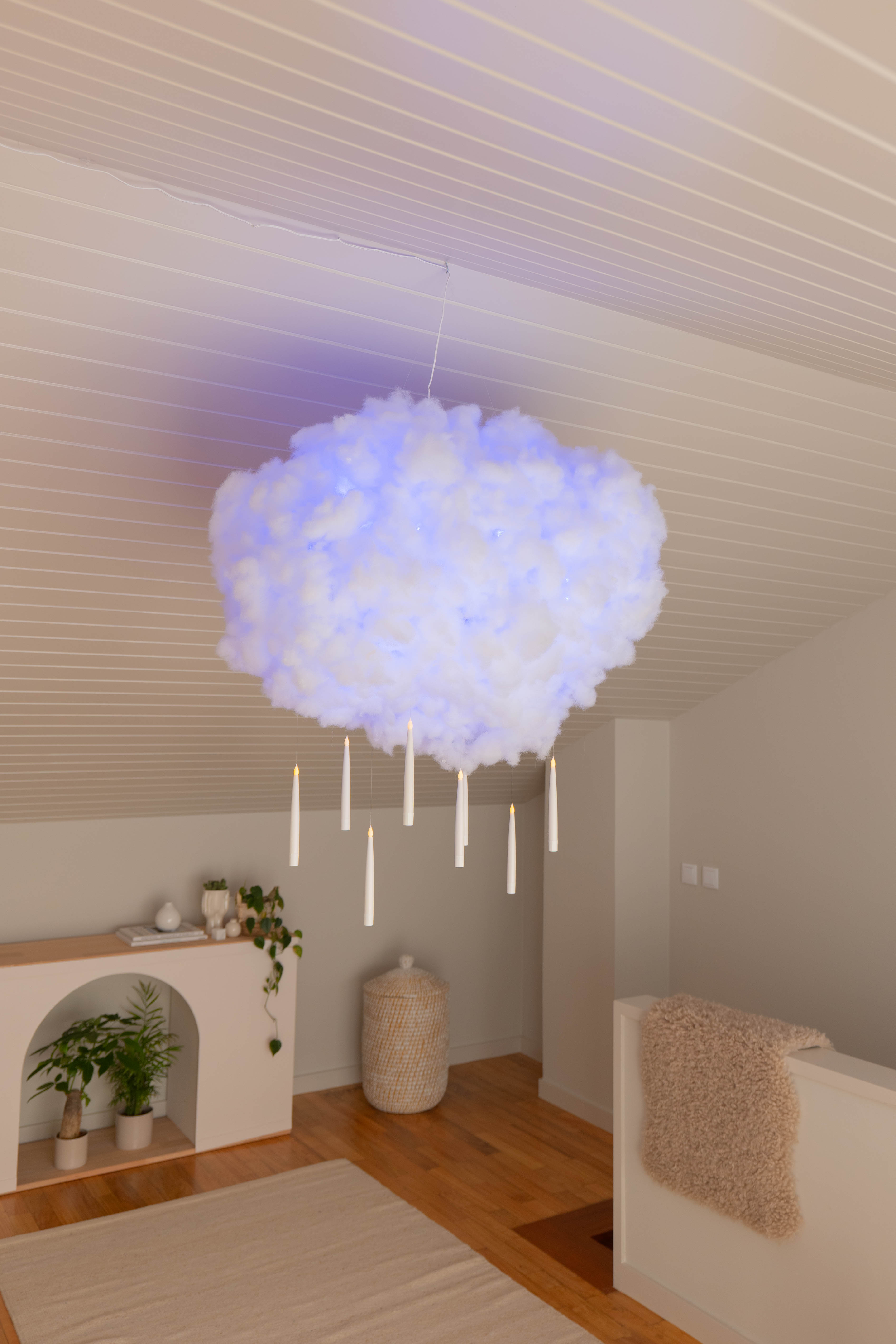

Application pictures
DIY blue cloud hanging from the livingroom ceiling

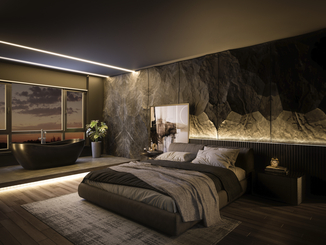

Application pictures Getty
Smart Wifi RGBIC Flex WW

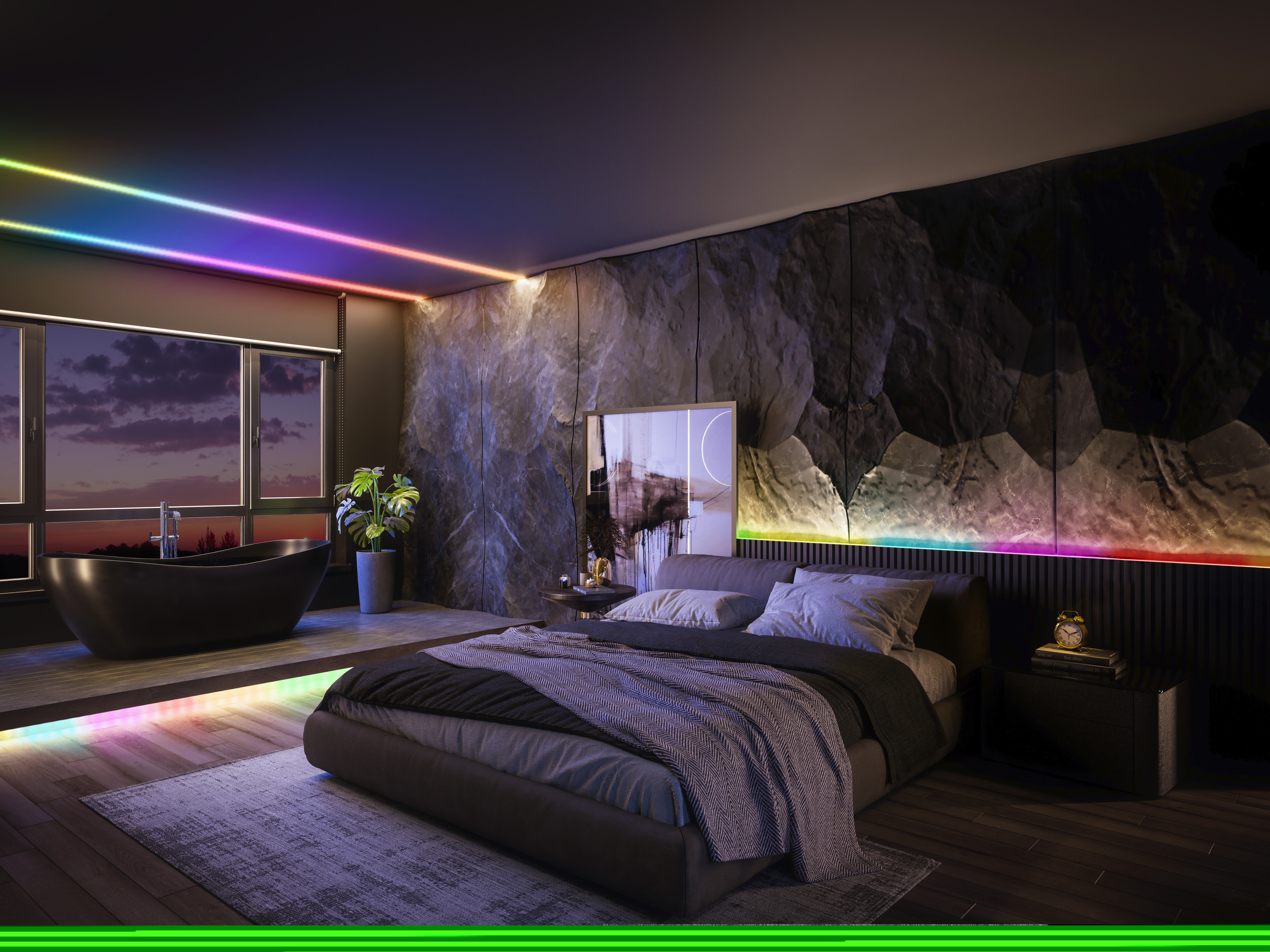

Application pictures Getty
Smart Wifi RGBIC Flex RGB
Application pictures Getty
Entertainment set retouched
EAN ELDAS number
4099854095146 941603410
