Linear LED Mobile HANGER USB

LINEARLED MOBILE HANGER 270MM USB WT

GTIN: 4058075504363 Blister / 1 Show all packages
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Attractive and functional design
  • Easy and quick installation
Areas of application
  • For a very large range of uses
  • For indoor use only
  • Shelves, furniture integration or under cabinet mounting
Product features
  • Integrated rechargeable lithium battery which can be charged via USB cable
  • Light activated by switch or movement within 3 meters
Equipment / Accessories
  • Complete mounting and connecting accessories included
Safety advice
  • This product is not a toy. It should not be left unattended in the hands of children or operated by children.
  • Not designed as a replacement for conventional lighting in private household.
  • Battery Warning: Keep out of reach for children. Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately.
  • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.
  • Please avoid: Maximal ambient temperature: +35 °C. Replacement of a battery with an incorrect type that can defeat safeguard (for example, in the case of some lithium battery types). Altitude during operation: 2000 m. Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion.
Electrical data
Nominal wattage 2.35 W
Nominal voltage 5 V
Mains frequency 0 Hz
Nominal current 560.000 mA
Max. number of luminaires per miniature circuit breaker C10 -
Protection class III
Operating mode Battery
Photometrical data
Luminous flux 120 lm
Luminous efficacy 51 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra > 80
Standard deviation of color matching < 6 sdcm
Photobiological safety group acc. to EN62778 RG0
Photobiological safety group acc. to EN62471 RG0
Dimensions & Weight
Length 324.00 mm
Height 15.00 mm
Width 47.00 mm
Product weight 180.00 g
Materials & Colors
Product color White
Housing color White
Body material Polycarbon|Acrylonitrile
Cover material Acrylonitrile butadiene styrene (ABS)
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+25 °C
Type of connection USB
Type of protection IP20
Dimmable No
Mounting type Surface
Mounting location Wall
Application environment Indoor
With light source Yes
Lifespan
Lifespan L70/B50 at 25 °C 30000 h 1)
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Sensor
Type of sensor Motion
Sensor technology Infrared/Photocell
Sensor controlled switching time 30 s
Detection range of motion sensor 0…3 m
BATTERY
Type of Battery Lithium ion
Battery size [GMS] Others
Number of included batteries 1
Nominal voltage of battery 3.7 V
Nominal capacity of battery 1000 mAh
Certificates & Standards
Standards CE, EAC, UKCA
Luminaire with limited surface temperature, "D sign" No
Replaceable light source (EPREL) Not replaceable
Additional product data
Number of illuminants empty
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075504363 Blister
1
23 mm x 140 mm x 400 mm 226.00 g 1.29 dm³
4058075504370 Shipping box
6
410 mm x 167 mm x 152 mm 1520.00 g 10.41 dm³
4058075510838 Shipping box
36
520 mm x 425 mm x 330 mm 9711.00 g 72.93 dm³
Declarations of conformity
LINEARLED MOBILE HANGER 270MMUSB

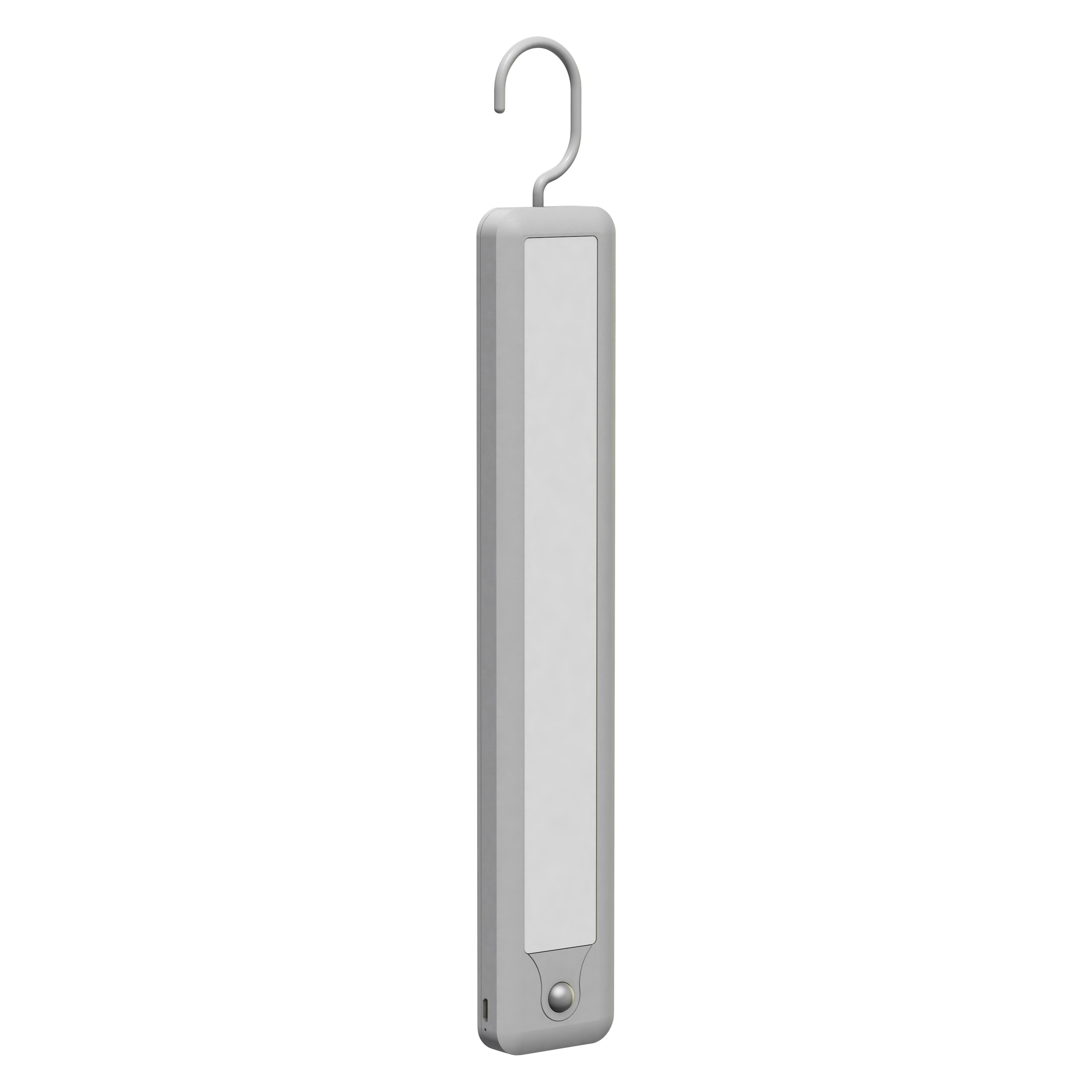

Product image: white background, upright
LINEARLED MOBILE HANGER 270MM USB WT

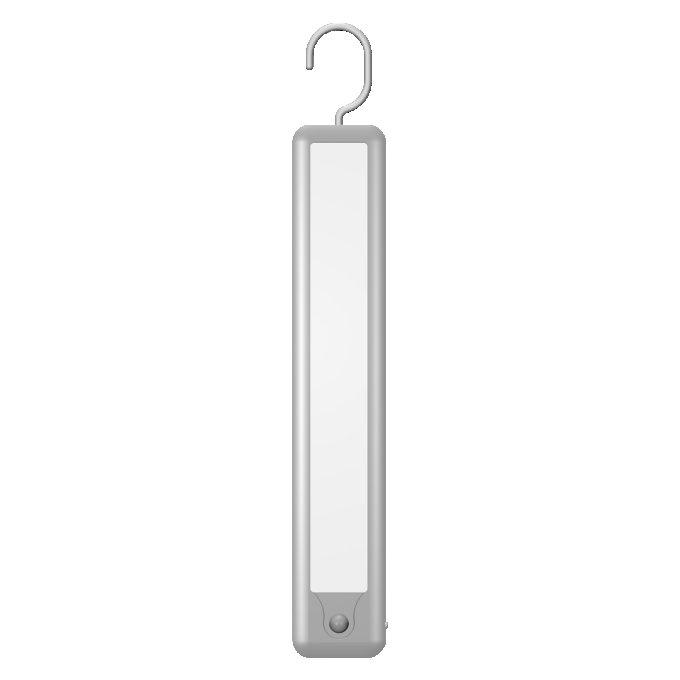

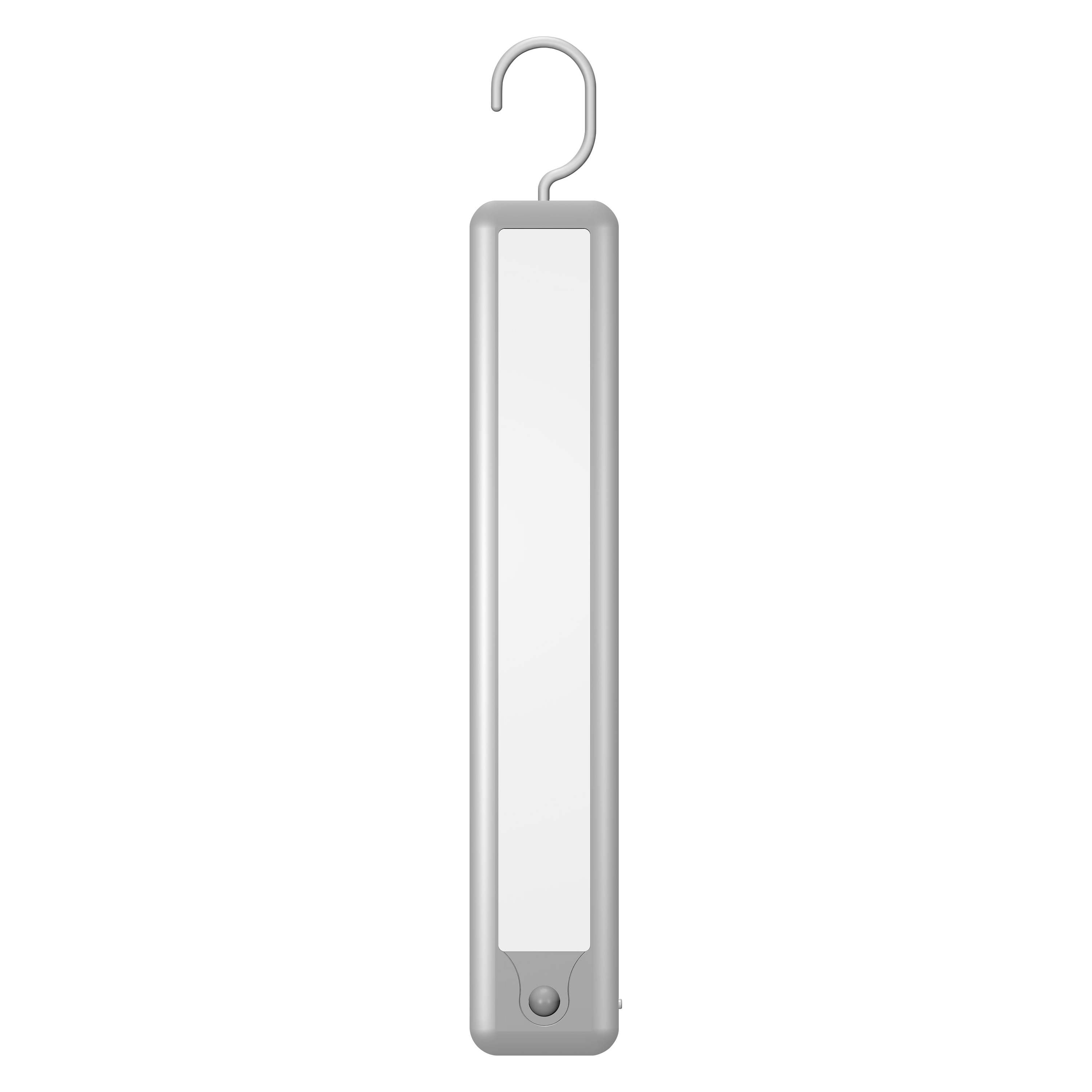

Product image: white background, upright, alternative image
LINEARLED MOBILE HANGER 270MM USB WT

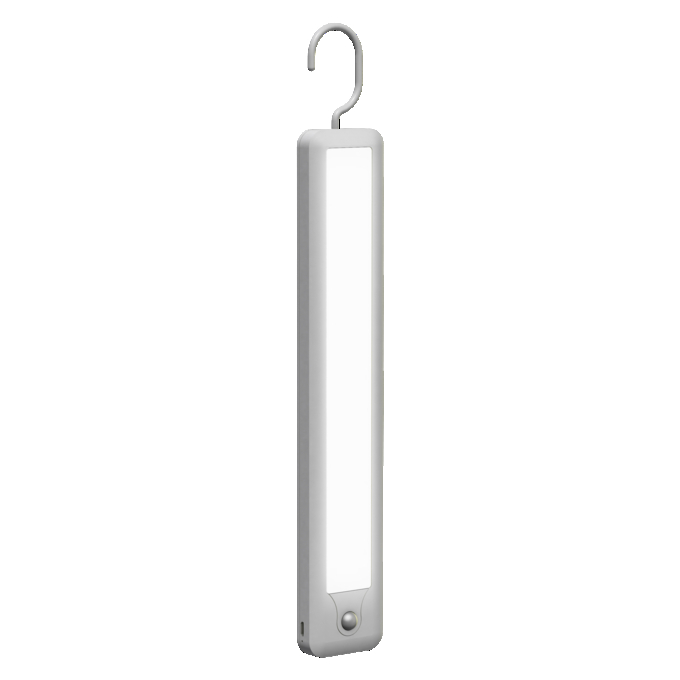

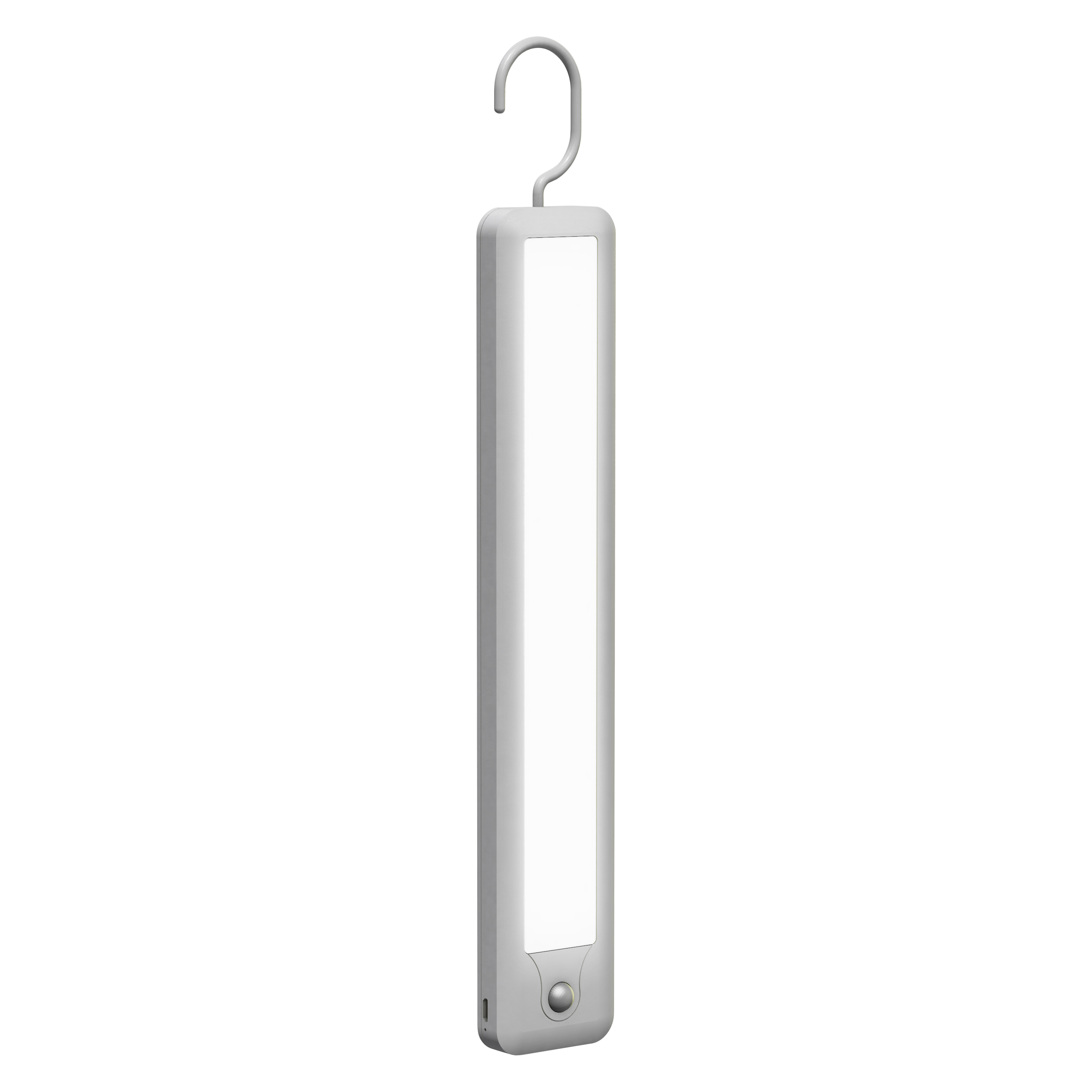

Product image: white background, upright, switched on
LINEARLED MOBILE HANGER 270MM USB WT
Product line drawing with letters
LINEARLED MOBILE HANGER 270MM USB WT
Product line drawing with numbers
LINEARLED MOBILE HANGER 270MM USB WT
Product line drawing, front, no dimensions
LINEARLED MOBILE HANGER 270MM USB WT

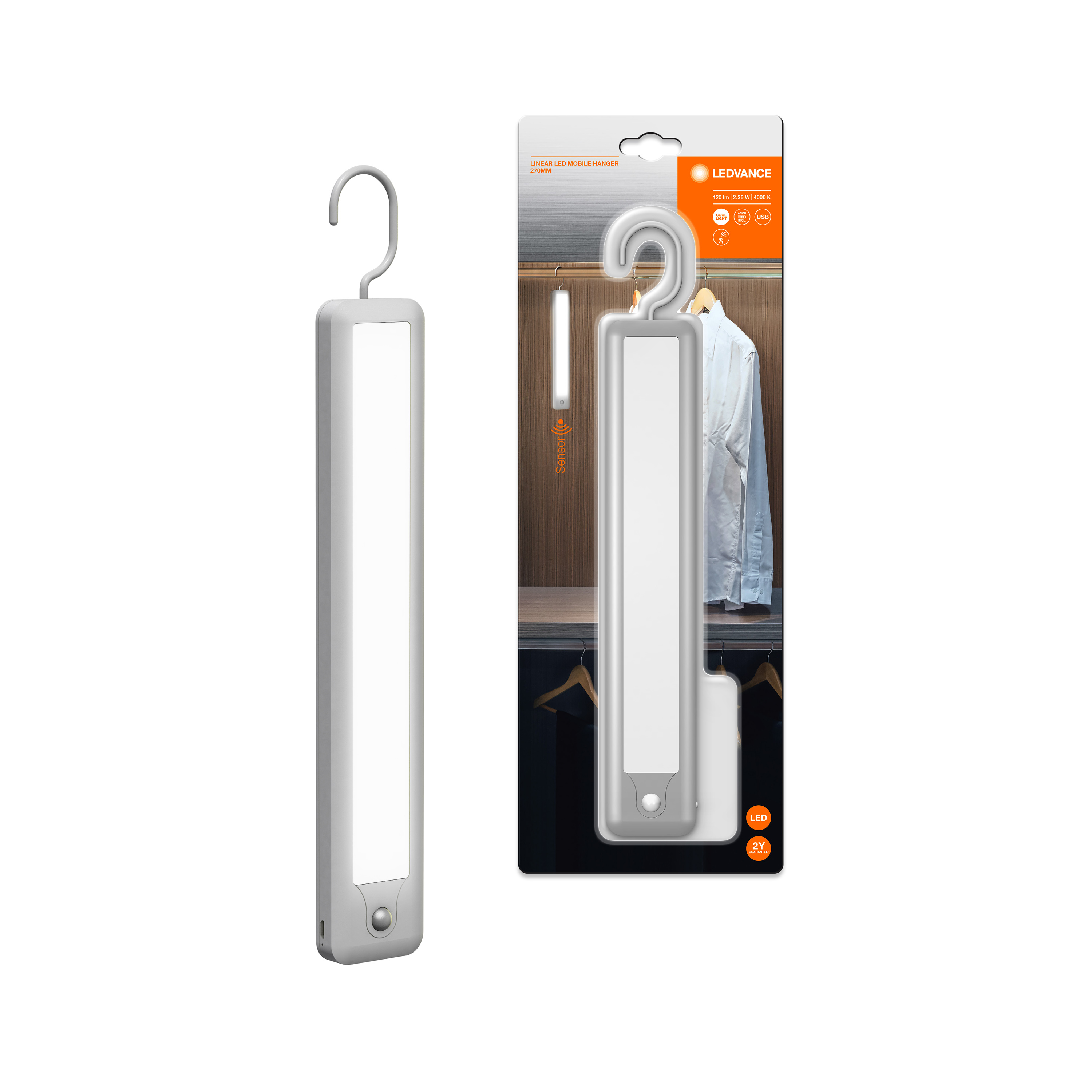

Combo Shot = Product Beauty Shot + Packaging Image
LINEARLED MOBILE HANGER 270MM USB WT LEDV
Packaging image, frontal
LUM BLI LINLED MOB HAN 270 USB MiPRC

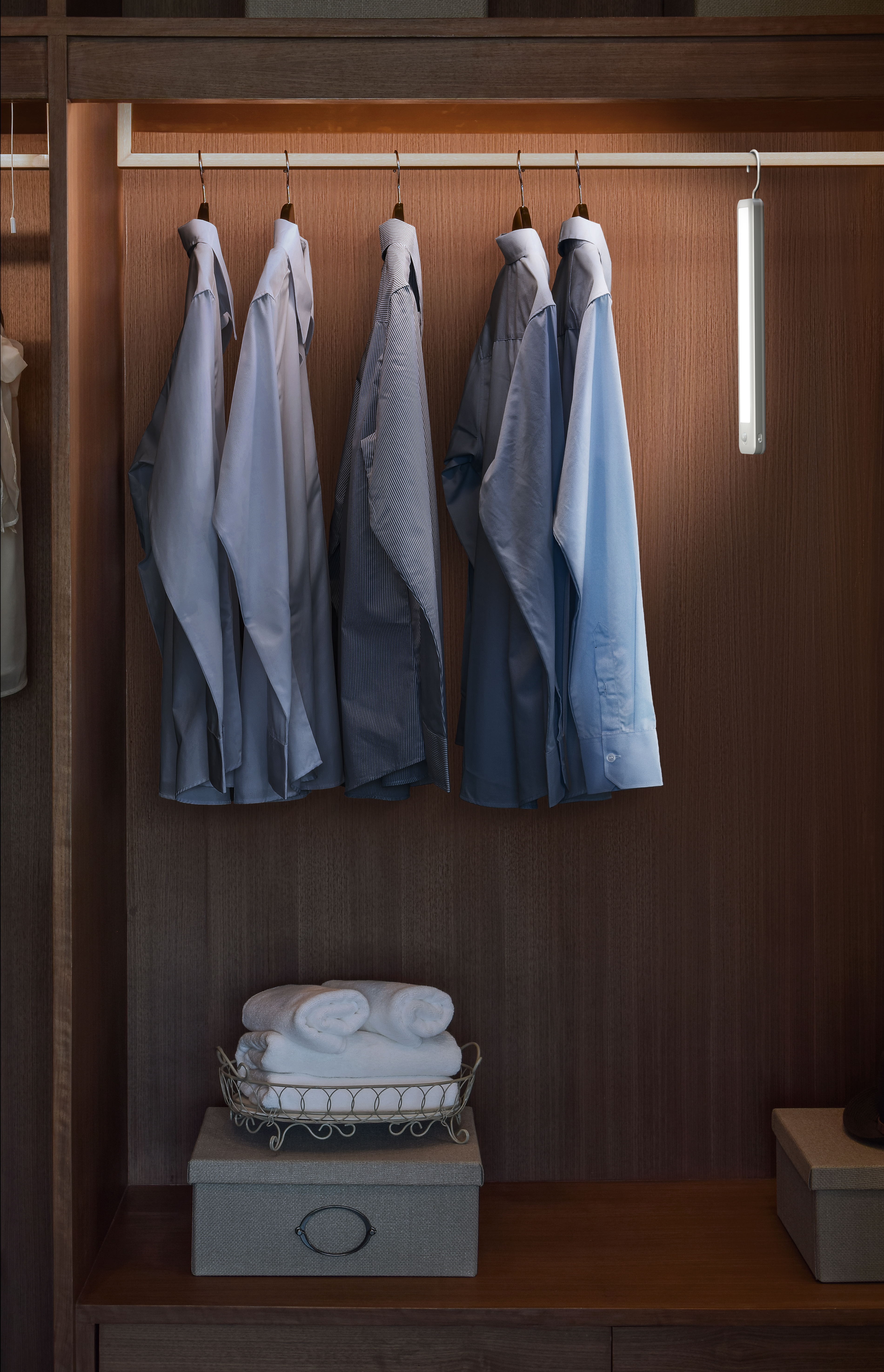

Application pictures
INDOOR LINEAR LED MOBILE HANGER 270

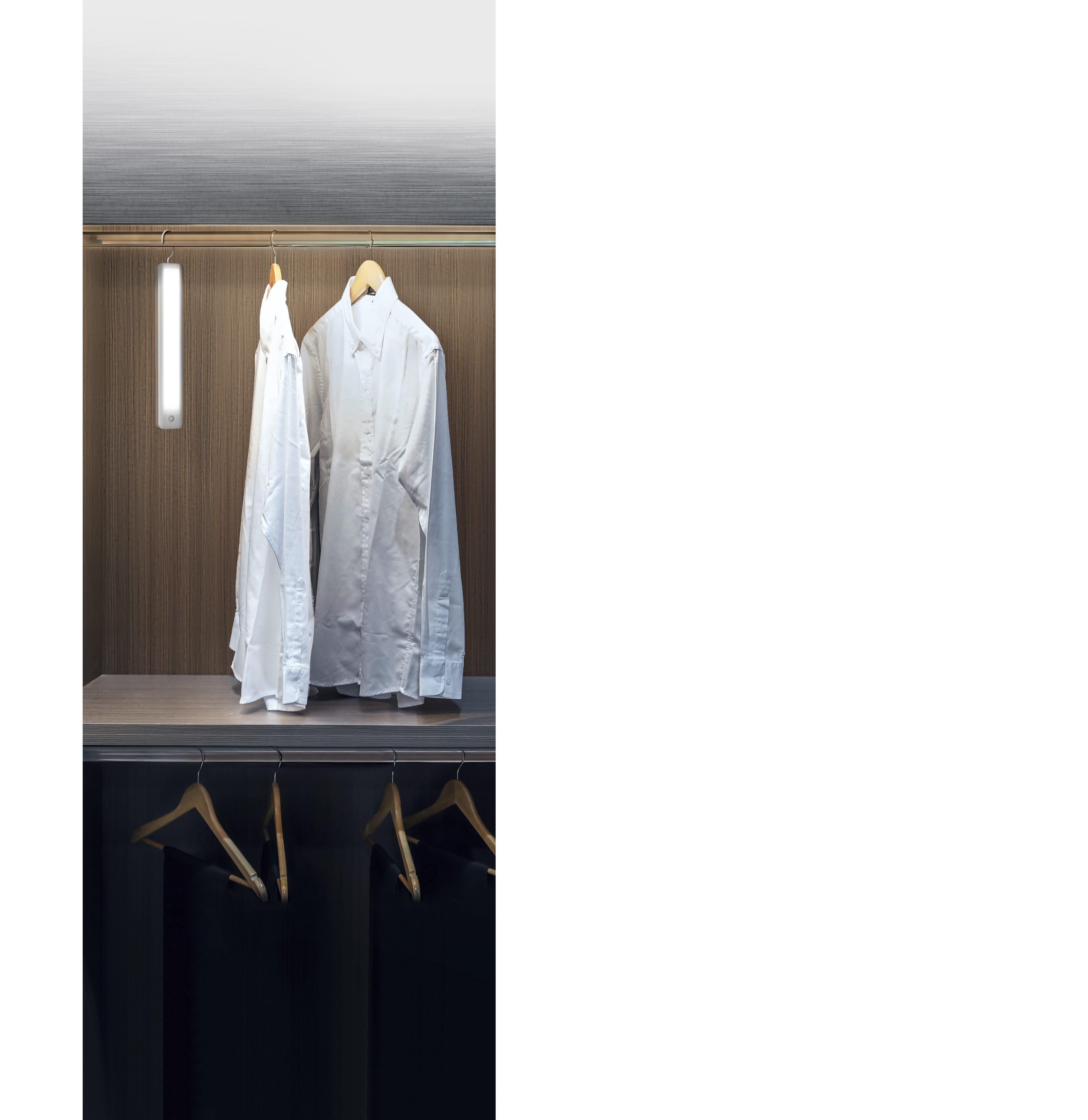

Application pictures Getty
LINEAR LED MOBILE HANGER USB 270 WT
EAN ELDAS number
4058075504363 941003450
