LED SPOT RECESS TWISTLOCK GU10
Spotlight Recess Set Incl. Osram LED 4.3W GU10 White
GTIN: 4058075572997
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Osram lamp included
- Twistlock system
- Steerable
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
- Bedrooms
- Kitchens
Product features
- GU10 lamp included
- Housing material: metal
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- The luminaires are not suitable for covering with thermally insulated material.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 4.30 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 38.000 mA |
| Power factor λ | > 0.4 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
Photometrical data
| Luminous flux | 345 lm |
| Total luminous flux of contained light sources | 350 lm |
| Luminous efficacy | 80 lm/W |
| Color temperature | 2700 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | 90 |
| Standard deviation of color matching | < 6 sdcm |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 36 ° |
Dimensions & Weight
| Diameter | 88.50 mm |
| Height | 112.00 mm |
| Product weight | 170.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Screw terminal |
| Type of protection | IP20 |
| Protection class IK (shock resistance) | IK02 |
| Dimmable | No |
| Mounting type | Recessed |
| Mounting location | Ceiling |
| Application environment | Indoor |
| Mounting diameter | 75,0 mm |
| With light source | Yes |
| Replaceable light source | No |
| Holder designation | GU10 |
Lifespan
| Lifespan L70/B50 at 25 °C | 15000 h 1) |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
Additional product data
| Number of illuminants | 1 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1), Tripnehyl Phosphate (115-86-6) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075572997 | Folding box 1 |
91 mm x 93 mm x 96 mm | 212.00 g | 0.81 dm³ |
| 4058075573000 | Shipping box 4 |
201 mm x 197 mm x 117 mm | 1048.00 g | 4.63 dm³ |
User instruction / safety instructions
SPOT SET ADJ
SPOT SET ADJ
Declarations of conformity
EC_SP SET ADJ
EC_SP SET ADJ

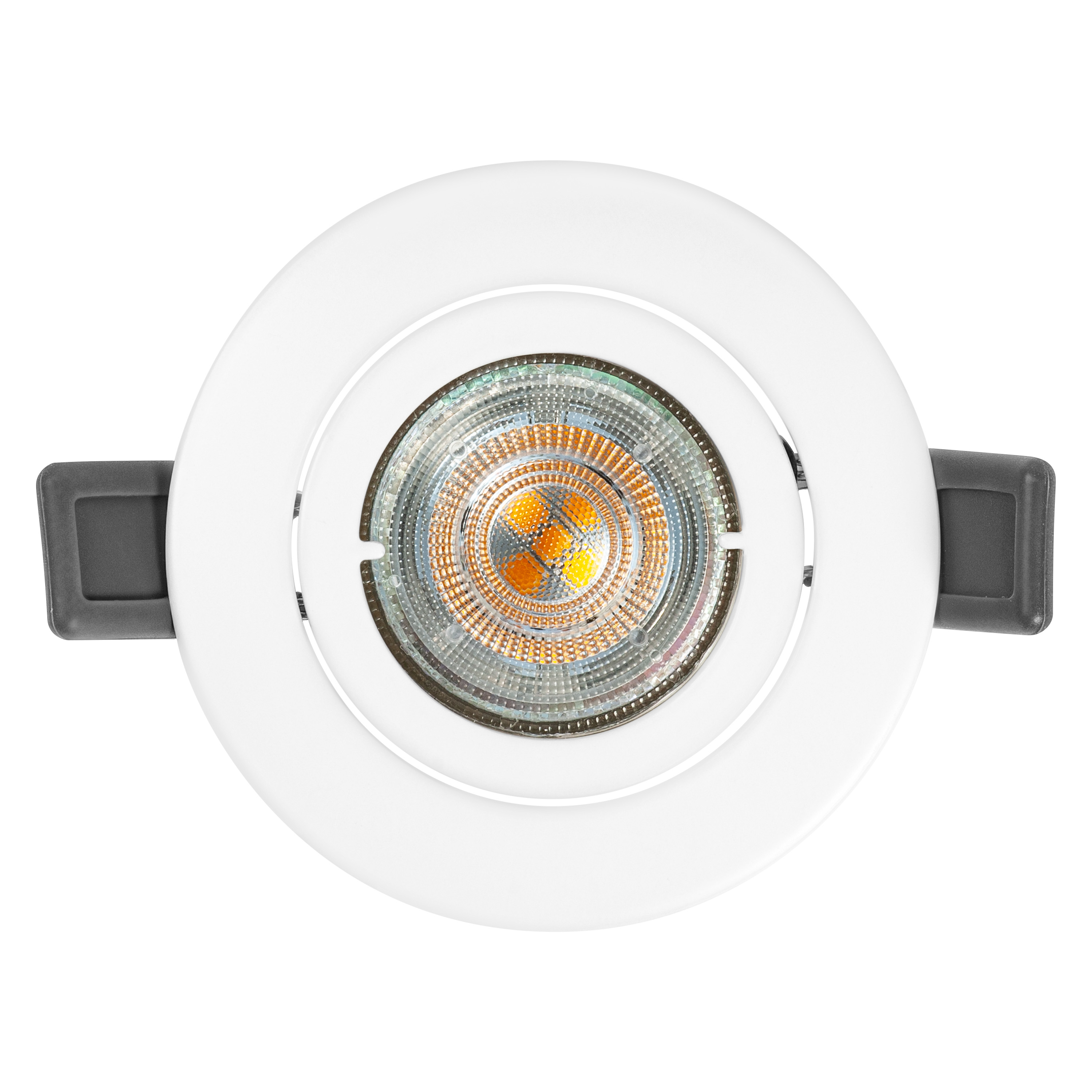

Product image: white background, upright
SPOT SET ADJ
SPOT SET ADJ

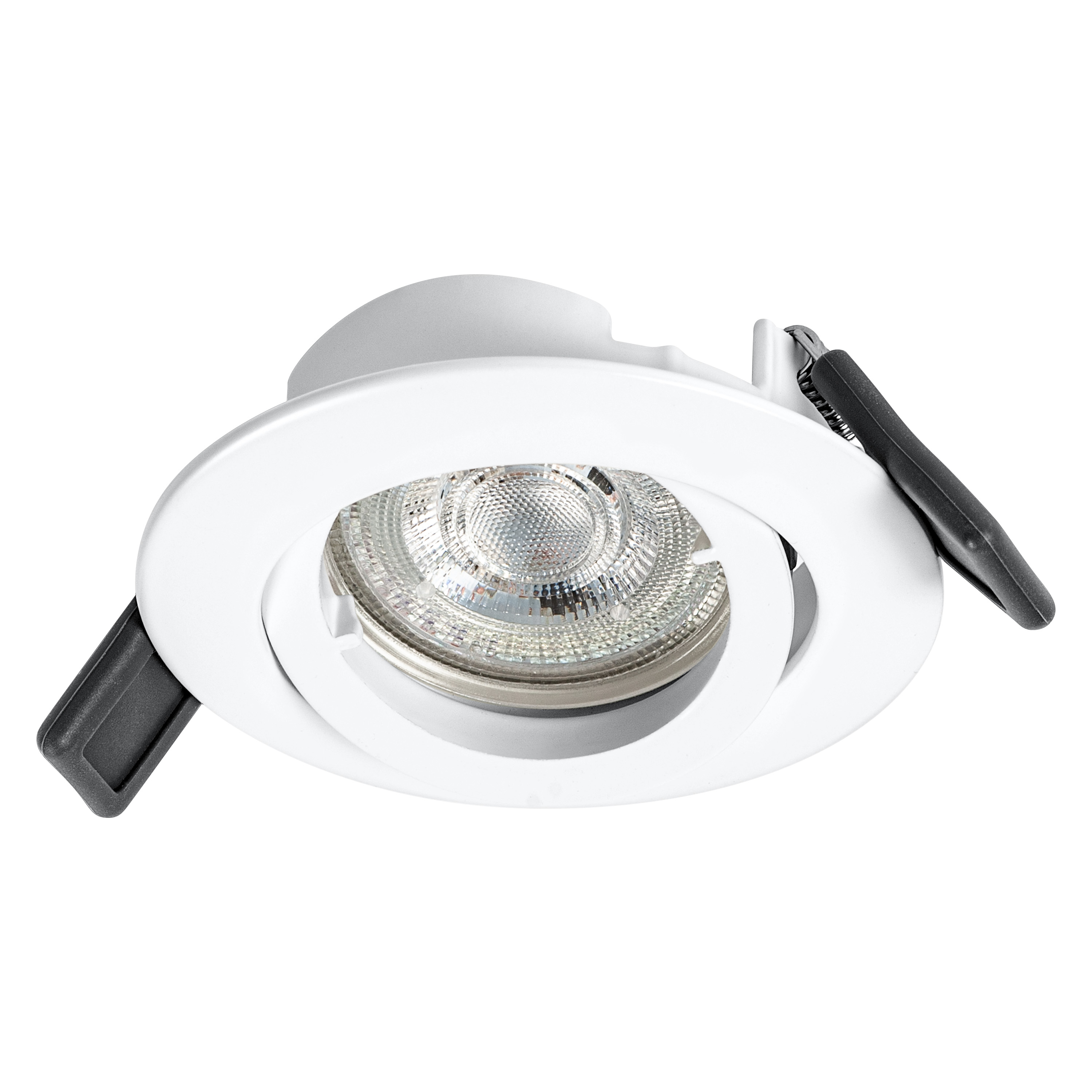

Product image: white background, upright, alternative image
SPOT SET ADJ
SPOT SET ADJ

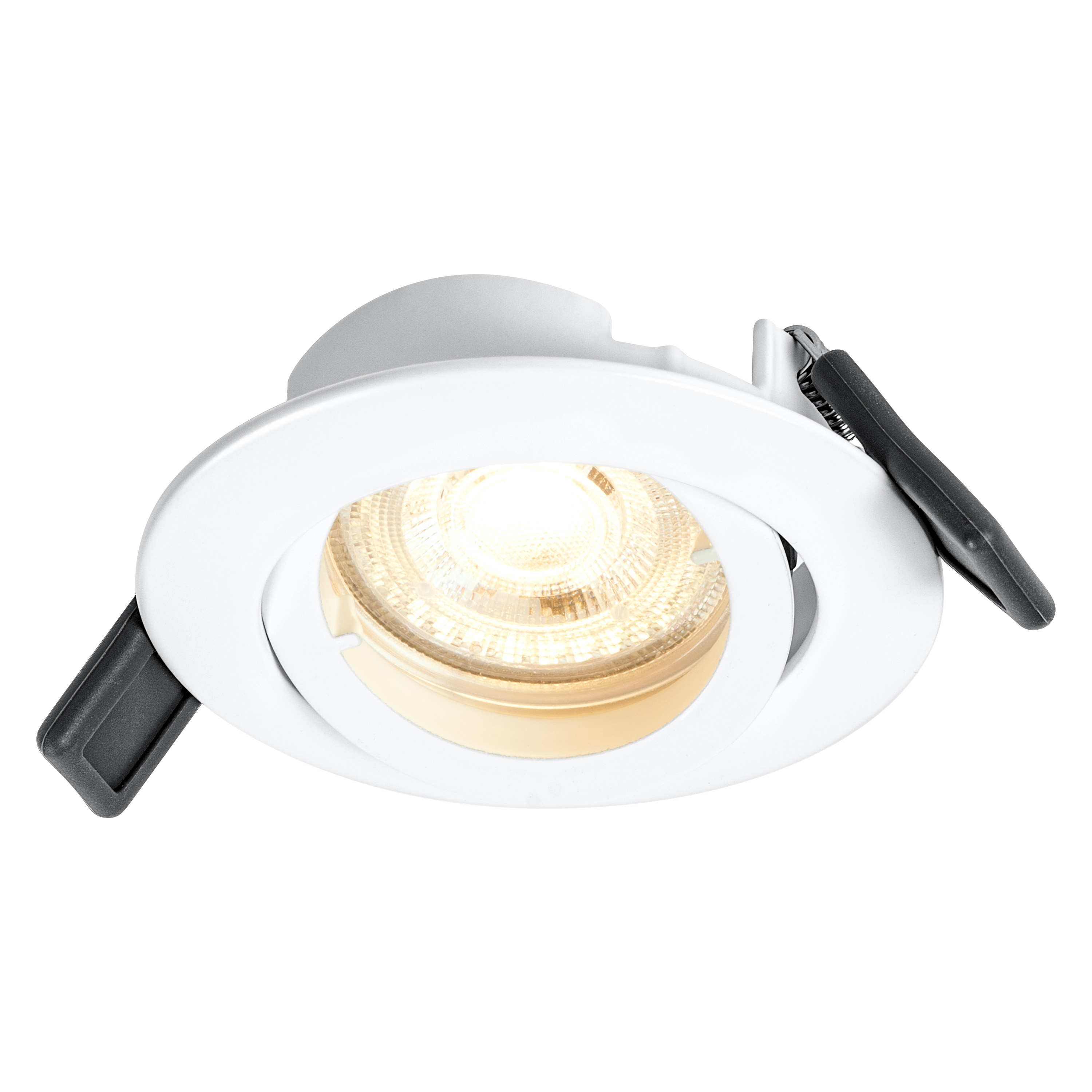

Product image: white background, upright, switched on
SPOT SET ADJ
SPOT SET ADJ
Product infographic (application image with text and graphic)
LED-Spots E-Com Grafik 1200x1200px 2023 EN
LED-Spots E-Com Grafik 1200x1200px 2023 EN
Product line drawing with letters
SP SET ADJ 4.3W 2700K 230V GU10
SP SET ADJ 4.3W 2700K 230V GU10
Product line drawing with numbers
SP SET ADJ 4.3W 2700K 230V GU10
SP SET ADJ 4.3W 2700K 230V GU10
Product line drawing, front, no dimensions
SP SET ADJ 4.3W 2700K 230V GU10
SP SET ADJ 4.3W 2700K 230V GU10
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC SP SET ADJ 4.3W WT GU10 MiPRC
LUM FC SP SET ADJ 4.3W WT GU10 MiPRC
Packaging image, frontal
LUM FC SP SET ADJ 4.3W WT GU10 MiPRC
LUM FC SP SET ADJ 4.3W WT GU10 MiPRC
Packaging image, spacial
LUM FC SP SET ADJ 4.3W WT GU10 MiPRC
LUM FC SP SET ADJ 4.3W WT GU10 MiPRC

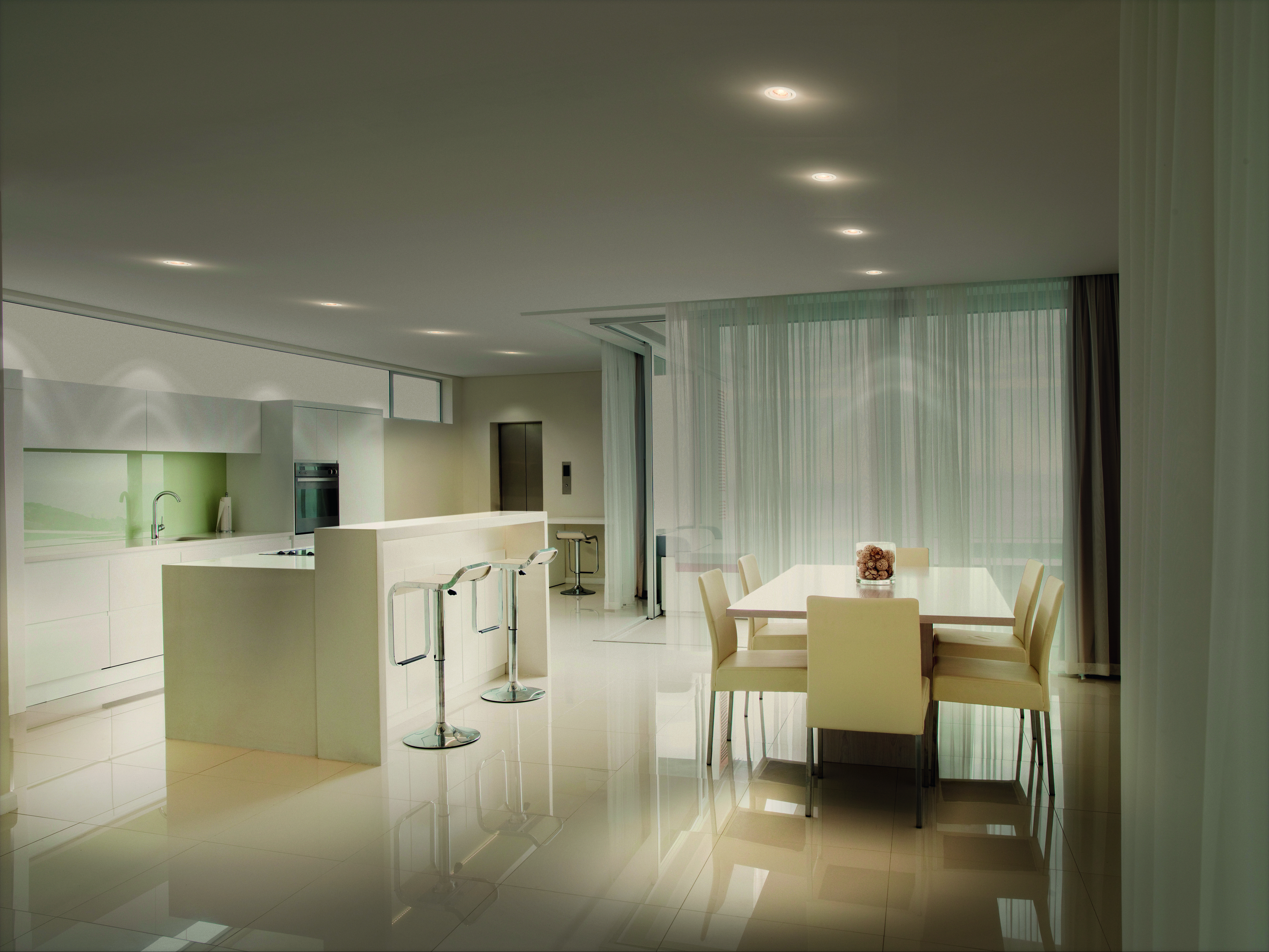

Application pictures Getty
INDOOR SPOT ADJ SET 4.3W WT
INDOOR SPOT ADJ SET 4.3W WT
| EAN | ELDAS number |
|---|---|
| 4058075572997 | 941469480 |
