Decor Concrete
Decor Concrete Bim Pendant E27 Dark Gray
GTIN: 4058075838307
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- High-quality look and feel
- High flexibility in the choice of the light source thanks to E27 base
- Sustainable solution thanks to exchangeable light sources
- Easy mounting
- Real wood used by some types
Areas of application
- Indoor applications
- Corridors, entrance areas, stairwells, living rooms, basements
Product features
- Housing material: metal and concrete
- Textile cable
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Protection class | II |
| Operating mode | Mains voltage |
Dimensions & Weight
| Diameter | 200.00 mm |
| Height | 1250.00 mm |
| Product weight | 1480.00 g |
Materials & Colors
| Product color | Dark gray |
| Housing color | Dark gray |
| Body material | Concrete|Steel |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Temperature range at storage | -20…+80 °C |
| Type of connection | Terminal, 2-Pole (L, N) |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Suspended |
| Mounting location | Ceiling |
| Application environment | Indoor |
| With light source | No |
| Replaceable light source | No |
| Holder designation | E27 |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
Additional product data
| Product remark | Maximum bulb wattage: 25 W (LED 15 W) |
| Number of illuminants | 1 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075838307 | Folding box 1 |
262 mm x 262 mm x 263 mm | 1788.00 g | 18.05 dm³ |
| 4058075838314 | Shipping box 4 |
545 mm x 275 mm x 545 mm | 8241.00 g | 81.68 dm³ |
User instruction / safety instructions
DECOR CONCRETE PENDANT E27 DG
DECOR CONCRETE PENDANT E27 DG
Legal information
Legal insert luminaires without light source
Legal insert luminaires without light source
Declarations of conformity
DECOR LUM
DECOR LUM

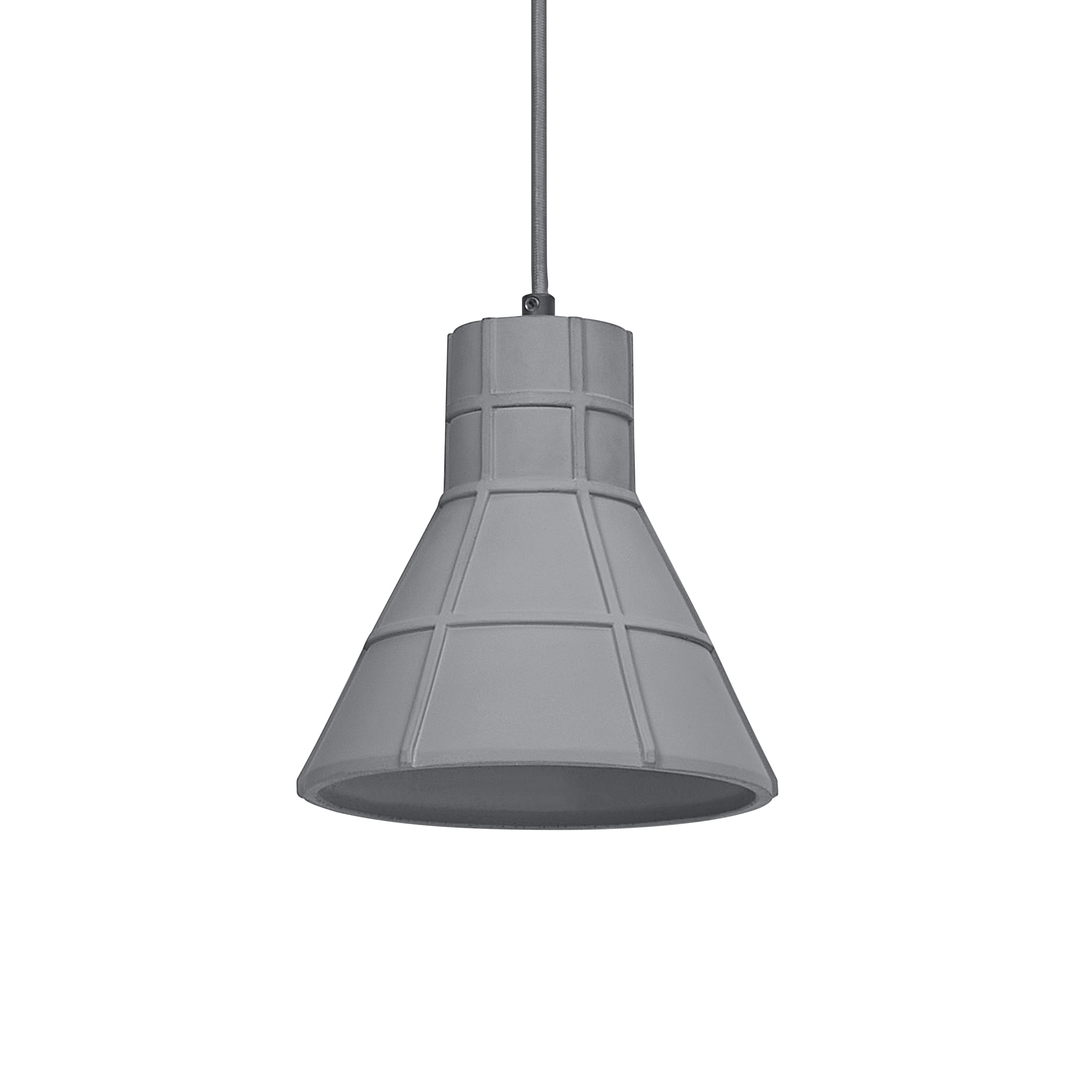

Product image: white background, upright
DECOR CONCRETE BIM PENDANT E27 DG
DECOR CONCRETE BIM PENDANT E27 DG

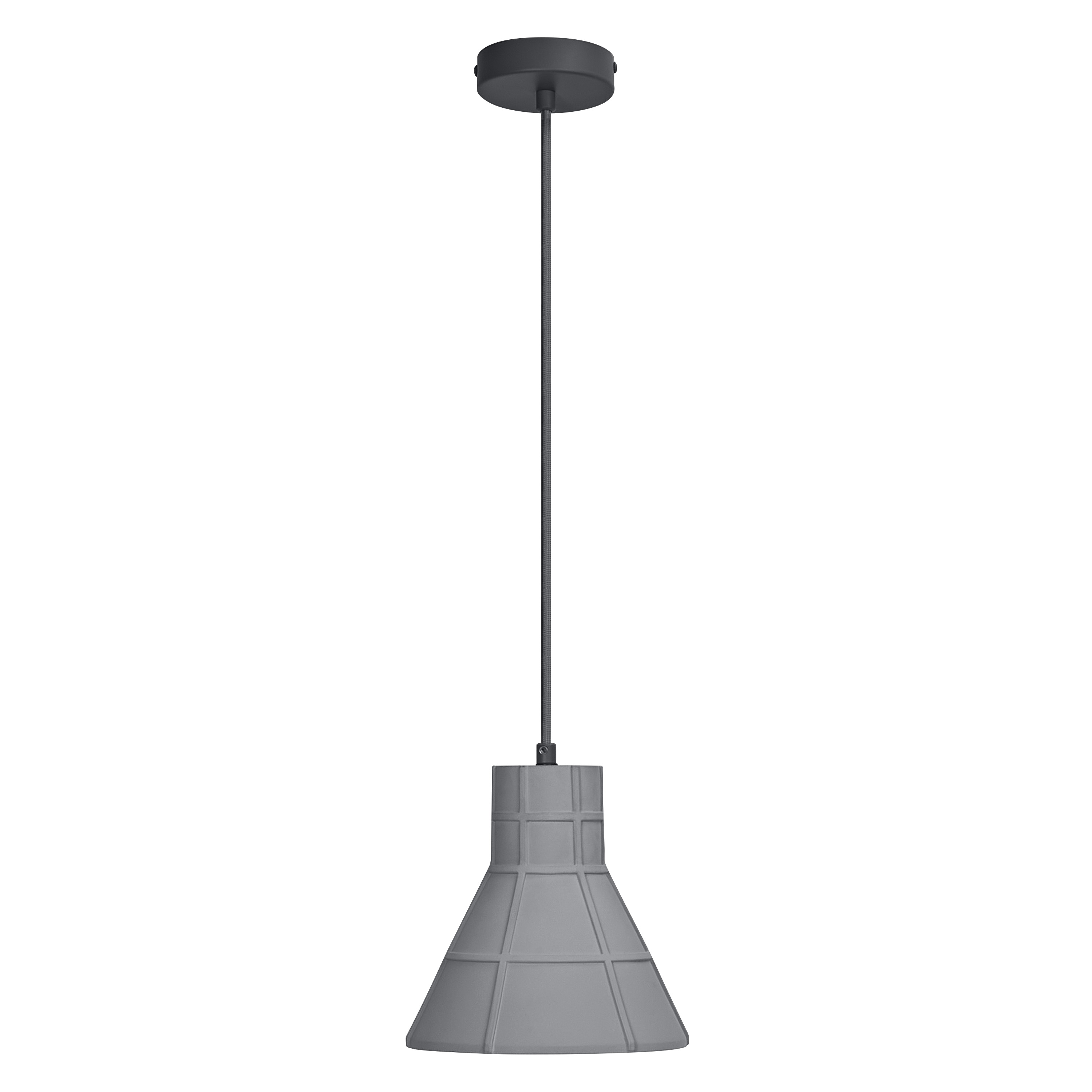

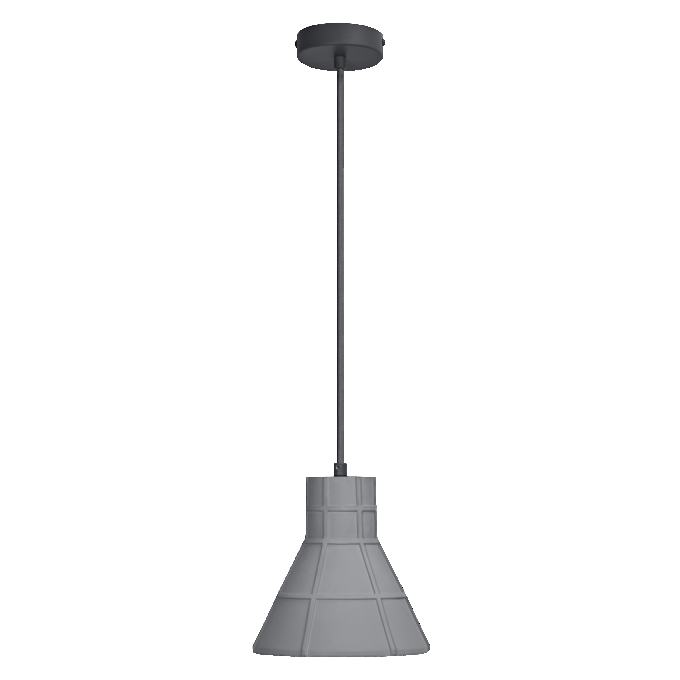

Product image: white background, upright, alternative image
DECOR CONCRETE BIM PENDANT E27 DG
DECOR CONCRETE BIM PENDANT E27 DG

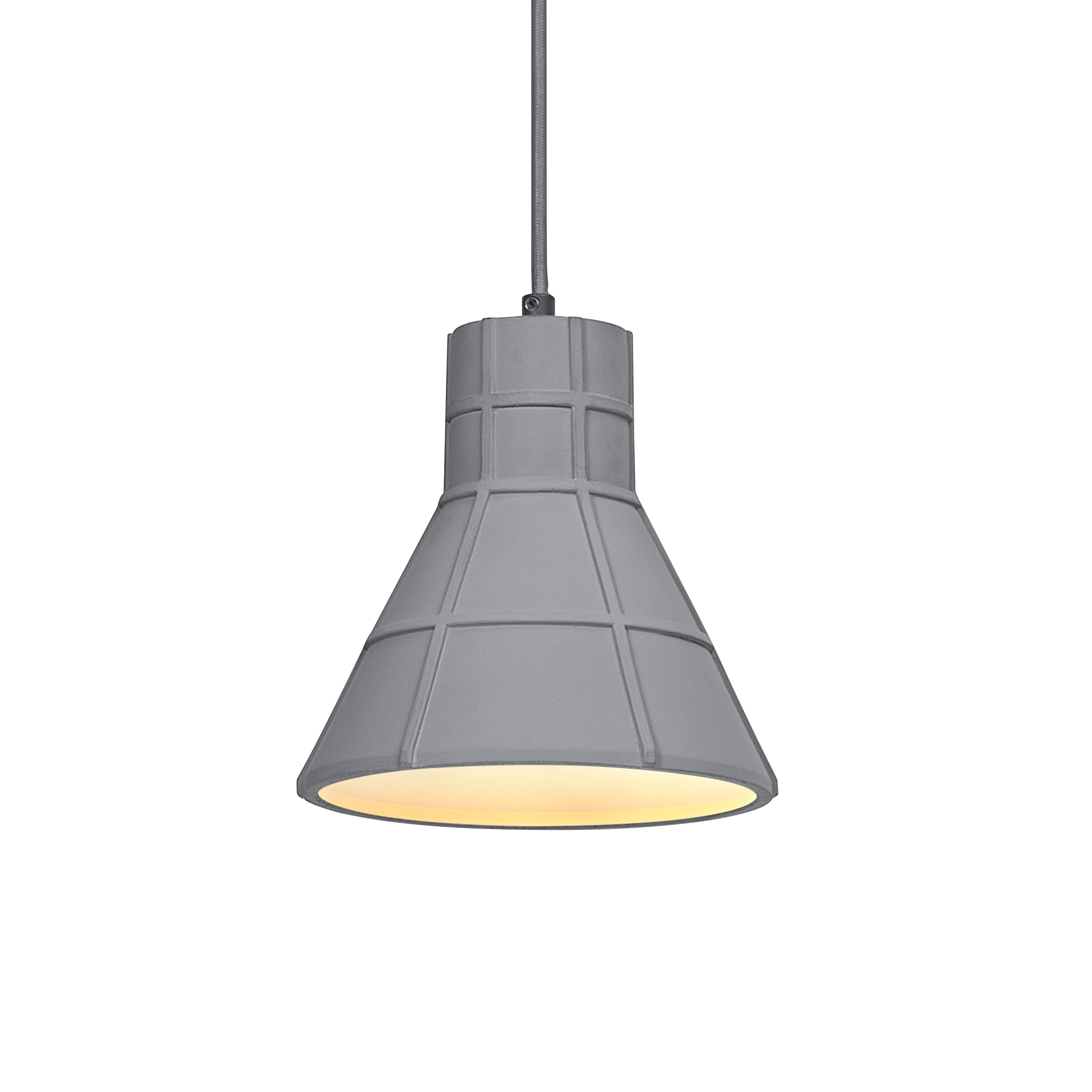

Product image: white background, upright, switched on
DECOR CONCRETE BIM PENDANT E27 DG
DECOR CONCRETE BIM PENDANT E27 DG
Product line drawing with letters
DECOR CONCRETE BIM PENDANT E27 DG
DECOR CONCRETE BIM PENDANT E27 DG
Product line drawing with numbers
DECOR CONCRETE BIM PENDANT E27 DG
DECOR CONCRETE BIM PENDANT E27 DG
Product line drawing - technical
DECOR CONCRETE BIM PENDANT E27 DG
DECOR CONCRETE BIM PENDANT E27 DG

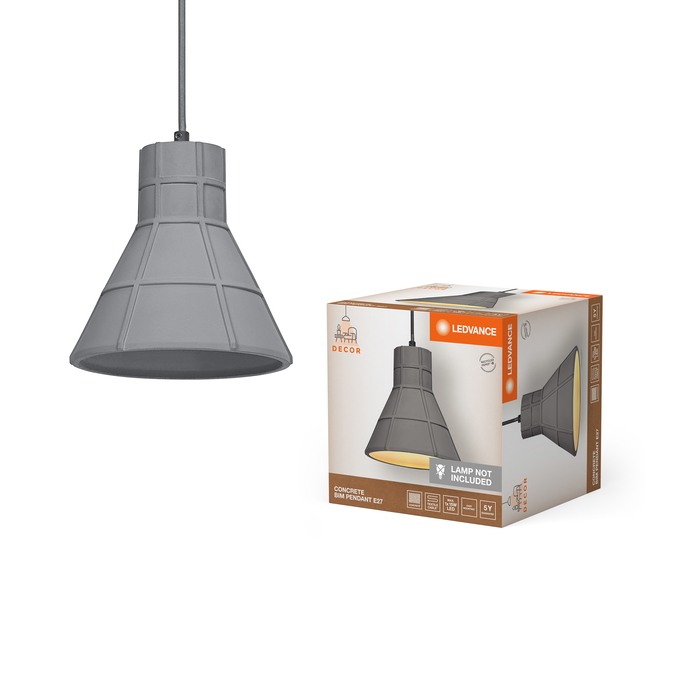

Combo Shot = Product Beauty Shot + Packaging Image
LUM DECOR CONCRETE BIM PENDANT E27 DG
LUM DECOR CONCRETE BIM PENDANT E27 DG
Packaging image, frontal
LUM DECOR CONCRETE BIM PENDANT E27 DG
LUM DECOR CONCRETE BIM PENDANT E27 DG
Packaging image, spacial
LUM DECOR CONCRETE BIM PENDANT E27 DG
LUM DECOR CONCRETE BIM PENDANT E27 DG
Product infographic with environment and dimensions
DECORLUM
DECORLUM
Product image with graphic and measurements
DECORLUM
DECORLUM

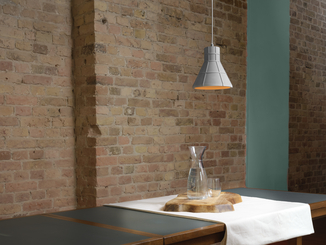

Application pictures
DECOR CONCRETE BIM PENDANT E27 DG Ambient
DECOR CONCRETE BIM PENDANT E27 DG Ambient
Application pictures
DECOR CONCRETE BIM PENDANT E27 DG Closeup 1
DECOR CONCRETE BIM PENDANT E27 DG Closeup 1
Application pictures
DECOR CONCRETE BIM PENDANT E27 DG Closeup 2
DECOR CONCRETE BIM PENDANT E27 DG Closeup 2

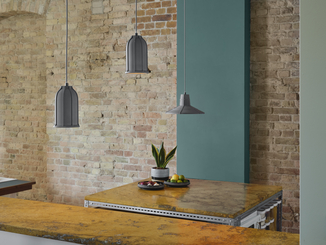

Application pictures
DECOR CONCRETE SIM, SALA, BIM Family
DECOR CONCRETE SIM, SALA, BIM Family

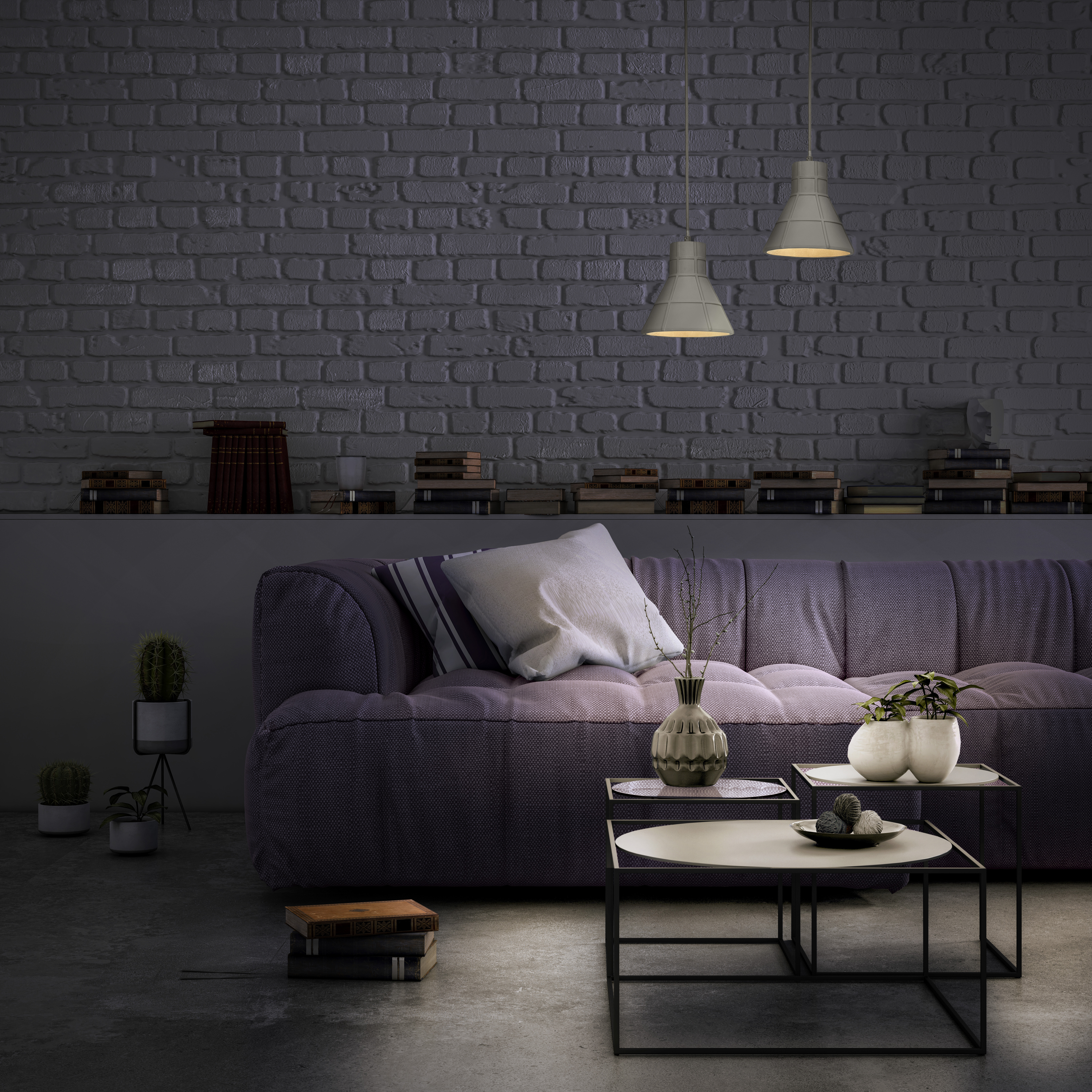

Application pictures Getty
