Decor Square
Decor Square 350x150mm 2 x G9 IP44
GTIN: 4058075756922
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Elegant design
- Socketed luminaire, the lamps can be replaced
- High-quality Luminaire head made out of glass
- IP44, can be used in indoor wet environment
Areas of application
- Bathrooms
- Living rooms
- Bedrooms
- Kitchens
- Offices
Product features
- Suitable for lamps with G9 base
- High quality glass and metal housing finish
- Decorative Luminaire
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Protection class | II |
Photometrical data
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
Dimensions & Weight
| Length | 350.00 mm |
| Height | 150.00 mm |
| Width | 150.00 mm |
| Product weight | 1500.00 g |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| Body material | Steel |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+40 °C |
| Type of protection | IP44 |
| Dimmable | No |
| Mounting type | Surface |
| Application environment | Indoor |
| With light source | No |
| Holder designation | G9 |
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
Additional product data
| Number of illuminants | 2 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | 0 mg |
| Quantity of rare earths | 0 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075756922 | Folding box 1 |
192 mm x 402 mm x 213 mm | 1699.00 g | 16.44 dm³ |
| 4058075756939 | Shipping box 4 |
423 mm x 405 mm x 450 mm | 7730.00 g | 77.09 dm³ |
User instruction / safety instructions
DECOR SQUARE
DECOR SQUARE
Declarations of conformity
DECOR SQUARE
DECOR SQUARE

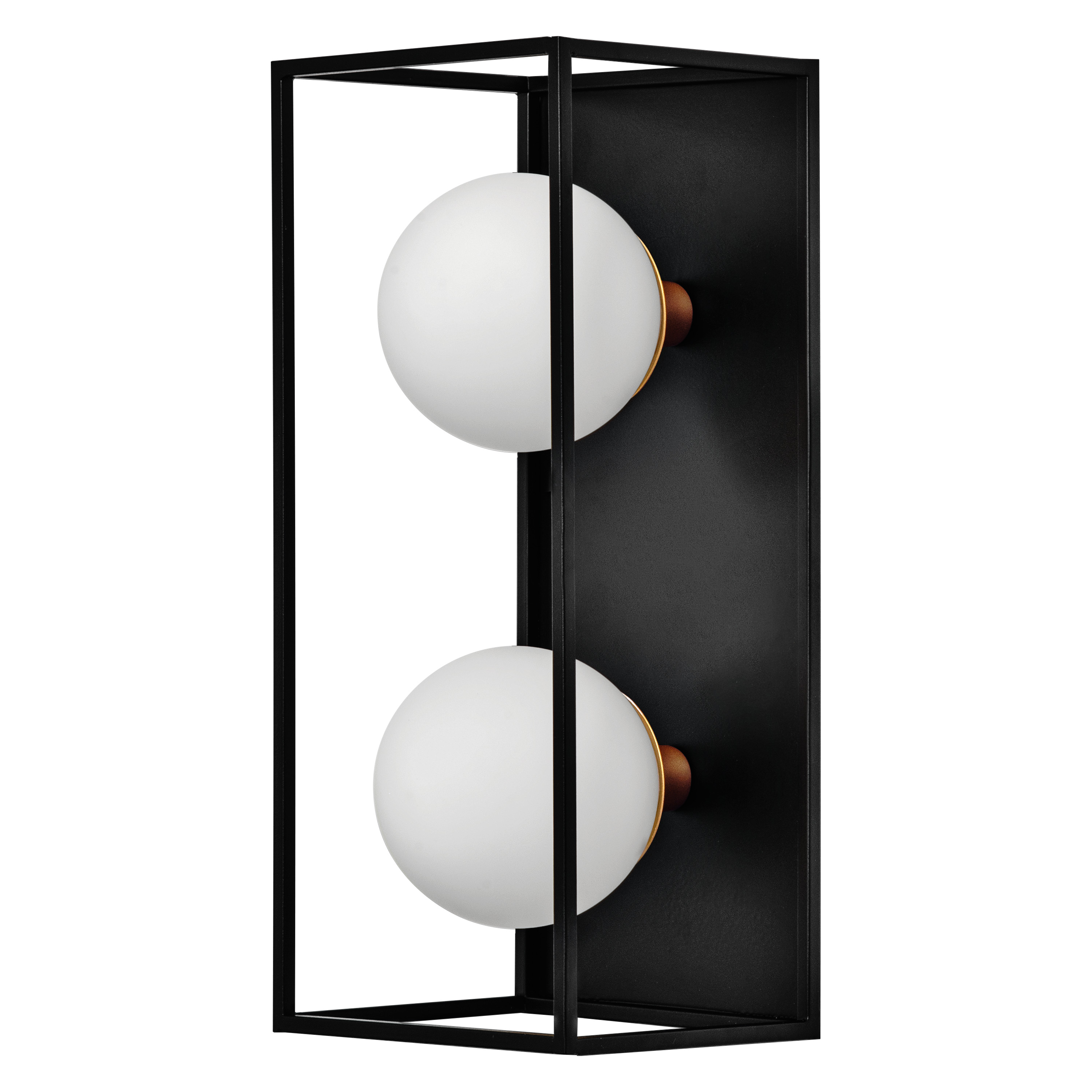

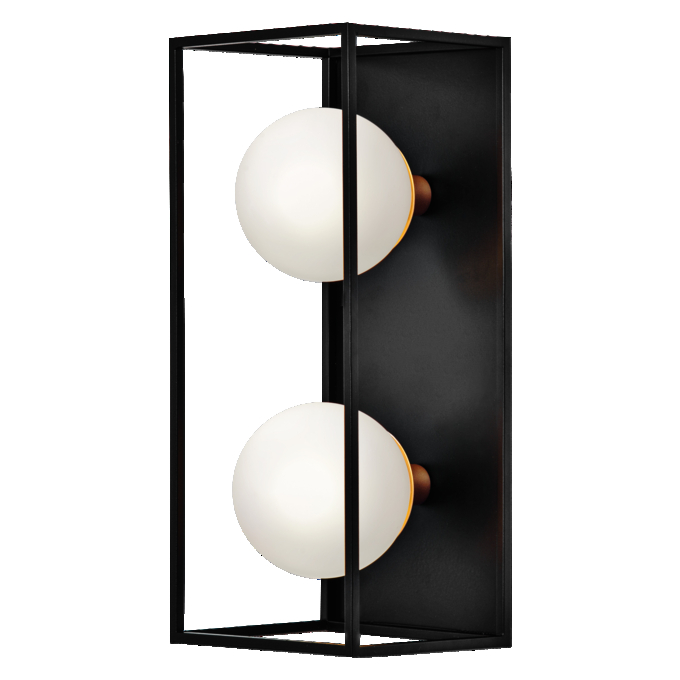

Product image: white background, upright
DECOR SQUARE
DECOR SQUARE

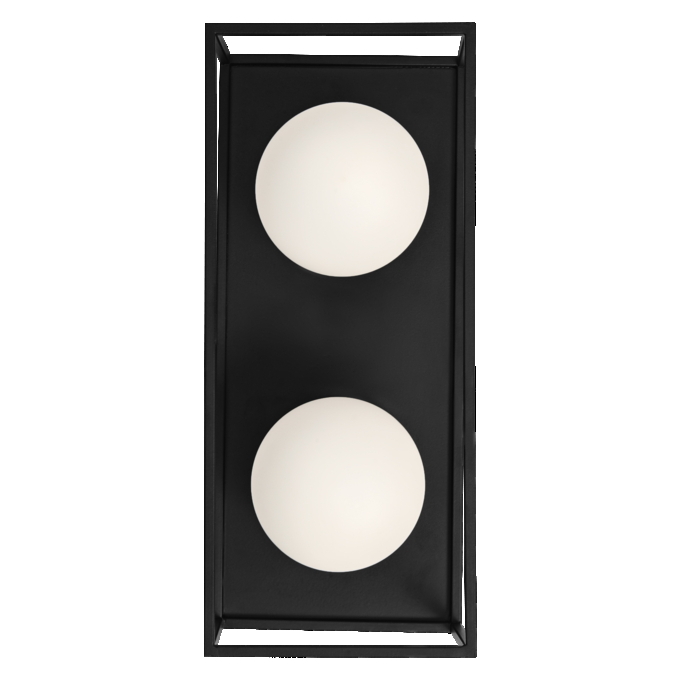

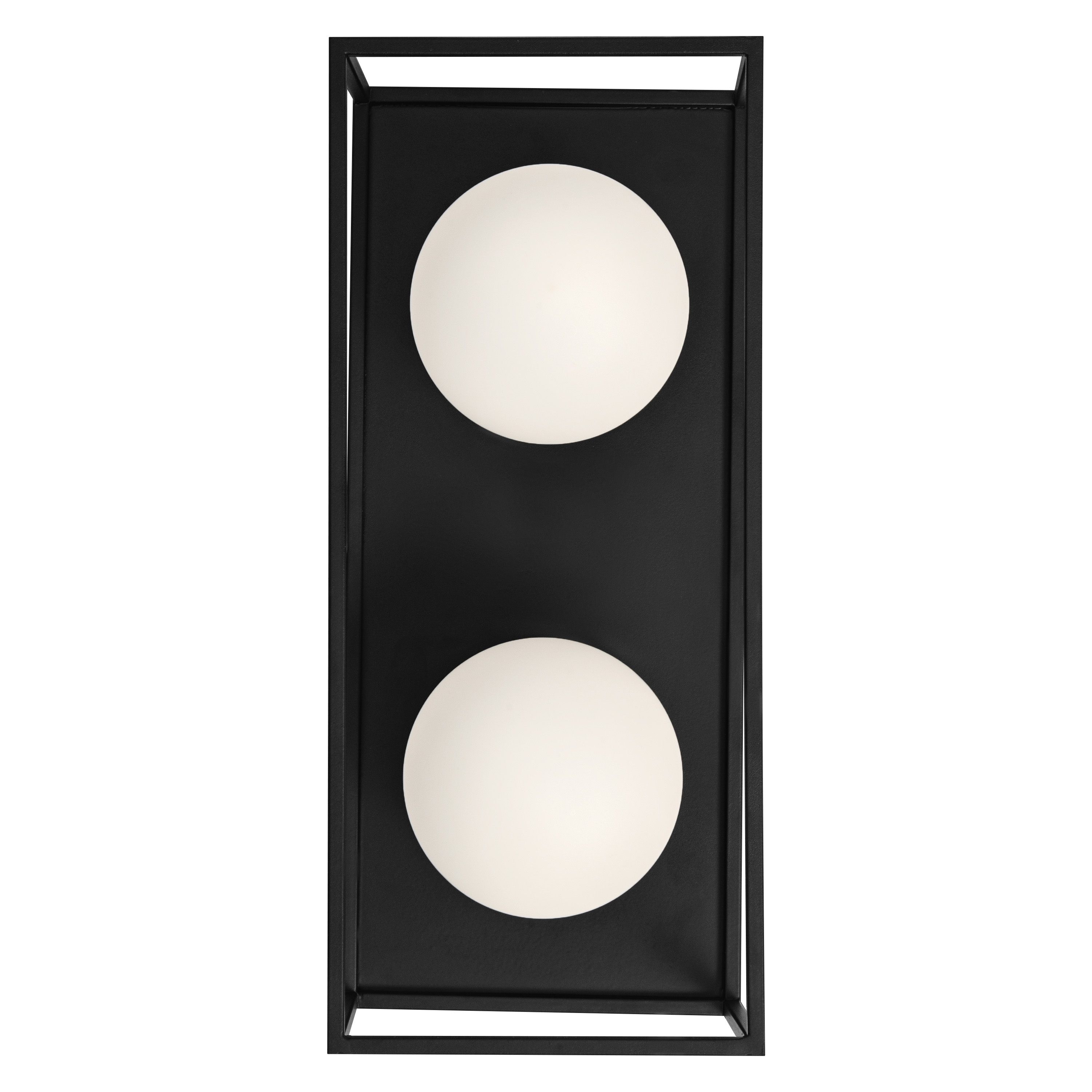

Product image: white background, upright, alternative image
DECOR SQUARE
DECOR SQUARE

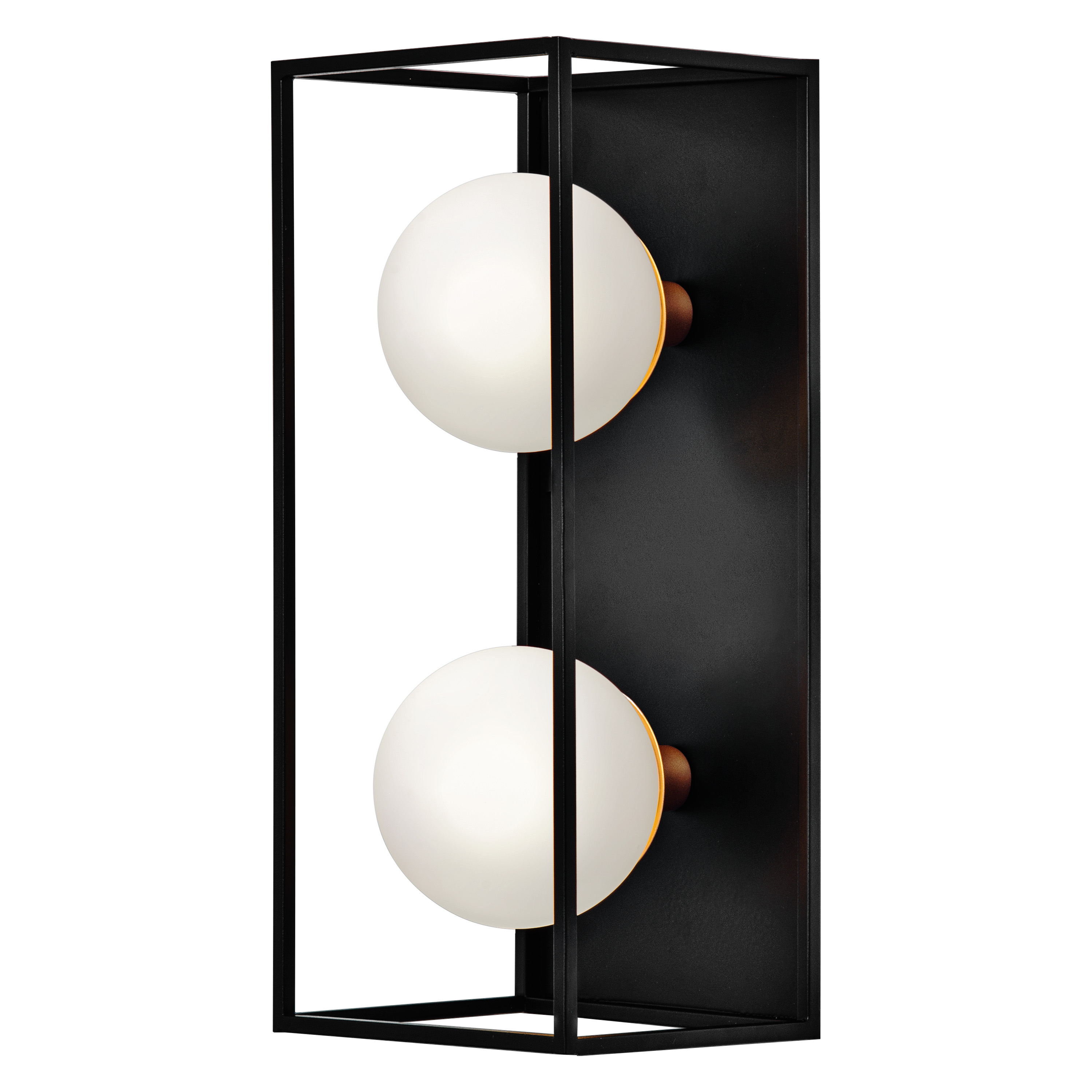

Product image: white background, upright, switched on
DECOR SQUARE
DECOR SQUARE

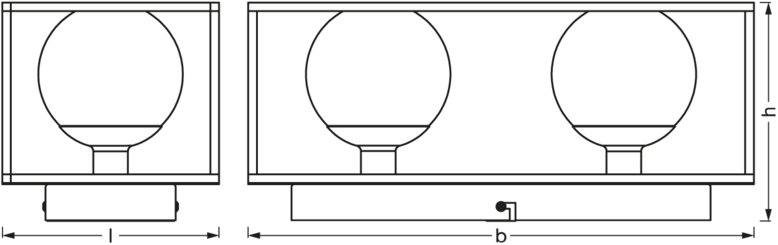

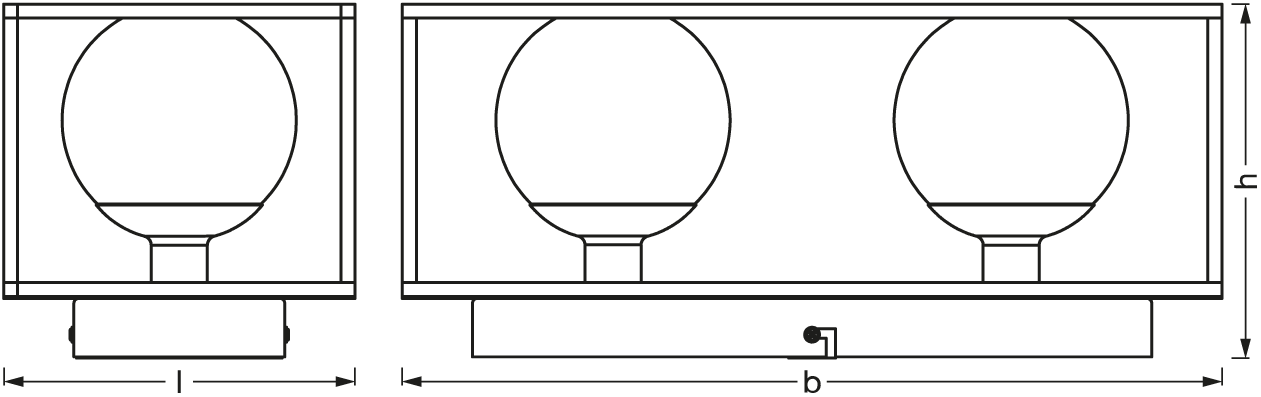

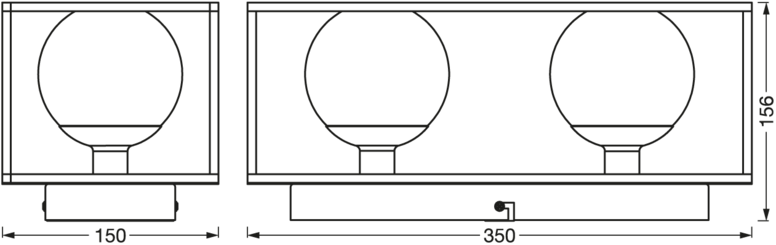

Product line drawing with letters
DECOR SQUARE
DECOR SQUARE

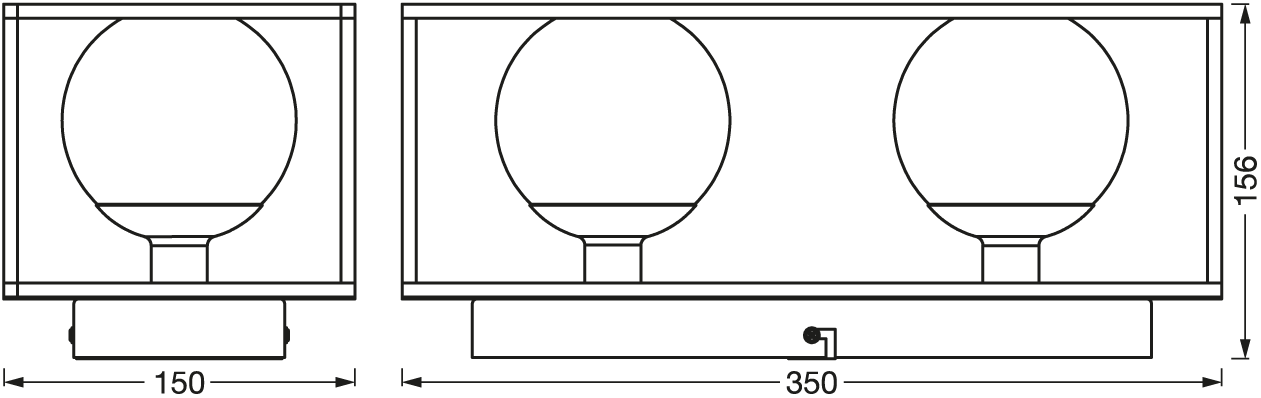

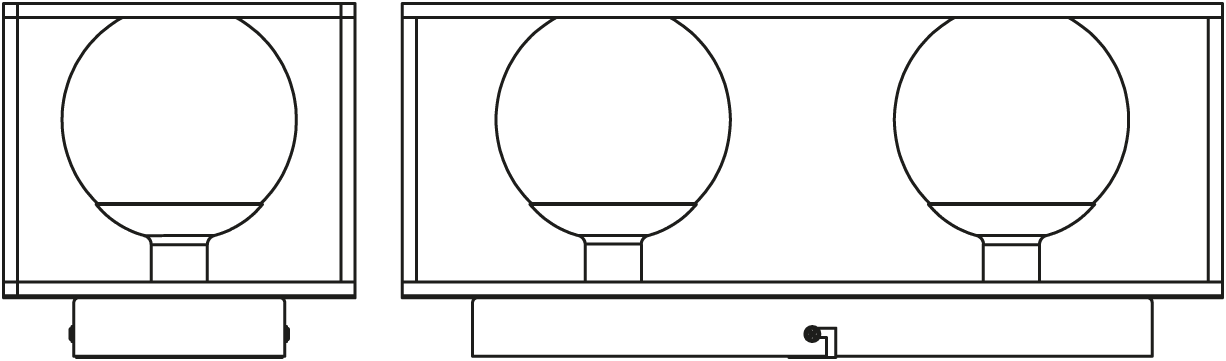

Product line drawing with numbers
DECOR SQUARE
DECOR SQUARE

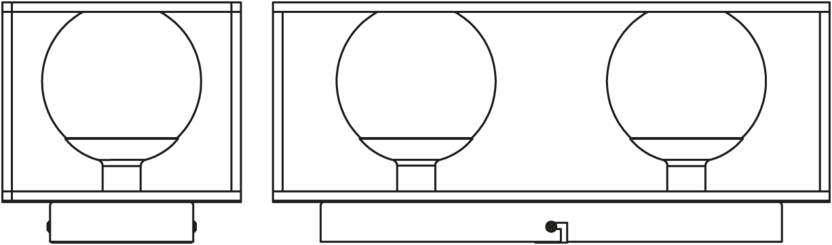

Product line drawing, front, no dimensions
DECOR SQUARE
DECOR SQUARE

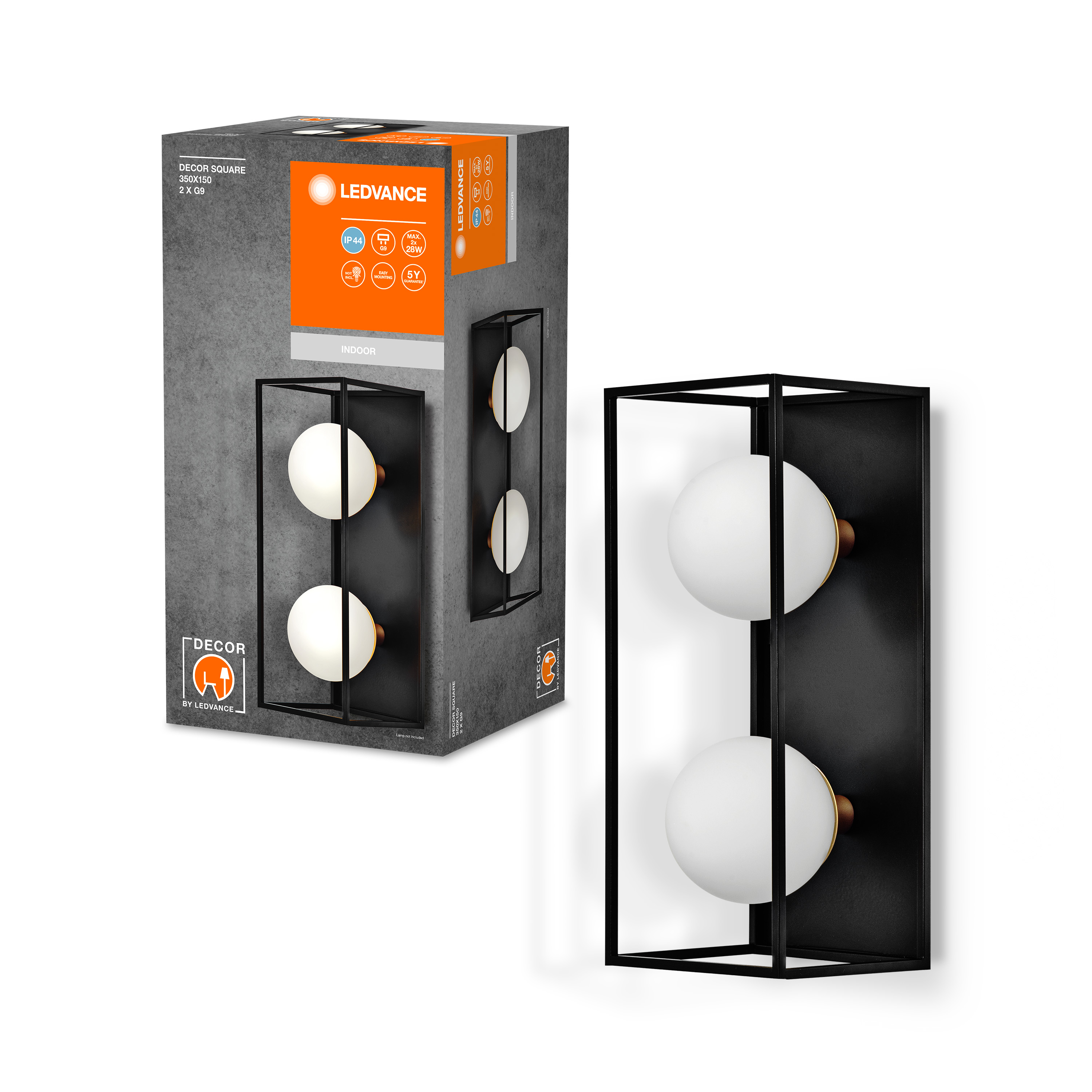

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC SQUARE 350 IP44 BK G9 MiPRC
LUM FC SQUARE 350 IP44 BK G9 MiPRC
Packaging image, frontal
LUM FC SQUARE 350 IP44 BK G9 MiPRC
LUM FC SQUARE 350 IP44 BK G9 MiPRC
Packaging image, spacial
LUM FC SQUARE 350 IP44 BK G9 MiPRC
LUM FC SQUARE 350 IP44 BK G9 MiPRC
Application pictures Getty
DECOR SQUARE
DECOR SQUARE
| EAN | ELDAS number |
|---|---|
| 4058075756922 | 941320760 |
