LED CLICK White
LED Click White Square 200mm 16W
GTIN: 4058075260535
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Bright panel, uniformly lit with warm white light
- Seperately controllable light segments by repeatedly pressing the wall switch
- Easy operation
- Clean design, allows for an easy combination with various room styles
Areas of application
- Indoor applications
- Decorative domestic lighting
Product features
- Wall and ceiling luminaire
- Two seperate light segments
- Available in round and square form
Equipment / Accessories
- Complete mounting and connecting accessories included
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| Nominal wattage | 16.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 69.000 mA |
| Inrush current | 17.4 A |
| Max. number of luminaires per miniature circuit breaker C10 | - |
| Power factor λ | > 0.90 |
| Protection class | II |
| Operating mode | Mains voltage |
Photometrical data
| Luminous flux | 750 lm |
| Total luminous flux of contained light sources | 1350 lm |
| Luminous efficacy | 47 lm/W |
| Color temperature | 3000 K |
| Light color (designation) | Warm White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | ≤6 sdcm |
| Photobiological safety group acc. to EN62778 | RG1 |
| Photobiological safety group acc. to EN62471 | RG1 |
| Beam angle | 110 ° |
Dimensions & Weight
| Length | 198.00 mm |
| Height | 38.00 mm |
| Width | 198.00 mm |
| Product weight | 700.00 g |
Materials & Colors
| Product color | White |
| Housing color | White |
| Body material | Aluminum |
| Cover material | Polymethylmethacrylate (PMMA) |
| Light emitting surface material | Plastic |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -20…+35 °C |
| Temperature range at storage | -30…+70 °C |
| Type of connection | Screw terminal |
| Type of protection | IP20 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Ceiling, Wall |
| Application environment | Indoor |
| With light source | Yes |
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h 1) |
| Number of switching cycles | 100000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| Standards | CE, UKCA |
| Luminaire with limited surface temperature, "D sign" | No |
| Replaceable light source (EPREL) | Not replaceable |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075260535 | Folding box 1 |
48 mm x 207 mm x 209 mm | 767.00 g | 2.08 dm³ |
| 4058075260542 | Shipping box 8 |
435 mm x 225 mm x 220 mm | 6436.00 g | 21.53 dm³ |
User instruction / safety instructions
LED CLICK WHITE
LED CLICK WHITE
Declarations of conformity
LED COLOR WHITE SQ 400MM 30W LEDV
LED COLOR WHITE SQ 400MM 30W LEDV
Product datasheet -> old version of product
4058075260535 LED CLICK WHITE SQ 200 mm 15 W en old
4058075260535 LED CLICK WHITE SQ 200 mm 15 W en old

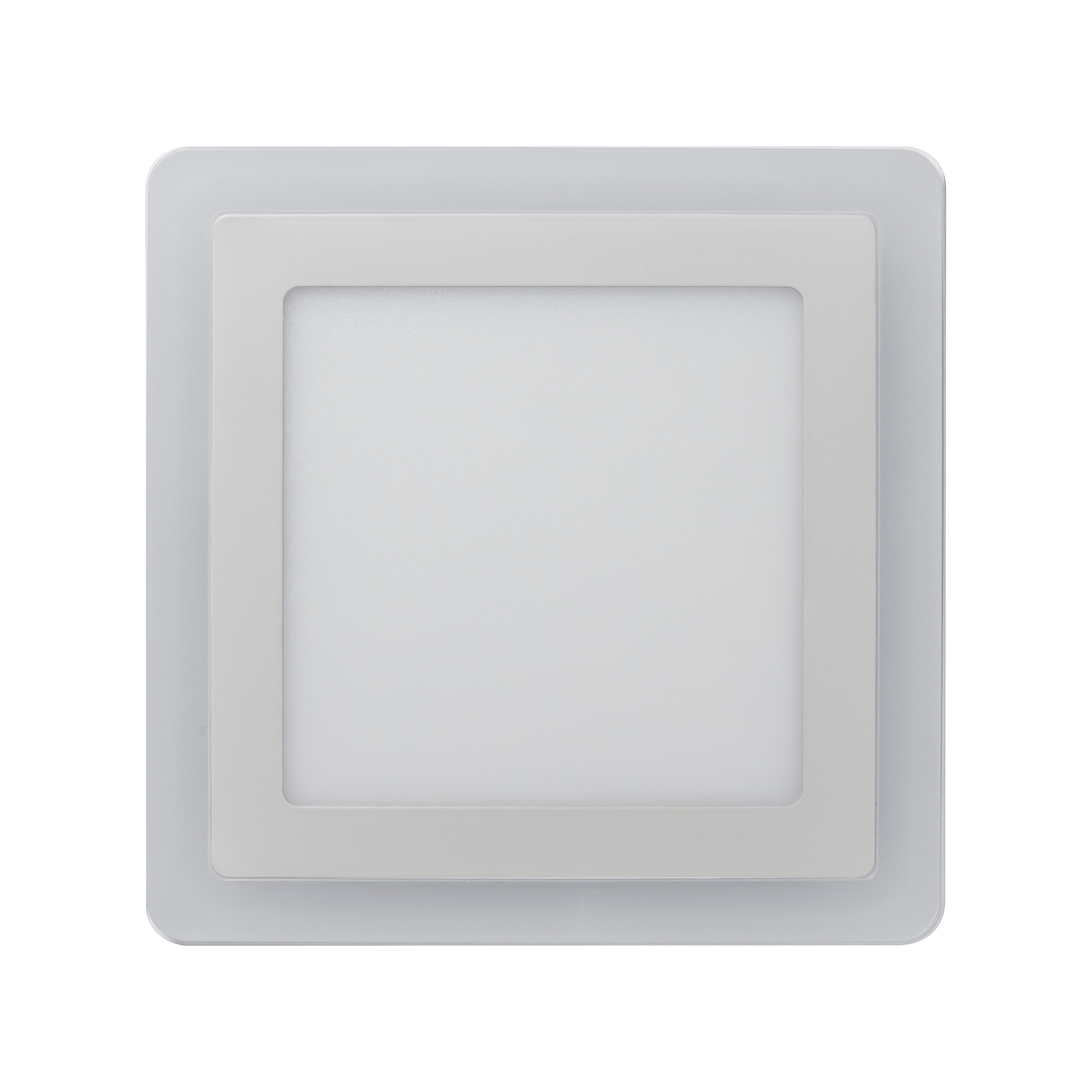

Product image: white background, upright
LED CLICK WHITE SQ 200MM 12W
LED CLICK WHITE SQ 200MM 12W

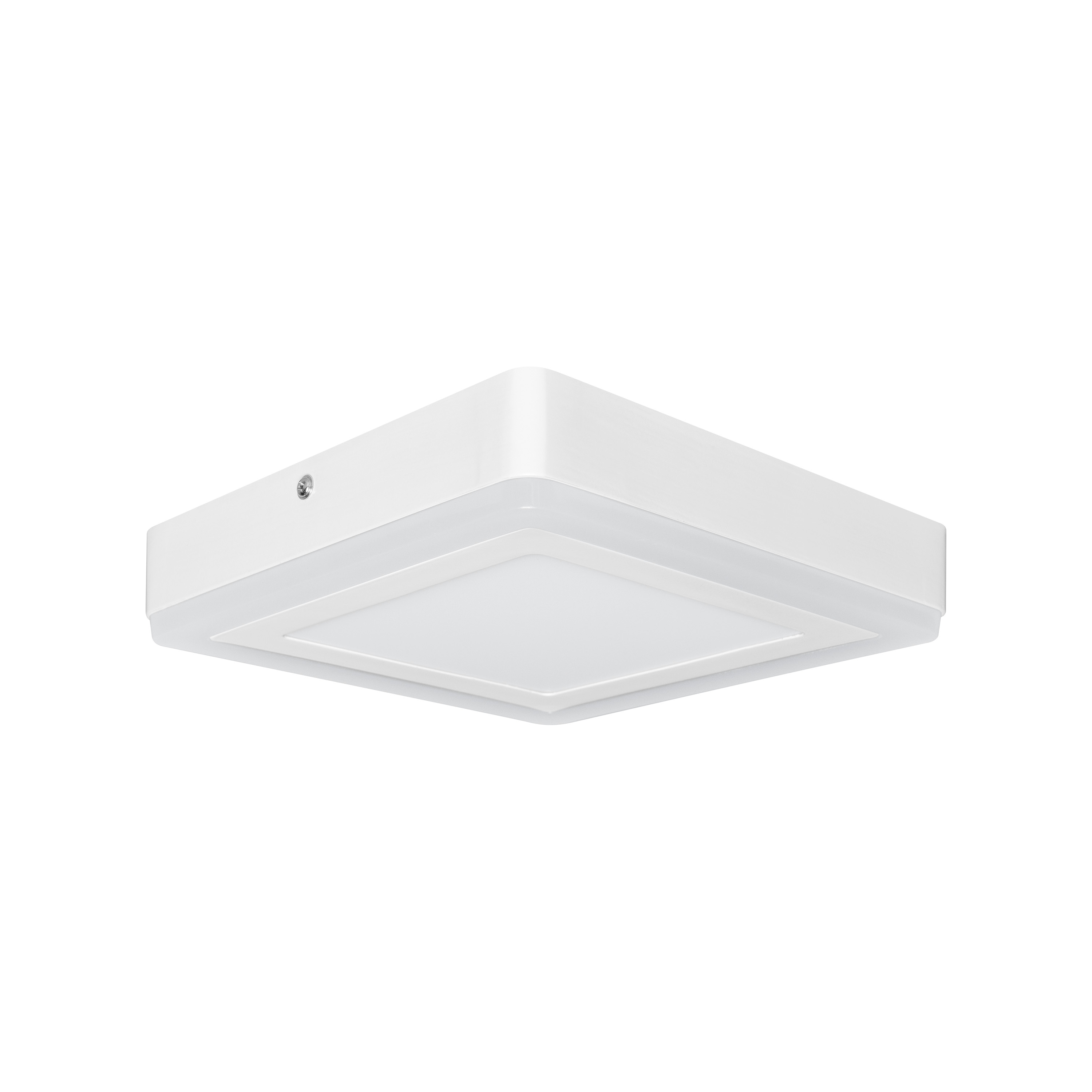

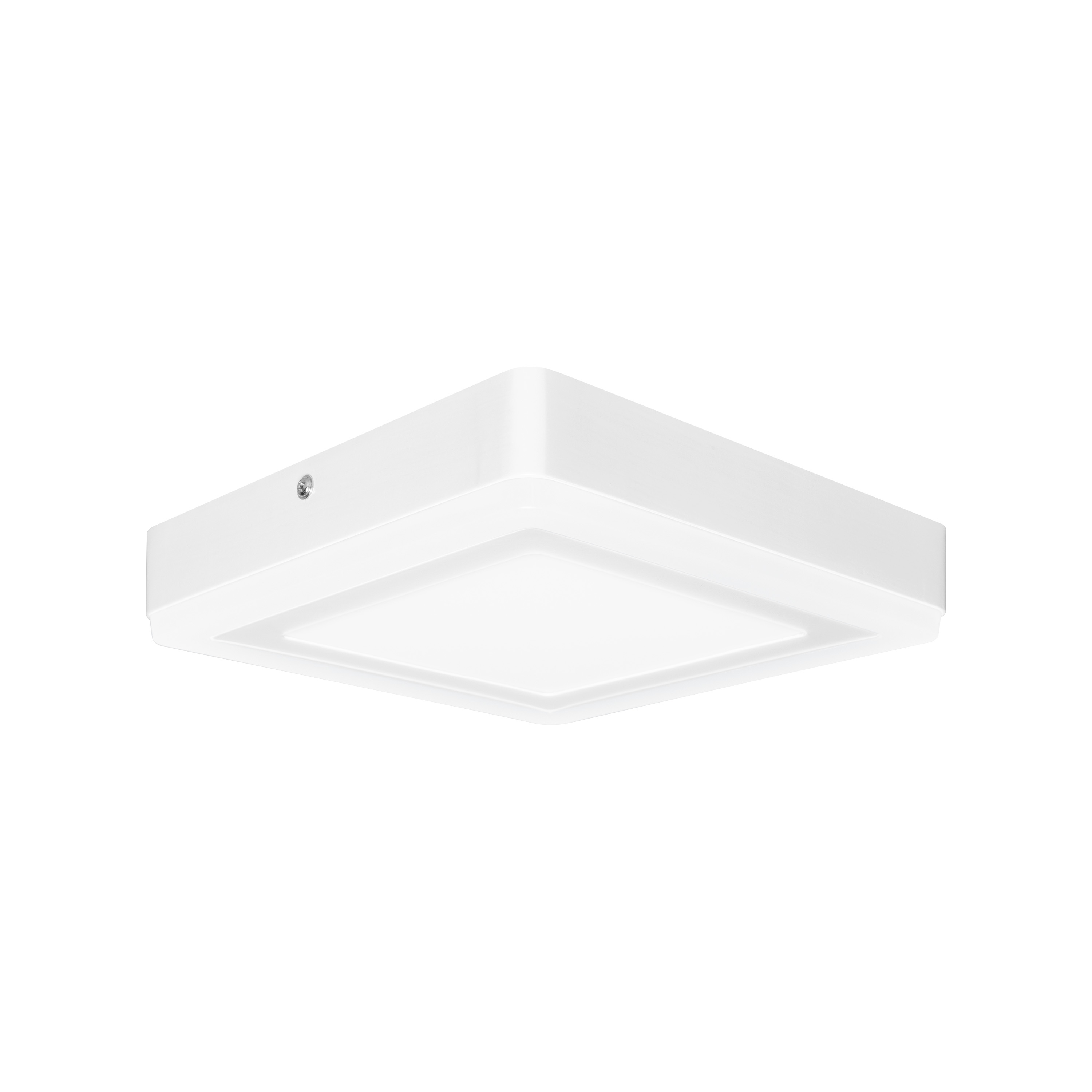

Product image: white background, upright, alternative image
LED CLICK WHITE SQ 200MM 12W
LED CLICK WHITE SQ 200MM 12W
Product image: white background, upright, switched on
LED CLICK WHITE SQ 200MM 12W
LED CLICK WHITE SQ 200MM 12W
Product line drawing with letters
LED CLICK WHITE SQ 200MM 16W
LED CLICK WHITE SQ 200MM 16W
Product line drawing with numbers
LED CLICK WHITE SQ 200MM 16W
LED CLICK WHITE SQ 200MM 16W
Product line drawing, front, no dimensions
LED CLICK WHITE SQ 200MM 16W
LED CLICK WHITE SQ 200MM 16W

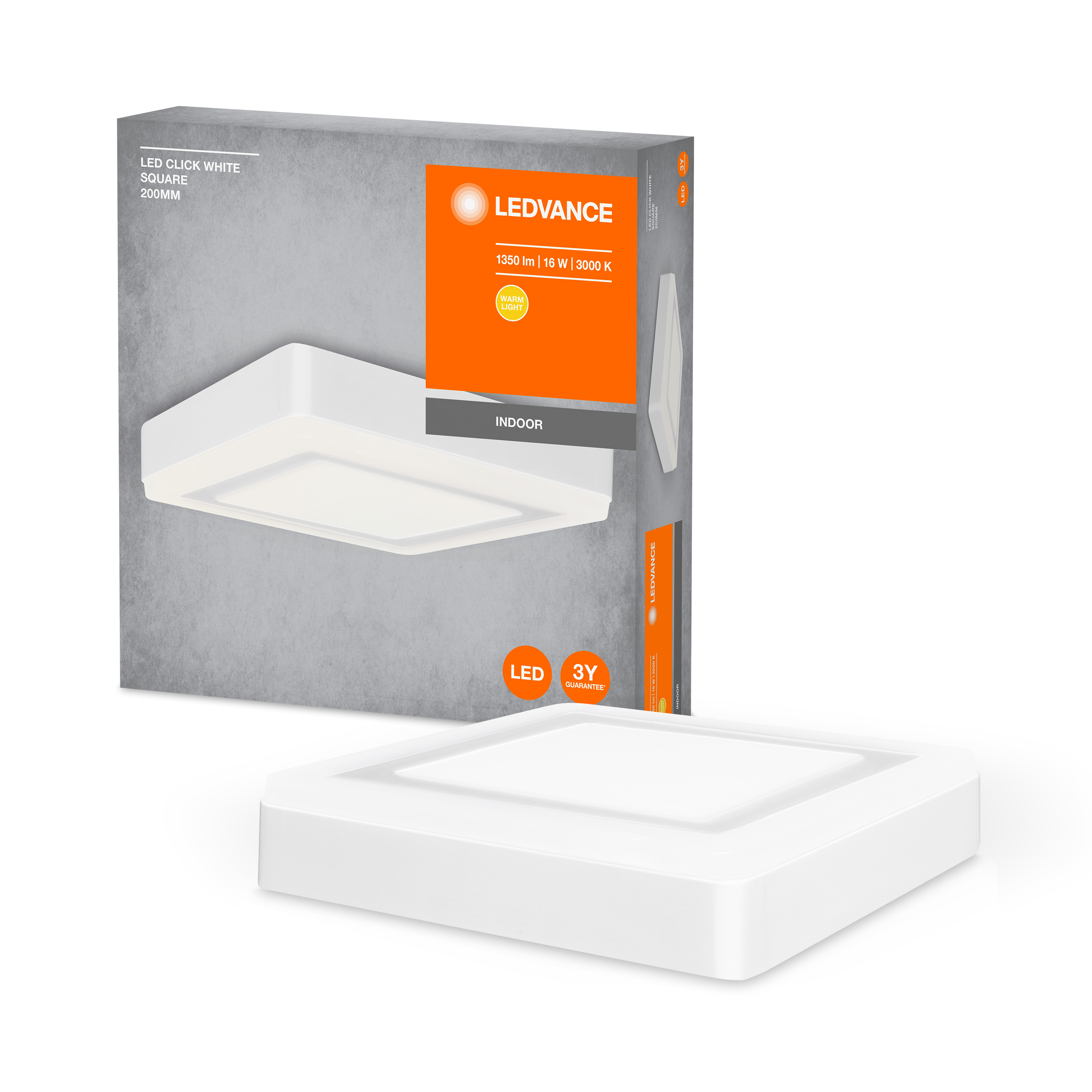

Combo Shot = Product Beauty Shot + Packaging Image
LUM FC LED CLICK WT SQ 200 16W MiPRC
LUM FC LED CLICK WT SQ 200 16W MiPRC

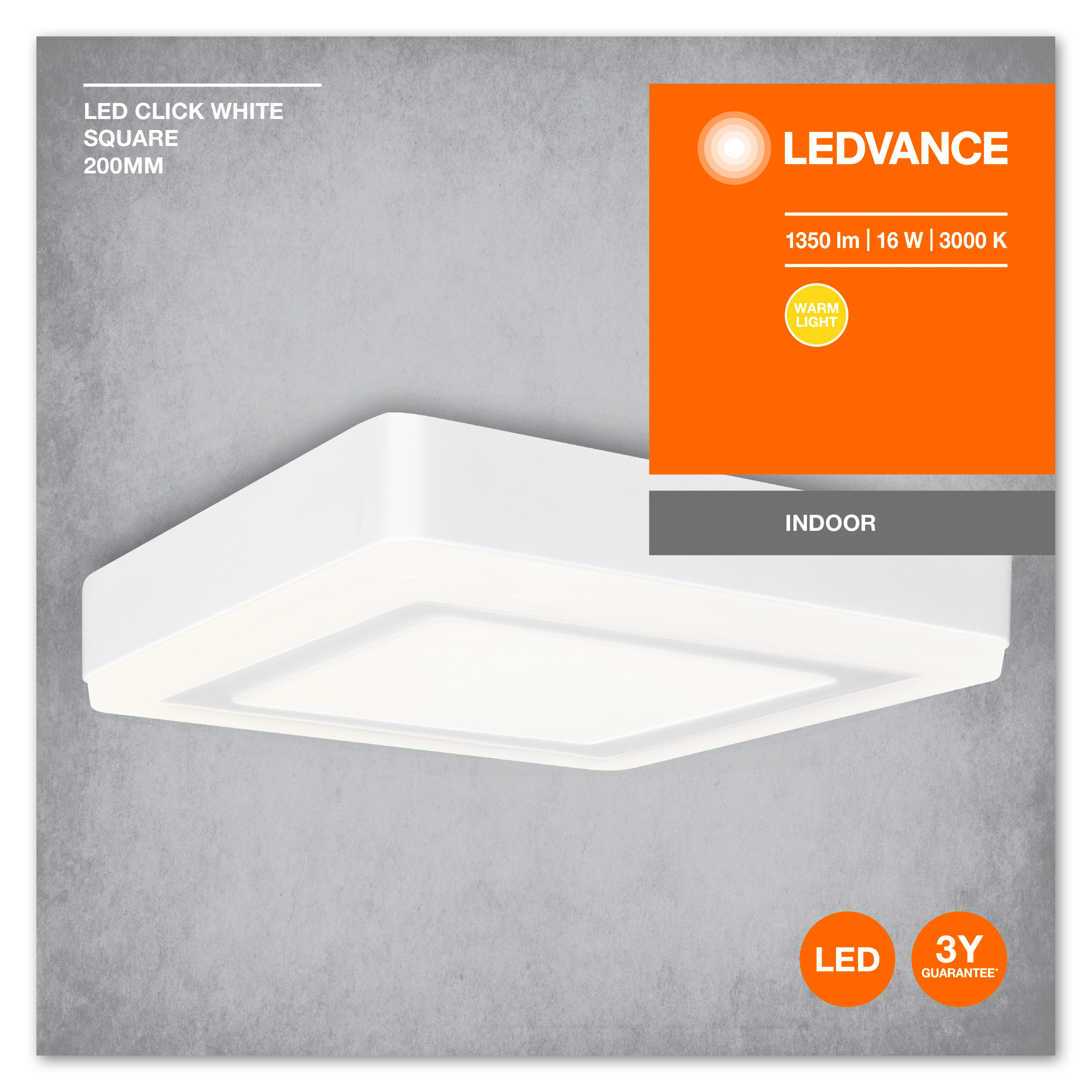

Packaging image, frontal
LUM FC LED CLICK WT SQ 200 16W MiPRCFront
LUM FC LED CLICK WT SQ 200 16W MiPRCFront

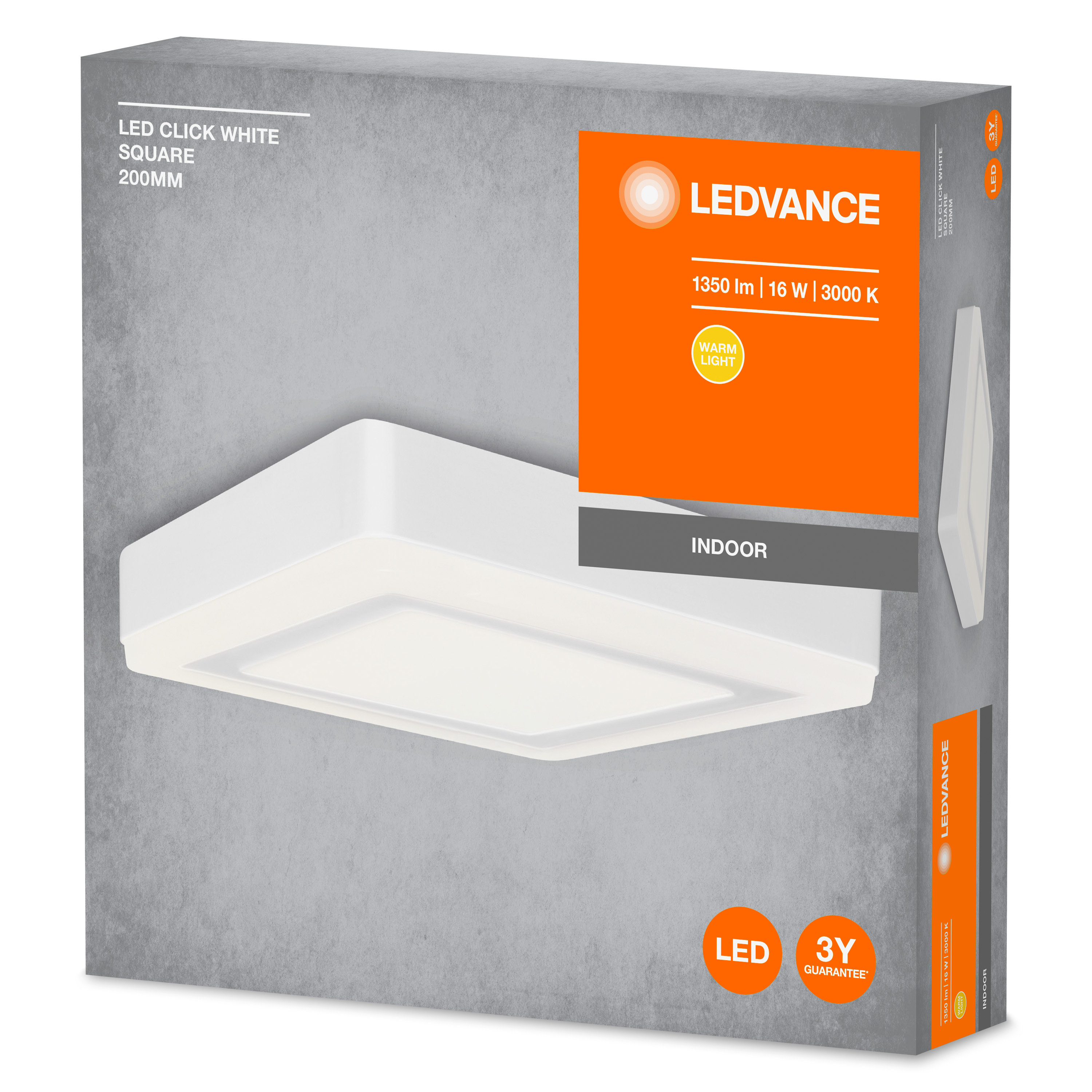

Packaging image, spacial
