Bathroom Ceiling Luminaire IP44 E27

Bathroom Ceiling 310mm E27 Chrome

GTIN: 4099854103353 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Socketed luminaire, the lamps can be replaced
Areas of application
  • Indoor applications
  • Bathrooms (IP44)
Product features
  • Type of protection: IP44
  • The cover is made of high quality glass
Safety advice
  • All electrical connections must be made by a qualified person.
  • Caution, risk of electric shock.
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
Electrical data
Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Protection class I
Operating mode Mains voltage
Dimensions & Weight
Diameter 310.00 mm
Height 80.00 mm
Product weight 1300.00 g
Materials & Colors
Product color Chrome
Housing color Chrome
Body material Steel
Cover material Glass
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg
Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -20…+80 °C
Type of connection Screw terminal, 3-Pole
Type of protection IP44
Dimmable No
Mounting type Surface
Application environment Indoor
With light source No
Holder designation E27
Certificates & Standards
Standards CE, UKCA
Luminaire with limited surface temperature, "D sign" No
Additional product data
Product remark Maximum bulb wattage: 15 W (LED)
Number of illuminants 1
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854103353 Folding box
1		 110 mm x 340 mm x 340 mm 1764.00 g 12.72 dm³
4099854103360 Shipping box
4		 470 mm x 350 mm x 370 mm 7790.00 g 60.87 dm³
User instruction / safety instructions
UI BATHROOM CLASSIC ROUND
PDF (899.35 KB)
Legal information
Legal Insert
PDF (1.14 MB)
Declarations of conformity
CE Declaration Bathroom Classic
PDF (2.17 MB)

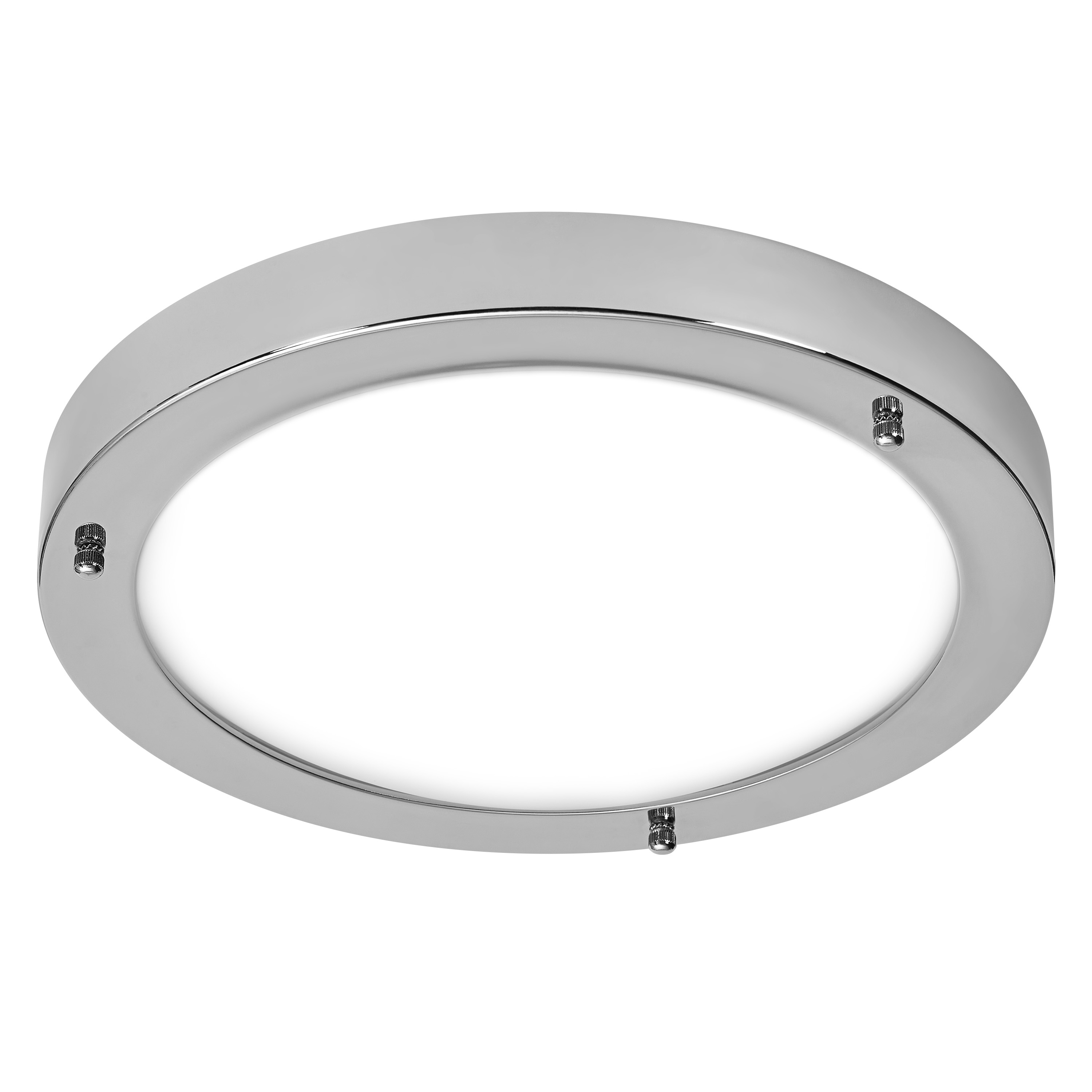

Product image: white background, upright
BATH CLASSIC ROUND 28CM IP44 E27 CH
JPG (570.56 KB)

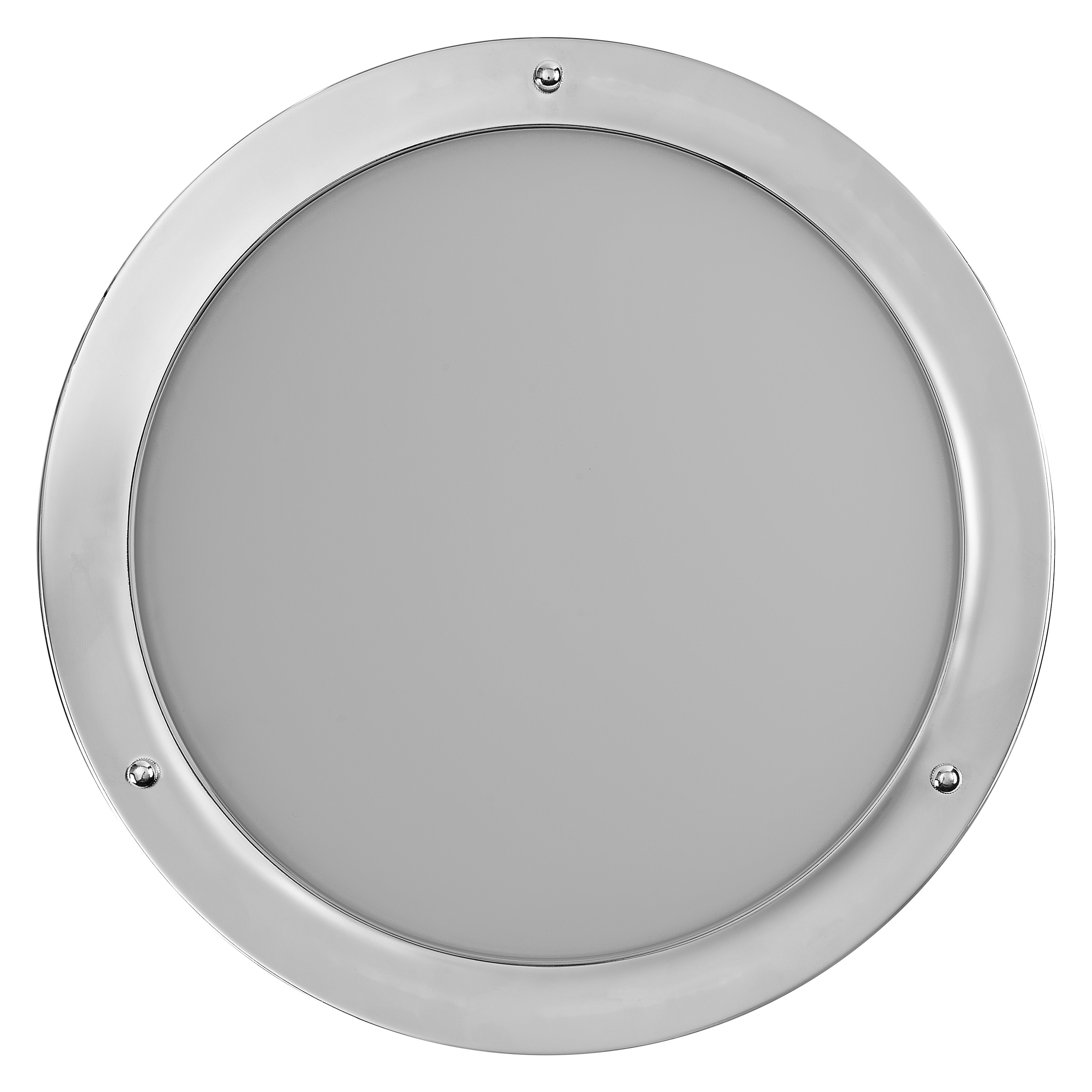

Product image: white background, upright, alternative image
BATH CLASSIC ROUND 28CM IP44 E27 CH
JPG (763.64 KB)
Product image: white background, upright, switched on
BATH CLASSIC ROUND 28CM IP44 E27 CH
JPG (475.9 KB)
Product infographic (application image with text and graphic)
Bath E-Com Grafik 1200x1200px 2024 EN
JPG (743.48 KB)
Product line drawing with letters
BATH CLASSIC ROUND 31CM IP44 E27
SVG (113.17 KB)
Product line drawing with numbers
BATH CLASSIC ROUND 31CM IP44 E27
SVG (113.2 KB)
Product line drawing, front, no dimensions
BATH CLASSIC ROUND 31CM IP44 E27
SVG (19.32 KB)
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC BATH CL ROUND 31 CH E27 MiPRC
JPG (887.69 KB)
Packaging image, frontal
LUM FC BATH CL ROUND 31 CH E27 MiPRC
JPG (3.55 MB)
Packaging image, spacial
LUM FC BATH CL ROUND 31 CH E27 MiPRC
JPG (1.43 MB)

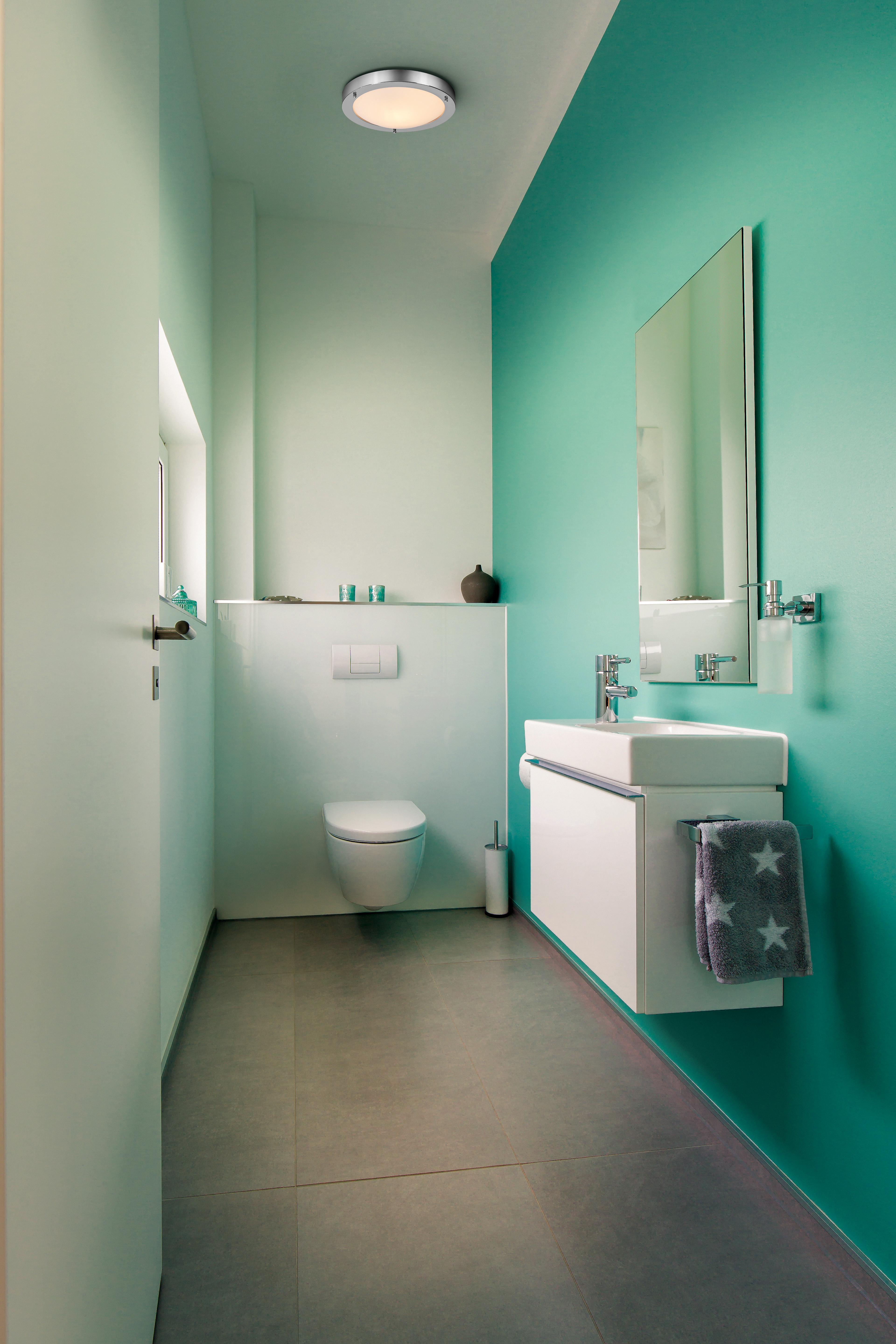

Application pictures Getty
BATH CLASSIC ROUND 31CM IP44 E27 CH
JPG (3.49 MB)
EAN ELDAS number
4099854103353 920000170
