HALOSTAR SUPERSTAR 2000

HALOSTAR SST 2000 7 W 12 V G4

Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Brilliant accent lighting
  • Significantly lower CO2 emissions compared to standard version
  • High luminous efficacy compared with standard lamps
  • Incredibly small dimensions for revolutionary new luminaire designs
  • Approved for use in open luminaires (to IEC 60598-1)
  • UV filter
Areas of application
  • General illumination
  • Kitchen lighting
  • Lighting for reading
  • Entrance lighting
  • Shops
  • Restaurants, hotels and similar prestigious applications
  • Offices, public buildings
Product features
  • Average life: 2,000 h
  • 100 % dimmable
  • Color rendering index Ra: 100
  • Base: G4, GY6.35
Safety advice
  • Do not touch the lamp if broken.
  • Must not be used if outer bulb is defective.
  • Lamp to be used only in a closed luminaire.
Electrical data
Nominal wattage 8 W
Construction wattage 8.00 W
Nominal voltage 12 V
Claimed equiv. conventional lamp power 10 W
Power factor λ 1.00
Photometrical data
Luminous flux 95 lm
Luminous efficacy 11 lm/W
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra 100
Light color 1027
Light technical data
Starting time 0 s
Dimensions & Weight
Overall length 33.00 mm
Light center length (LCL) 22,0 mm
Diameter 10,0 mm
Product weight 1.1 g
Additional product data
Base (standard designation) G4
Mercury-free Yes
Design / version Tube
Capabilities
Dimmable Yes
Burning position Any
Certificates & Standards
Energy efficiency class G
Energy consumption 8.00 kWh/1000h
Country-specific categorizations
ILCOS HSGST/UB-7-12-G4-22
Order reference 67416 ECO ST
Energy labelling regulation data acc EU 2019/2015
Lighting technology used OTHER
Non-directional or directional NDLS
Mains or non-mains NMLS
Light source cap-type (or other electric interface) G4
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Claim of equivalent power No
Length 33.00 mm
Height 10,0 mm
Width 10,0 mm
Chromaticity coordinate x 0.460
Chromaticity coordinate y 0.411
Beam angle correspondence SPHERE_360
EPREL ID 714442
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals 0 mg
Quantity of rare earths 0 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Additional info can be provided per individual request
List of substances of very high concern in concentrations greater than 0.1% in mass percentage
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4052899195257 Blister
2		 140 mm x 120 mm x 14 mm 13.20 g 0.24 dm³
4008321990167 Blister
1		 140 mm x 120 mm x 14 mm 10.00 g 0.24 dm³
4052899195264 Shipping box
20		 164 mm x 148 mm x 130 mm 191.00 g 3.16 dm³
4008321990174 Shipping box
10		 164 mm x 130 mm x 148 mm 201.10 g 3.16 dm³
Declarations of conformity
CE Declaration HAL LOW VOLT
PDF (286.41 KB)
Product image: white background, diagonal
323679_HALOSTAR STARLITE
JPG (2.2 MB)
Product image: white background, diagonal
324597_HALOSTAR IRC
TIF (4.94 MB)
Product line drawing with letters
625_HALOSTAR STANDARD
SVG (8.97 KB)
Product line drawing, front, no dimensions
325082_HALOSTAR STANDARD
SVG (4.23 KB)

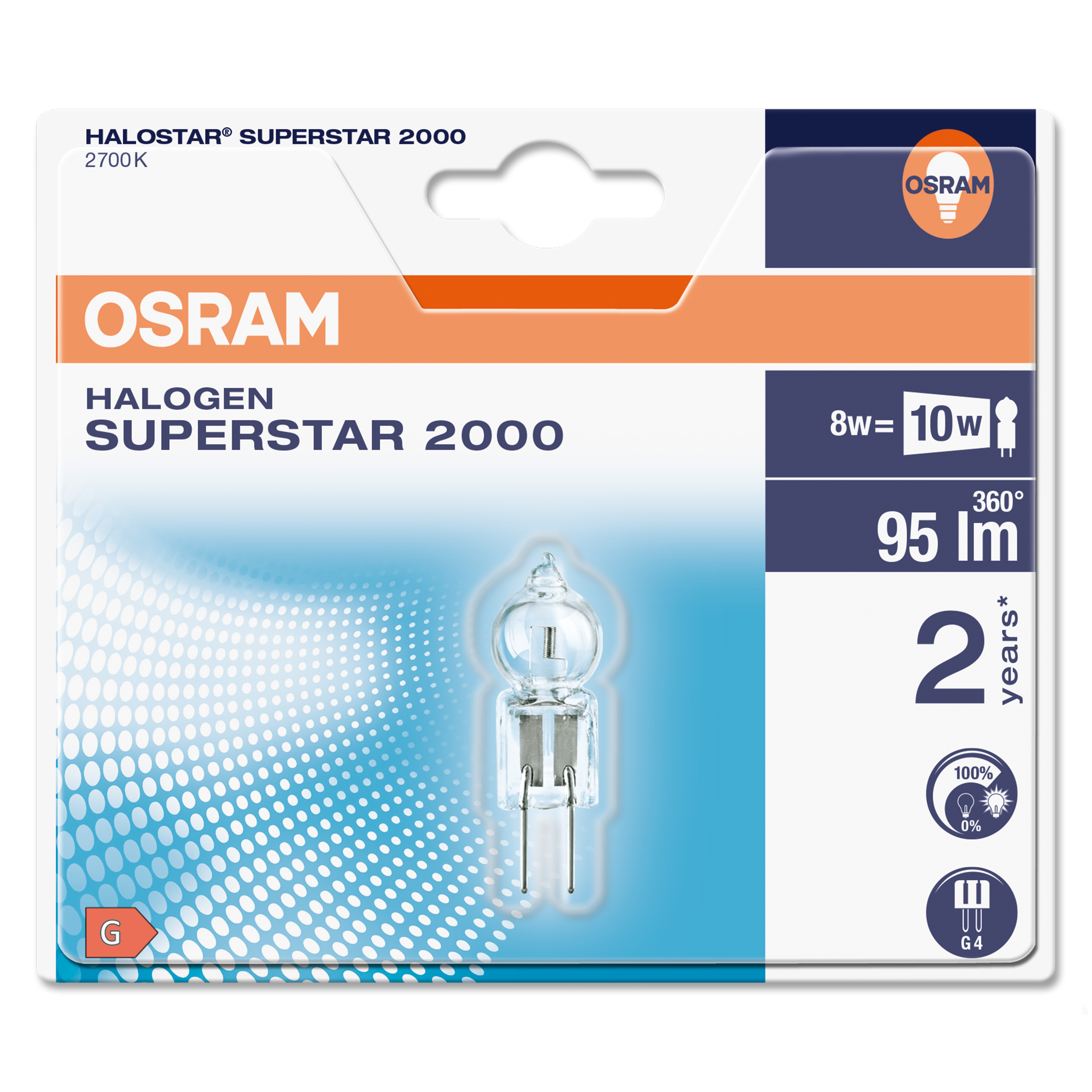

Packaging image, frontal
U2 HALOSTAR SST 2000 67416 7W 12V G4 MiG
JPG (2.39 MB)
Energy label
EL-4052899195257-AC353 54
PDF (21.57 KB)
Energy label
EL-4008321990167-AC353 54
PDF (21.57 KB)
Spectral power distribution
349642_HAL_NV_UVS
PNG (103.22 KB)
