LED SPECIAL T SLIM DIM

LED SPECIAL T SLIM DIM

Choose your product version

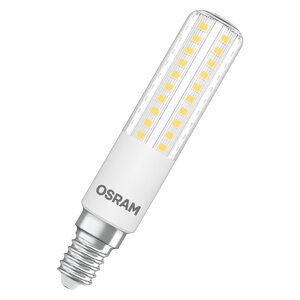

7W 827 E14

60 320 ° 7.5 W/2700 K E14

60 320 ° 7.5 W/2700 K E27

7.3W 827 E27

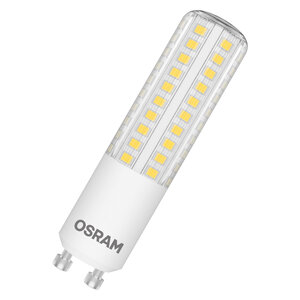

7W 827 GU10

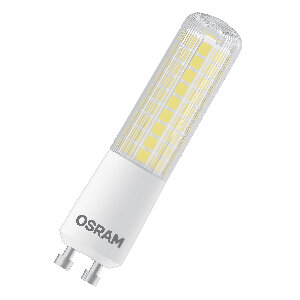

60 320 ° 7.5 W/2700 K GU10

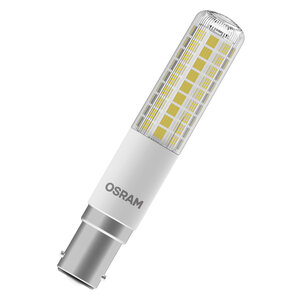

75 320 ° 8 W/2700 K B15d

9W 827 B15d

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LED Slim T 60 320° DIM 7W 827 E14 E14 7 W 220…240 V 15000 h 806 lm 60 W 320 ° Yes
T SLIM DIM 60 320 ° 7.5 W/2700 K E14 E14 7.5 W 220…240 V 25000 h 806 lm 60 W 320 ° Yes
T SLIM DIM 60 320 ° 7.5 W/2700 K E27 E27 7.5 W 220…240 V 25000 h 806 lm 60 W 320 ° Yes
LED Slim T 60 320° DIM 7.3W 827 E27 E27 7.3 W 220…240 V 15000 h 806 lm 60 W 320 ° Yes
LED Slim T 60 320° DIM 7W 827 GU10 GU10 7 W 220…240 V 15000 h 806 lm 60 W 320 ° Yes
T SLIM DIM 60 320 ° 7.5 W/2700 K GU10 GU10 7.5 W 220…240 V 25000 h 806 lm 60 W 320 ° Yes
T SLIM DIM 75 320 ° 8 W/2700 K B15d B15d 8 W 220…240 V 15000 h 1055 lm 75 W 320 ° Yes
LED Slim T 75 320° DIM 9W 827 B15d B15d 9 W 220…240 V 15000 h 1055 lm 75 W 320 ° Yes


LED Slim T 60 320° DIM 7W 827 E14

Product benefits
  • Easy replacement of halogen lamps thanks to compact design
  • Ideal in particular for many small designer luminaires
  • Lower thermal output (compared with the standard reference product)
  • Three year guarantee
View all details
Product data sheet
Go to Predecessor product data

PRODUCT DETAILS

Electrical data

Nominal wattage 7 W
Construction wattage 7.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 60 W
Nominal current 40 mA
Type of current AC
Inrush current 0.125 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp no. on circuit break. 10 A (B) 200
Max. lamp no. on circuit break. 16 A (B) 320
Total harmonic distortion < 150 %
Power factor λ > 0.50

Photometrical data

Luminous flux 806 lm
Nominal useful luminous flux 90° 806 lm
Luminous efficacy 115 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 320 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 92.00 mm
Diameter 20.00 mm
Maximum diameter 20 mm
Product weight 28.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 87 °C

Lifespan

Lifespan 15000 h 1)
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

1) L70/B50

Additional product data

Base (standard designation) E14
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes 1)

1) Check dimmer compatibility at ledvance.com/compatibility

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 7.00 kWh/1000h
Type of protection IP20
Standards CE, EAC
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDTSLIM60D CL

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) E14
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0.00
Networked standby power for CLS 0 W
Claim of equivalent power Yes
Length 92.00 mm
Height 20.00 mm
Width 20.00 mm
Chromaticity coordinate x 0.458
Chromaticity coordinate y 0.410
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.50
LED light source replaces a fluorescent light source No
EPREL ID 522886
Model number AC32125
Product benefits
  • Easy replacement of halogen lamps thanks to compact design
  • Ideal in particular for many small designer luminaires
  • Lower thermal output (compared with the standard reference product)
  • Three year guarantee
Areas of application
  • Small designer luminaires
  • Wherever compact and efficient lamps are needed
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Dimmable (with many common dimmers, see also www.ledvance.com/dim)
  • LED alternative to conventional high voltage lamps
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075607316 Folding box
1		 21 mm x 49 mm x 130 mm 56.00 g 0.13 dm³
4058075607323 Shipping box
6		 111 mm x 83 mm x 106 mm 400.00 g 0.98 dm³
4058075607330 Shipping box
96		 350 mm x 238 mm x 239 mm 6854.00 g 19.91 dm³
Declarations Of Conformity CE
LED SLIM LINE 78 60 NO N-DIM PDF (161.98 KB)

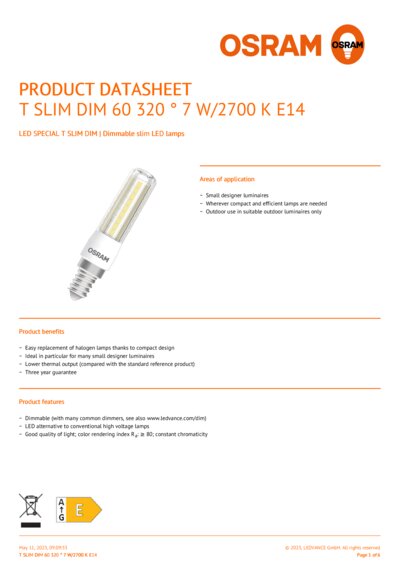

PRODUCT DATASHEET
TSLIMDIM603207W2700KE1 4en PDF (195.01 KB)

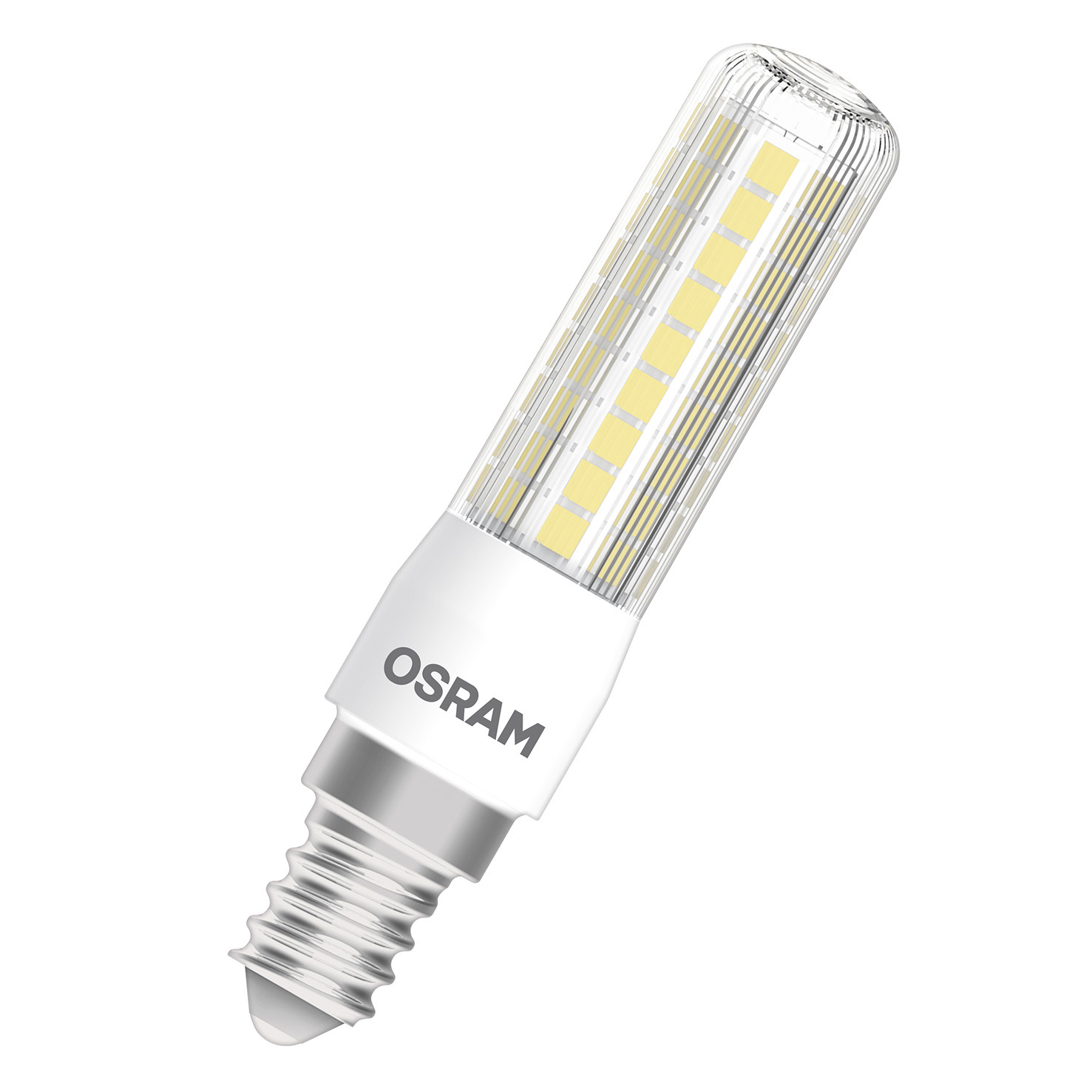

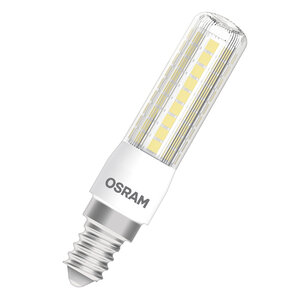

Background: white, diagonal, OSRAM logo
LED TSLIM 60 DIM E14 2 1/22 JPG (205.52 KB)

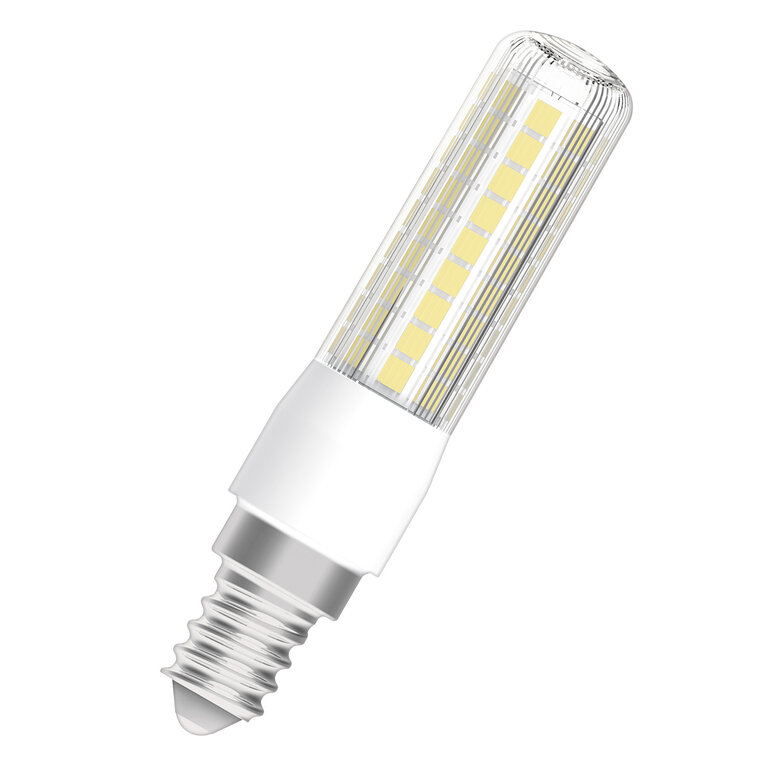

Background: white, diagonal
LED TSLIM 60 DIM E14 2 1/22 JPG (199.5 KB)
Background: white, upright, OSRAM logo
LED TSLIM 60 DIM E14 2 1/22 JPG (150.51 KB)

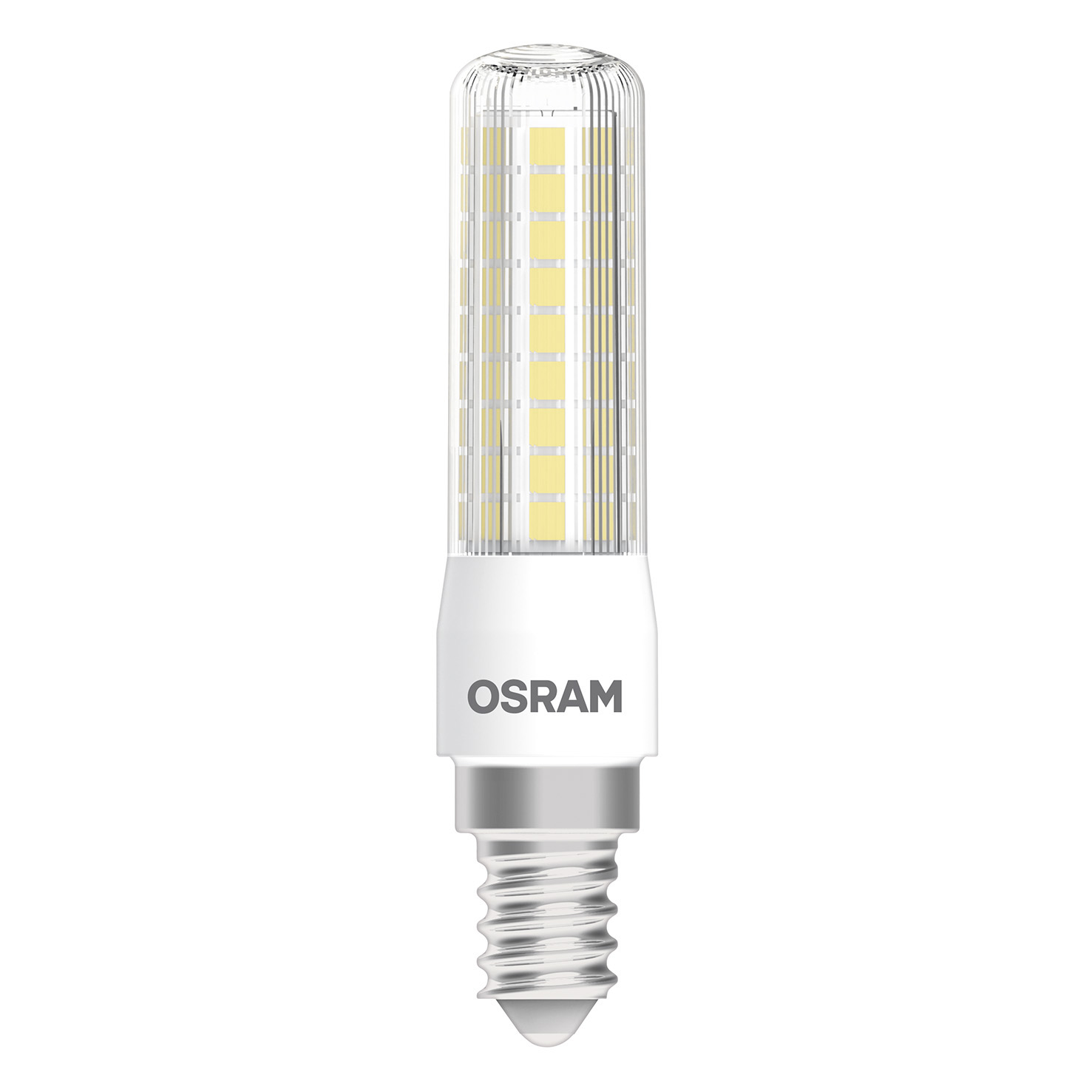

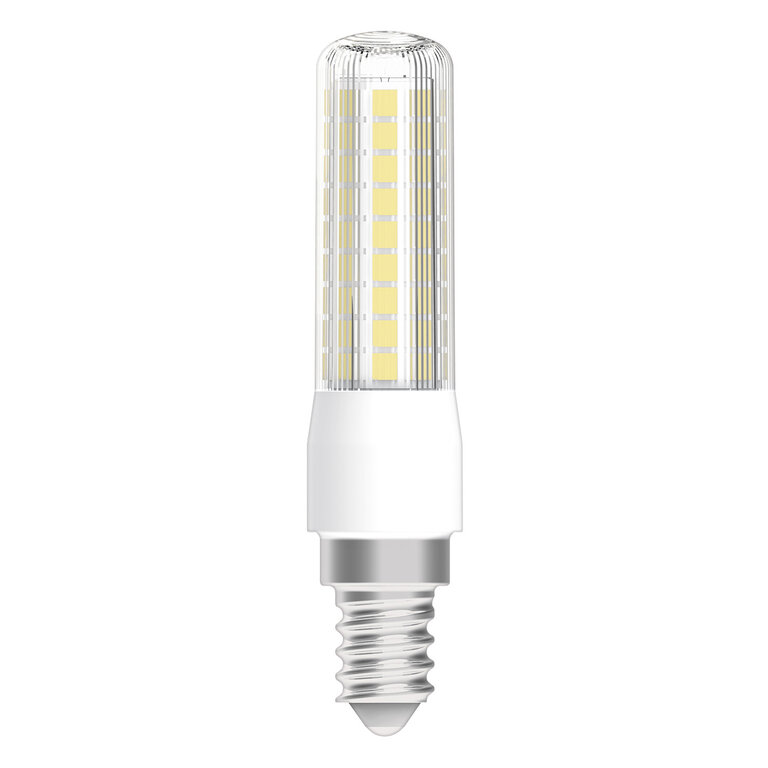

Background: white, upright
LED TSLIM 60 DIM E14 2 1/22 JPG (145.99 KB)
Product line drawing with letters
LED TSLIM 60 DIM E14 2 1/22 SVG (85.02 KB)
Product line drawing with numbers
LED TSLIM 60 DIM E14 2 1/22 SVG (88.25 KB)
Product line drawing - technical
LED TSLIM 60 DIM E14 2 1/22 SVG (83.41 KB)

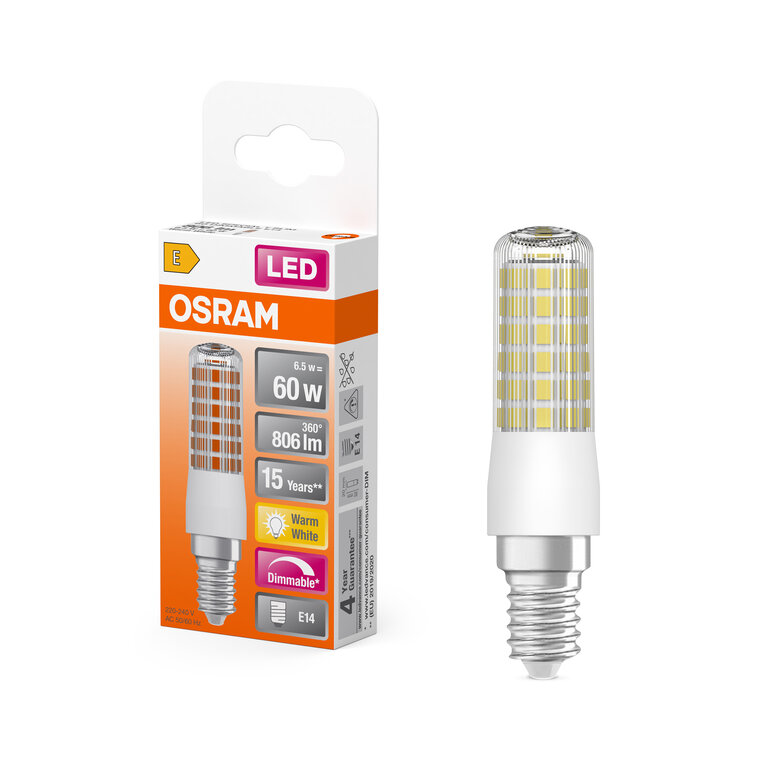

Combo Shot = Product Beauty Shot + Packaging Image
LEDTSLIM60D CL 7W-827 230V E14 FS1 OSRAM JPG (610.37 KB)

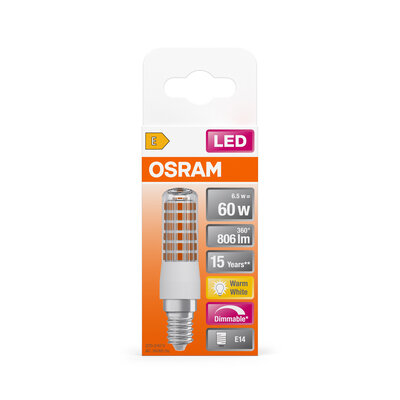

Packaging image, frontal
LED ST SPECIAL T SLIM 60 DIM 7W 827 CL E14 M iCh JPG (1.32 MB)

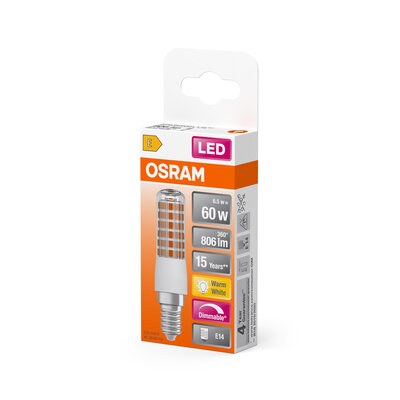

Packaging image, spacial
LED ST SPECIAL T SLIM 60 DIM 7W 827 CL E14 M iCh JPG (1.41 MB)
Energy label 2021
EL-4058075607316-AC321 25 PDF (21.52 KB)
Logos and Pictos
E left SVG (1.9 KB)
Logos and Pictos
E left BW SVG (1.07 KB)
Logos and Pictos
E right SVG (1.86 KB)
Logos and Pictos
E right BW SVG (1.07 KB)
Spectral power distribution
349927_2700K_Evl_5630. eps PNG (83.87 KB)
EAN SEG number STK number EFO number
4058075607316 8296948 4731808 3750414
