LED LINE R7S DIM

LED LINE R7S DIM

Choose your product version

78.00 mm 75 9.5 W/2700 K R7s

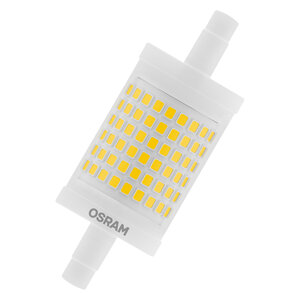

78.00 mm 100 12 W/2700 K R7s

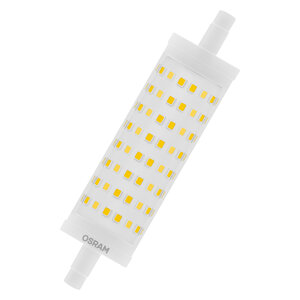

118.00 mm 125 15 W/2700 K R7s

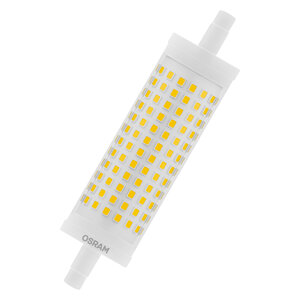

118.00 mm 150 18.2 W/2700 K R7s

OVERVIEW

Product description Base (standard designation) Nominal wattage Nominal voltage Nominal lamp life time Nominal luminous flux Claimed equiv. conventional lamp power Beam angle Dimmable
LINE R7s 78.00 mm 75 9.5 W/2700 K R7s R7s 9.5 W 220…240 V 25000 h 1055 lm 75 W 300 ° Yes
LINE R7s 78.00 mm 100 12 W/2700 K R7s R7s 12 W 220…240 V 25000 h 1521 lm 100 W 360 ° Yes
LINE R7s 118.00 mm 125 15 W/2700 K R7s R7s 15 W 220…240 V 25000 h 2000 lm 125 W 300 ° Yes
LINE R7s 118.00 mm 150 18.2 W/2700 K R7s R7s 18.2 W 220…240 V 25000 h 2452 lm 150 W 360 ° Yes


LINE R7s 78.00 mm 75 9.5 W/2700 K R7s

Product benefits
  • Fits into most R7s luminaires thanks to excentric base
  • Good all-around light emission
  • Lower thermal output (compared with the standard reference product)
  • Very long lifetime of up to 25,000 h
  • Four year guarantee
View all details
Product data sheet
Go to Predecessor product data

PRODUCT DETAILS

Electrical data

Nominal wattage 9.5 W
Construction wattage 9.50 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 75 W
Nominal current 42 mA
Type of current AC
Inrush current 5 A
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Max. lamp no. on circuit break. 10 A (B) 15
Max. lamp no. on circuit break. 16 A (B) 24
Total harmonic distortion < 150 %
Power factor λ ≥ 0.50

Photometrical data

Luminous flux 1055 lm
Nominal useful luminous flux 90° 1055 lm
Luminous efficacy 111 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Warm White
Color temperature 2700 K
Color rendering index Ra ≥80
Light color 827
Standard deviation of color matching ≤6 sdcm
Rated LLMF at 6,000 h 0.80
Flickering metric (Pst LM) 1.0
Stroboscope effect metric (SVM) 0.4

Light technical data

Beam angle 300 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s

Dimensions & Weight

Overall length 78.00 mm
Diameter 29 mm
Maximum diameter 28 mm
Product weight 52.00 g

Temperatures & operating conditions

Ambient temperature range -20…+40 °C
Maximum temperature at tc test point 87 °C

Lifespan

Lifespan 25000 h 1)
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Rated lamp survival factor at 6,000 h ≥ 0.90

1) L70/B50

Additional product data

Base (standard designation) R7s
Mercury content 0.0 mg
Mercury-free Yes
Design / version Clear
Product remark All technical parameters apply to the entire lamp, Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value

Capabilities

Dimmable Yes 1)

1) Check dimmer compatibility at ledvance.com/compatibility

Certificates & Standards

Energy efficiency class E 1)
Energy consumption 10.00 kWh/1000h
Type of protection IP20
Standards CE, EAC
Photobiological safety group acc. to EN62778 RG1

1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)

Country-specific categorizations

Order reference LEDLI7875D 9,5W

LOGISTICAL DATA

Temperature range at storage -20…+80 °C

Energy labelling regulation data acc EU 2019/2015

Lighting technology used LED
Non-directional or directional NDLS
Mains or non-mains MLS
Light source cap-type (or other electric interface) R7s
Connected light source (CLS) No
Color-tuneable light source No
Envelope No
High luminance light source No
Anti-glare shield No
Correlated colour temperature type SINGLE_VALUE
Standby power 0.00
Networked standby power for CLS 0 W
Claim of equivalent power Yes
Length 78.00 mm
Height 29 mm
Width 29 mm
Chromaticity coordinate x 0.458
Chromaticity coordinate y 0.410
R9 Colour rendering index 0.00
Beam angle correspondence SPHERE_360
Survival factor 0.90
Displacement factor 0.50
LED light source replaces a fluorescent light source No
EPREL ID 1402932,522899
Model number AC32130,AC11919
Product benefits
  • Fits into most R7s luminaires thanks to excentric base
  • Good all-around light emission
  • Lower thermal output (compared with the standard reference product)
  • Very long lifetime of up to 25,000 h
  • Four year guarantee
Areas of application
  • General illumination within ambient temperatures from -20…+40 °C
  • Outdoor use in suitable outdoor luminaires only
Product features
  • Dimmable (with many common dimmers, see also www.ledvance.com/dim)
  • LED alternative to conventional R7s lamps
  • Good quality of light; color rendering index Ra: ≥ 80; constant chromaticity
Safety advice
  • To ensure full light efficiency and product lifetime, it is recommended to detach any glass or cover of the luminaire.
References / Links
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075432512 Folding box
1		 30 mm x 49 mm x 130 mm 64.00 g 0.19 dm³
4058075432529 Shipping box
10		 170 mm x 111 mm x 106 mm 714.00 g 2.00 dm³
4058075632417 Shipping box
6		 112 mm x 111 mm x 106 mm 433.00 g 1.32 dm³

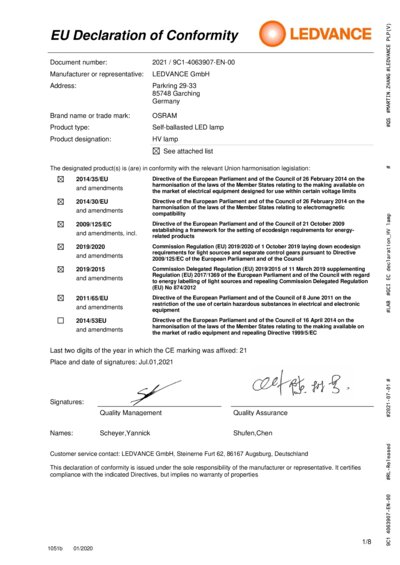

Declarations Of Conformity CE
LED SLIM LINE 78 60 NO N-DIM PDF (161.98 KB)

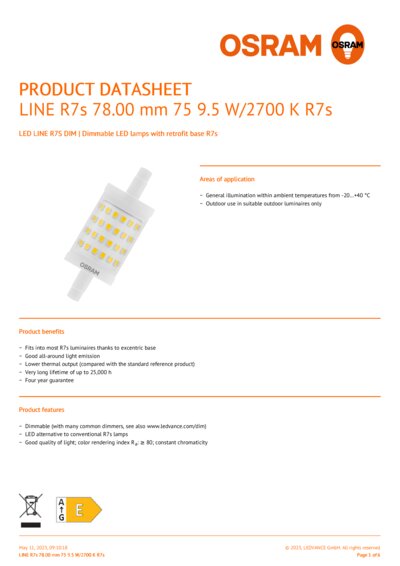

PRODUCT DATASHEET
LINER7s78.00mm759.5W27 00KR7sen PDF (301.09 KB)

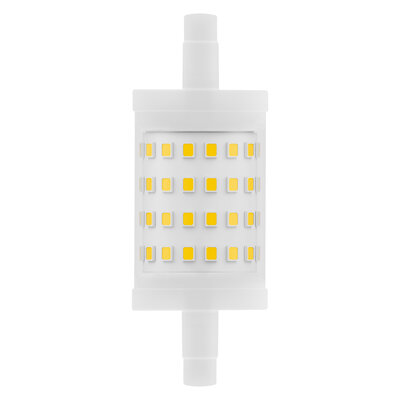

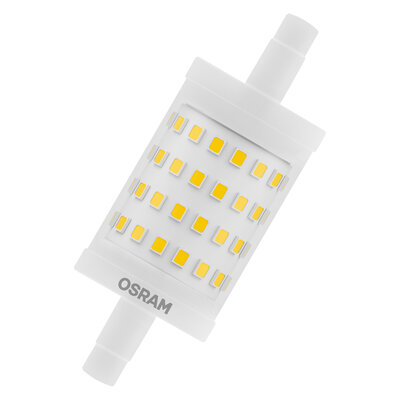

Background: white, diagonal, OSRAM logo
LED LINE R7S 78mm 75DI M 21/22 JPG (1.18 MB)

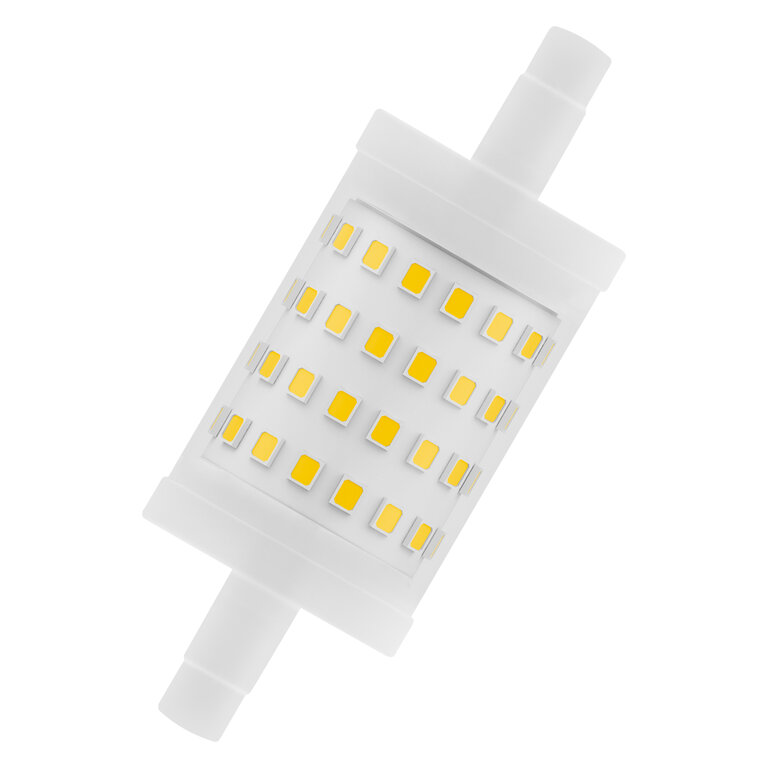

Background: white, diagonal
LED LINE R7S 78mm 75DI M 21/22 JPG (1.17 MB)

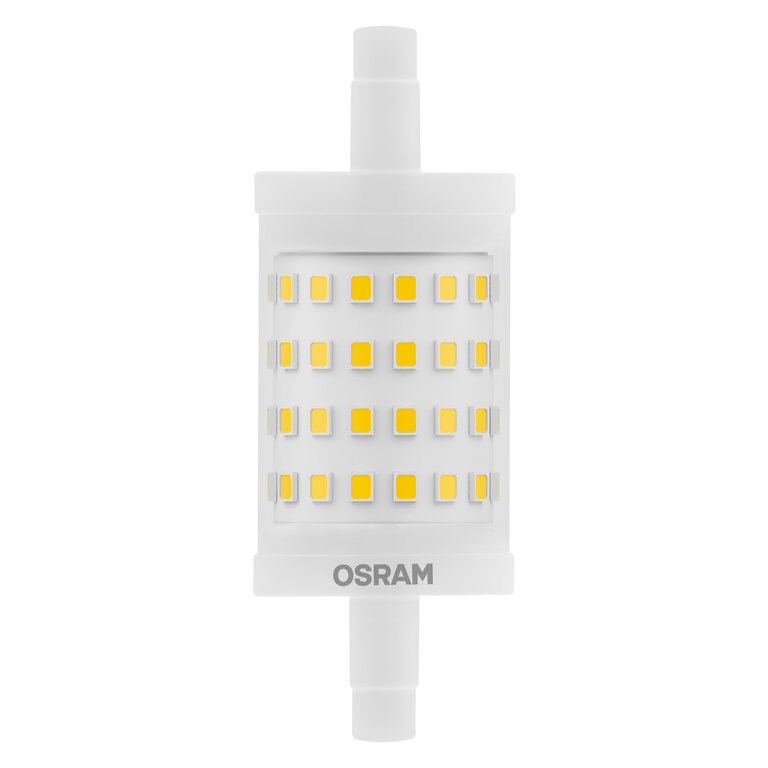

Background: white, upright, OSRAM logo
LED LINE R7S 78mm 75DI M 21/22 JPG (1.04 MB)

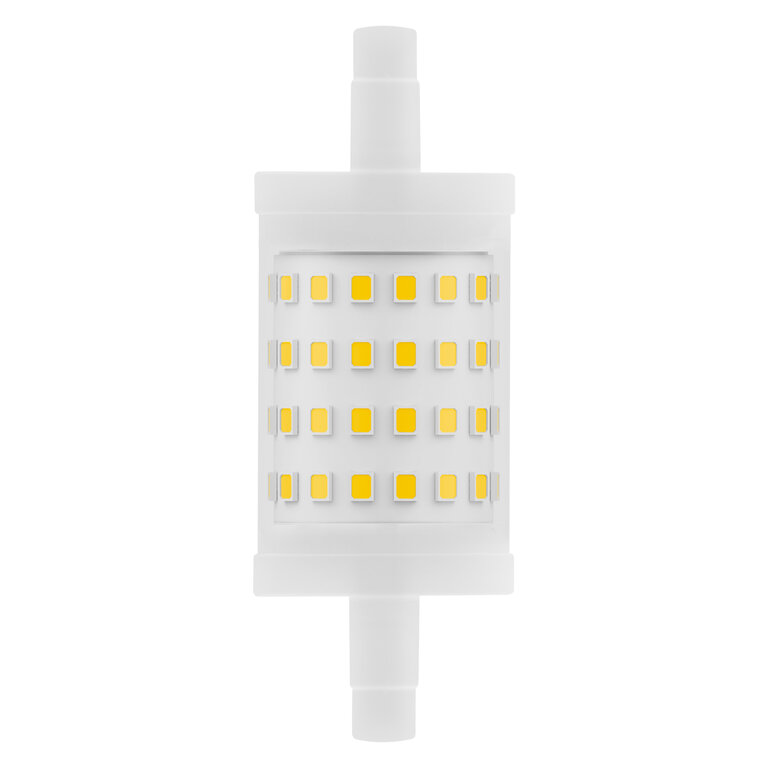

Background: white, upright
LED LINE R7S 78mm 75DI M 21/22 JPG (1.03 MB)
Product line drawing with letters
LED LINE R7S 78mm 75DI M 21/22 SVG (83.84 KB)
Product line drawing with numbers
LED LINE R7S 78mm 75DI M 21/22 SVG (86.73 KB)
Product line drawing - technical
LED LINE R7S 78mm 75DI M 21/22 SVG (82.24 KB)

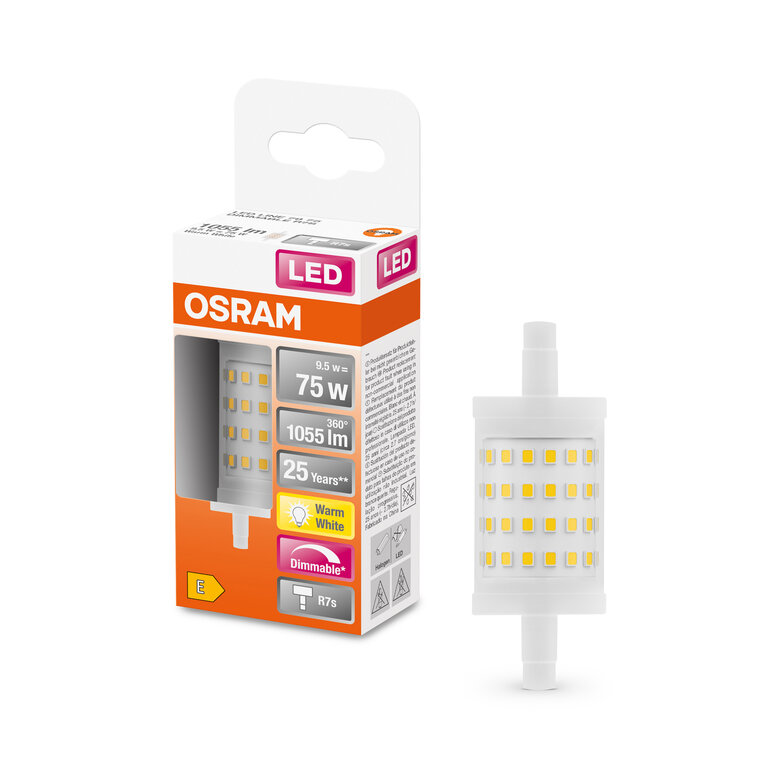

Combo Shot = Product Beauty Shot + Packaging Image
LEDLI7875D 9,5W-827 23 0V R7S FS1 OSRAM JPG (614.03 KB)

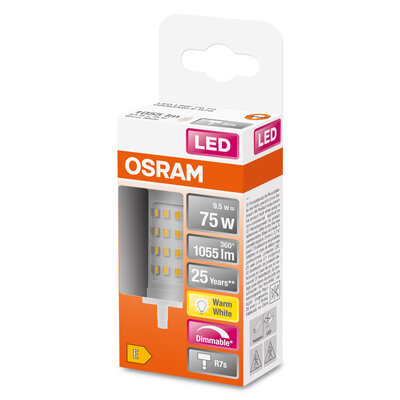

Packaging image, frontal
LED ST LINE 78 75 DIM 8.5W 827 CL R7S MiCh TIF (1.27 MB)
Packaging image, spacial
LED ST LINE 78 75 DIM 8.5W 827 CL R7S MiCh TIF (1.49 MB)
Energy label 2021
EL-4058075432512-AC321 30 PDF (21.33 KB)
Energy label 2021
EL-4058075432512-AC119 19 PDF (21.28 KB)
Logos and Pictos
E left SVG (1.9 KB)
Logos and Pictos
E left BW SVG (1.07 KB)
Logos and Pictos
E right SVG (1.86 KB)
Logos and Pictos
E right BW SVG (1.07 KB)

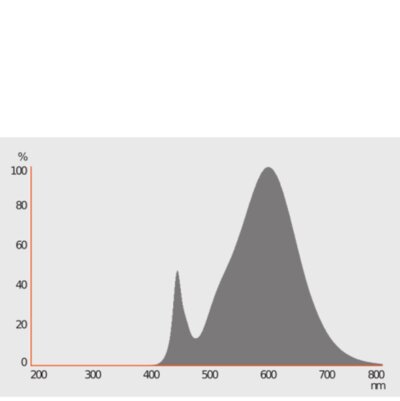

Spectral power distribution
349927_2700K_Evl_5630. eps PNG (83.87 KB)
