Professional

UVC LINEAR HOUSING

Choose your product version

Phase out

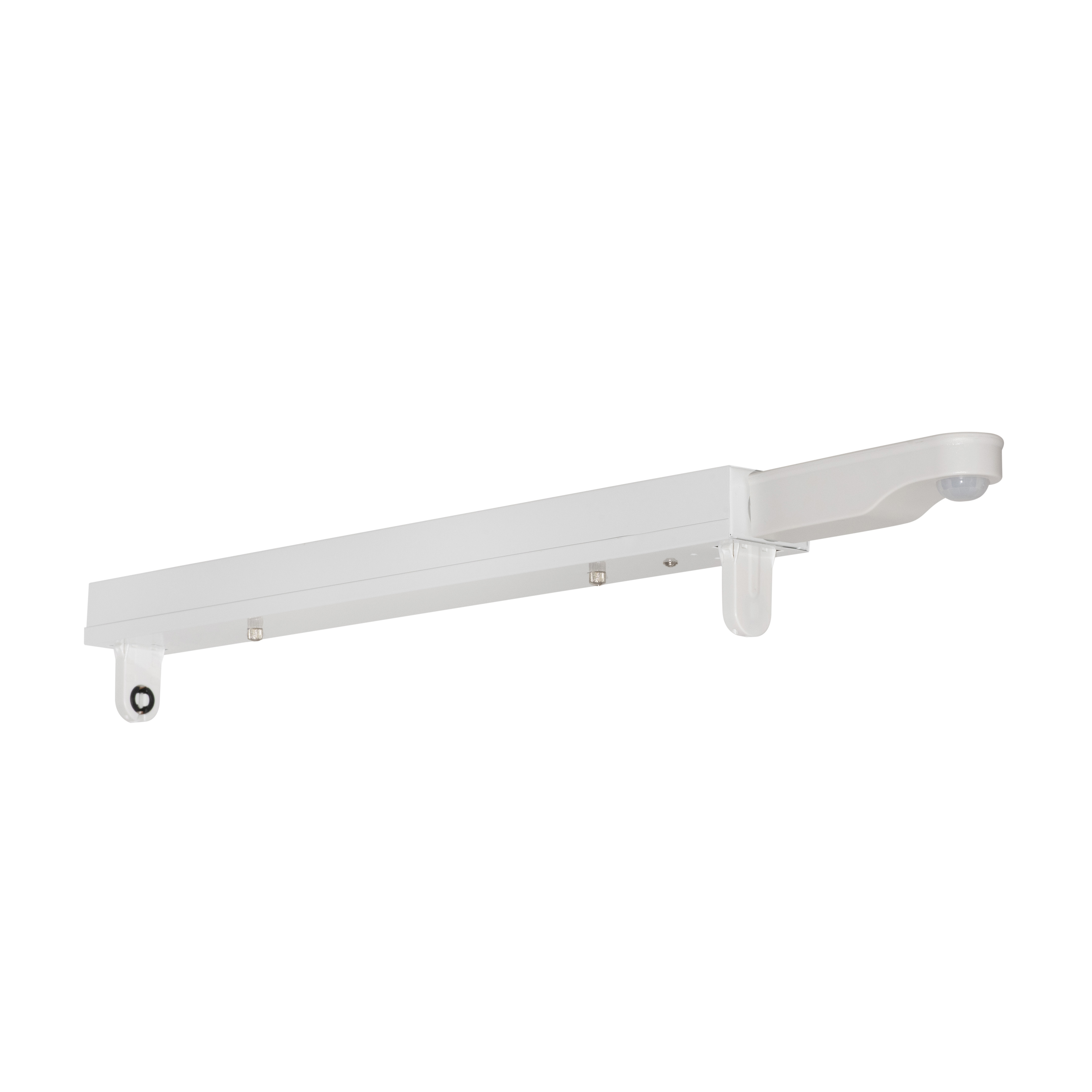

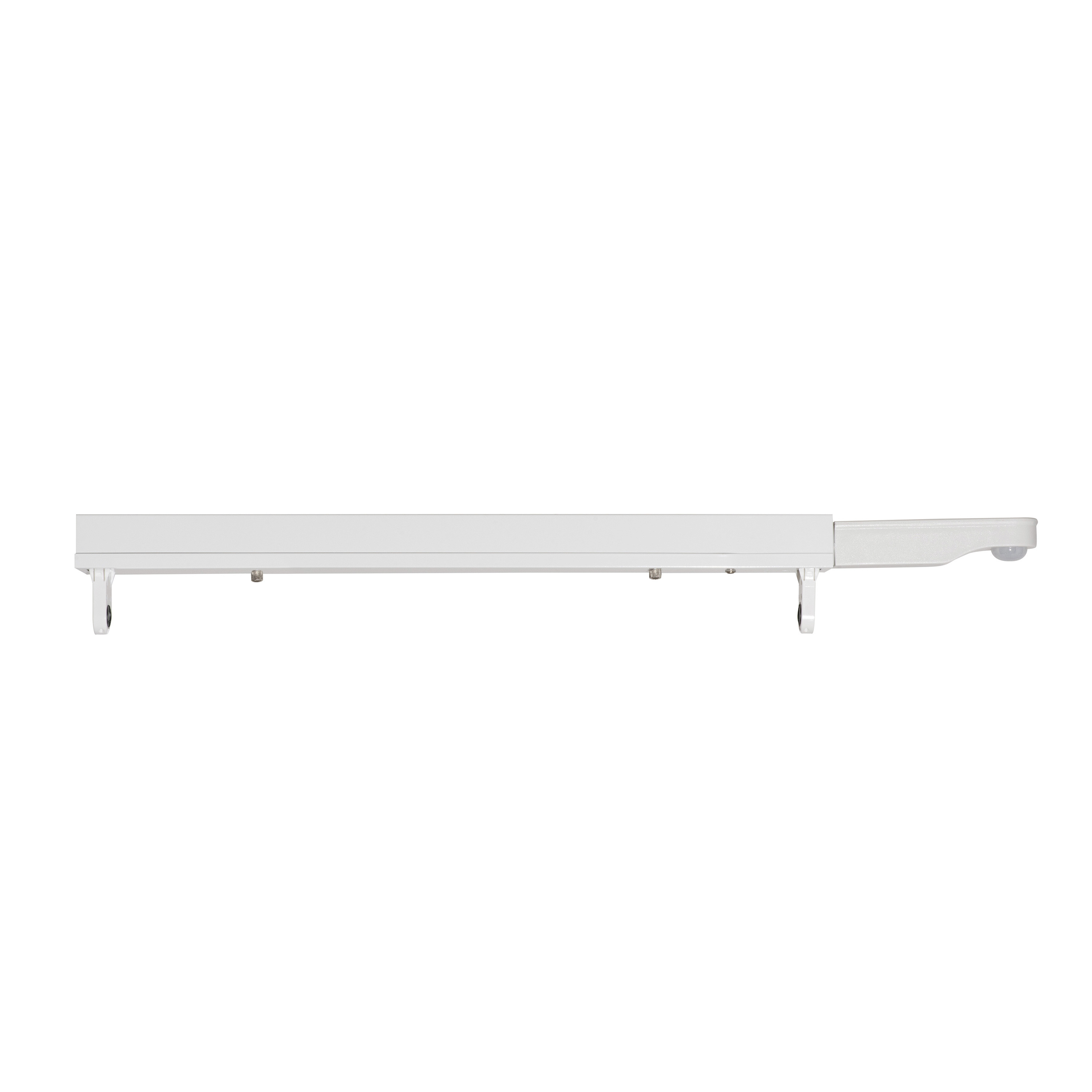

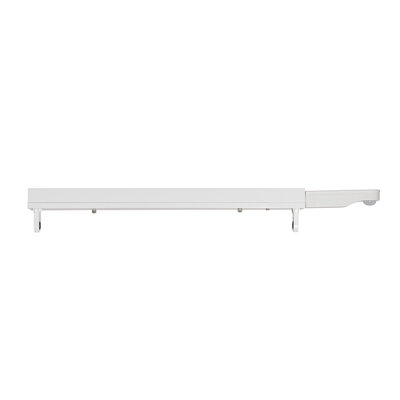

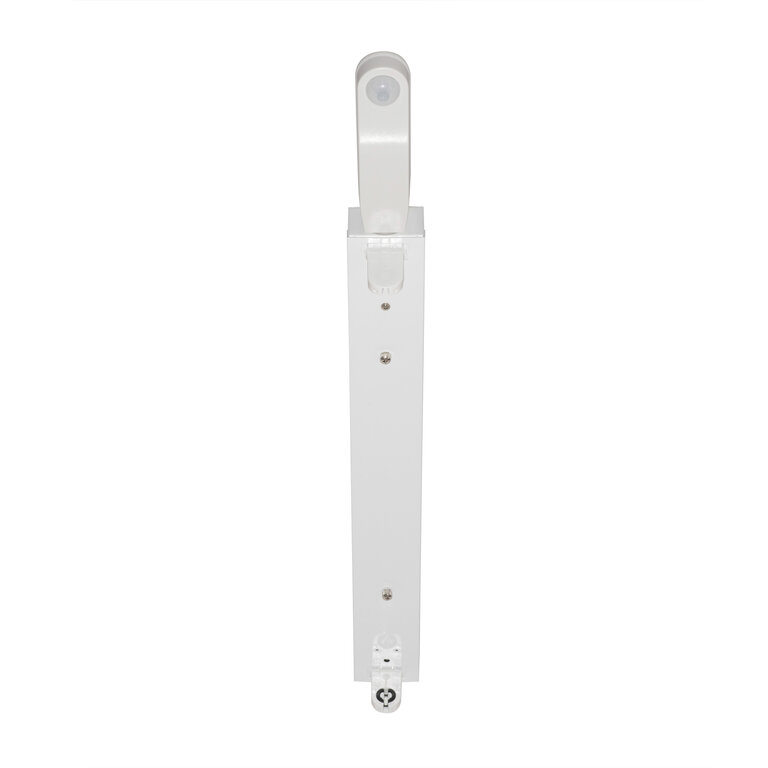

LINEAR HOUSING 440 1XTUBE UVC SENSOR WT

Product benefits
  • Highly effective purification and sterilization
  • Safety ensured thanks to automatic switch off when people are detected in UV workspace
  • 3 years guarantee

PRODUCT DETAILS

Electrical data

Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Total harmonic distortion < 15 %
Protection class I
Operating mode Electronic control gear (ECG)

Dimensions & Weight

Length 604.00 mm
Height 75.00 mm
Width 54.00 mm
Product weight 615.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel 1)
Glow Wire Test according to IEC 60695-2-12 650 °C

1) Sensor made of PC/PE (anti-UVC)

Application & Mounting

Type of connection Terminal
Type of protection IP20
Dimmable No
Mounting type Surface
Mounting location Wall, Ceiling
Application environment Indoor
With light source No
Holder designation G13

Sensor

Sensor technology Passive infrared (PIR)
Sensor detection angle 360 °
Sensor controlled switching time 30 s
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075522084 Folding box
1
624 mm x 55 mm x 45 mm 676.00 g 1.54 dm³
4058075522091 Shipping box
8
677 mm x 287 mm x 130 mm 6333.00 g 25.26 dm³
Product benefits
  • Highly effective purification and sterilization
  • Safety ensured thanks to automatic switch off when people are detected in UV workspace
  • 3 years guarantee
Areas of application
  • Pharmacies
  • Reception areas
  • Hotels
  • Production and assembly facilities
  • Offices
Product features
  • Housing dedicated to T8 UVC G13
  • Built-in IR sensor, safety kit with 30 seconds start delay
  • Available in two lengths
  • Anti-UV coating
  • Easy operation and installation
  • Equipped with a sensor fixed to the product
References / Links
  • For Guarantee see www.ledvance.com/guarantee
