UVC LINEAR HOUSING

Choose your product version

Phase out

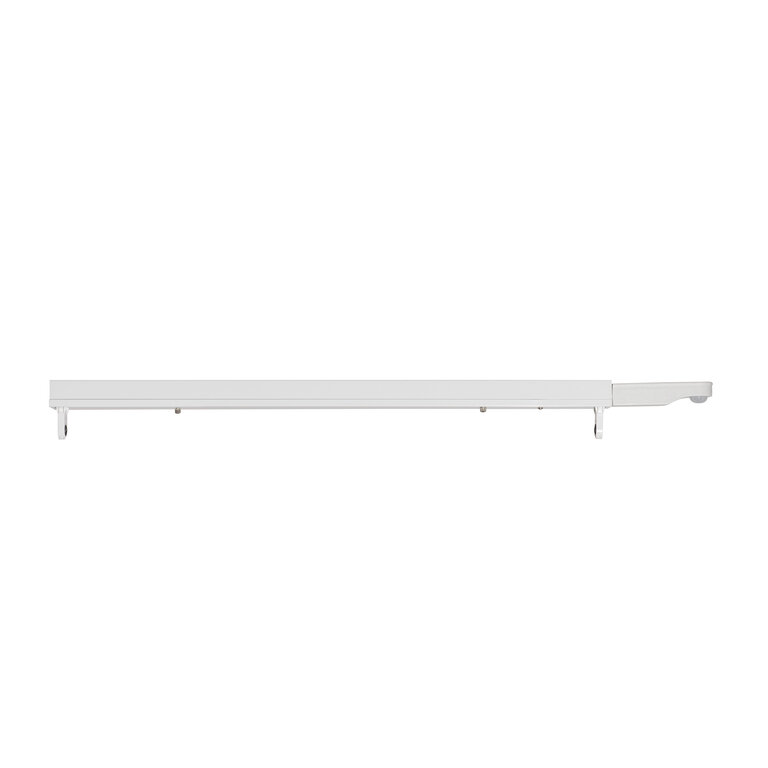

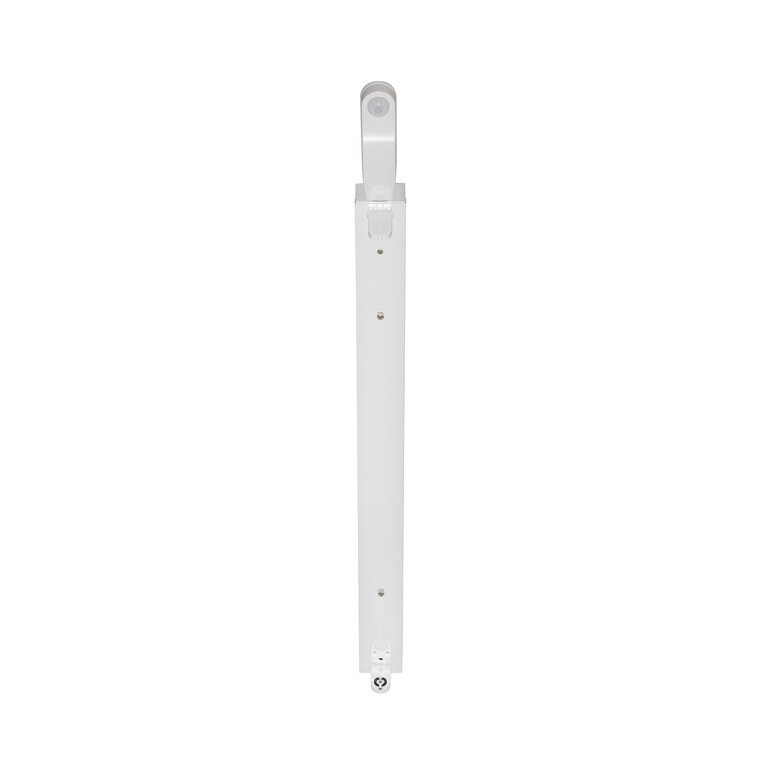

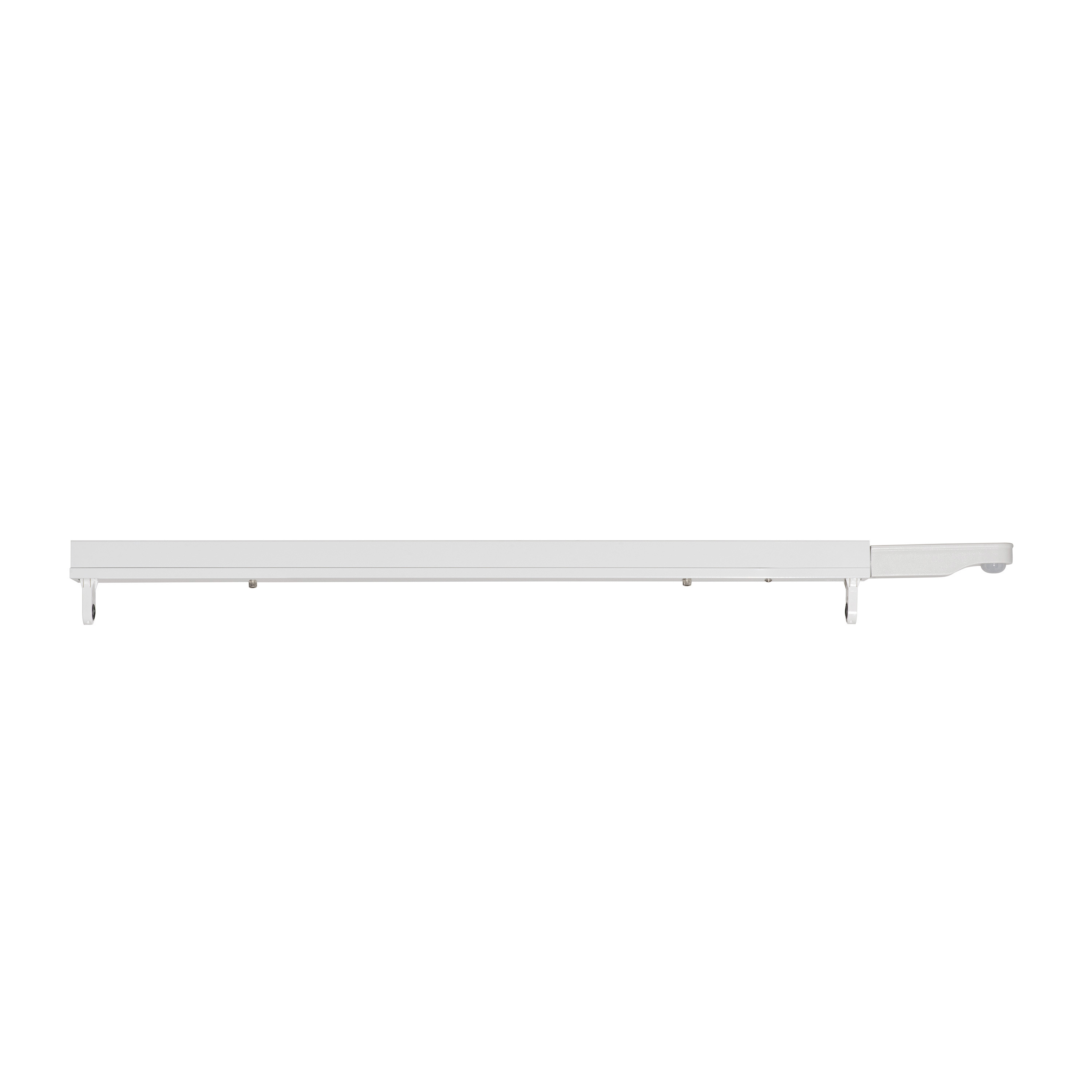

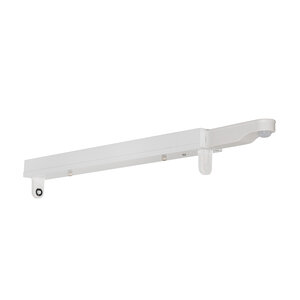

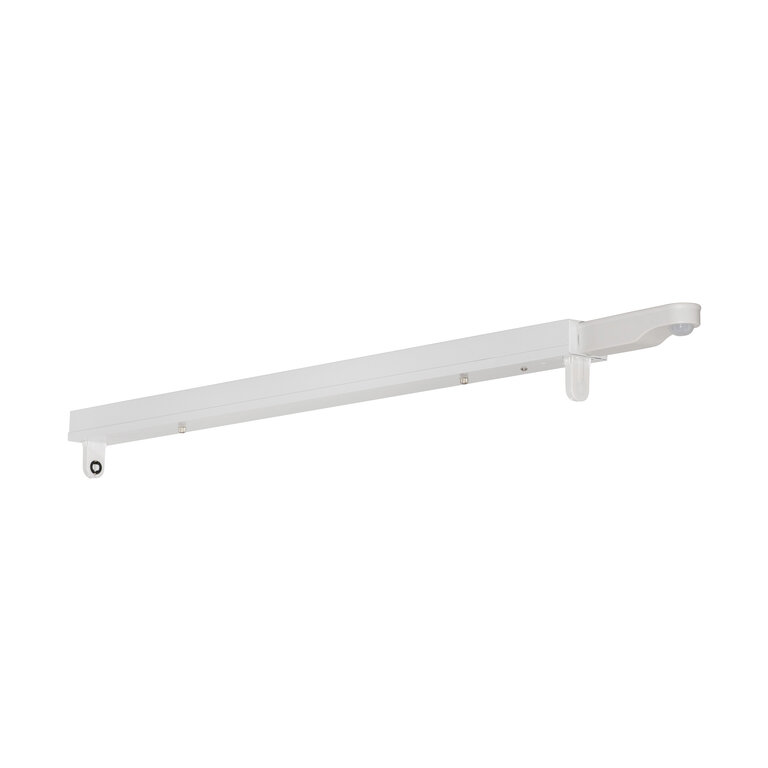

LINEAR HOUSING 900 1XTUBE UVC SENSOR WT

Product benefits
  • Highly effective purification and sterilization
  • Safety ensured thanks to automatic switch off when people are detected in UV workspace
  • 3 years guarantee

PRODUCT DETAILS

Electrical data

Nominal voltage 220…240 V
Mains frequency 50…60 Hz
Total harmonic distortion < 15 %
Protection class I
Operating mode Electronic control gear (ECG)

Dimensions & Weight

Length 1061.00 mm
Height 75.00 mm
Width 54.00 mm
Product weight 950.00 g

Materials & Colors

Product color White
Housing color White
Body material Steel 1)
Glow Wire Test according to IEC 60695-2-12 650 °C

1) Sensor made of PC/PE (anti-UVC)

Application & Mounting

Type of connection Terminal
Type of protection IP20
Dimmable No
Mounting type Surface
Mounting location Wall, Ceiling
Application environment Indoor
With light source No
Holder designation G13

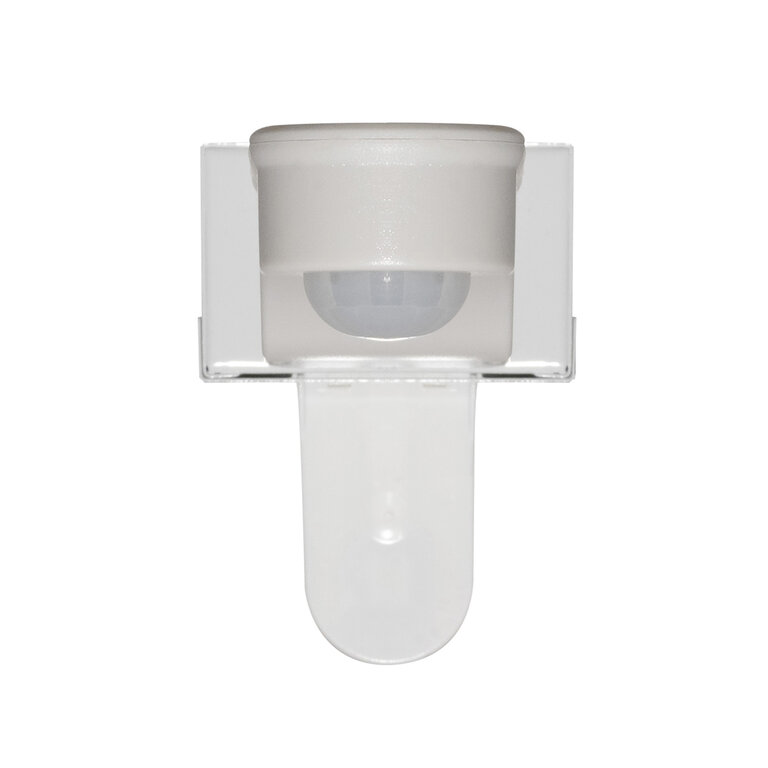

Sensor

Sensor technology Passive infrared (PIR)
Sensor detection angle 360 °
Sensor controlled switching time 30 s
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075522060 Folding box
1
1,075 mm x 55 mm x 45 mm 1057.00 g 2.66 dm³
4058075522077 Shipping box
8
1,137 mm x 287 mm x 130 mm 9359.00 g 42.42 dm³
Product benefits
  • Highly effective purification and sterilization
  • Safety ensured thanks to automatic switch off when people are detected in UV workspace
  • 3 years guarantee

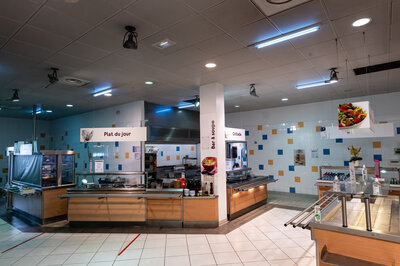

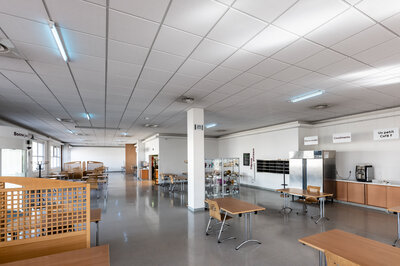

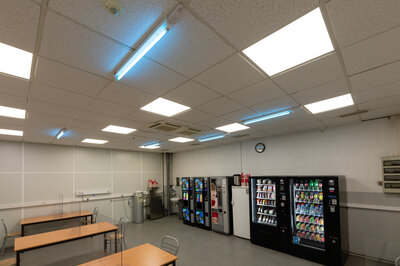

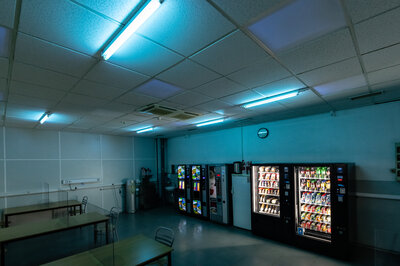

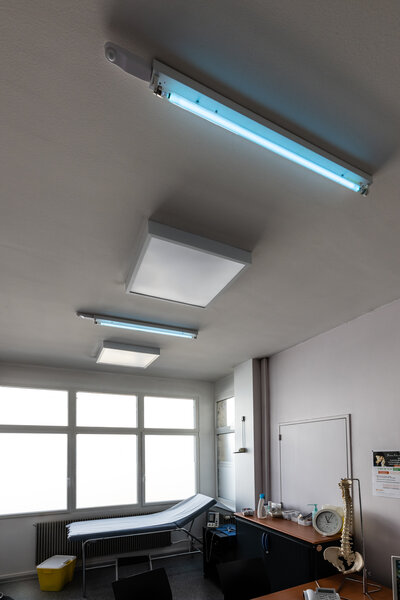

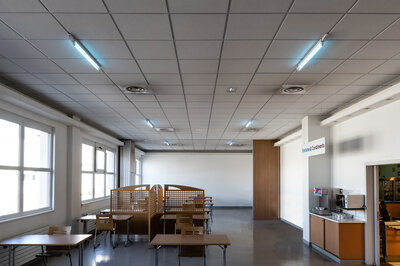

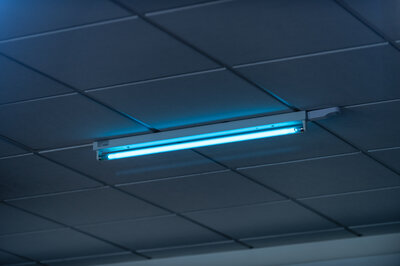

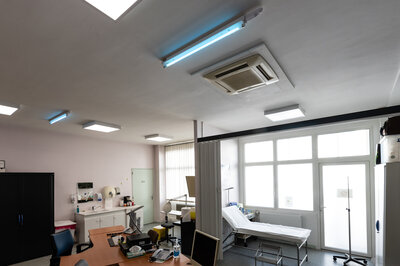

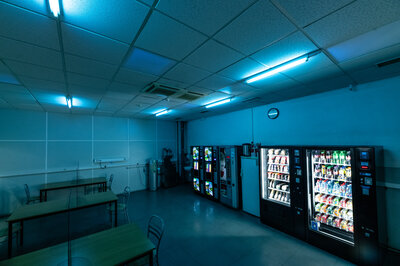

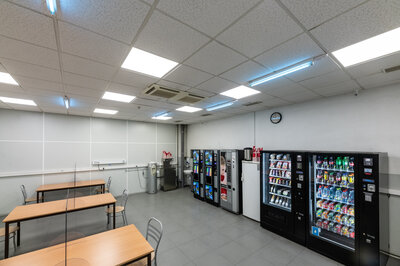

Areas of application
  • Pharmacies
  • Reception areas
  • Hotels
  • Production and assembly facilities
  • Offices
Product features

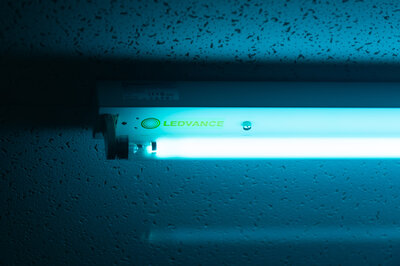

  • Housing dedicated to T8 UVC G13
  • Built-in IR sensor, safety kit with 30 seconds start delay
  • Available in two lengths
  • Anti-UV coating
  • Easy operation and installation
  • Equipped with a sensor fixed to the product
References / Links
  • For Guarantee see www.ledvance.com/guarantee
