Choose your product version
| Product description | Nominal wattage | Number of switching cycles | Beam angle | Luminous flux | Dimmable |
|---|---|---|---|---|---|

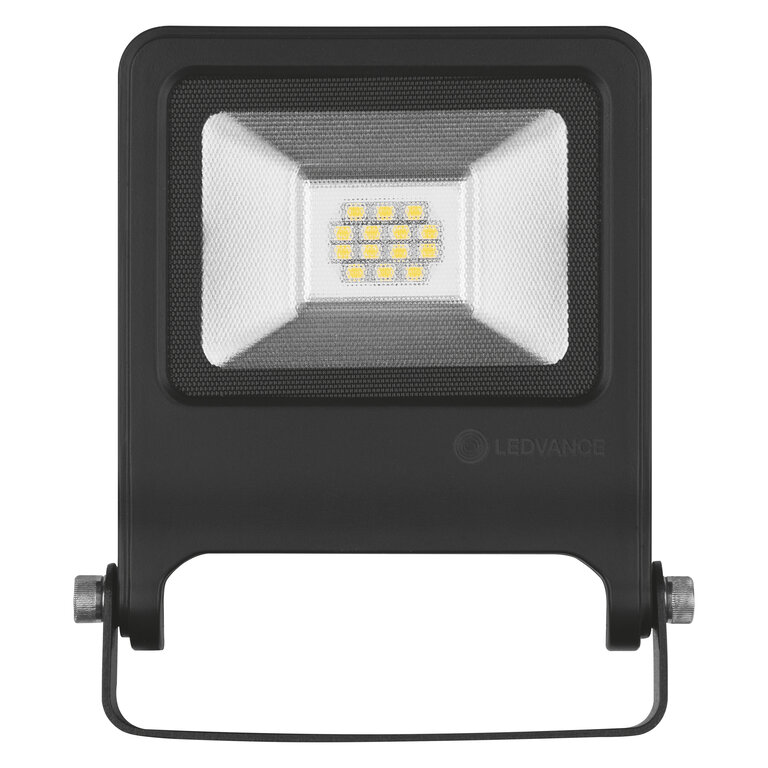

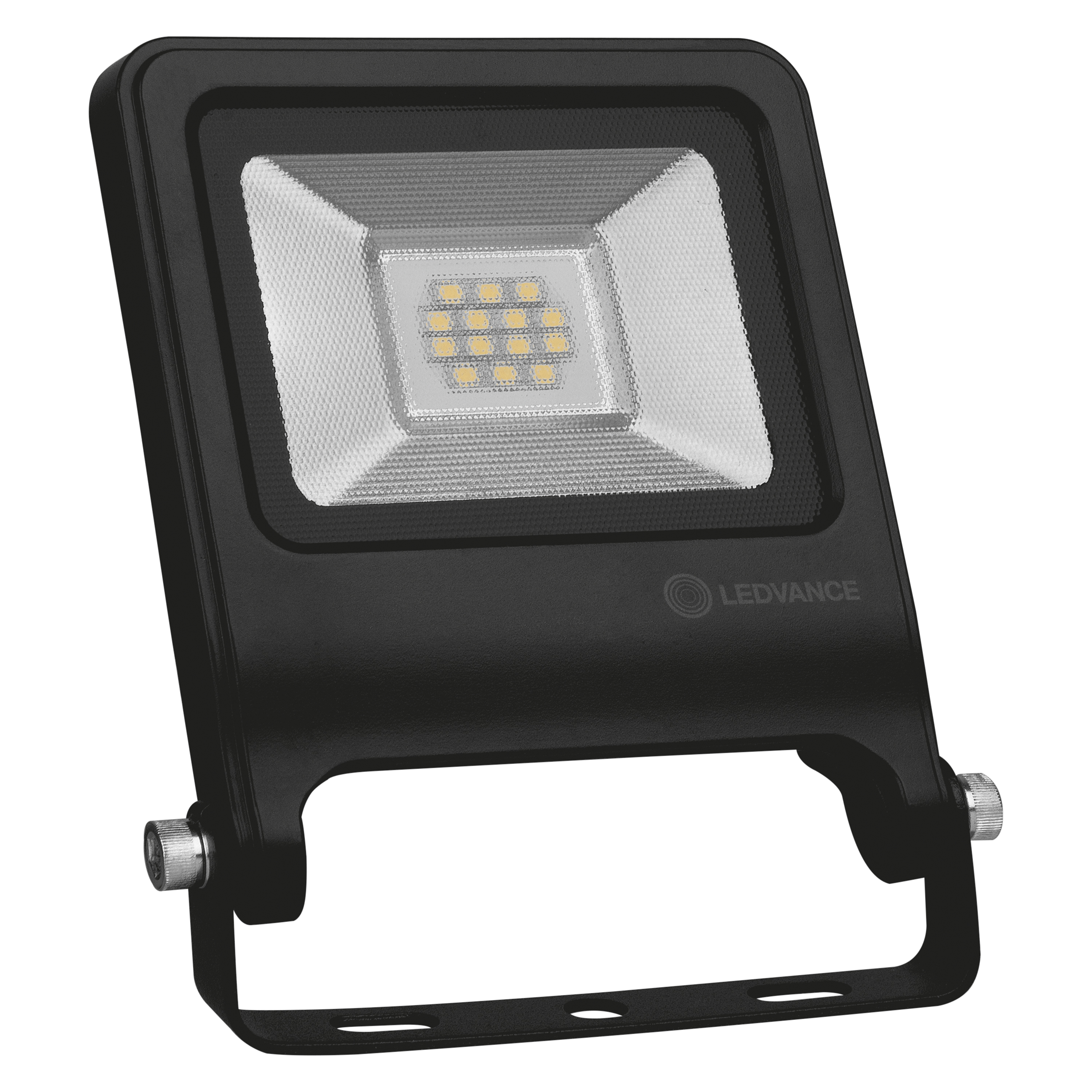

| FLOODLIGHT VALUE 10 W 4000 K IP65 BK | 10.00 W | 10000 | 110 ° x 110 ° | 800 lm | No |

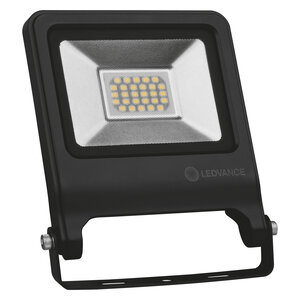

| FLOODLIGHT VALUE 20 W 4000 K IP65 BK | 20.00 W | 10000 | 110 ° x 110 ° | 1700 lm | No |

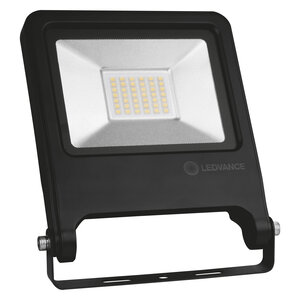

| FLOODLIGHT VALUE 30 W 4000 K IP65 BK | 30.00 W | 10000 | 110 ° x 110 ° | 2700 lm | No |

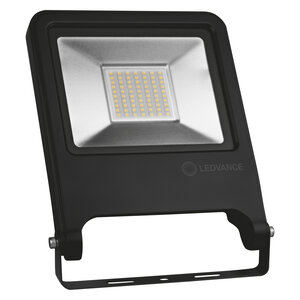

| FLOODLIGHT VALUE 50 W 4000 K IP65 BK | 50.00 W | 10000 | 110 ° x 110 ° | 4500 lm | No |

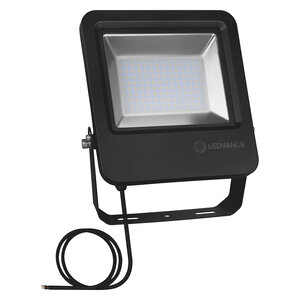

| FLOODLIGHT VALUE 100 W 4000 K IP65 BK | 100.00 W | 10000 | 110 ° x 110 ° | 9000 lm | No |
| Nominal wattage | 10.00 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 46 mA |
| Inrush current | 2 A |
| Inrush current time Th50 | 96 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 56 |
| Max. number of luminaires per miniature circuit breaker C10 | 35 |
| Max. number of luminaires per miniature circuit breaker C16 | 56 |
| Power factor λ | ≥0.90 |
| Total harmonic distortion | < 35 % |
| Protection class | I |
| Operating mode | Integrated LED driver |
| Luminous flux | 800 lm |
| Luminous efficacy | 80 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | ≥80 |
| Standard deviation of color matching | < 6 sdcm |
| Luminous intensity | - |
| Flickering metric (Pst LM) | - |
| Stroboscope effect metric (SVM) | - |
| Photobiological safety group acc. to EN62778 | RG1 |
| Beam angle | 110 ° x 110 ° |
| Length | 108.00 mm |
| Height | 33.00 mm |
| Width | 93.00 mm |
| Product weight | 280.00 g |

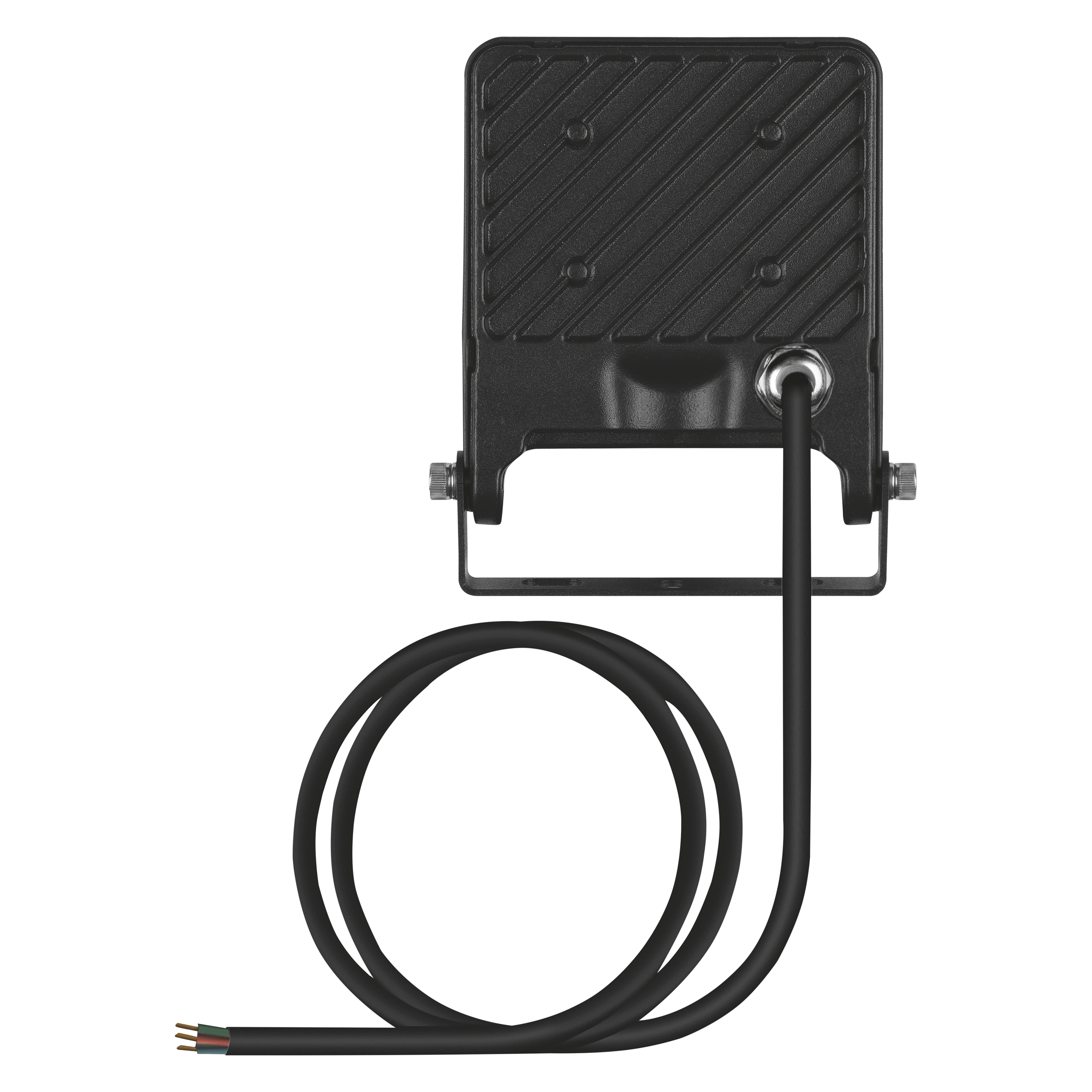

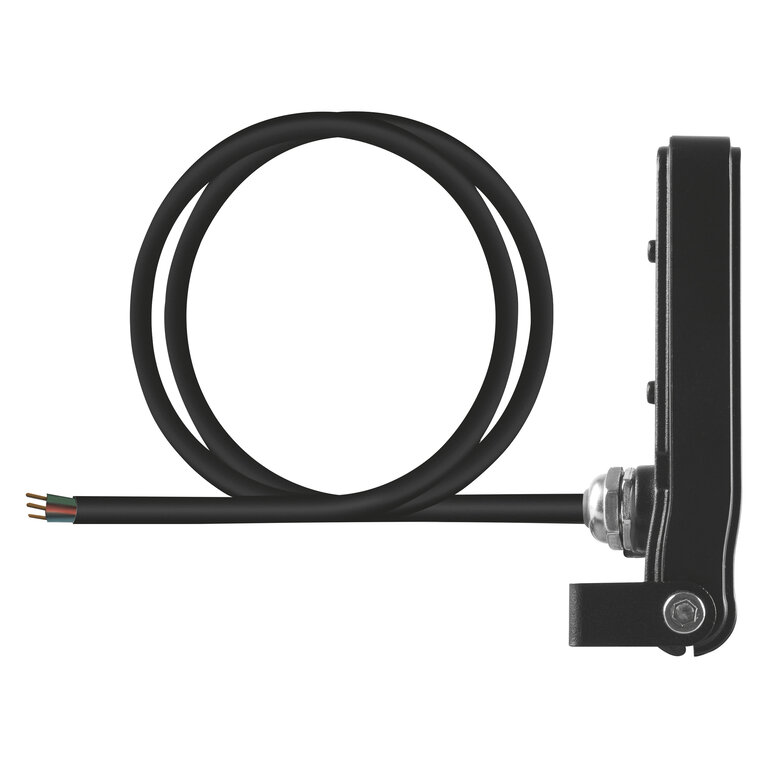

| Cable length | 500 mm |
| Product color | Black |
| Housing color | Black |
| Body material | Aluminum |
| Cover material | Glass |
| Light emitting surface material | Glass |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
| Ambient temperature range | -20…+45 °C |
| Type of connection | Cable, 3-pole |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK06 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall, Ceiling, Floor |
| Application environment | Outdoor |
| Adjustable | Yes |
| LED module replaceable | Not replaceable |
| Lifespan L70/B50 at 25 °C | 30000 h 1) |
| Number of switching cycles | 10000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

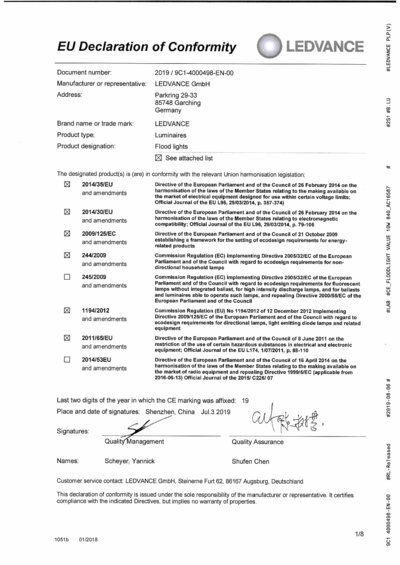

| Standards | CE, CB, TÜV SÜD, EAC |
| Luminaire with limited surface temperature, "D sign" | No |
| Ball shot safe | No |
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075268586 | Folding box 1 |
72 mm x 122 mm x 136 mm | 311.00 g | 1.19 dm³ |
| 4058075268593 | Shipping box 12 |
255 mm x 225 mm x 285 mm | 3567.00 g | 16.35 dm³ |
