PRODUCT DETAILS
Electrical data
| 공칭 전력 | 100 W |
| 기준 전력 | 100.00 W |
| 공칭 전류 | 1,2 A |
Photometrical data
| 연색지수 Ra | ≤25 |
| 광색 | 2 |
Dimensions & Weight
| 전장 | 210.00 mm |
| 지름 | 47,00 mm |
| 제품무게 | 130,00 g |
Additional product data
| 베이스 (표준명칭) | E40 |
| 램프 수은함유량 | 13.1 mg |
국가별 정보
| 주문 번호 | NAV-T 100W SUPE |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | E40 |
| 길이 | 210,00 mm |
| 높이(실린더형 등기구 포함) | 47.00 mm |
| 너비 (원형 등기구 포함) | 47.00 mm |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| 제품 코드 | 패키징 단위 (수량/단위) | 규격 (길이 x 너비 x 높이9 | Gross weight | Volume |
|---|---|---|---|---|
| 4050300864129 | 슬리브 1 |
52 mm x 52 mm x 260 mm | 148.00 g | 0.70 dm³ |
| 4050300864136 | 출고단위포장 12 |
269 mm x 216 mm x 277 mm | 2113.00 g | 16.09 dm³ |
Product image: white background, diagonal
328127_NAV-T 100W E40
328127_NAV-T 100W E40

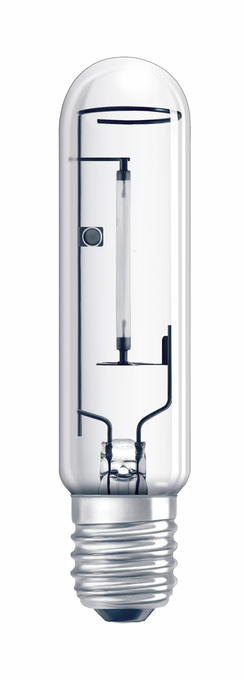

Product image: white background, upright
328128_NAV-T 100W E40
328128_NAV-T 100W E40
Product line drawing with letters
319246_NAV-T E40 / NAV-T 4Y E40 / NAV-T SUPER 4Y E40 / PLANTASTAR E40
319246_NAV-T E40 / NAV-T 4Y E40 / NAV-T SUPER 4Y E40 / PLANTASTAR E40
Product line drawing, front, no dimensions
325780_NAV-T E40 / NAV-T 4Y E40 / NAV-T SUPER 4Y E40 / PLANTASTAR E40
325780_NAV-T E40 / NAV-T 4Y E40 / NAV-T SUPER 4Y E40 / PLANTASTAR E40
