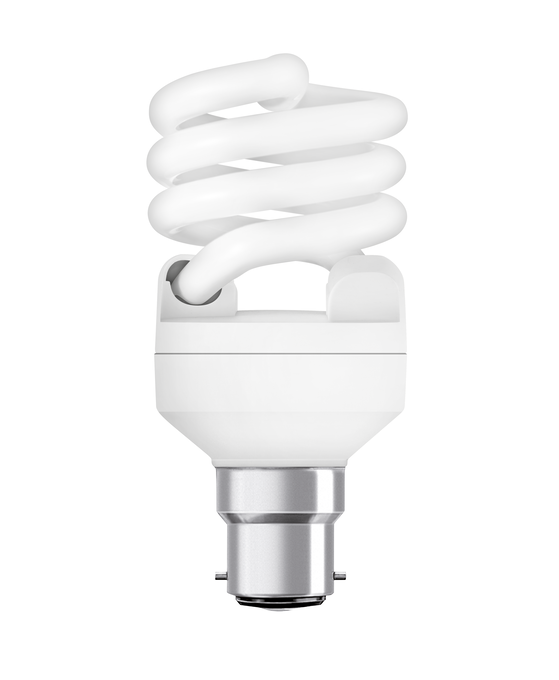

DST MITW 20 W/865 B22D white, upright (thumbnail)
DST MITW 20 W/865 B22D white, diagonal
DST MITW 20 W/865 B22D white, upright
OSRAM DULUX SUPERSTAR MINI TWIST

DST MITW 20 W/865 B22D

GTIN: 4052899202528 개별포장박스 / 1 Show all packages
데이터 시트 다운로드
영업팀에 문의하기
5년 보증

PRODUCT DETAILS

Electrical data
공칭 전력 20 W
기준 전력 20.00 W
공칭 전압 220…240 V
공칭 전류 200 mA
동작 주파수 50…60 Hz
일반 주파수 50…60 Hz
Photometrical data
광속 1300 lm
색온도 6500 K
연색지수 Ra ≥80
광색 865
Dimensions & Weight
전장 110.00 mm
지름 54,00 mm
제품무게 80,00 g
Additional product data
베이스 (표준명칭) B22d
램프 수은함유량 5.0 mg
무수은 No
국가별 정보
주문 번호 DULUX MTW20W/86
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) B22d
길이 107,00 mm
높이(실린더형 등기구 포함) 54.00 mm
너비 (원형 등기구 포함) 54.00 mm
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
제품 코드 패키징 단위 (수량/단위) 규격 (길이 x 너비 x 높이9 Gross weight Volume
4052899202528 개별포장박스
1		 56 mm x 56 mm x 116 mm 86.00 g 0.36 dm³
4052899202535 출고단위포장
12		 236 mm x 176 mm x 129 mm 1311.00 g 5.36 dm³
Product image: white background, diagonal
346079_DULUX FHS MINI TWIST 20W B22
TIF (4.09 MB)
Product image: white background, upright
346080_DULUX FHS MINI TWIST 20W B22
TIF (2.12 MB)
Product line drawing with letters
346096_DULUX FHS MINI TWIST 20W B22
SVG (19.35 KB)
Product line drawing, front, no dimensions
346097_DULUX FHS MINI TWIST 20W B22
SVG (16.18 KB)
