LED PERFORMANCE SOLAR STREETLIGHT

LDPFM SOLAR ST 60.00 W/4000 K

GTIN: 4058075563063 출고단위포장 / 1 Show all packages
5년 보증

PRODUCT DETAILS

Product benefits
  • All-in-one design, no wiring required, flexible installation
  • Extremely high system luminous efficacy 185 lm-W to maximize the battery performance
  • Rotatable LED module, ensures the light to reach the target surface amply
  • Grade A bifacial monocrystalline solar panel, higher sunlight absorbing efficiency than single-sided monocrystalline solar panel
  • Adjustable install arm, multi-angle adjustment, make solar panel easy to apply to sunlight trajectory from different directions
Areas of application
  • 도로
  • 도로 조명
  • Rural areas, villages
  • Parks
  • 전원 공급 장치가 없는 공간
제품특징
  • System wattage 10 W, 20 W, 30 W, 40 W, 50 W and 60 W
  • 배터리 기술 : LiFePO4
  • Battery overcharge, overdischarge, overheat and short circuit protections
  • 움직임 감지 센서 장착형/비장착형 구비
  • Meet ME4 road lighting class requirement thanks to professional optical design
  • Intelligent controller, rainy day intelligent delay
  • Automatically on-off according to brightness of daylight
  • 보호 유형: IP66
  • 인증: CB
Electrical data
공칭 전력 60,00 W
보호등급 III
동작 방식 Battery
Photometrical data
광속 11100 lm
광효율 185 lm/W
색온도 4000 K
광색 (지정) 흰색
연색지수 Ra > 70
배색 표준 편차 < 5 sdcm
빔각도 30 ° x 150 °
Dimensions & Weight
길이 1365,00 mm
높이 130,00 mm
너비 358,00 mm
제품무게 17900,00 g
Materials & Colors
제품색상 Grey
하우징 색상 Grey
제품 소재 Aluminum
커버 소재 Polycarbonate (PC)
램프 수은함유량 0.0 mg
Application & Mounting
주위 온도 범위 0…+50 °C
보호타입 IP66
보호 등급 IK (충격방지) [PIM] IK07
Dimmable No
설치 타입 Side entry
장착 위치 기둥
Application environment [GMS] Outdoor
Replaceable light source No
BATTERY
Battery size [GMS] Others
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
제품 코드 패키징 단위 (수량/단위) 규격 (길이 x 너비 x 높이9 Gross weight Volume
4058075563063 출고단위포장
1
1,418 mm x 443 mm x 184 mm 20230.00 g 115.58 dm³
User instruction / safety instructions
LED PERFORMANCE SOLAR STREETLIGHT
Product image: white background, spacial
LDPFM SOLAR ST 60W
Product line drawing with numbers
LDPFM SOLAR ST 60W
IES file (IES)
LDPFM SOLAR ST 60W
Application pictures

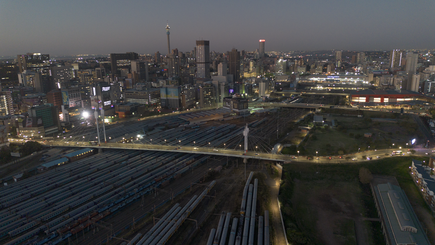

Neslon Mandela Bridge Dusk
Application pictures

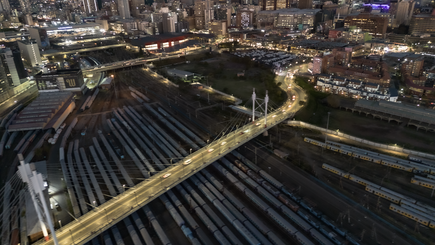

Nelson Mandela Bridge Dusk City Scape
Application pictures
Application installing RGB Floodlights
Application pictures

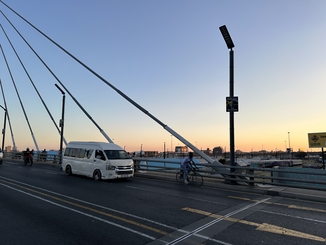

Dusk Solar Streetlight Nelson Mandela Bridge with Transporters
Application pictures

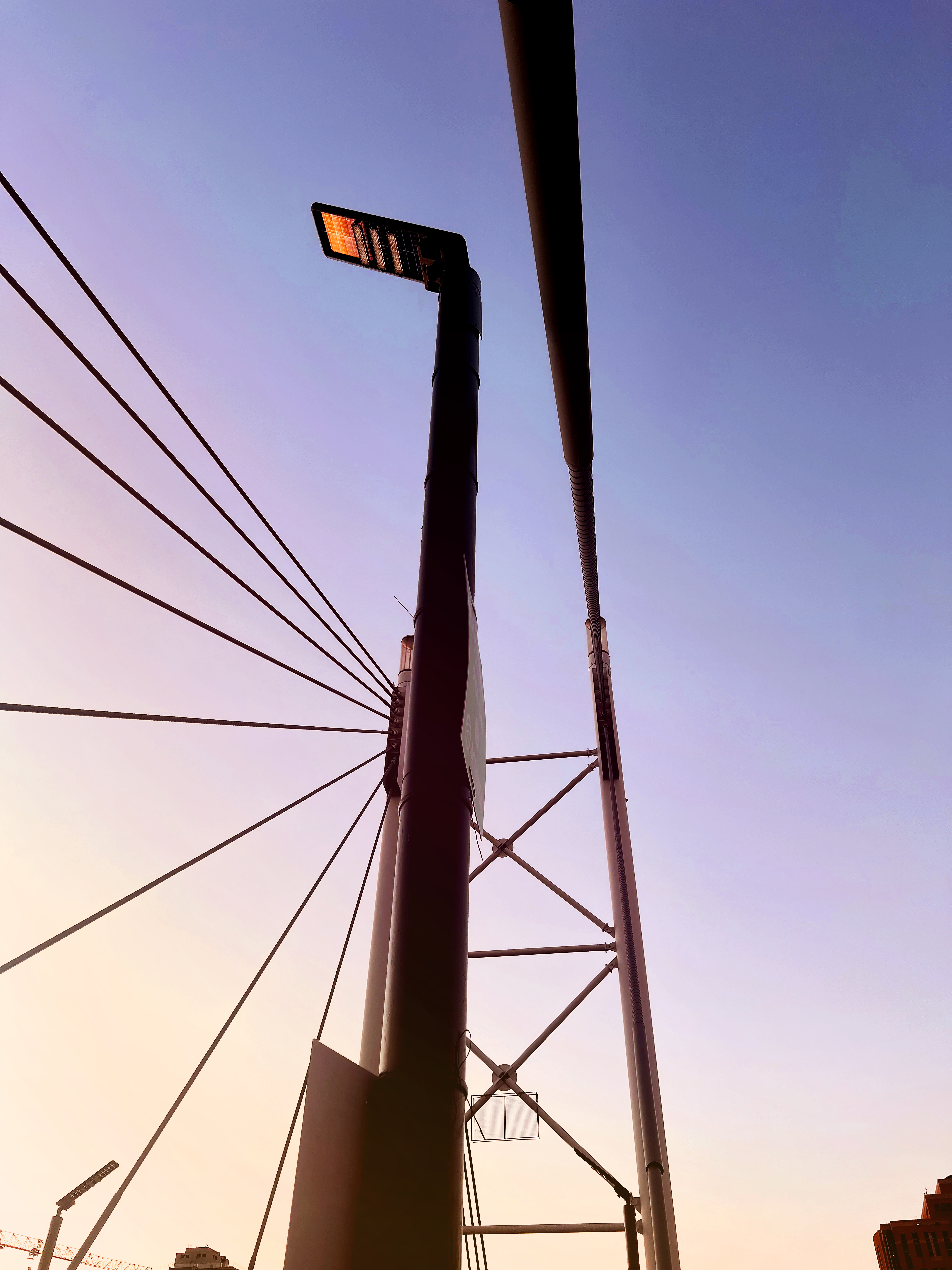

Solar Streetlight Dusk Close Up
Application pictures

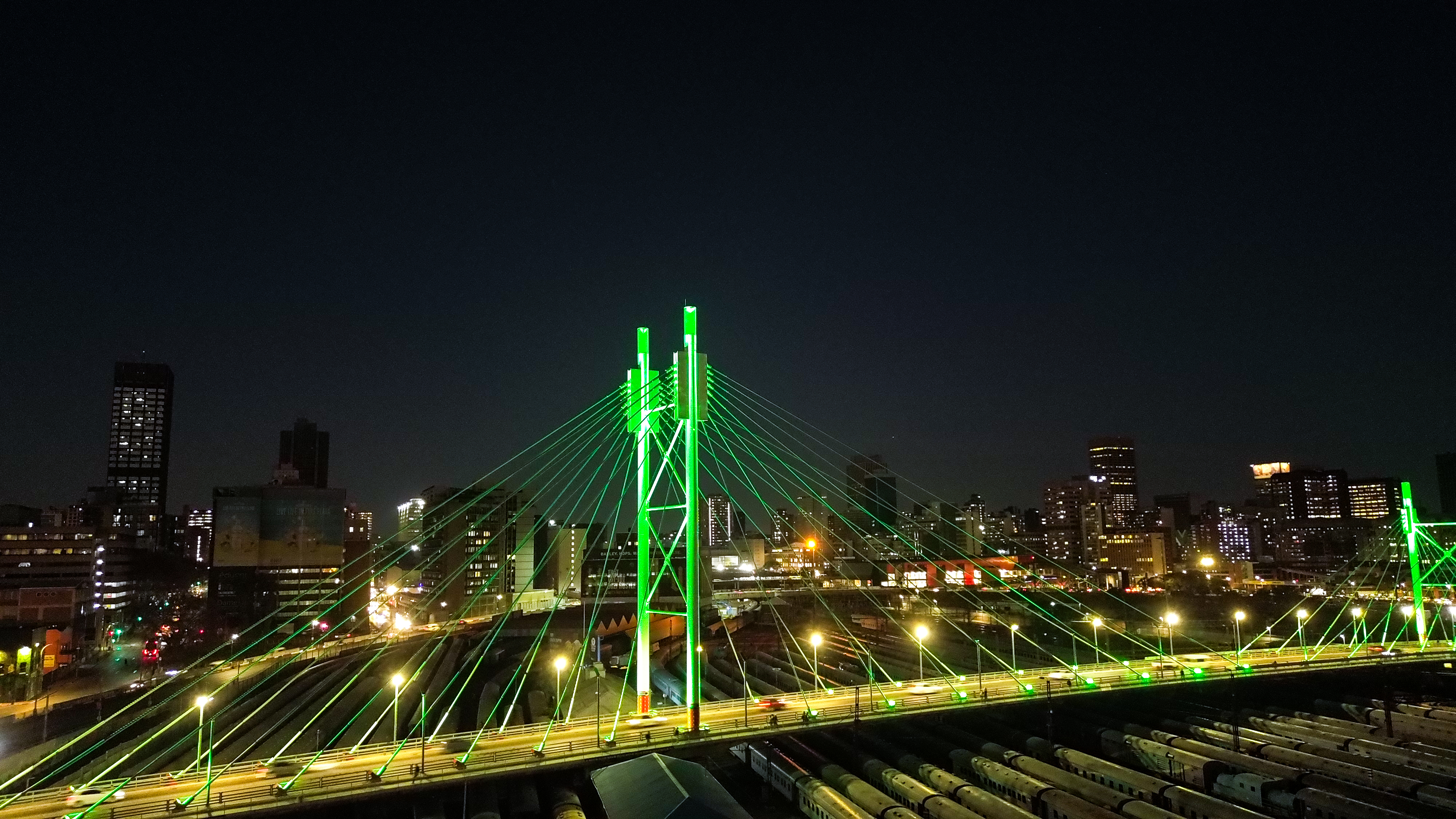

Nelson Mandela Bridge Green
Application pictures

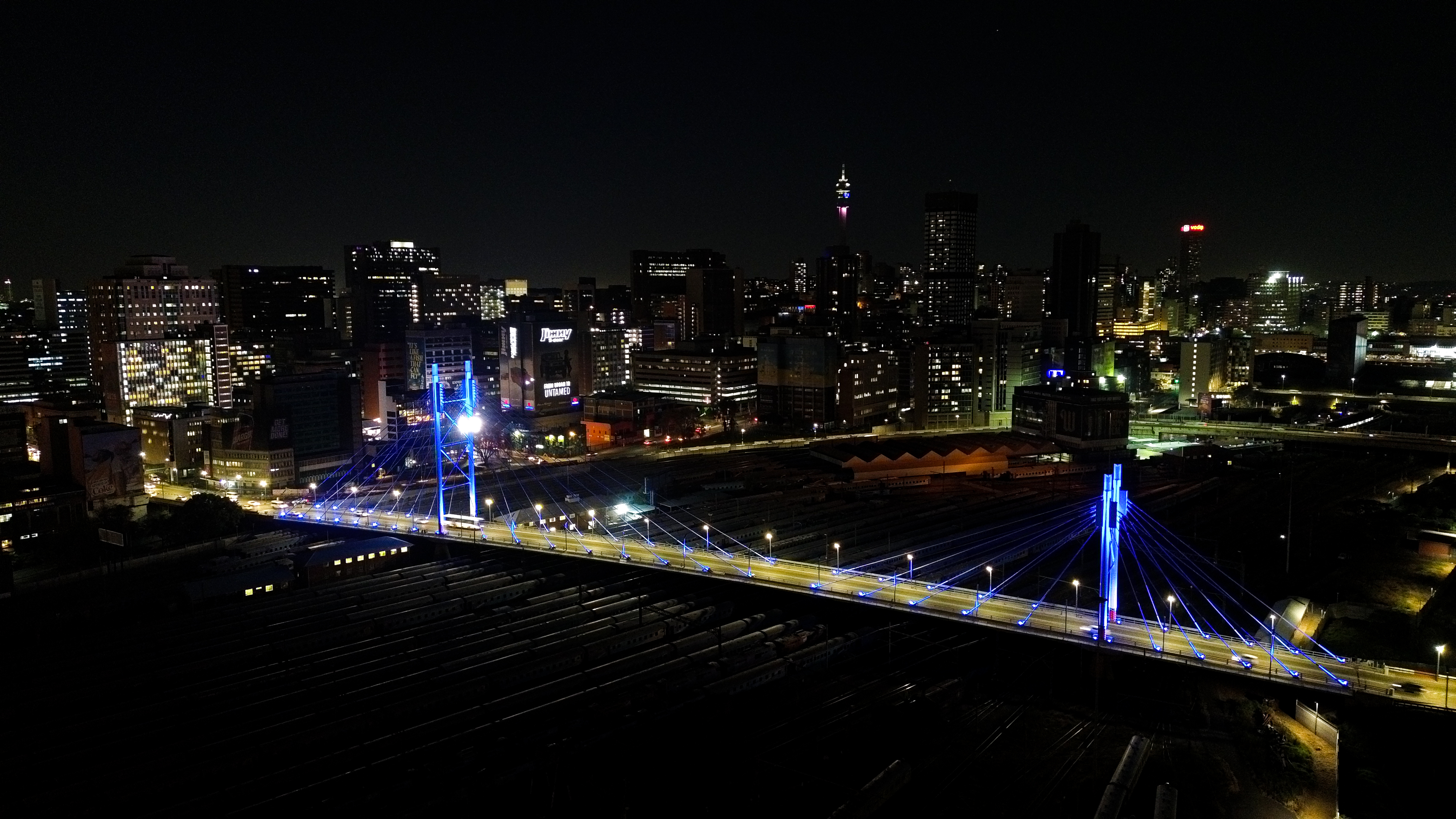

Nelson Mandela Bridge Blue
Application pictures

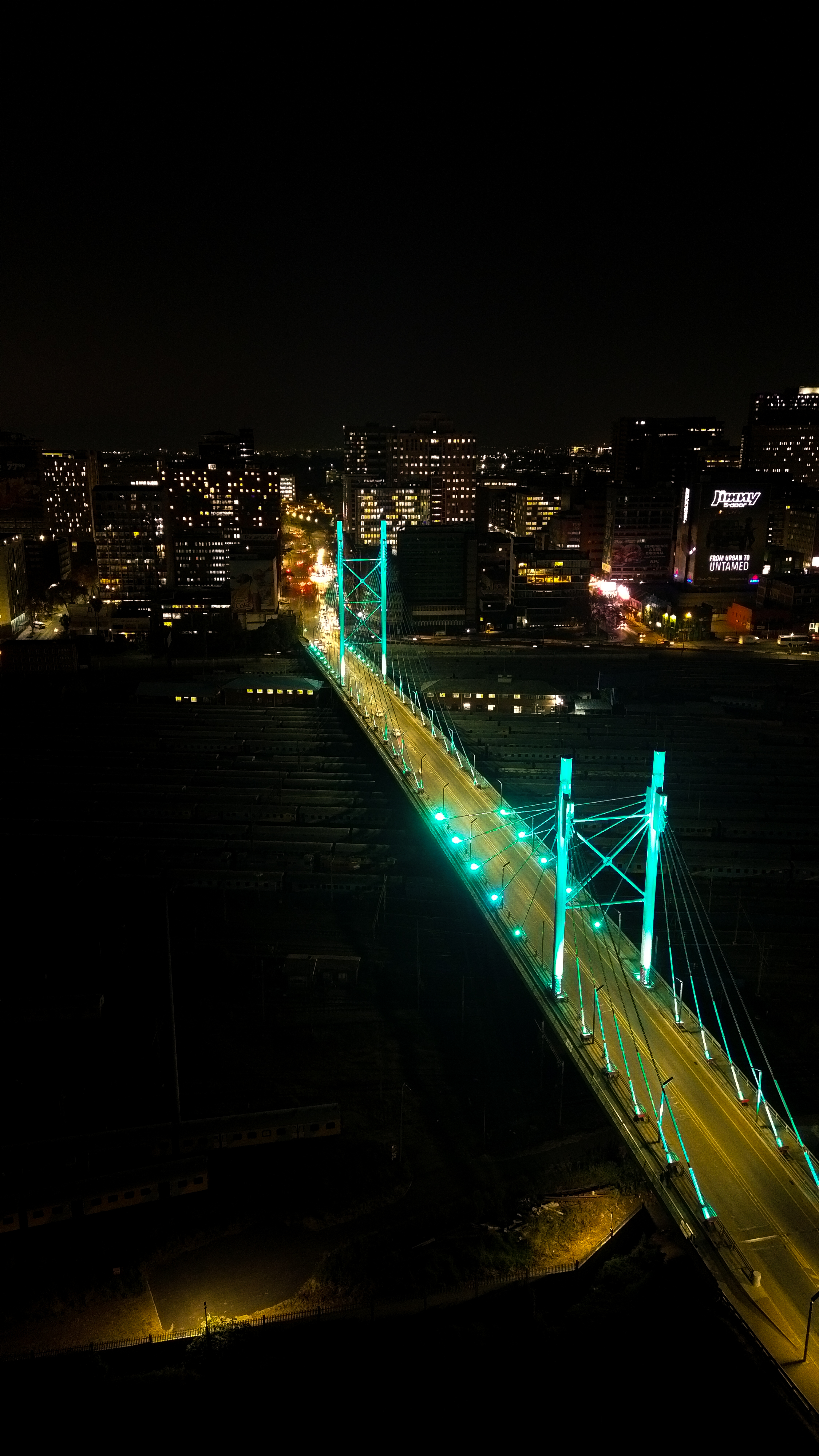

Potrait Nelson Mandela Bridge Turqouise
Application pictures

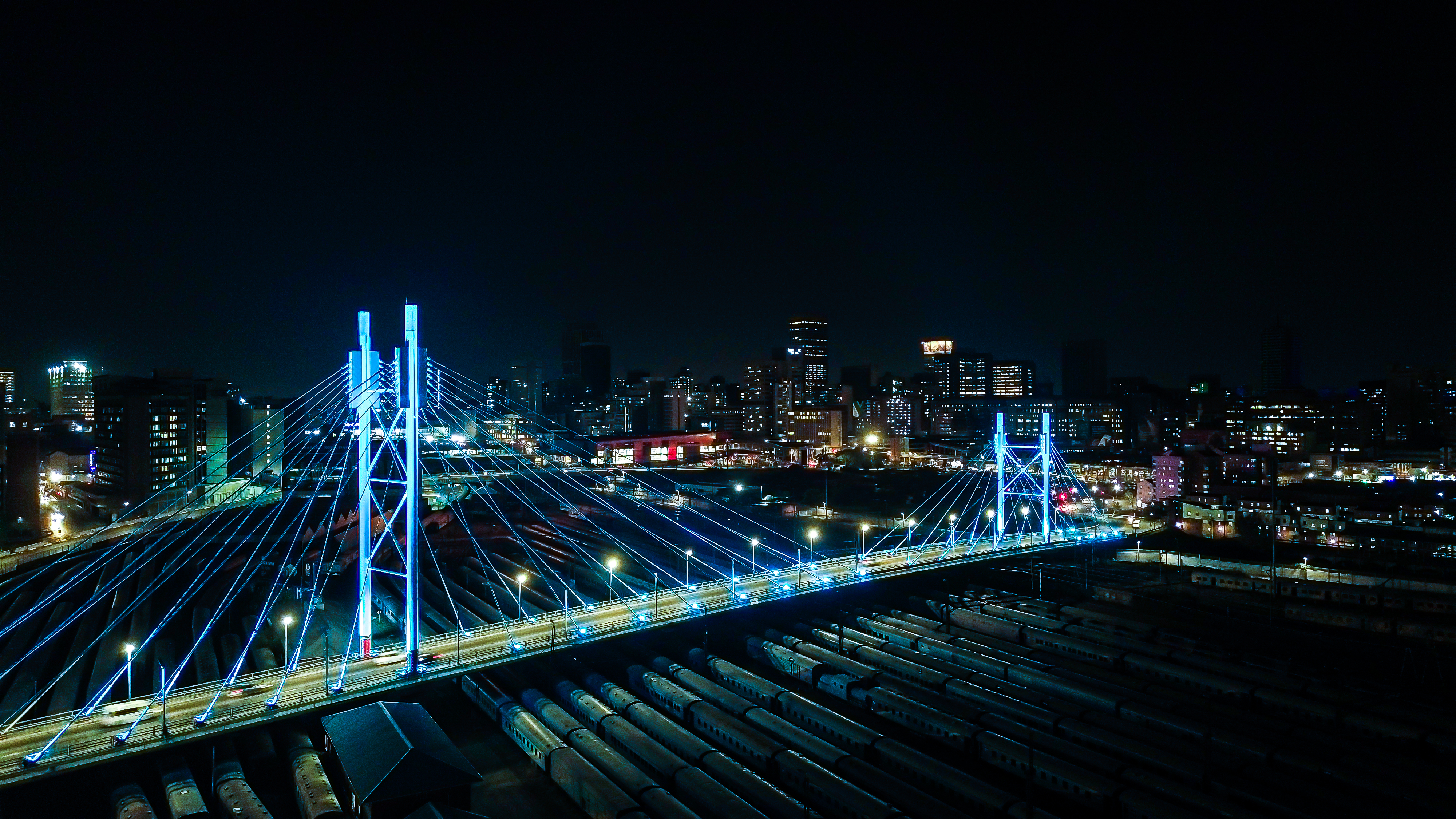

Nelson Mandela Bridge Light Blue
Application pictures

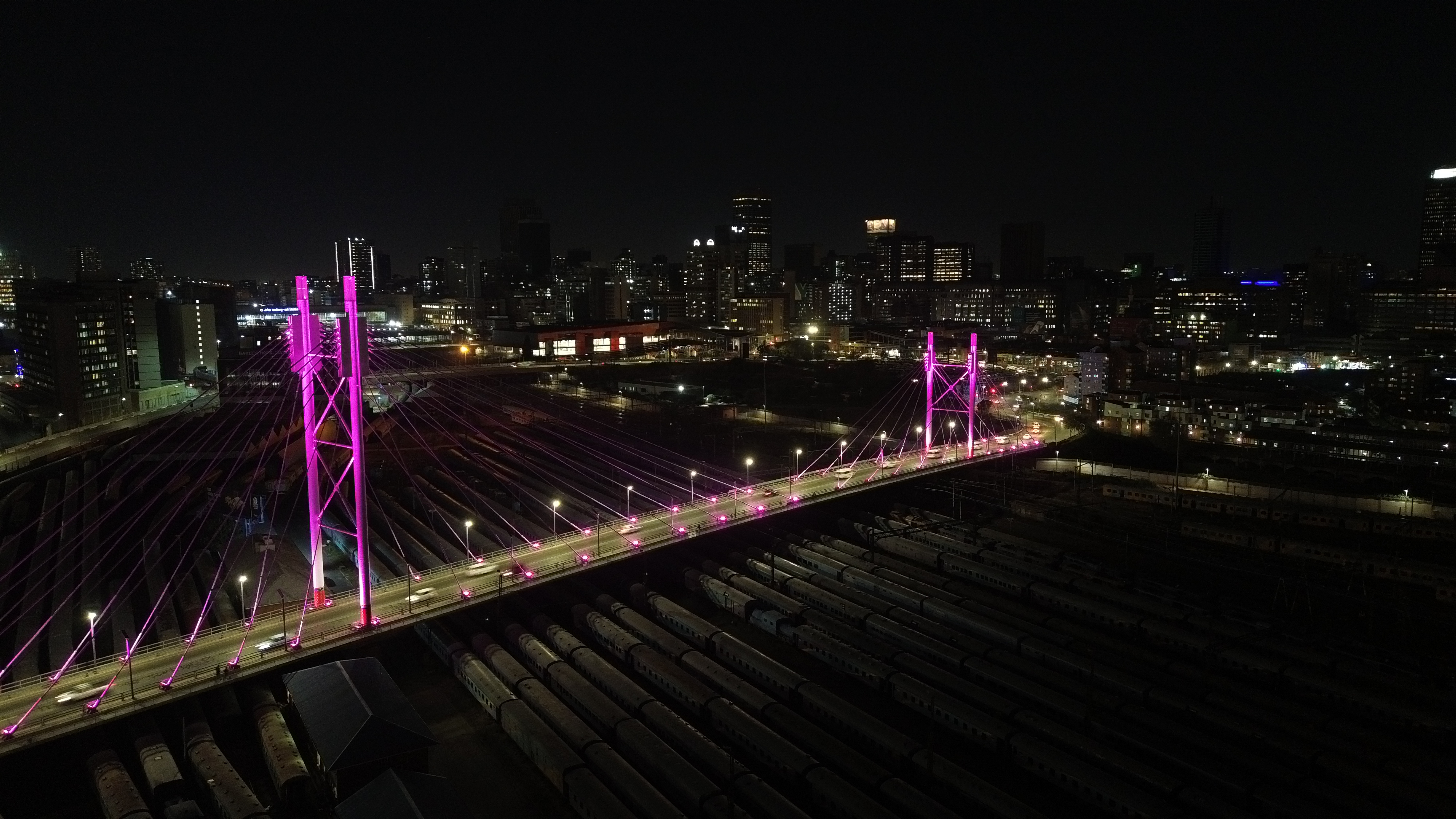

Nelson Mandela Bridge Purple
Application pictures

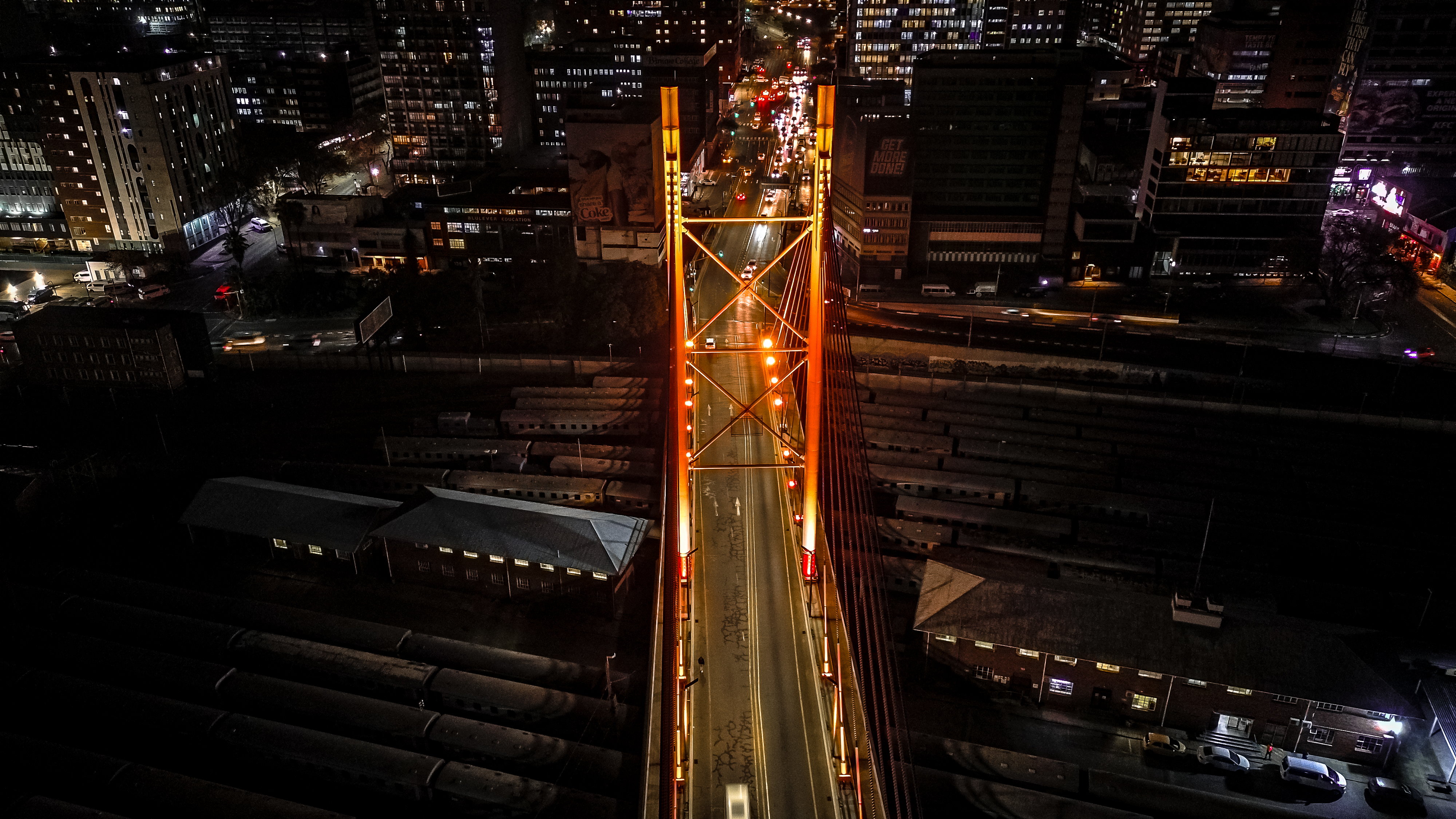

Nelson Mandela Bridge Orange
Application pictures

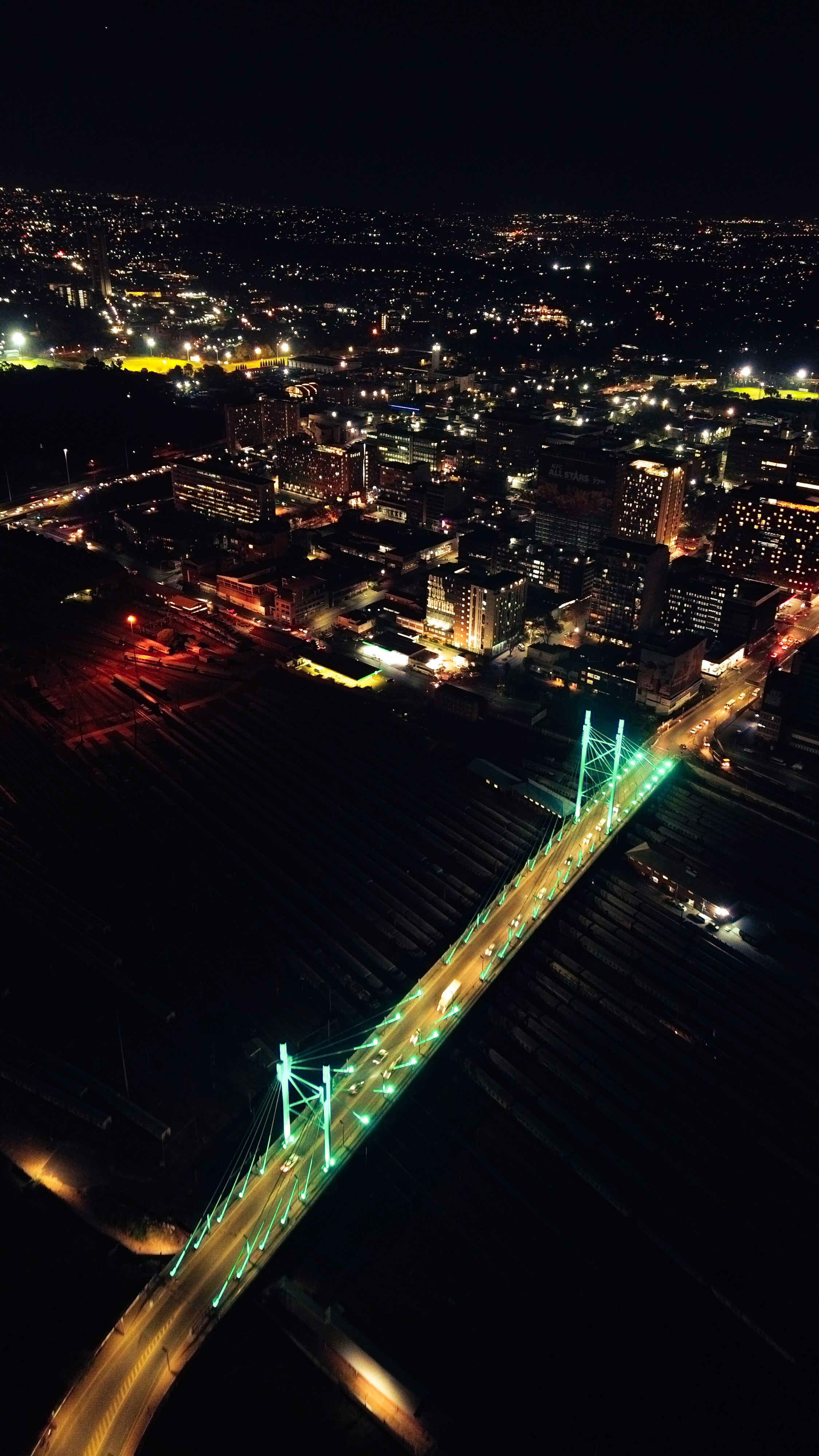

Nelson Mandela Bridge Potrait Green
EAN AU model number
4058075563063 P-SOLST-60-740
