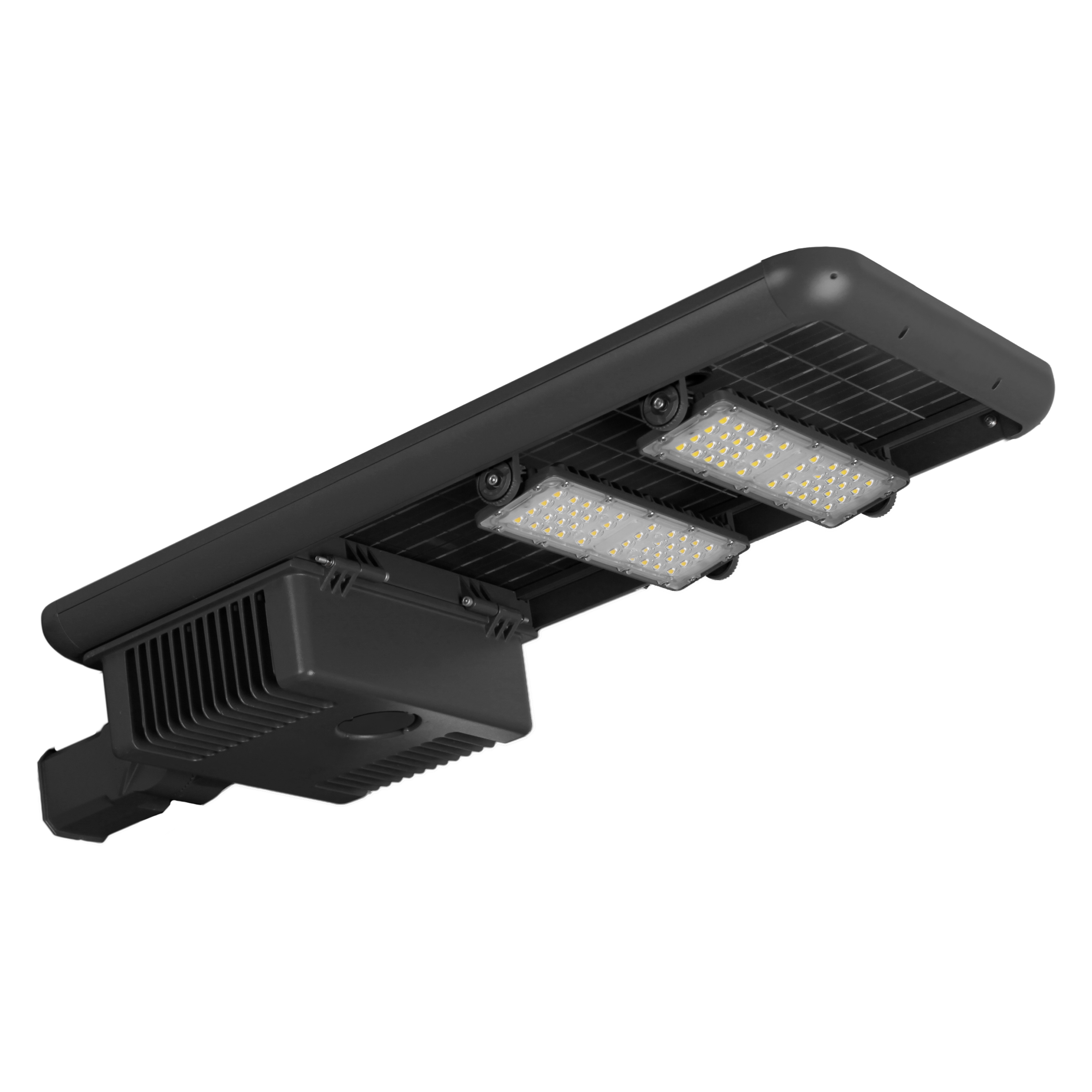

LED PERFORMANCE SOLAR STREETLIGHT
LDPFM SOLAR ST 30.00 W/3000 K
GTIN: 4058075562950
출고단위포장 / 1
Show all packages
5년 보증
PRODUCT DETAILS
Product benefits
- All-in-one design, no wiring required, flexible installation
- Extremely high system luminous efficacy 185 lm-W to maximize the battery performance
- Rotatable LED module, ensures the light to reach the target surface amply
- Grade A bifacial monocrystalline solar panel, higher sunlight absorbing efficiency than single-sided monocrystalline solar panel
- Adjustable install arm, multi-angle adjustment, make solar panel easy to apply to sunlight trajectory from different directions
Areas of application
- 도로
- 도로 조명
- Rural areas, villages
- Parks
- 전원 공급 장치가 없는 공간
제품특징
- System wattage 10 W, 20 W, 30 W, 40 W, 50 W and 60 W
- 배터리 기술 : LiFePO4
- Battery overcharge, overdischarge, overheat and short circuit protections
- 움직임 감지 센서 장착형/비장착형 구비
- Meet ME4 road lighting class requirement thanks to professional optical design
- Intelligent controller, rainy day intelligent delay
- Automatically on-off according to brightness of daylight
- 보호 유형: IP66
- 인증: CB
Electrical data
| 공칭 전력 | 30,00 W |
| 보호등급 | III |
| 동작 방식 | Battery |
Photometrical data
| 광속 | 5550 lm |
| 광효율 | 185 lm/W |
| 색온도 | 3000 K |
| 광색 (지정) | 흰색 |
| 연색지수 Ra | > 70 |
| 배색 표준 편차 | < 5 sdcm |
| 빔각도 | 30 ° x 150 ° |
Dimensions & Weight
| 길이 | 897,00 mm |
| 높이 | 130,00 mm |
| 너비 | 358,00 mm |
| 제품무게 | 12900,00 g |
Materials & Colors
| 제품색상 | Grey |
| 하우징 색상 | Grey |
| 제품 소재 | Aluminum |
| 커버 소재 | Polycarbonate (PC) |
| 램프 수은함유량 | 0.0 mg |
Application & Mounting
| 주위 온도 범위 | 0…+50 °C |
| 보호타입 | IP66 |
| 보호 등급 IK (충격방지) [PIM] | IK07 |
| Dimmable | No |
| 설치 타입 | Side entry |
| 장착 위치 | 기둥 |
| Application environment [GMS] | Outdoor |
| Replaceable light source | No |
BATTERY
| Battery size [GMS] | Others |
Certificates & Standards
| 표준 | CB |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| 제품 코드 | 패키징 단위 (수량/단위) | 규격 (길이 x 너비 x 높이9 | Gross weight | Volume |
|---|---|---|---|---|
| 4058075562950 | 출고단위포장 1 |
950 mm x 443 mm x 184 mm | 14650.00 g | 77.44 dm³ |
User instruction / safety instructions
LED PERFORMANCE SOLAR STREETLIGHT
LED PERFORMANCE SOLAR STREETLIGHT
Product image: white background, spacial
LDPFM SOLAR ST 30W
LDPFM SOLAR ST 30W
Product line drawing with numbers
LDPFM SOLAR ST 30W
LDPFM SOLAR ST 30W
IES file (IES)
LDPFM SOLAR ST 30W
LDPFM SOLAR ST 30W
| EAN | AU model number |
|---|---|
| 4058075562950 | P-SOLST-30-730 |
