Undercabinet Triangle
Undercabinet Triangle 11.5W CCT DIM Silver
GTIN: 4099854856280
개별포장박스 / 1
Show all packages
5년 보증
PRODUCT DETAILS
Product benefits
- 단순 플러그 시스템 사용으로 쉽고 빠르게 병렬 연결 가능
- Highly versatile due to selectable color
Areas of application
- Kitchens, Living areas, Shelf and undercabinet lighting
제품특징
- Triangular undercabinet luminaire in a classic design in a 3-pack
- Color temperature adjustable in two steps
- Switch on and off and color change by movements with max. 5 cm distance in front of the infrared motion sensor
- Dimming by covering the infrared motion sensor for at least one second
- 수명: 최대 30,000 시간
Equipment / Accessories
- 설치 및 연결용 액세서리 완벽 구성
Safety advice
- If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by a qualified person in order to avoid a hazard.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Electrical data
| 공칭 전력 | 11,50 W |
| 공칭 전압 | 220…240 V |
| 일반 주파수 | 50/60 Hz |
| 공칭 전류 | 77 mA |
| IP 돌입 전류 | 16.6 A |
| 돌입 전류시간 Th50 | 144 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 31 |
| 회로 차단기의 최대 등기구 수 C10 A | 28 |
| Max. number of luminaires per miniature circuit breaker C16 | 36 |
| 역률 λ | > 0,5 |
| 전고조파왜율(THD) | 130 % |
| 보호등급 | II |
| 동작 방식 | Mains voltage |
Photometrical data
| 광속 | 630 lm |
| Total luminous flux of contained light sources | 1170 lm |
| 광효율 | 54 lm/W |
| 색온도 | 2700 K / 4000 K |
| Reference control setting of contained light source (Kelvin) | 4000 K |
| 광색 (지정) | 온백색; 백색 |
| 연색지수 Ra | > 80 |
| 배색 표준 편차 | < 6 sdcm |
| 광생물학적 안전그룹에 따라 EN62778 | RG0 |
| 빔각도 | 120 ° |
Dimensions & Weight
| 길이 | 130,00 mm |
| 높이 | 35,00 mm |
| 너비 | 125,00 mm |
| 제품무게 | 390,00 g |
Materials & Colors
| 제품색상 | Silver |
| 하우징 색상 | Silver |
| 제품 소재 | L (ABS) |
| 커버 소재 | Polycarbonate (PC) |
| IEC 60695-2-12 발광와이어테스트 | 650 °C |
Application & Mounting
| 주위 온도 범위 | -20…+40 °C |
| 연결타입 | Plug type C (EU) |
| 보호타입 | IP20 |
| Dimmable | Yes |
| Type of dimming [GMS] | PWM |
| 설치 타입 | Surface |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| 수명 L70/B50 @ 25 °C | 30000 h 1) |
| 점소등 주기 횟수 | 15000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Sensor
| 센서 타입 | 동작 |
| 센서 기술 | Infrared/Photocell |
| 센서 감지 앵글 | 90 ° |
| 모션 센서의 감지 범위 | 0.05 m |
Certificates & Standards
| 표면 온도 제한 | No |
| 교체가능한 LED 모듈 | 교체 불가 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| 제품 코드 | 패키징 단위 (수량/단위) | 규격 (길이 x 너비 x 높이9 | Gross weight | Volume |
|---|---|---|---|---|
| 4099854856280 | 개별포장박스 1 |
42 mm x 137 mm x 327 mm | 481.00 g | 1.88 dm³ |
| 4099854856297 | 출고단위포장 8 |
350 mm x 300 mm x 195 mm | 4068.00 g | 20.48 dm³ |
User instruction / safety instructions
LUM_UI_UNDERCABINET_TR IANGLE_OSRAM
LUM_UI_UNDERCABINET_TR IANGLE_OSRAM
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety insert G11220442
Safety insert G11220442
Product image: white background, upright
UNCABINET TRIANGLE 12.5W CCT DIM SI
UNCABINET TRIANGLE 12.5W CCT DIM SI

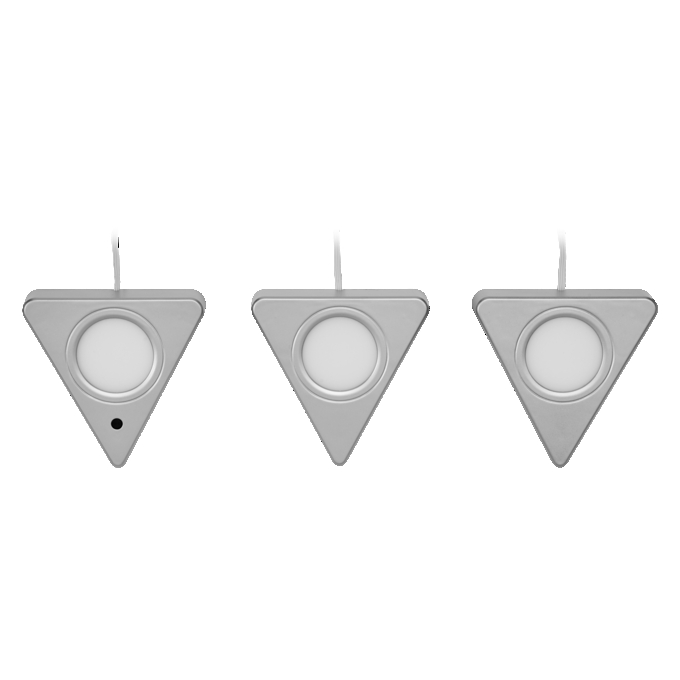

Product image: white background, upright, alternative image
UNCABINET TRIANGLE 12.5W CCT DIM SI
UNCABINET TRIANGLE 12.5W CCT DIM SI

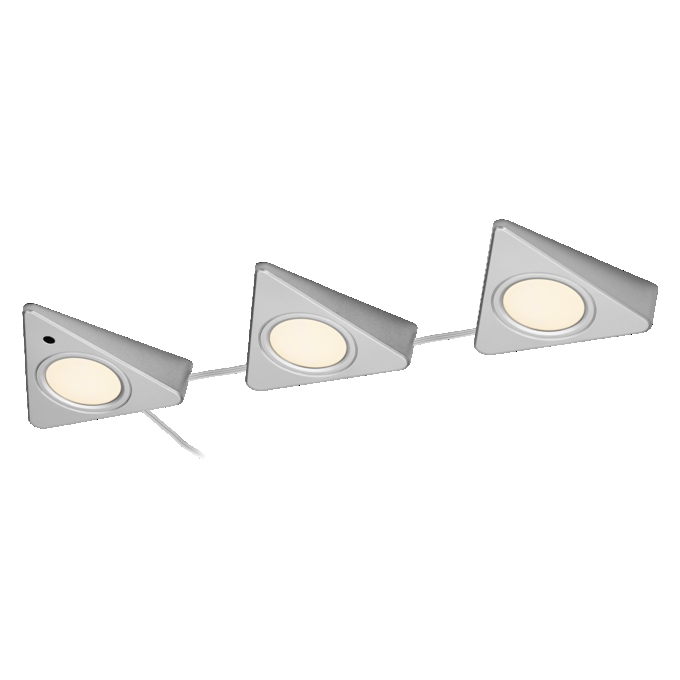

Product image: white background, upright, switched on
