Undercabinet Flexus Linear

Undercabinet Flexus Linear 4.2W CCT DIM White

GTIN: 4099854628146 개별포장박스 / 1 Show all packages
데이터 시트 다운로드
영업팀에 문의하기
5년 보증

PRODUCT DETAILS

Product benefits
  • Connection of up to 4 luminaires in a row via enclosed connector cable, also in combination with Flexus Spot
  • Highly versatile due to selectable color
Areas of application
  • Kitchens, Living areas, Shelf and undercabinet lighting
제품특징
  • 외장형 안정기를 사용하여 DC에서 구동하는 저전압용 조명 기구
  • Color temperature adjustable in three steps
  • Switch on and off and color change by movements with max. 5 cm distance in front of the infrared motion sensor
  • Stepless dimming by covering the infrared motion sensor for at least one second
  • Easy and fast mounting on nearly every surface (adhesive tape)
  • 수명: 최대 30,000 시간
Equipment / Accessories
  • 설치 및 연결용 액세서리 완벽 구성
Safety advice
  • If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by a qualified person in order to avoid a hazard.
  • To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Electrical data
공칭 전력 4,20 W
공칭 전압 220…240 V
공칭 전류 36 mA
IP 돌입 전류 0.0357 A
돌입 전류시간 Th50 112 µs
Max. number of luminaires per miniature circuit breaker B16 27
Max. number of luminaires per miniature circuit breaker C16 33
역률 λ ≥0,5
전고조파왜율(THD) ≤ 170 %
보호등급 II
동작 방식 Mains voltage
Photometrical data
광속 150 lm
Total luminous flux of contained light sources 300 lm
광효율 36 lm/W
색온도 2700 K / 4000 K / 5000 K
광색 (지정) 온백색; 백색; 주광색
연색지수 Ra > 80
배색 표준 편차 6 sdcm
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0.4
광생물학적 안전그룹에 따라 EN62778 RG0
Dimensions & Weight
길이 300 mm
높이 6,00 mm
너비 40,00 mm
제품무게 176,00 g
Materials & Colors
제품색상 화이트
하우징 색상 화이트
제품 소재 L 알루미늄|ABS
커버 소재 Polycarbonate (PC)
IEC 60695-2-12 발광와이어테스트 650 °C
램프 수은함유량 0.0 mg
Application & Mounting
주위 온도 범위 -20…+40 °C
연결타입 Plug type C (EU)
보호타입 IP20
Dimmable Yes
설치 타입 Surface
With light source Yes
Replaceable light source No
Lifespan
수명 L70/B50 @ 25 °C 30000 h 1)
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Sensor
센서 타입 Infrared sensor
센서 기술 Infrared/Photocell
Emergency lighting
Type of emergency operation test 없음
Certificates & Standards
표준 CE
표면 온도 제한 No
교체가능한 LED 모듈 교체 불가
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
제품 코드 패키징 단위 (수량/단위) 규격 (길이 x 너비 x 높이9 Gross weight Volume
4099854628146 개별포장박스
1		 70 mm x 52 mm x 340 mm 230.00 g 1.24 dm³
4099854628153 출고단위포장
8		 360 mm x 235 mm x 160 mm 2249.00 g 13.54 dm³
User instruction / safety instructions
G11242453_LUM_UI_UNDER CABINET_FLEXUS_LIN_OSR AM_03_www
PDF (923.63 KB)
Legal information
Safety Insert G11244409
PDF (175.82 KB)
Legal information
Informationstext 18 Abs 4 ElektroG
PDF (435.15 KB)
Declarations of conformity
UNDERCABINET
PDF (417.2 KB)
Product image: white background, upright
UNCABINET EASYLINE LIN4.2W CCTDIMWTOSRAM
JPG (326.27 KB)
Product image: white background, upright, alternative image
UNCABINET EASYLINE LIN4.2W CCTDIMWTOSRAM
JPG (325.75 KB)
Product image: white background, upright, switched on
UNCABINET EASYLINE LIN4.2W CCTDIMWTOSRAM
JPG (330.47 KB)
Product image: white background, upright, switched on
UNCABINET EASYLINE LIN4.2W CCTDIMWTOSRAM
JPG (328.3 KB)
Product line drawing with letters
UNCABINET EASYLINE LIN4.2W CCTDIMBKOSRAM
SVG (61.51 KB)
Product line drawing with numbers
UNCABINET EASYLINE LIN4.2W CCTDIMBKOSRAM
SVG (63.86 KB)
Product line drawing, front, no dimensions
UNCABINET EASYLINE LIN4.2W CCTDIMBKOSRAM
SVG (55.8 KB)
Combo Shot = Product Beauty Shot + Packaging Image
UNCABINET FLEXUS LIN CCTDIMWT FC OSRAM
JPG (485.69 KB)

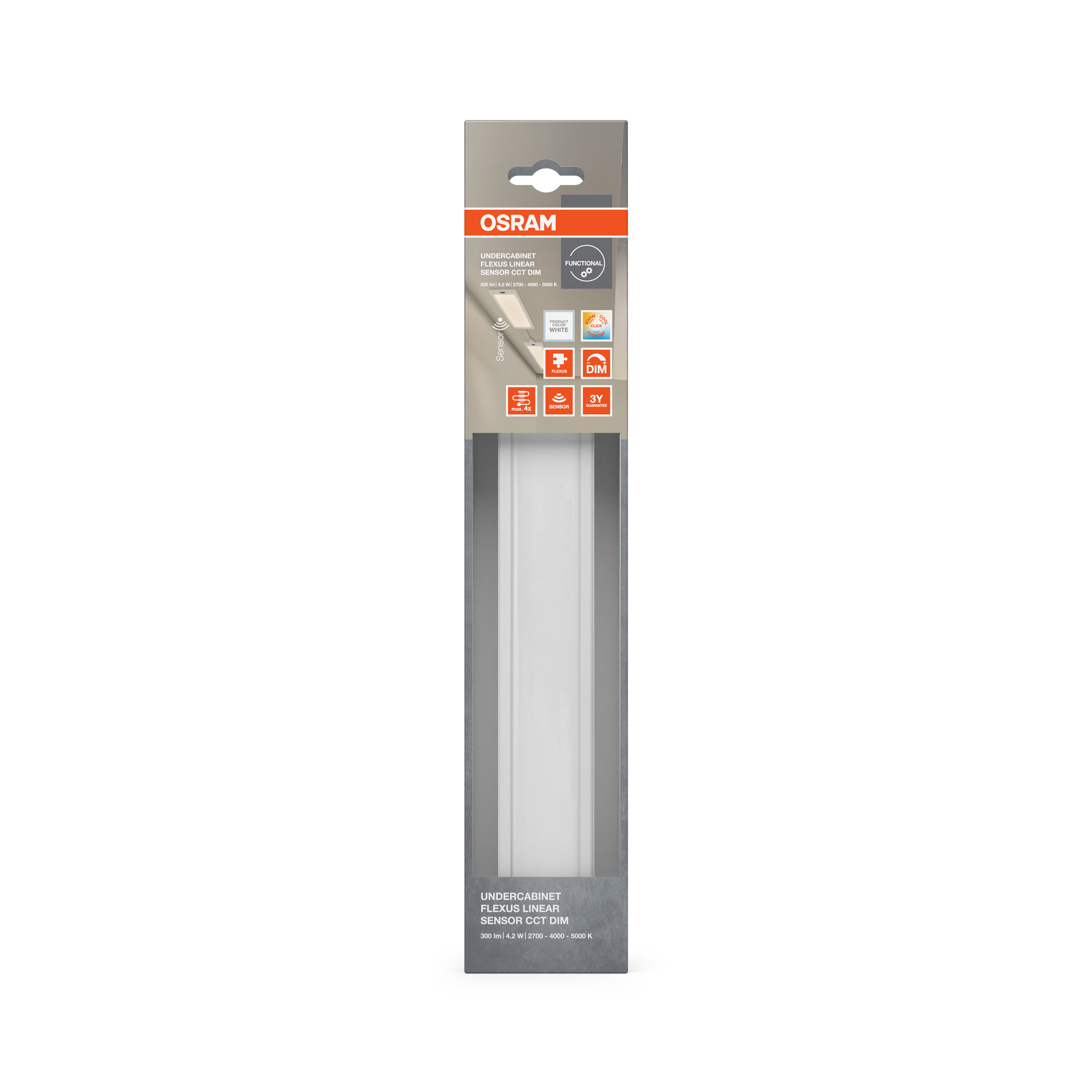

Packaging image, frontal
UNCABINET FLEXUS LIN CCTDIMWT FC OSRAM
JPG (430.63 KB)

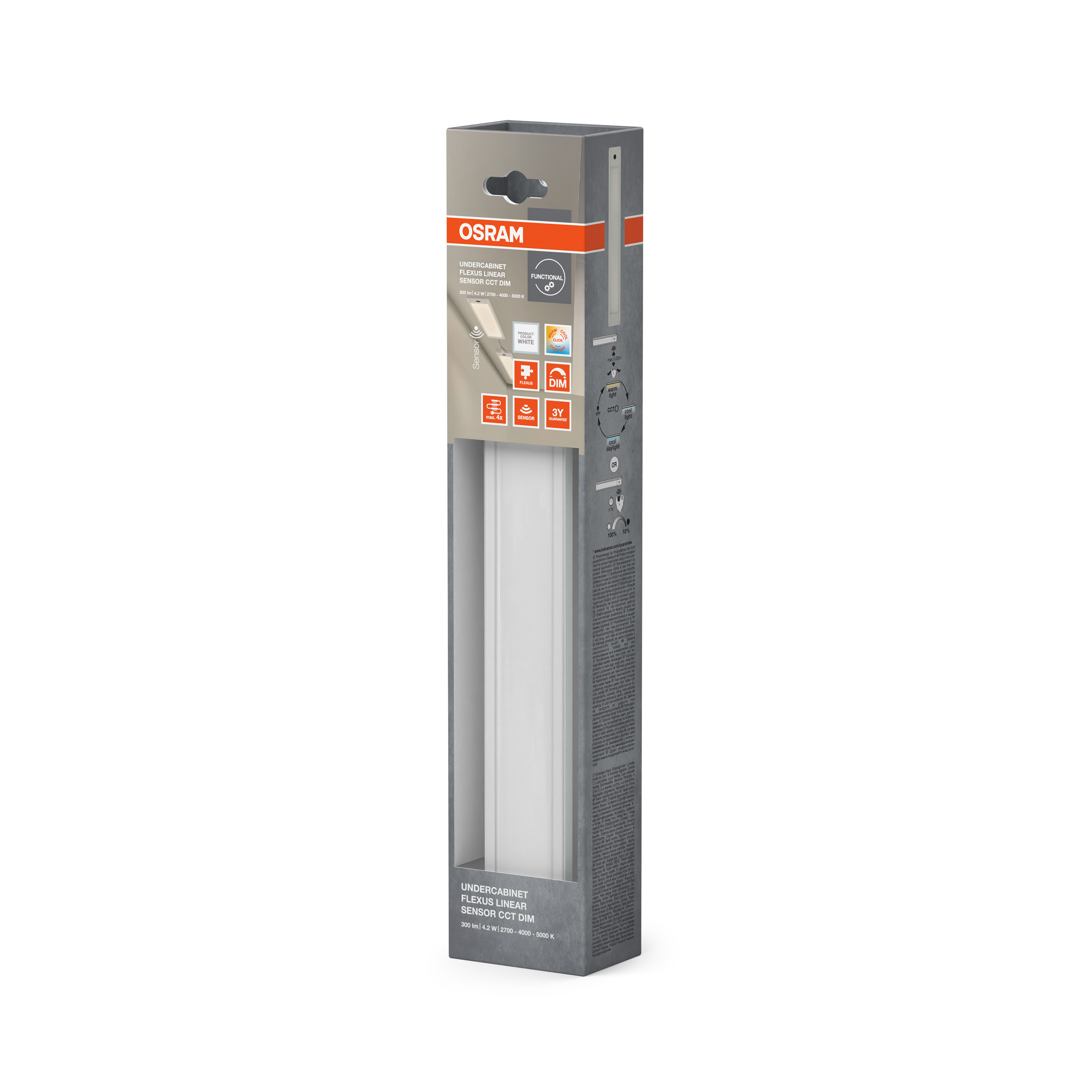

Packaging image, spacial
