Bulkhead Core
LED Bulkhead Core Eyelid 16W 840 White
GTIN: 4099854690327
개별포장박스 / 1
Show all packages
5년 보증
PRODUCT DETAILS
Product benefits
- LED 기술 덕분에 에너지 효율적임
- Thanks to protection class IP65 the luminaire is completely dust-tight and protected against water jets from all directions
- IP 등급이 높아 먼지가 많고 습한 장소에서 사용하기에 적합함
- 쉽고 빠른 설치
Areas of application
- 지하실, 차고, 창고 등
- 입구
- 옥외
제품특징
- Bright and functional indoor and outdoor LED luminaire
- 보호 유형: IP65
- 내충격성: IK10
Equipment / Accessories
- 설치 및 연결용 액세서리 완벽 구성
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| 공칭 전력 | 16,00 W |
| 공칭 전압 | 220…240 V |
| 일반 주파수 | 50…60 Hz |
| 공칭 전류 | 90,000 mA |
| IP 돌입 전류 | 20 A |
| 돌입 전류시간 Th50 | 150 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 30 |
| 회로 차단기의 최대 등기구 수 C10 A | 24 |
| Max. number of luminaires per miniature circuit breaker C16 | 38 |
| 역률 λ | > 0,70 |
| 보호등급 | II |
| 동작 방식 | Mains voltage |
Photometrical data
| 광속 | 1000 lm |
| Total luminous flux of contained light sources | 2350 lm |
| 광효율 | 62 lm/W |
| 색온도 | 4000 K |
| 광색 (지정) | 백색 |
| 연색지수 Ra | ≥80 |
| 배색 표준 편차 | 6 sdcm |
| Flickering metric (Pst LM) | <5 % |
| Stroboscope effect metric (SVM) | <0.4 |
| 광생물학적 안전그룹에 따라 EN62778 | RG0 |
| 빔각도 | 120 ° |
Dimensions & Weight
| 지름 | 325,00 mm |
| 높이 | 90,00 mm |
| 제품무게 | 720,00 g |
Materials & Colors
| 제품색상 | 화이트 |
| 하우징 색상 | 화이트 |
| 제품 소재 | Polycarbonate (PC) |
| 커버 소재 | Polycarbonate (PC) |
| IEC 60695-2-12 발광와이어테스트 | 650 °C |
Application & Mounting
| 주위 온도 범위 | -20…+40 °C |
| 보관 온도 범위 | -20…+80 °C |
| 연결타입 | Terminal, 2-Pole (L, N) |
| 보호타입 | IP65 |
| 보호 등급 IK (충격방지) [PIM] | IK10 |
| Dimmable | No |
| 설치 타입 | Surface |
| 장착 위치 | 벽체; 천장 |
| Application environment [GMS] | Indoor |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| 수명 L70/B50 @ 25 °C | 54000 h 1) |
| 점소등 주기 횟수 | 25000 |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Emergency lighting
| Type of emergency operation test | 없음 |
Certificates & Standards
| 표준 | CE; UKCA |
| 표면 온도 제한 | No |
| 볼 샷 세이프 | No |
| 교체가능한 LED 모듈 | 교체 불가 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| 제품 코드 | 패키징 단위 (수량/단위) | 규격 (길이 x 너비 x 높이9 | Gross weight | Volume |
|---|---|---|---|---|
| 4099854690327 | 개별포장박스 1 |
337 mm x 97 mm x 337 mm | 951.00 g | 11.02 dm³ |
| 4099854690334 | 출고단위포장 10 |
692 mm x 507 mm x 360 mm | 10903.00 g | 126.30 dm³ |
User instruction / safety instructions
G11252024_LED BULKHEAD CORE
G11252024_LED BULKHEAD CORE
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety insert G11219301
Safety insert G11219301
Declarations of conformity
Declaration of Conformity CE_Bulkheads Core
Declaration of Conformity CE_Bulkheads Core
Product image: white background, upright
LED BULKHEAD CORE EYELID 16W 840 WT
LED BULKHEAD CORE EYELID 16W 840 WT
Product image: white background, upright, alternative image
LED BULKHEAD CORE EYELID 16W 840 WT
LED BULKHEAD CORE EYELID 16W 840 WT
Product image: white background, upright, switched on
LED BULKHEAD CORE EYELID 16W 840 WT
LED BULKHEAD CORE EYELID 16W 840 WT
Product line drawing with letters
LED BULKHEAD CORE EYELID 16W 840
LED BULKHEAD CORE EYELID 16W 840
Product line drawing with numbers
LED BULKHEAD CORE EYELID 16W 840
LED BULKHEAD CORE EYELID 16W 840
Product line drawing, front, no dimensions
LED BULKHEAD CORE EYELID 16W 840
LED BULKHEAD CORE EYELID 16W 840

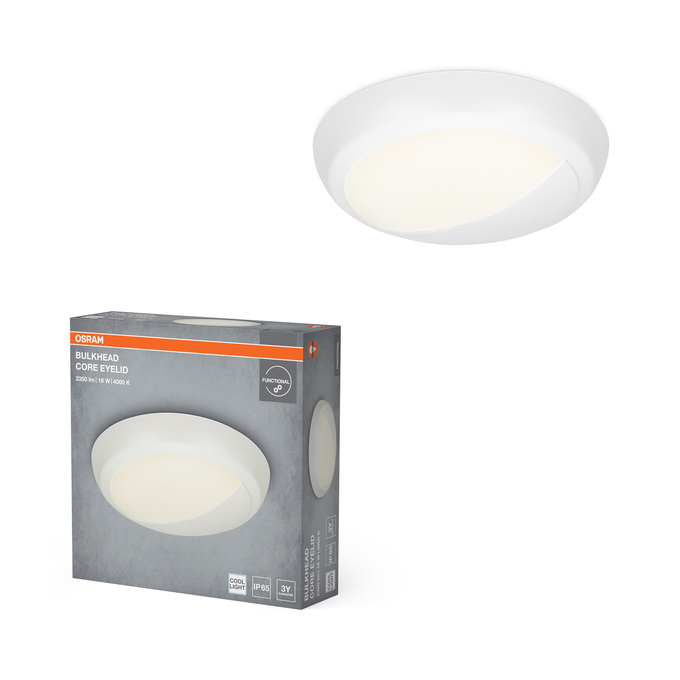

Combo Shot = Product Beauty Shot + Packaging Image
