Submarine I PRO ADV
Submarine Integrated PRO Advanced 120cm 36W Thruwiring Sensor CCT Remote Control
GTIN: 4099854870910
개별포장박스 / 1
Show all packages
5년 보증
PRODUCT DETAILS
Product benefits
- Easy installation and linking thanks to cover that can be simply opened
- 매우 균일한 조명
Areas of application
- 지하실, 차고, 창고 등
제품특징
- LED integrated Damp-proof luminaire for mains voltage operation
- 방진 기능 및 제트 프루프(IP65)
- PIR Motion sensor with adjustable detection parameters
- Possibility to connect up to 20 luminaires
- Light color selectable between 3000 K / 4000 K / 6500 K
- Controllable via Remote Control
Equipment / Accessories
- 설치 및 연결용 액세서리 완벽 구성
- 리모트 컨트롤러 및 배터리 포함
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| 공칭 전력 | 36,00 W |
| 공칭 전압 | 220…240 V |
| 일반 주파수 | 50…60 Hz |
| 공칭 전류 | 170,000 mA |
| IP 돌입 전류 | 50.8 A |
| 돌입 전류시간 Th50 | 104 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 14 |
| 회로 차단기의 최대 등기구 수 C10 A | 11 |
| Max. number of luminaires per miniature circuit breaker C16 | 18 |
| 역률 λ | > 0,5 |
| 전고조파왜율(THD) | < 20 % |
| 보호등급 | II |
| 동작 방식 | Mains voltage |
Photometrical data
| 광속 | 4320 lm |
| Total luminous flux of contained light sources | 5000 lm |
| 광효율 | 120 lm/W |
| 색온도 | 3000 K / 4000 K |
| Reference control setting of contained light source (Kelvin) | 4000 K |
| 광색 (지정) | 온백색; 백색 |
| 연색지수 Ra | > 80 |
| 배색 표준 편차 | < 5 sdcm |
| Flickering metric (Pst LM) | <1 |
| Stroboscope effect metric (SVM) | <0.4 |
| 광생물학적 안전그룹에 따라 EN62778 | RG0 |
| 빔각도 | 110 ° |
Dimensions & Weight
| 길이 | 1220,00 mm |
| 높이 | 51,40 mm |
| 너비 | 77,00 mm |
| 제품무게 | 610,00 g |
Materials & Colors
| 제품색상 | 화이트 |
| 하우징 색상 | 화이트 |
| 제품 소재 | Polycarbonate (PC) |
| 커버 소재 | Polycarbonate (PC) |
| IEC 60695-2-12 발광와이어테스트 | 850 °C |
Application & Mounting
| 주위 온도 범위 | -20…+40 °C |
| 보관 온도 범위 | -40…80 °C |
| 연결타입 | Terminal, 2-Pole (L, N) |
| 보호타입 | IP65 |
| 보호 등급 IK (충격방지) [PIM] | IK08 |
| Dimmable | No |
| 설치 타입 | Surface |
| 장착 위치 | 천장 |
| ETIM - Mounting height (EF003874) | 3.5 m |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| 수명 L70/B50 @ 25 °C | 40000 h 1) |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Sensor
| 센서 타입 | 동작 |
| 센서 기술 | Passive infrared (PIR) |
| 센서 감지 앵글 | 120 ° |
BATTERY
| Battery size [GMS] | CR2032 |
Certificates & Standards
| 표준 | CE; UKCA |
| 표면 온도 제한 | No |
| 볼 샷 세이프 | No |
| 교체가능한 LED 모듈 | 교체 불가 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Yes |
| List of substances of very high concern in concentrations greater than 0.1% in mass percentage | Lead (7439-92-1) |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| 제품 코드 | 패키징 단위 (수량/단위) | 규격 (길이 x 너비 x 높이9 | Gross weight | Volume |
|---|---|---|---|---|
| 4099854870910 | 개별포장박스 1 |
55 mm x 1,240 mm x 82 mm | 840.00 g | 5.59 dm³ |
| 4099854870927 | 출고단위포장 8 |
1,254 mm x 178 mm x 248 mm | 6430.00 g | 55.36 dm³ |
User instruction / safety instructions
User Instruction G11280200
User Instruction G11280200
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety insert G11221927
Safety insert G11221927
Legal information
Battery leaflet_G11222530
Battery leaflet_G11222530
Declarations of conformity
SUBMARINE I PRO
SUBMARINE I PRO

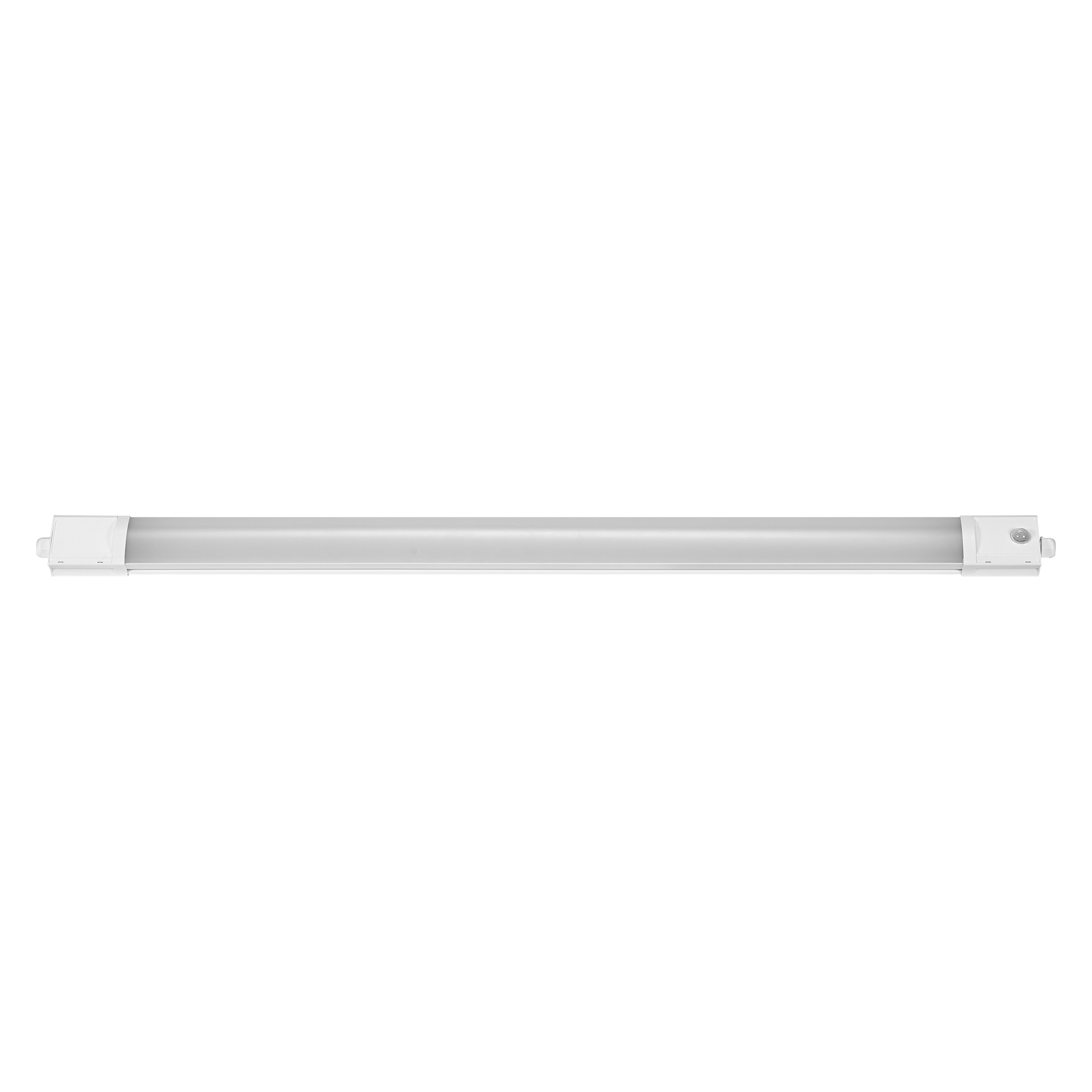

Product image: white background, upright
SUBMARINE I PRO SP 36W 120 EU PLUG
SUBMARINE I PRO SP 36W 120 EU PLUG

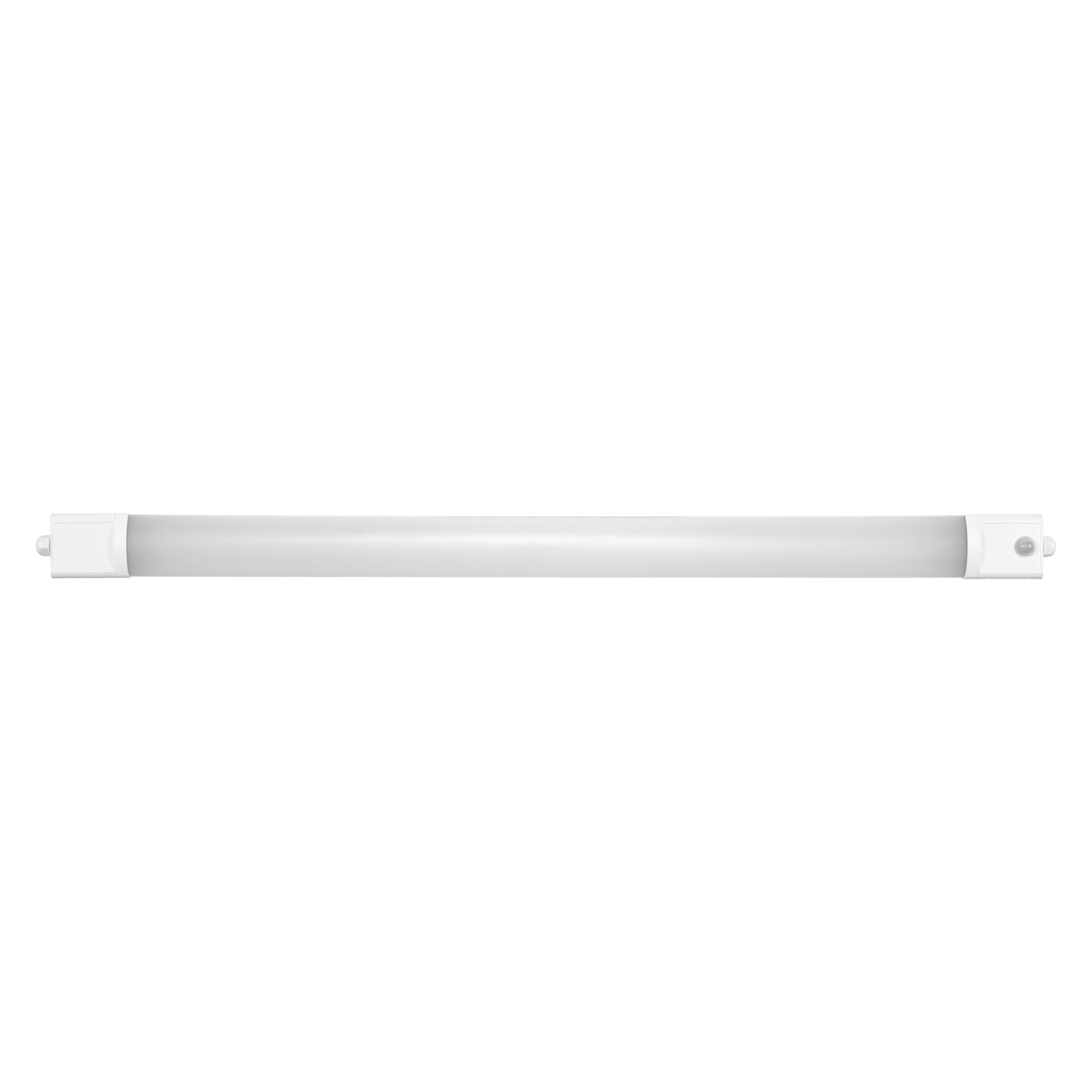

Product image: white background, upright, alternative image
SUBMARINE I PRO SP 36W 120 EU PLUG
SUBMARINE I PRO SP 36W 120 EU PLUG

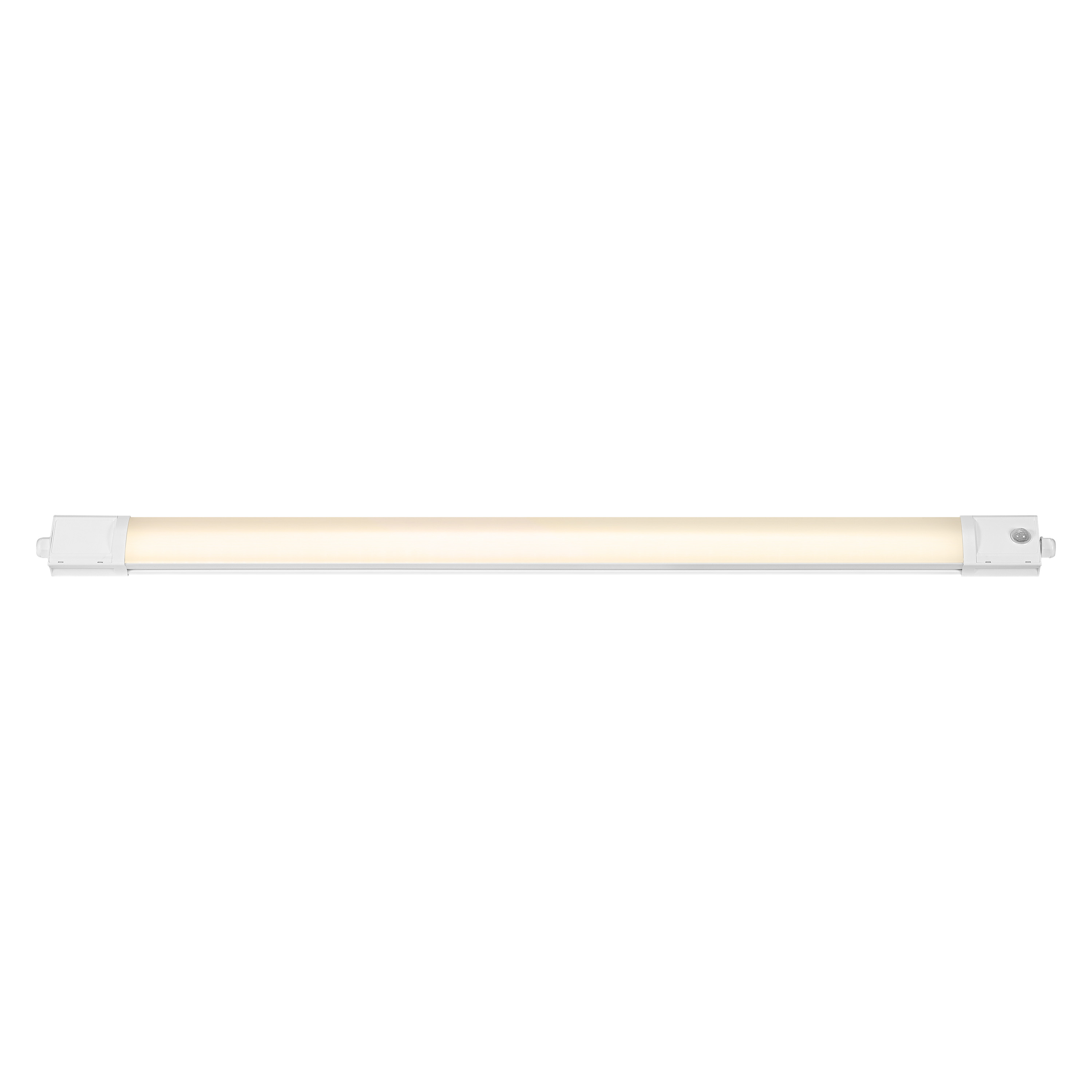

Product image: white background, upright, switched on
SUBMARINE I PRO SP 36W 120 EU PLUG
SUBMARINE I PRO SP 36W 120 EU PLUG
Product image: white background, upright, switched on
SUBMARINE I PRO SP 36W 120 EU PLUG
SUBMARINE I PRO SP 36W 120 EU PLUG

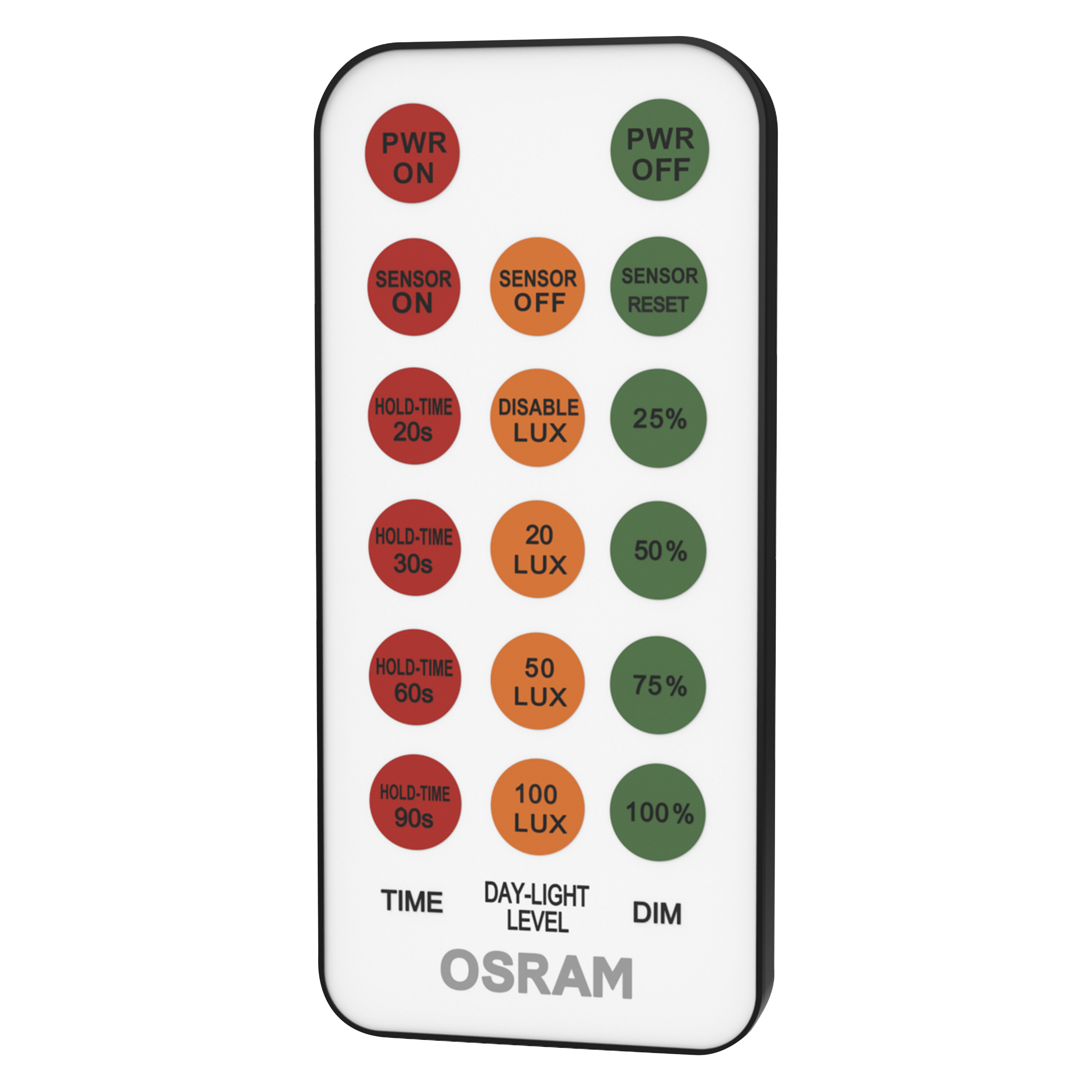

Product image: white background, with accessory, alternative image
SUBMARINE I PRO SP 36W 120 EU PLUG
SUBMARINE I PRO SP 36W 120 EU PLUG
Product line drawing with letters
SUBMARINE I PRO SP 36W 120 EU PLUG
SUBMARINE I PRO SP 36W 120 EU PLUG
Product line drawing with numbers
SUBMARINE I PRO SP 36W 120 EU PLUG
SUBMARINE I PRO SP 36W 120 EU PLUG
Product line drawing, front, no dimensions
SUBMARINE I PRO SP 36W 120 EU PLUG
SUBMARINE I PRO SP 36W 120 EU PLUG
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC SM I PRO ADV 36W TSCRC OSRAM
LUM FC SM I PRO ADV 36W TSCRC OSRAM
Packaging image, frontal
LUM FC SM I PRO ADV 36W TSCRC OSRAM
LUM FC SM I PRO ADV 36W TSCRC OSRAM
Packaging image, spacial
LUM FC SM I PRO ADV 36W TSCRC OSRAM
LUM FC SM I PRO ADV 36W TSCRC OSRAM
Guarantee Label
GL-4099854870910
GL-4099854870910

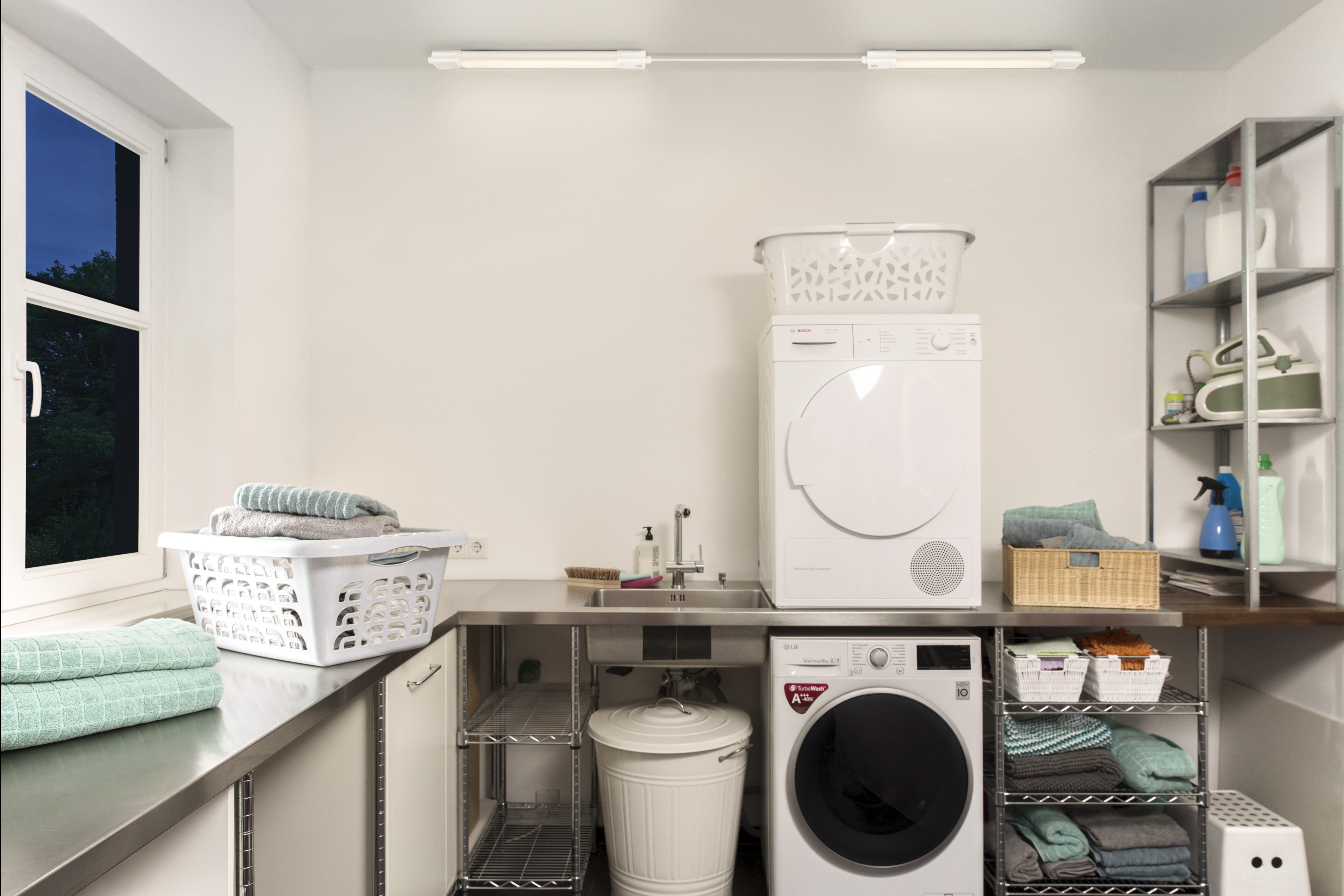

Application pictures
