NEW
PRODUCT DETAILS
Product benefits
- Cover ensures uniform light distribution
- 등기구에 스위치가 장착되어 있어 편리성 증대
- Flexible application due to a wide range of available lengths of 600 to 1200 mm
- Exchangeable light sources
Areas of application
- 실내 응용
- 벽 표면 및 천장 표면 장착
- 주방, 작업 공간
- 복도, 계단, 지하실
- 작업장
제품특징
- Replacement for traditional T5 luminaires
- 벽 및 천장 배튼 조명기기
- Lengths available: 0.6 m, 0.9 m, 1.2 m
Equipment / Accessories
- 설치 및 연결용 액세서리 완벽 구성
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- Check wall-ceiling for suitability. If uncertain, seek professional advice.
Electrical data
| 공칭 전력 | 13,00 W |
| 공칭 전압 | 220…240 V |
| 일반 주파수 | 50…60 Hz |
| 공칭 전류 | 59 mA |
| IP 돌입 전류 | 6.48 A |
| 돌입 전류시간 Th50 | 280 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 35 |
| 회로 차단기의 최대 등기구 수 C10 A | 34 |
| Max. number of luminaires per miniature circuit breaker C16 | 55 |
| 역률 λ | > 0,90 |
| 전고조파왜율(THD) | < 20 % |
| 보호등급 | I |
| 동작 방식 | Mains voltage |
Photometrical data
| 광속 | 1495 lm |
| Total luminous flux of contained light sources | 1690 lm |
| 광효율 | 115 lm/W |
| 색온도 | 4000 K |
| 광색 (지정) | 백색 |
| 연색지수 Ra | 80 |
| 배색 표준 편차 | < 6 sdcm |
| Flickering metric (Pst LM) | < 1 |
| Stroboscope effect metric (SVM) | < 0.4 |
| 광생물학적 안전그룹에 따라 EN62778 | RG1 |
Dimensions & Weight
| 길이 | 900,00 mm |
| 높이 | 53,00 mm |
| 너비 | 33,00 mm |
| 제품무게 | 480,00 g |
Materials & Colors
| 제품색상 | 화이트 |
| 하우징 색상 | 화이트 |
| 제품 소재 | Metal |
| 커버 소재 | Polycarbonate (PC) |
| IEC 60695-2-12 발광와이어테스트 | 650 °C |
Application & Mounting
| 주위 온도 범위 | -20…+45 °C |
| 연결타입 | Terminal, 3-Pole (L, N, PE) |
| 보호타입 | IP20 |
| 보호 등급 IK (충격방지) [PIM] | IK03 |
| Dimmable | No |
| 설치 타입 | Surface |
| 장착 위치 | 천장 |
| With light source | Yes |
| Replaceable light source | No |
| 홀더 지정 | G5 |
Lifespan
| 수명 L70/B50 @ 25 °C | 50000 h 1) |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Certificates & Standards
| 표준 | CE; UKCA |
| 표면 온도 제한 | No |
| 볼 샷 세이프 | No |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| 제품 코드 | 패키징 단위 (수량/단위) | 규격 (길이 x 너비 x 높이9 | Gross weight | Volume |
|---|---|---|---|---|
| 4099854880070 | 개별포장박스 1 |
47 mm x 60 mm x 926 mm | 595.00 g | 2.61 dm³ |
| 4099854880087 | 출고단위포장 15 |
942 mm x 247 mm x 208 mm | 9784.00 g | 48.40 dm³ |
User instruction / safety instructions
LED BATTEN
LED BATTEN
Legal information
Informationstext 18 Abs 4 ElektroG
Informationstext 18 Abs 4 ElektroG
Legal information
Safety Insert G11264856
Safety Insert G11264856
Declarations of conformity
Declarations of Conformity_LED BATTEN
Declarations of Conformity_LED BATTEN

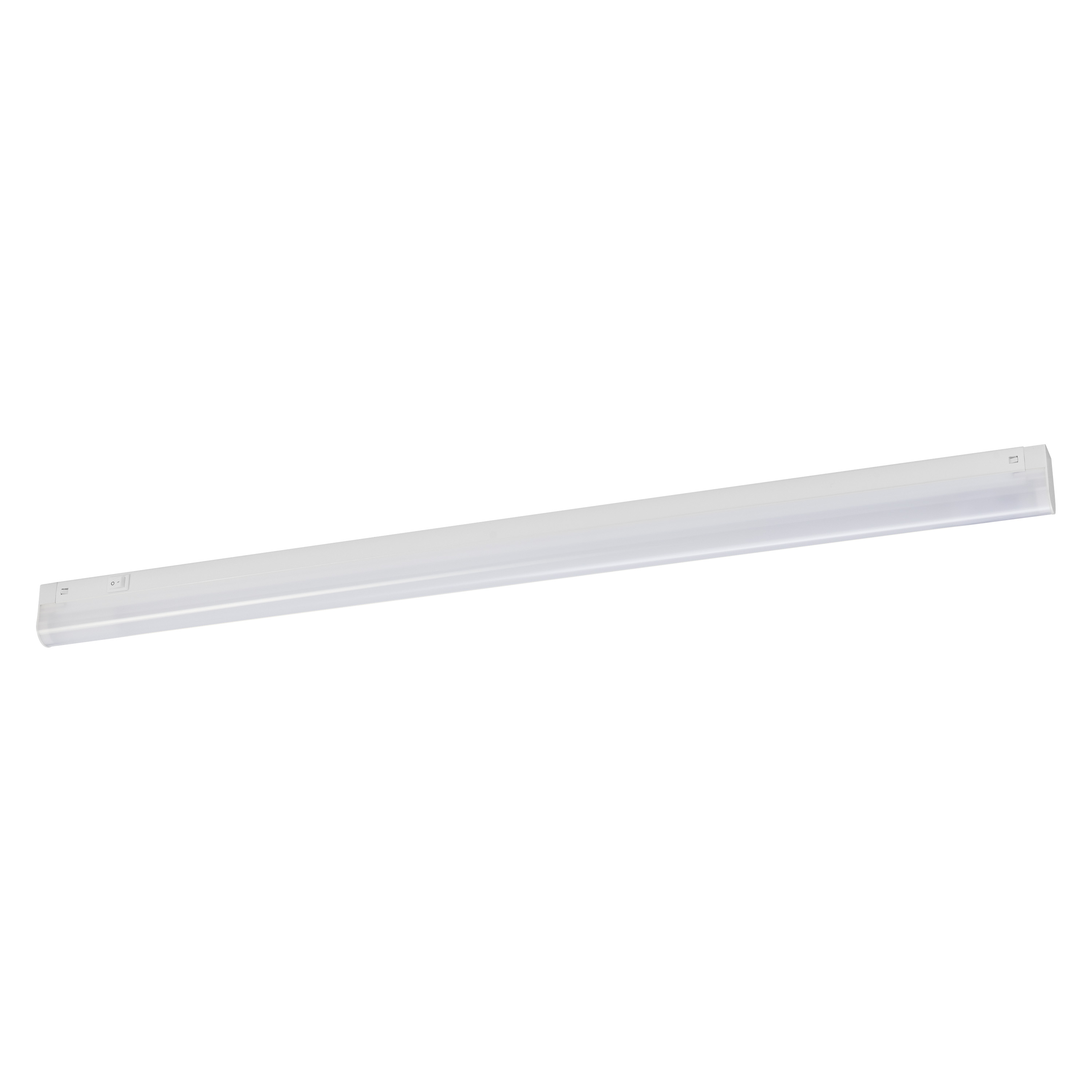

Product image: white background, upright
LED BATTEN 90CM 13W 840 G5 T5
LED BATTEN 90CM 13W 840 G5 T5

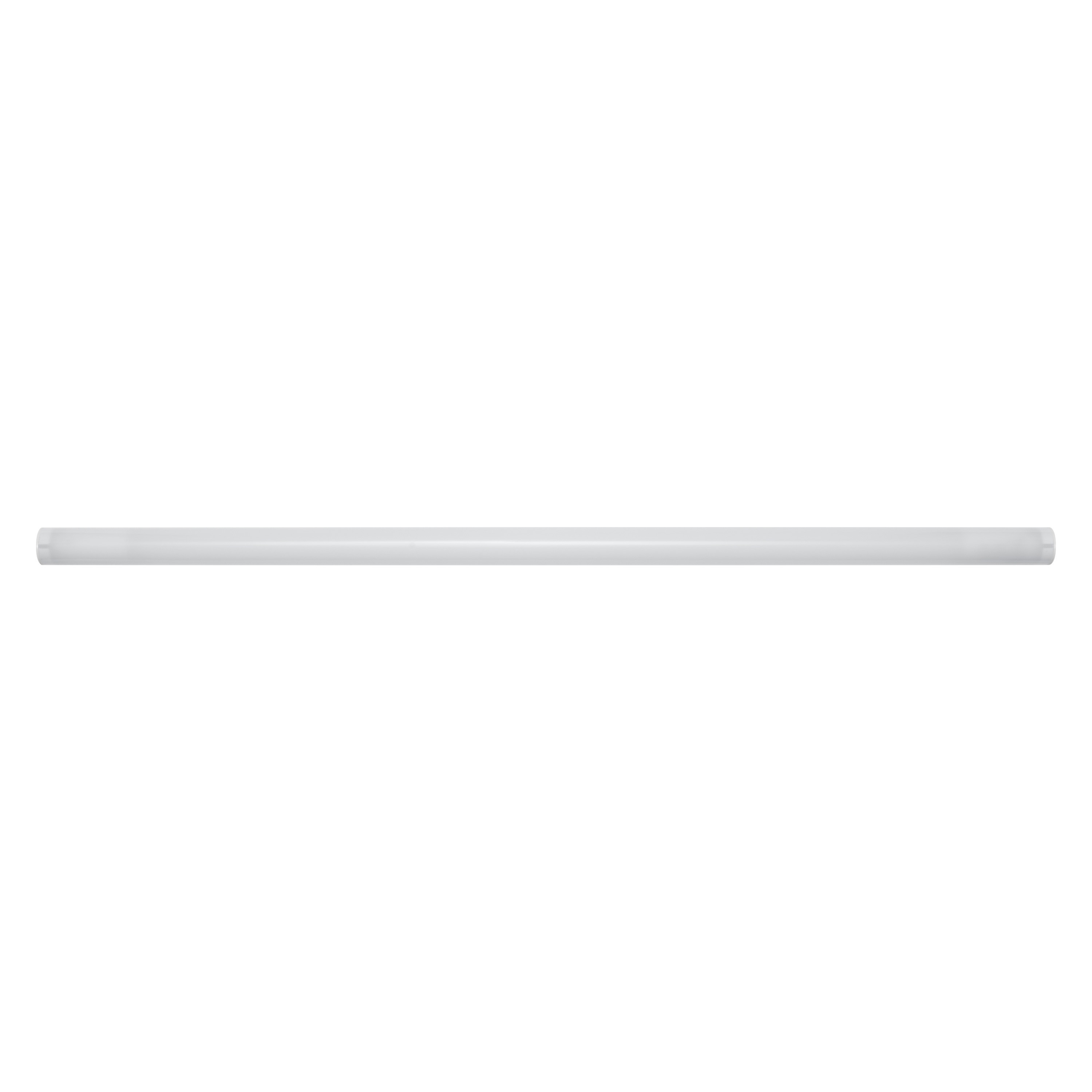

Product image: white background, upright, alternative image
LED BATTEN 90CM 13W 840 G5 T5
LED BATTEN 90CM 13W 840 G5 T5

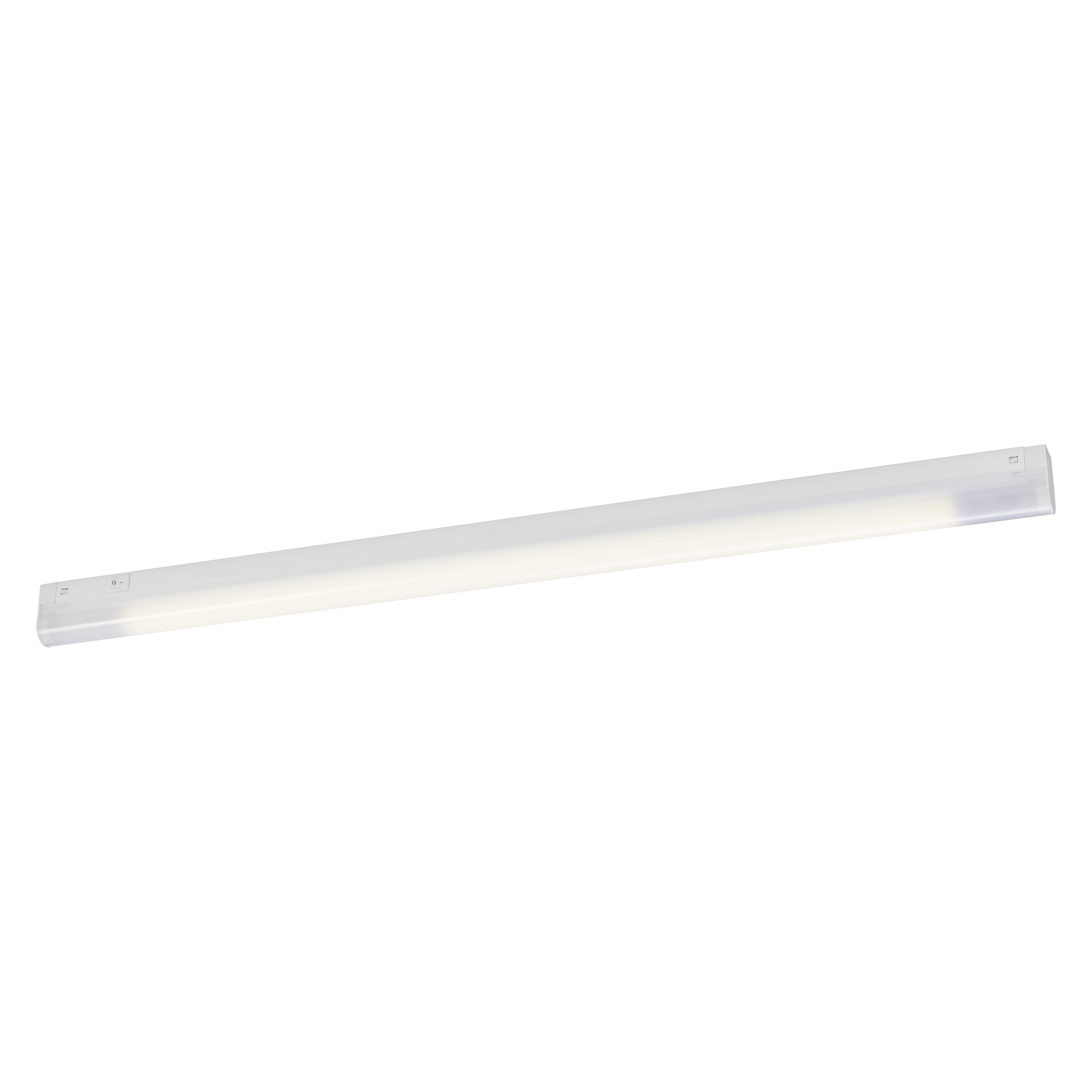

Product image: white background, upright, switched on
LED BATTEN 90CM 13W 840 G5 T5
LED BATTEN 90CM 13W 840 G5 T5
Product line drawing with letters
LED BATTEN 120CM 18W 840 G5 T5
LED BATTEN 120CM 18W 840 G5 T5
Product line drawing with numbers
LED BATTEN 90CM 13W 840 G5 T5
LED BATTEN 90CM 13W 840 G5 T5
Product line drawing, front, no dimensions
LED BATTEN 120CM 18W 840 G5 T5
LED BATTEN 120CM 18W 840 G5 T5
Combo Shot = Product Beauty Shot + Packaging Image
LUM FC BATTEN 90 840 G5 T5 OSRAM
LUM FC BATTEN 90 840 G5 T5 OSRAM
Packaging image, frontal
LUM FC BATTEN 90 840 G5 T5 OSRAM
LUM FC BATTEN 90 840 G5 T5 OSRAM
Packaging image, spacial
LUM FC BATTEN 90 840 G5 T5 OSRAM
LUM FC BATTEN 90 840 G5 T5 OSRAM
Guarantee Label
GL-4099854880070
GL-4099854880070

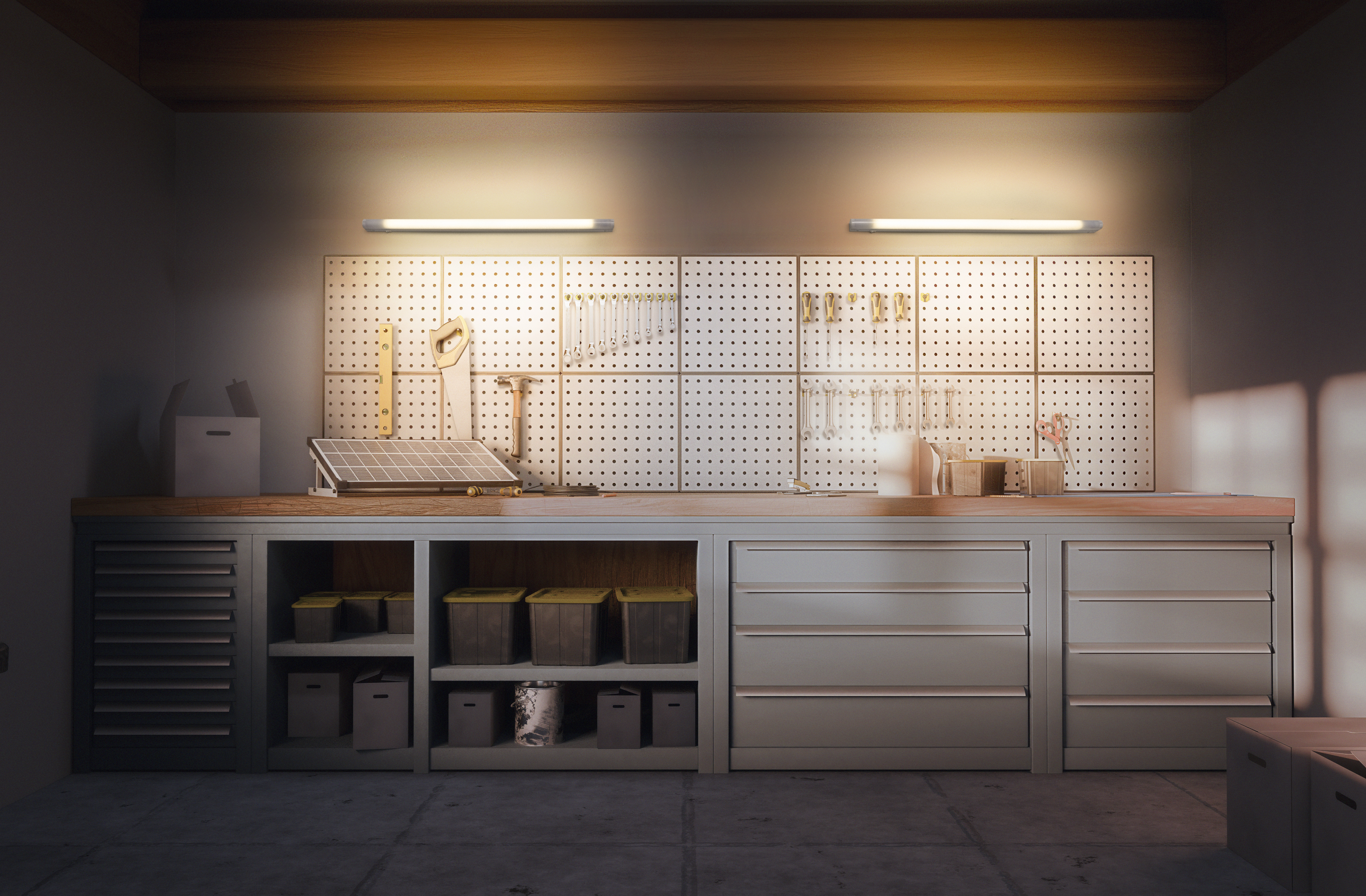

Application pictures Getty
