APM
SMART+ SPOT GU10 Tunable White (APM)
40 5 W/2700 K GU10
GTIN: 4058075485112
Folding box / 1
Show all packages
Our warranty conditions
PRODUCT DETAILS
Product benefits
- Wireless control via app
- Easy to install and use
- Contains no mercury
Areas of application
- General illumination
- Residential interiors
- Professional (hotels, bars, boutiques etc.)
- Outdoor applications only in suitable luminaires
Product features
- Controllable via LEDVANCE APM SMART+ WiFi App (with minimum Android 4.4 or iOS 9.0)
- Controllable via Google Assistant and Amazon Alexa possible
- Network protocol: WiFi
- Adjustable color temperature via Tunable White: 2,000…6,500 K
- Dimmable
- Lifetime up to 15,000 h
Electrical data
| Nominal wattage | 5 W |
| Construction wattage | 5.00 W |
| Nominal voltage | 220…240 V |
| Operating frequency | 50…60 Hz |
| Mains frequency | 50…60 Hz |
| Claimed equiv. conventional lamp power | 40 W |
Photometrical data
| Light color (designation) | Tunable White |
| Nominal luminous flux | 520 lm |
| Luminous flux | 520 lm |
| Luminous efficacy | 104 lm/W |
| Color temperature | 2700 K |
| Color rendering index Ra | 80 |
Dimensions & Weight
| Product weight | 33.00 g |
| Diameter | 50.00 mm |
| Length | 54.50 mm |
| Width | 50.00 mm |
| Height | 50.00 mm |
| Outer bulb [PICOS] | PAR51 |
Lifespan
| Number of switching cycles | 100000 |
| Lifespan | 15000 h |
Temperatures & operating conditions
| Ambient temperature range | -10…+40 °C |
Additional product data
| Mercury-free | Yes |
| Product remark | All technical parameters apply to the entire lamp; Due to the complex production process for light-emitting diodes, the typical values shown for the technical LED parameters are purely statistical values that do not necessarily match the actual technical parameters of each individual product, which can vary from the typical value |
| Base (standard designation) | GU10 |
Capabilities
| Dimmable | Yes |
Energy labelling regulation data acc EU 2019/2015
| Light source cap-type (or other electric interface) | GU10 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | No |
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
| Product code | Packaging unit (Pieces/Unit) | Dimensions (length x width x height) | Gross weight | Volume |
|---|---|---|---|---|
| 4058075485112 | Folding box 1 |
53 mm x 53 mm x 62 mm | 44.00 g | 0.17 dm³ |
| 4058075485129 | Shipping box 10 |
275 mm x 116 mm x 74 mm | 518.00 g | 2.36 dm³ |
EU Data Act
SMART WiFi Lamps and Luminaires
SMART WiFi Lamps and Luminaires
Product image: white background, upright LEDVANCE logo
SMART WIFIPAR16 TW 5W 230VFR GU10
SMART WIFIPAR16 TW 5W 230VFR GU10
Product line drawing with numbers
SMART WIFI PAR16 TW 5W 230VFR GU10
SMART WIFI PAR16 TW 5W 230VFR GU10

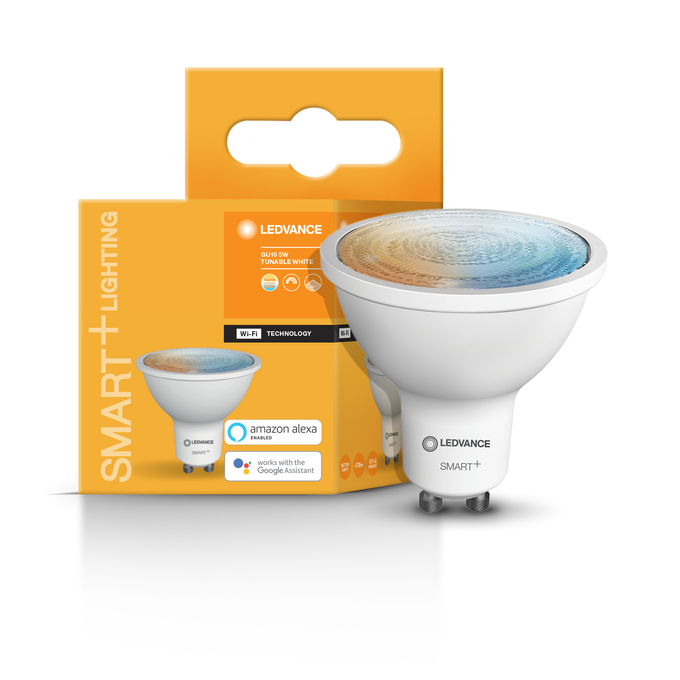

Combo Shot = Product Beauty Shot + Packaging Image
