PARATHOM PRO HIGH BRIGHTNESS PAR30

PPRO PAR 30 30 ° 28 W/6500 K E27 HB

GTIN: 4058075677050 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions
Fast Light Calculation Tool
The fast way to plan lighting projects

PRODUCT DETAILS

Product benefits
  • Very low energy consumption
  • Robust against vibrations
  • No UV and near-IR radiation in the light beam
Areas of application
  • Shops
  • Exhibitions, department stores
Product features
  • Professional LED lamp
  • Not suitable for use with dimmers
  • Base: E27
  • Lifetime up to 25,000 h
  • Mercury-free and RoHS compliant
  • High color consistency: ≤ 5 sdcm
References / Links
Electrical data
Nominal wattage 28 W
Construction wattage 28.00 W
Nominal voltage 100…240 V
Claimed equiv. conventional lamp power 200 W
Nominal current 232 mA
Type of current AC
Operating frequency 50/60 Hz
Mains frequency 50/60 Hz
Power factor λ ≥ 0.90
Photometrical data
Luminous intensity 8400 cd
Luminous flux 3000 lm
Nominal useful luminous flux 90° 3000 lm
Luminous efficacy 107 lm/W
Lumen main.fact.at end of nom.life time 0.70
Light color (designation) Daylight
Color temperature 6500 K
Color rendering index Ra ≥80
Light color 865
Standard deviation of color matching ≤6 sdcm
Rated peak intensity 8400 cd
Light technical data
Beam angle 30 °
Starting time < 1.0 s
Dimensions & Weight
Overall length 124.00 mm
Diameter 95.00 mm
Maximum diameter 95 mm
Product weight 360.00 g
Temperatures & operating conditions
Ambient temperature range -20…+40 °C
Lifespan
Number of switching cycles 100000
Lumen maintenance at end of service lifetime 0.70
Additional product data
Base (standard designation) E27
Mercury content 0.0 mg
Capabilities
Dimmable No
Certificates & Standards
Energy efficiency class A
Type of protection IP20
Country-specific categorizations
Order reference LPPPR303028W/86
LOGISTICAL DATA
Temperature range at storage -20…+80 °C
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) E27
Length 124.00 mm
Height 95.00 mm
Width 95.00 mm
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075677050 Folding box
1		 103 mm x 103 mm x 175 mm 412.00 g 1.86 dm³
4058075677067 Shipping box
10		 535 mm x 225 mm x 205 mm 4667.00 g 24.68 dm³
Product image: white background, diagonal
LED PAR30 31W E27 Gen2
JPG (1.31 MB)
Product image: white background, upright
PAR30 31W E27 Gen2
JPG (1.23 MB)
Product line drawing, front, no dimensions
LEDPPPAR301 31W HB E27
SVG (8.41 KB)
IES file (IES)
LPPPR3030 28W 127V HB E27
IES (60.16 KB)
IES file (IES)
LPPPR3030 28W 220V HB E27
IES (60.16 KB)
LDT file (Eulumdat)
LPPPR3030 28W 127V HB E27
LDT (45.65 KB)
LDT file (Eulumdat)
LPPPR3030 28W 220V HB E27
LDT (45.65 KB)

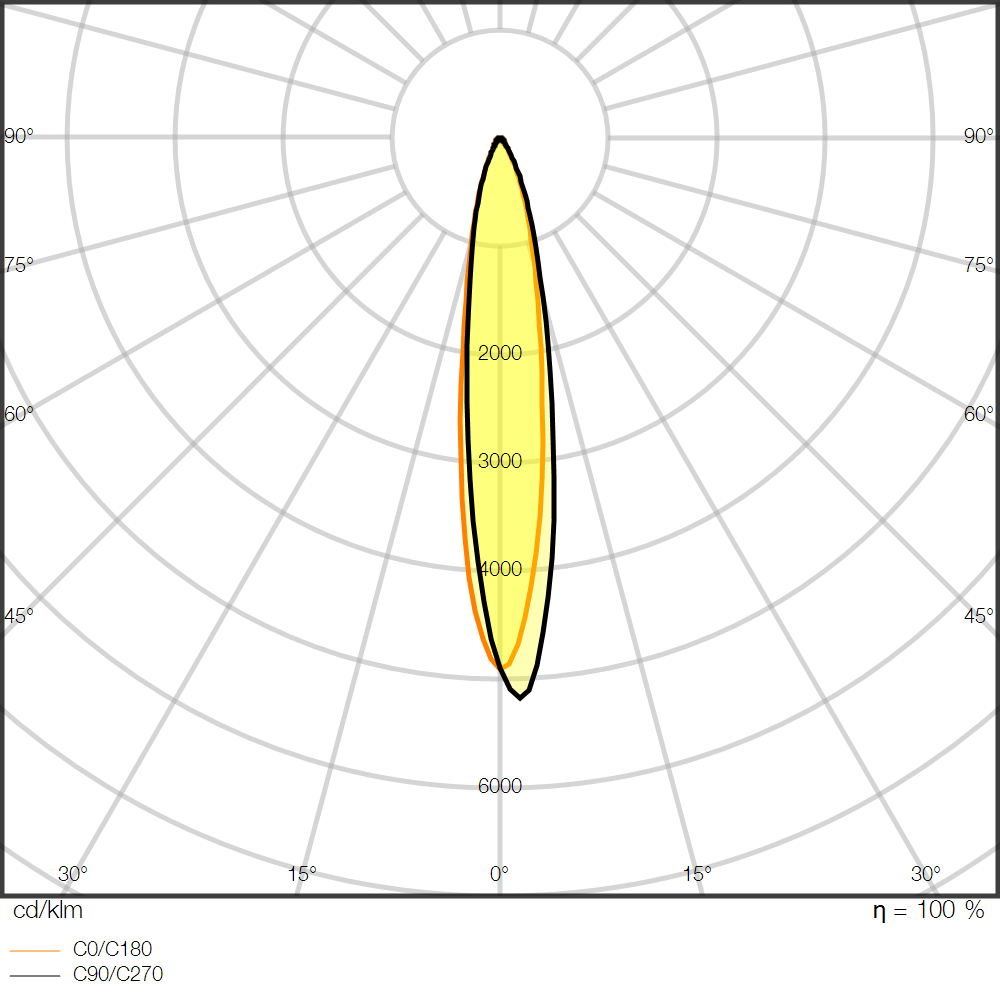

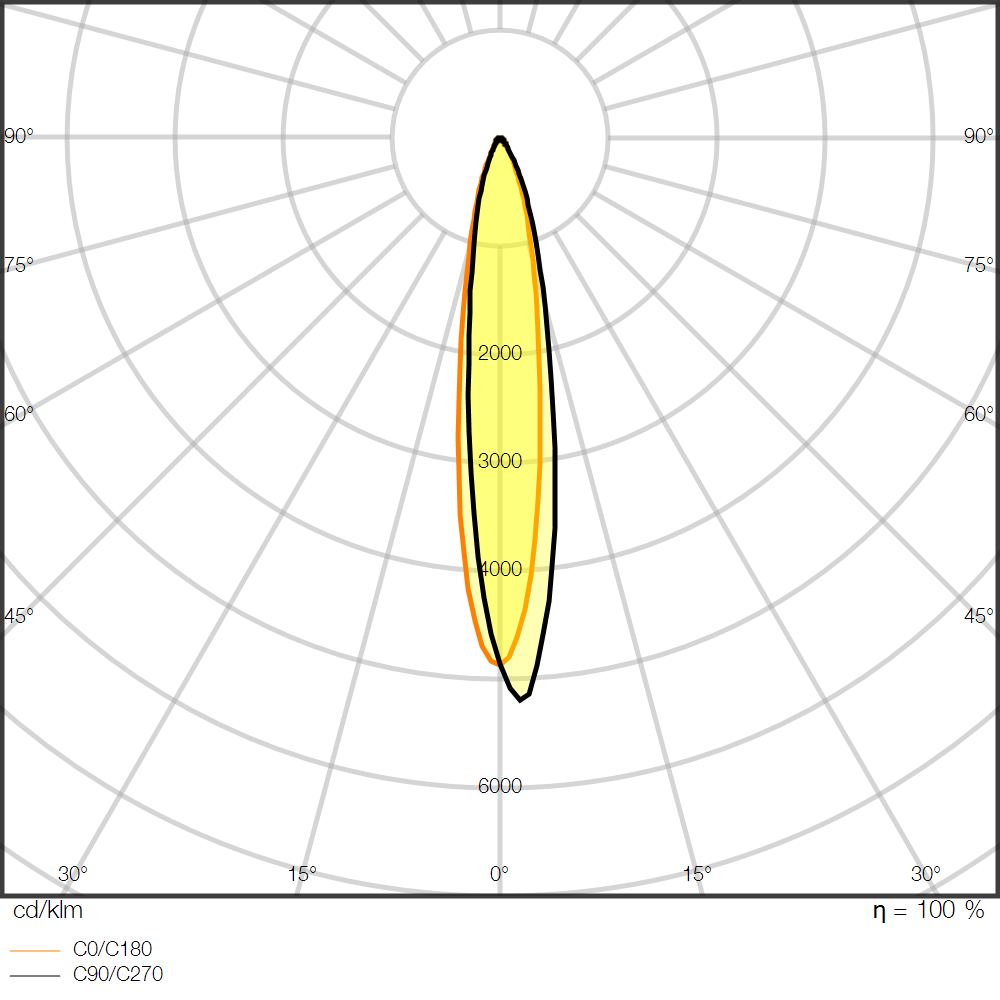

Light distribution curve type polar
LPPPR3030 28W 127V HB E27
PNG (113.81 KB)
Light distribution curve type polar
LPPPR3030 28W 220V HB E27
PNG (113.07 KB)
Light distribution curve type polar
LPPPR3030 28W 127V HB E27
SVG (17.62 KB)
Light distribution curve type polar
LPPPR3030 28W 220V HB E27
SVG (17.62 KB)
