PAR16 100 24 ° 10 W/2700 K GU10 white, diagonal (thumbnail)
PAR16 100 24 ° 10 W/2700 K GU10 white, upright (thumbnail)

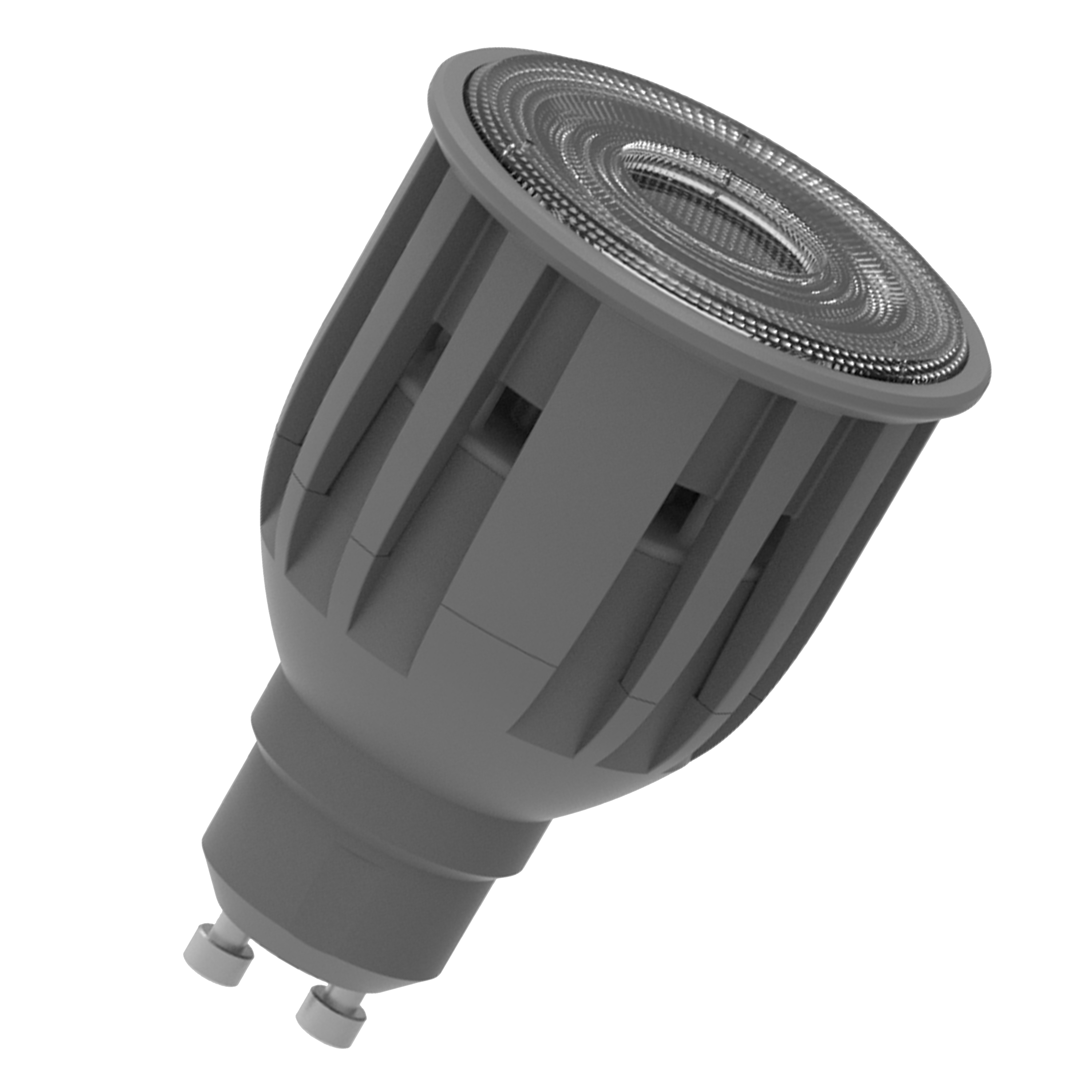

PAR16 100 24 ° 10 W/2700 K GU10 white, diagonal

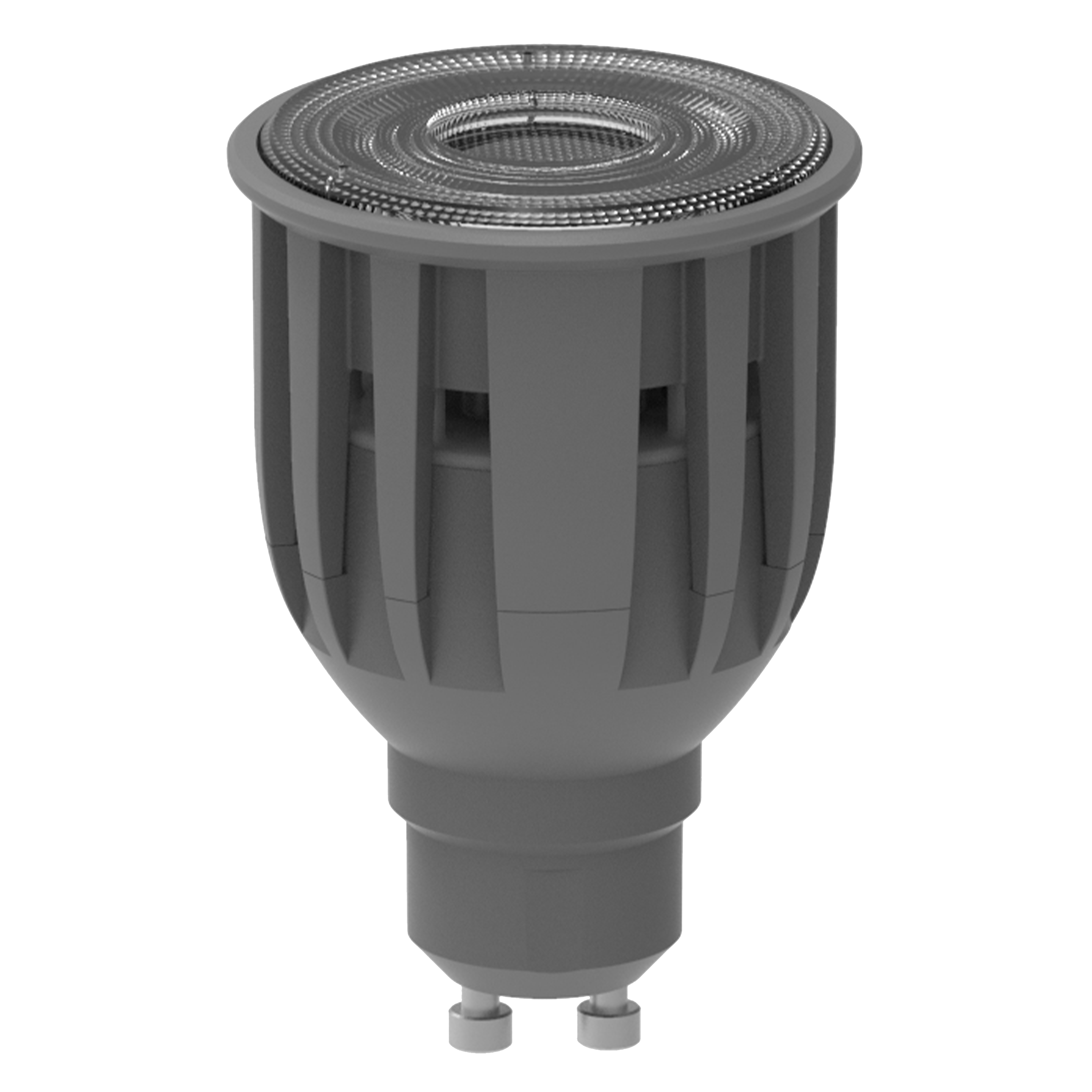

PAR16 100 24 ° 10 W/2700 K GU10 white, upright
LED PAR16 HIGH BRIGHTNESS PFM

PAR16 100 24 ° 10 W/2700 K GU10

GTIN: 4099854262722 Folding box / 1 Show all packages
Download data sheet
Contact sales
Our warranty conditions

PRODUCT DETAILS

Product benefits
  • Attractive lamp appearance
  • Easy replacement of halogen lamps due to compact design and single optic design
  • Good quality of light
  • Creation of the preferred light ambience thanks to dimming
  • Very high dimmer compatibility, see also www.ledvance.com/dim
  • Very low energy consumption
  • No UV and near-IR radiation in the light beam
  • Reliable operation thanks to brand quality
Areas of application
  • Hospitality
  • Restaurants
  • Residential interiors
  • Museums, art galleries
Product features
  • Very good color rendering (CRI: 95, R9: 90, Rg: 100, Rf: 90)
  • High color consistency: ≤ 5 sdcm
  • Single optic design
  • Input voltage: 220…240 VAC
  • Mercury-free lamps
  • Lifetime up to 40,000 h
  • Dimmable
  • Temperature-protected
Electrical data
Nominal wattage 10 W
Construction wattage 10.00 W
Nominal voltage 220…240 V
Claimed equiv. conventional lamp power 100 W
Nominal current 48 mA
Power factor λ 0.92
Photometrical data
Luminous intensity 2950 cd
Luminous flux 790 lm
Luminous efficacy 79 lm/W
Color temperature 2700 K
Color rendering index Ra 95
Light color 927
Standard deviation of color matching ≤5 sdcm
Rated peak intensity 2950 cd
Light technical data
Beam angle 24 °
Warm-up time (60 %) ‹ 0.50 s
Starting time < 0.5 s
Dimensions & Weight
Overall length 75.30 mm
Diameter 50.00 mm
Maximum diameter 50 mm
Product weight 105.00 g
Temperatures & operating conditions
Ambient temperature range -20…+45 °C
Lifespan
Number of switching cycles 100000
Additional product data
Base (standard designation) GU10
Mercury content 0.0 mg
Mercury-free Yes
Capabilities
Dimmable Yes
Certificates & Standards
Energy efficiency class G
Country-specific categorizations
Order reference LPPR1611024 10W
Energy labelling regulation data acc EU 2019/2015
Light source cap-type (or other electric interface) GU10
Length 75.30 mm
Height 50.00 mm
Width 50.00 mm
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage No
1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4099854262722 Folding box
1		 52 mm x 52 mm x 81 mm 125.00 g 0.22 dm³
4099854262739 Shipping box
10		 273 mm x 113 mm x 96 mm 1378.00 g 2.96 dm³
4099854262746 Shipping box
60		 284 mm x 239 mm x 309 mm 8654.00 g 20.97 dm³
Product image: white background, diagonal
LPPR1611024 230V HB GU10
JPG (1.32 MB)
Product image: white background, upright
LPPR1611024 230V HB GU10
JPG (1.24 MB)
Product line drawing with numbers
LPPR1611024 230V HB GU10
SVG (131.59 KB)
IES file (IES)
PAR16 110 P 10W
IES (38.84 KB)
