PRODUCT INFORMATION



SMART+ WIFI COMPACT OUTDOOR PLUG EU

PRODUCT DETAILS

Electrical data

Nominal voltage 230 V
Mains frequency 50 Hz

Dimensions & Weight

Product weight 120.00 g
Diameter 57 mm
Width 57 mm
Height 98 mm

Lifespan

Number of switching cycles 100000

Colors & materials

Product color Anthracite
Body material Plastic

Temperatures & operating conditions

Ambient temperature range -10…+35 °C

Capabilities

Compatible smart home technology Amazon Alexa, Google Assistant

Certificates & Standards

Standards CE
Protection class I
Type of protection IP44

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS

Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)

1) According to AGEC Decree 2022-748 (French Anti-Waste-Legislation for a Circular Economy)

Product benefits
  • Integrates conventional electric equipment into compatible smart home systems
  • Enables switching of conventional light sources and other electric devices
  • Simple connection of electric devices via standard socket
  • Fit for outdoor use with IP44,  the protection against splash water
Areas of application
  • Wherever non-smart devices need to be integrated into compatible smart home systems
  • Gardens, balconies and other outdoor areas
Product features
  • Controllable via LEDVANCE SMART+ App (with minimum Android 8.0 or iOS 14.0)
  • Controllable via voice control available: Google Assistant or Amazon Alexa
  • Controllable via LEDVANCE SMART+ WiFi Remote Controller
  • High switching power: up to 3,680 W / 16 A
  • Network protocol: WiFi
  • Type of protection: IP44
  • Scheduling
Equipment / Accessories
  • For control via LEDVANCE SMART+ App, a smartphone or tablet is required (with minimum Android 8.0 or iOS 14.0)
Safety advice
  • Disconnect devices which generate heat from the mains, i.e. from the SMART+ Plug, after use in order to avoid them being accidentally switched on.
  • Very high capacitive and inductive loads may in some cases lead to destruction of the device or reduction in the number of switching cycles.
  • Do not use the SMART+ Plug in conjunction with medical equipment.
  • To be connected to an automatic circuit breaker (max. 16 A).
  • Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
References / Links
  • Further information and frequently asked questions (FAQs) at www.ledvance.com/consumer/smart/faq
Product code Packaging unit (Pieces/Unit) Dimensions (length x width x height) Gross weight Volume
4058075570979 Folding box
1		 61 mm x 96 mm x 154 mm 188.00 g 0.90 dm³
4058075570986 Shipping box
4		 211 mm x 167 mm x 141 mm 964.00 g 4.97 dm³
Extended installation guide
SMART+ WIFI INSTALLATI ON GUIDE PDF (423.74 KB)

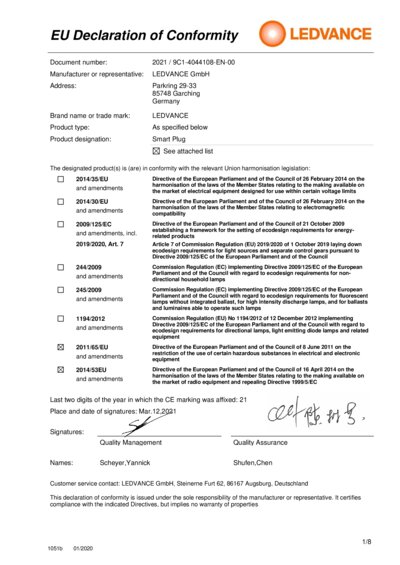

Declarations of conformity
EU Declaration of conf ormity PDF (150.18 KB)

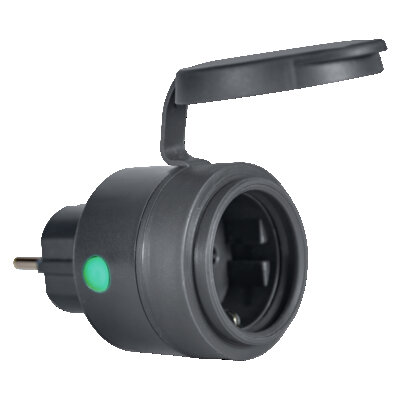

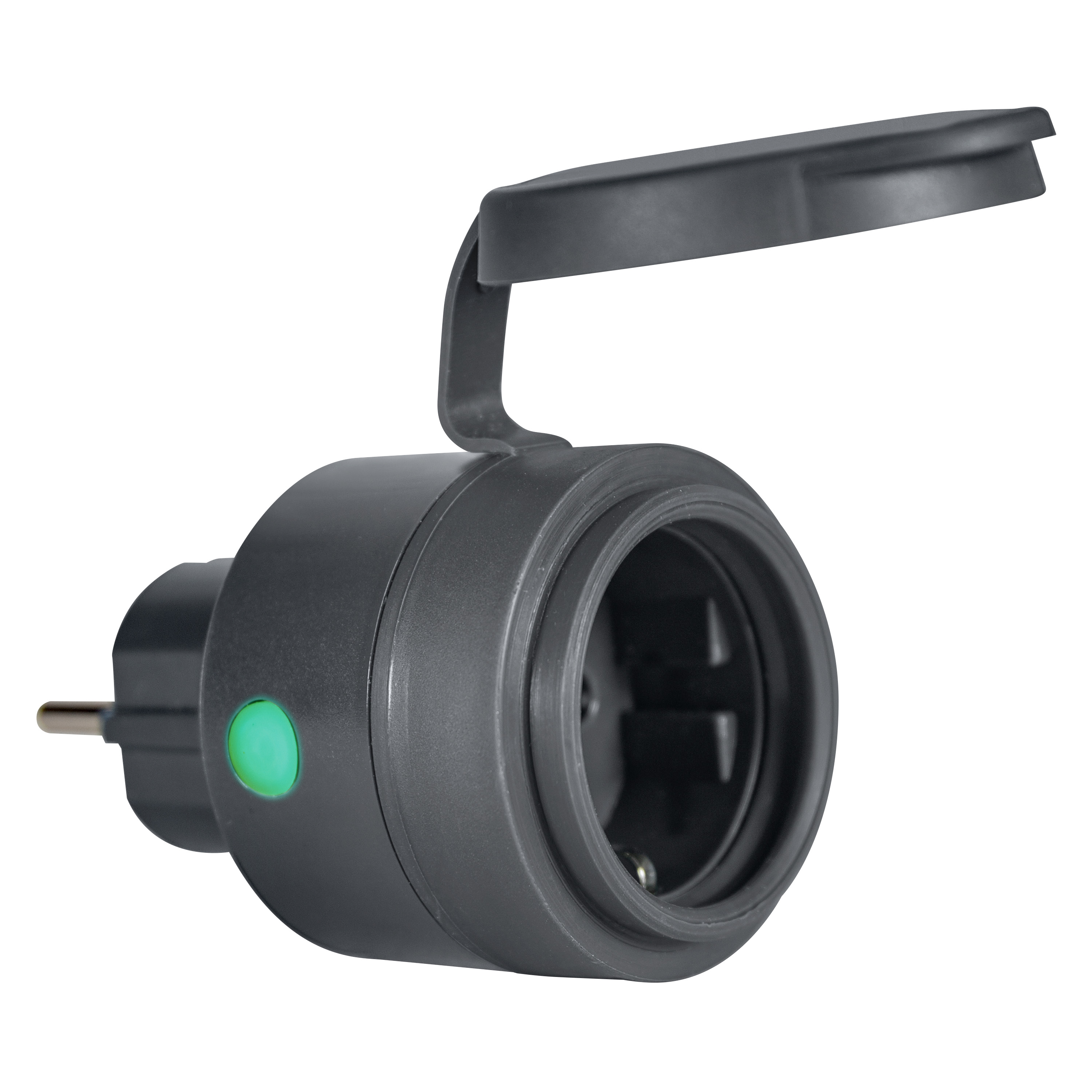

Product image: white background, diagonal with LEDVANCE logo
SMART COMPACT OUTDOOR PLUG EU JPG (744.28 KB)

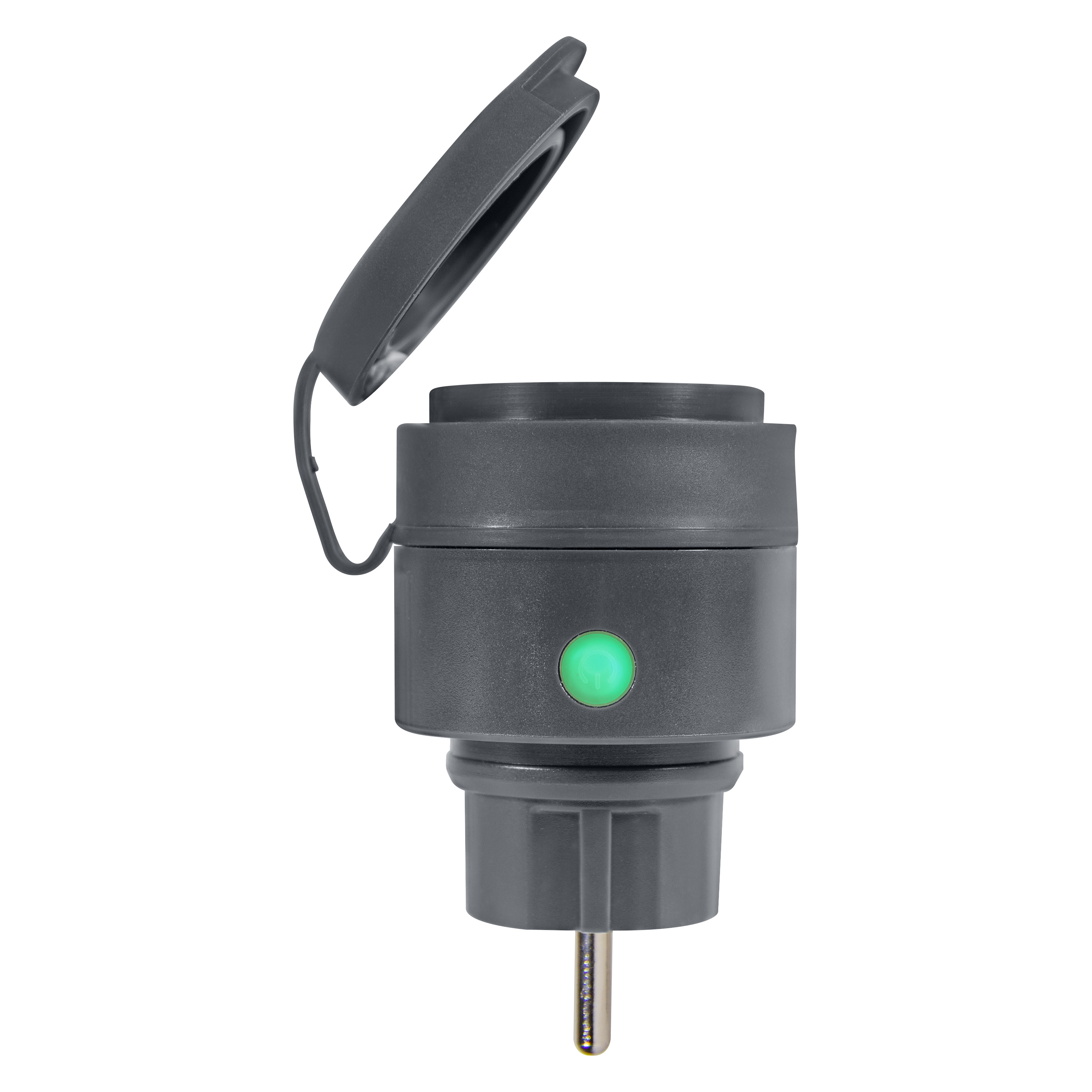

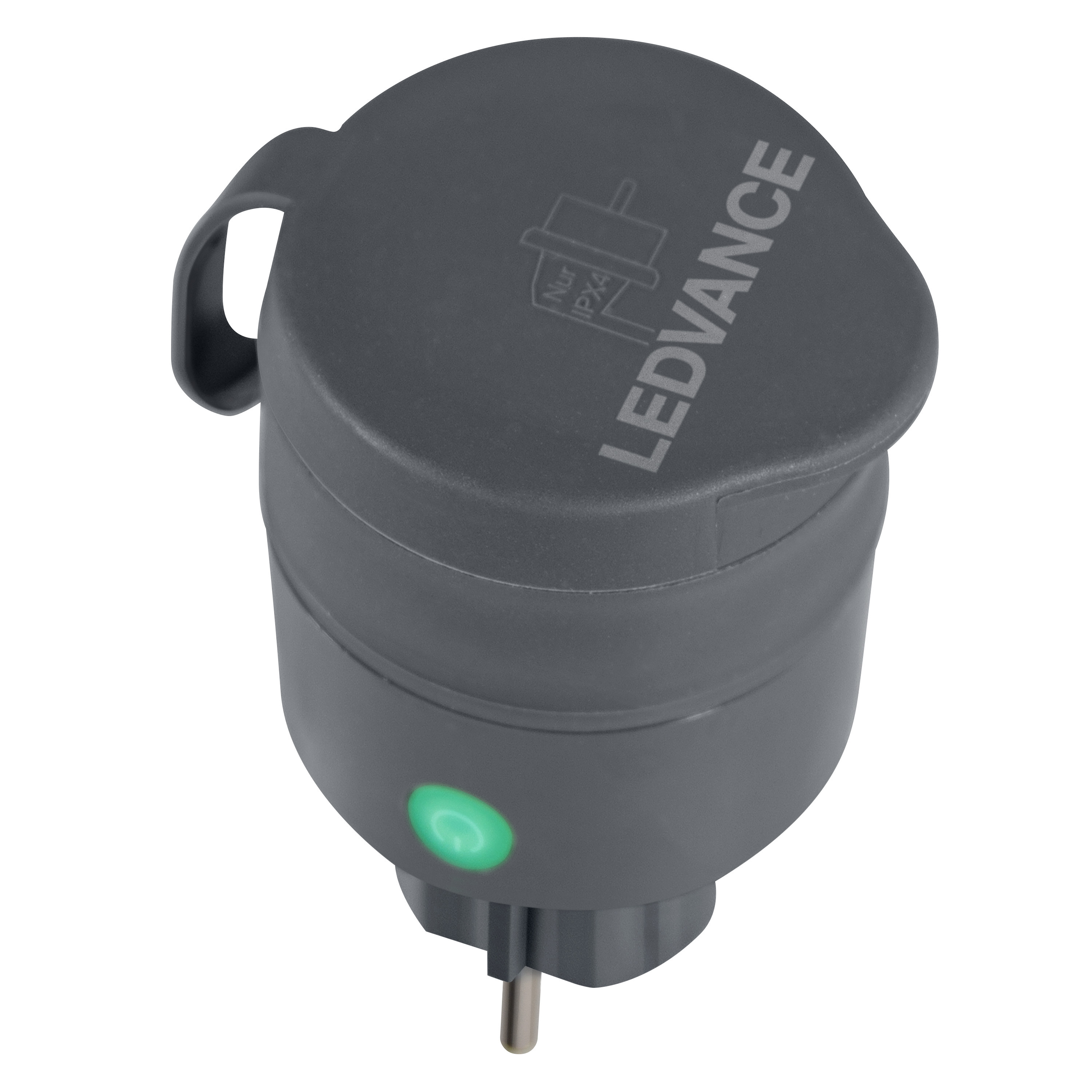

Product image: white background, upright, alternative image
SMART COMPACT OUTDOOR PLUG EU JPG (707.1 KB)

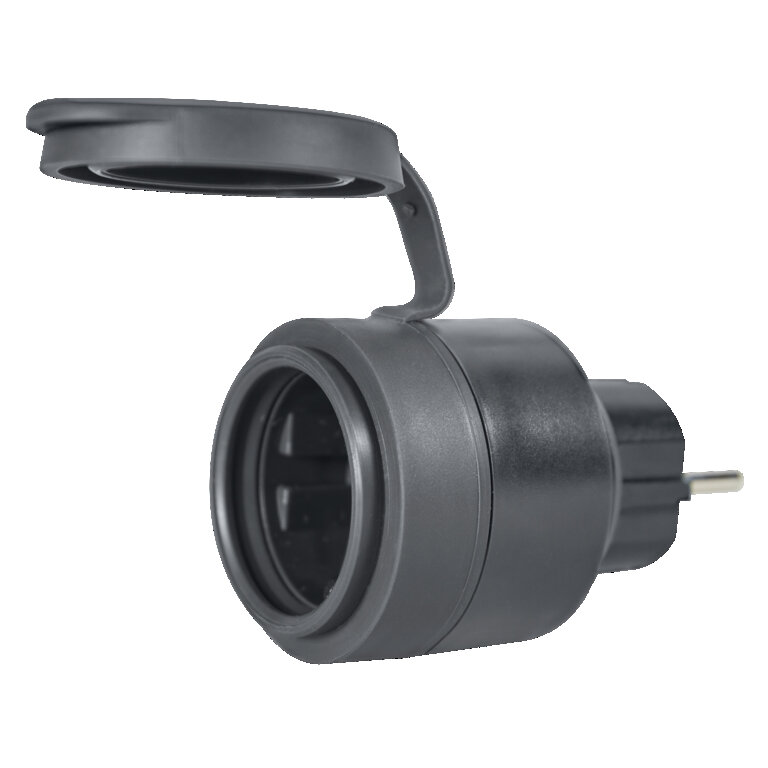

Product image: white background, spacial
SMART COMPACT OUTDOOR PLUG EU JPG (2.41 MB)
Product infographic (application image with text and graphic)
SmartPlus WIFI PLUG as sortment E-Com-Grafik JPG (534.86 KB)
Product infographic (application image with text and graphic)
SmartPlus WIFI PLUG as sortment E-Com-Grafik V1 1200x1200 2023 EN JPG (624.73 KB)
Product infographic (application image with text and graphic)
SmartPlus assortment E -Com-Grafik V1 1200x12 00 2023 EN JPG (1.33 MB)
Product line drawing with letters
SMART COMPACT OUTDOOR PLUG EU SVG (10.98 KB)
Product line drawing with numbers
SMART COMPACT OUTDOOR PLUG EU SVG (11.01 KB)
Product line drawing, front, no dimensions
SMART COMPACT OUTDOOR PLUG EU SVG (6.37 KB)

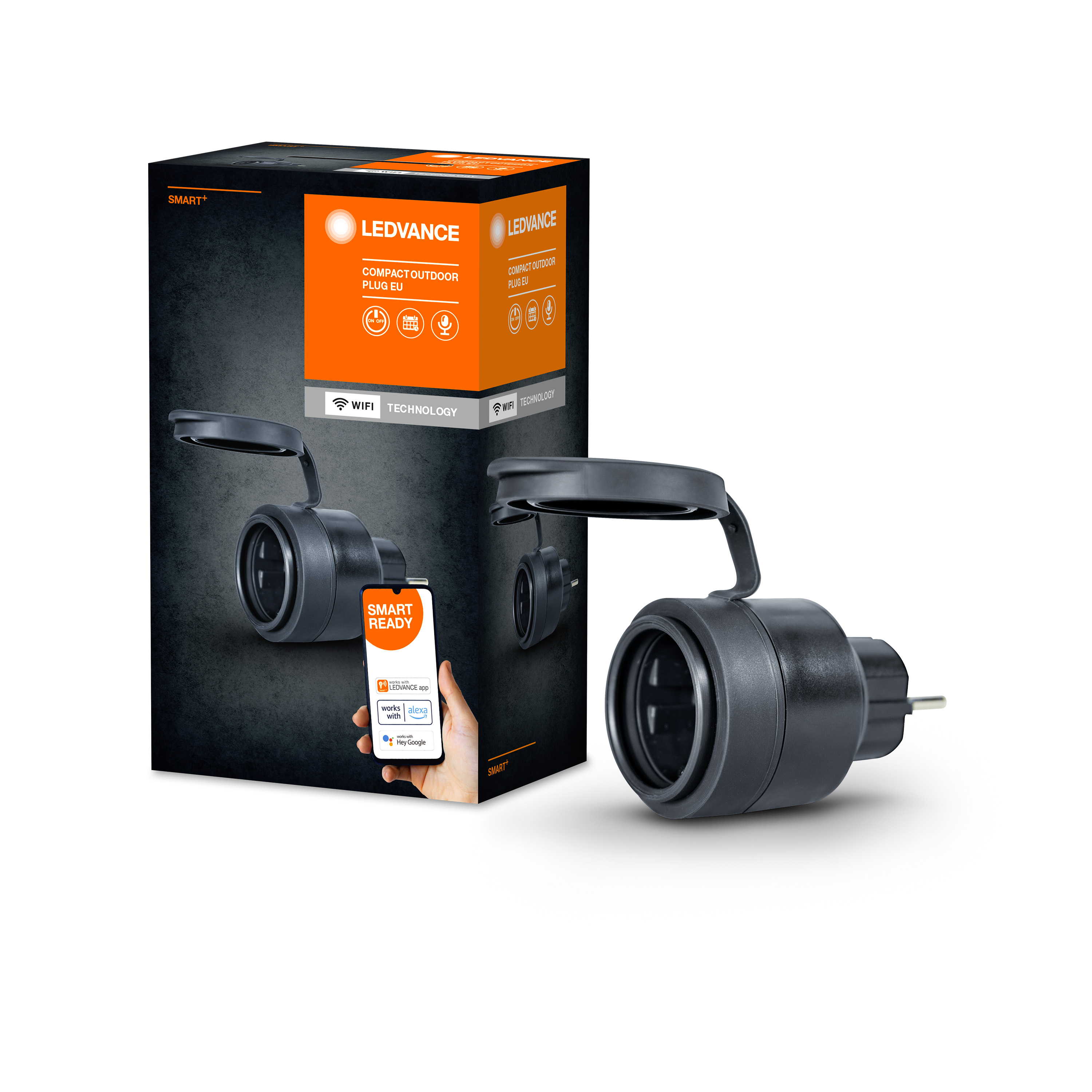

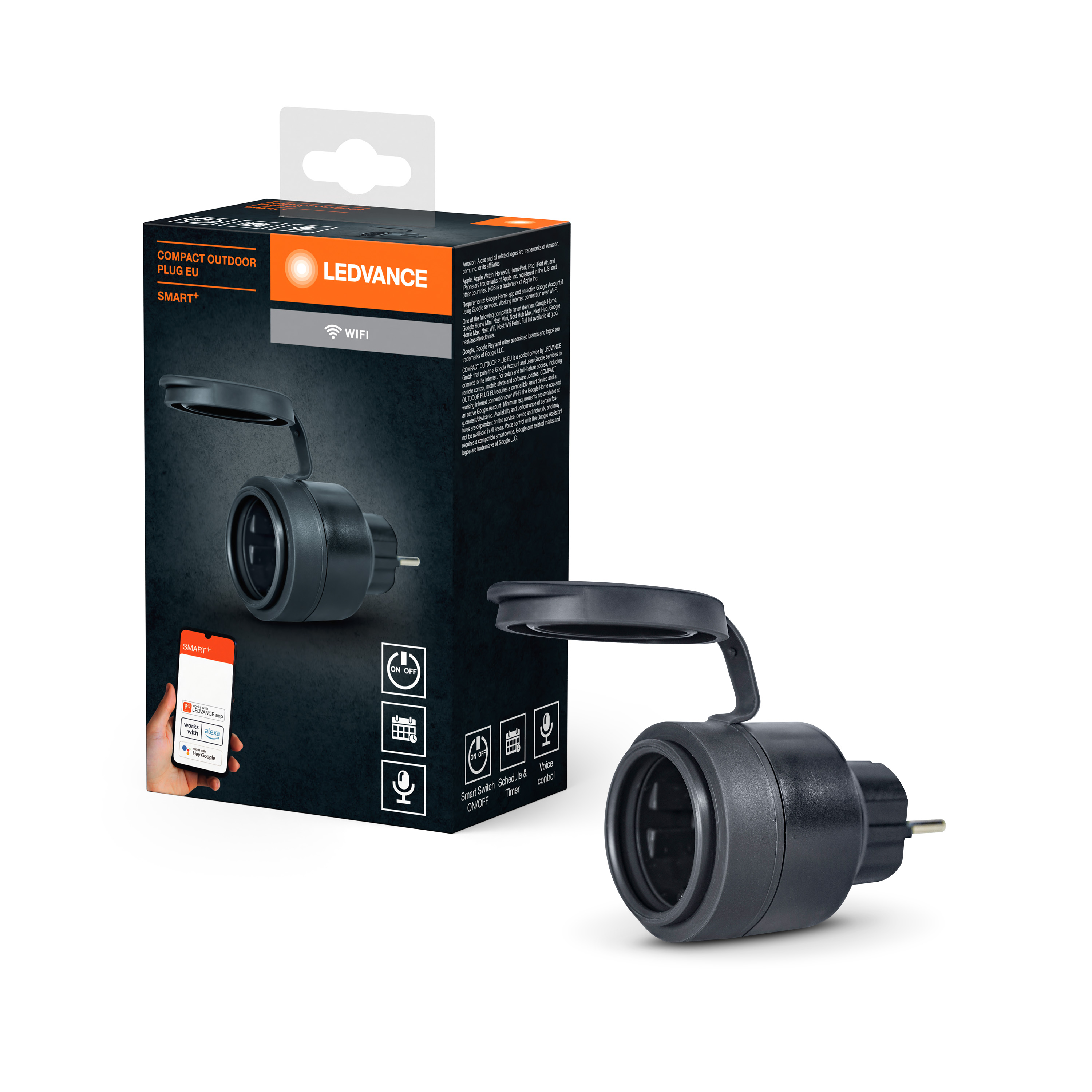

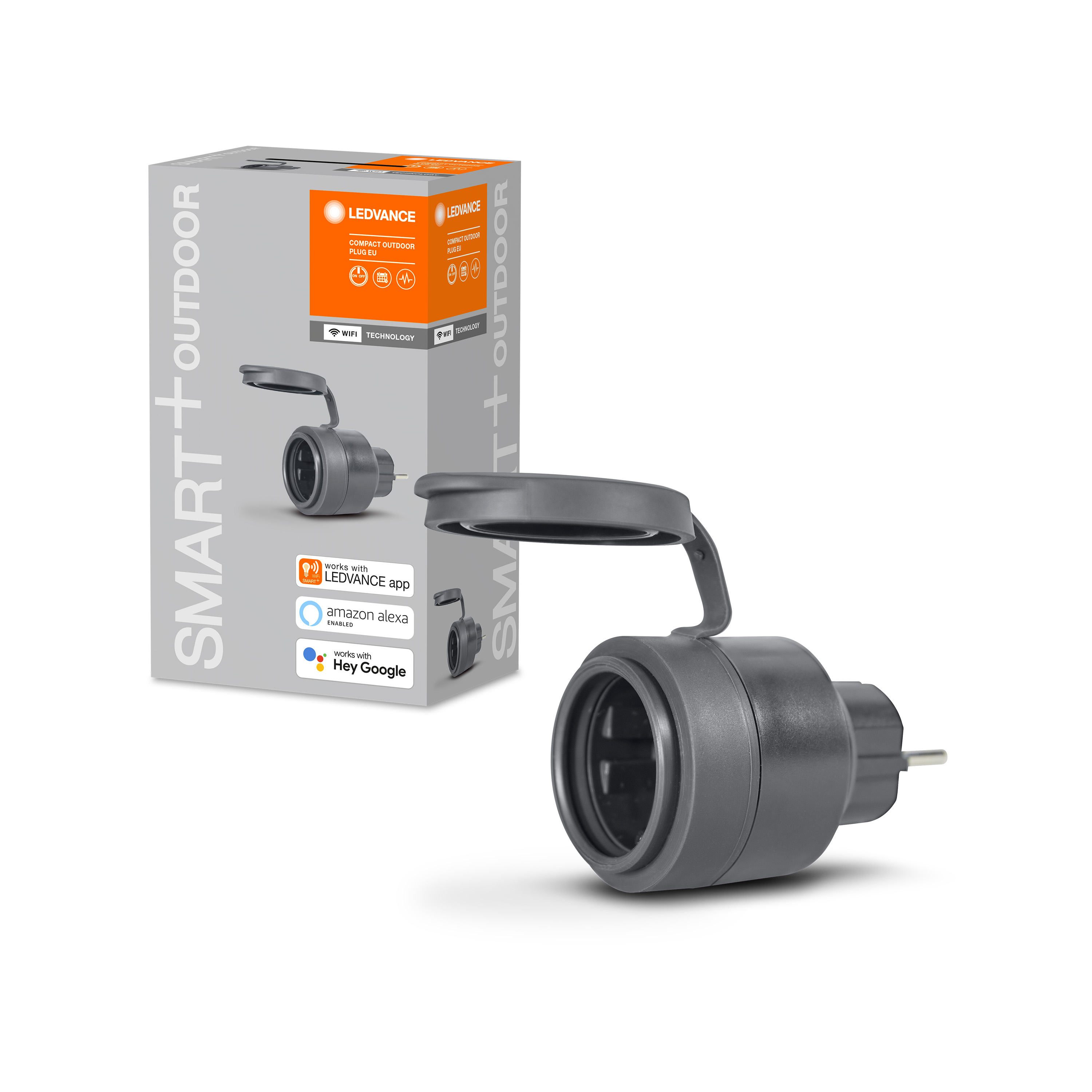

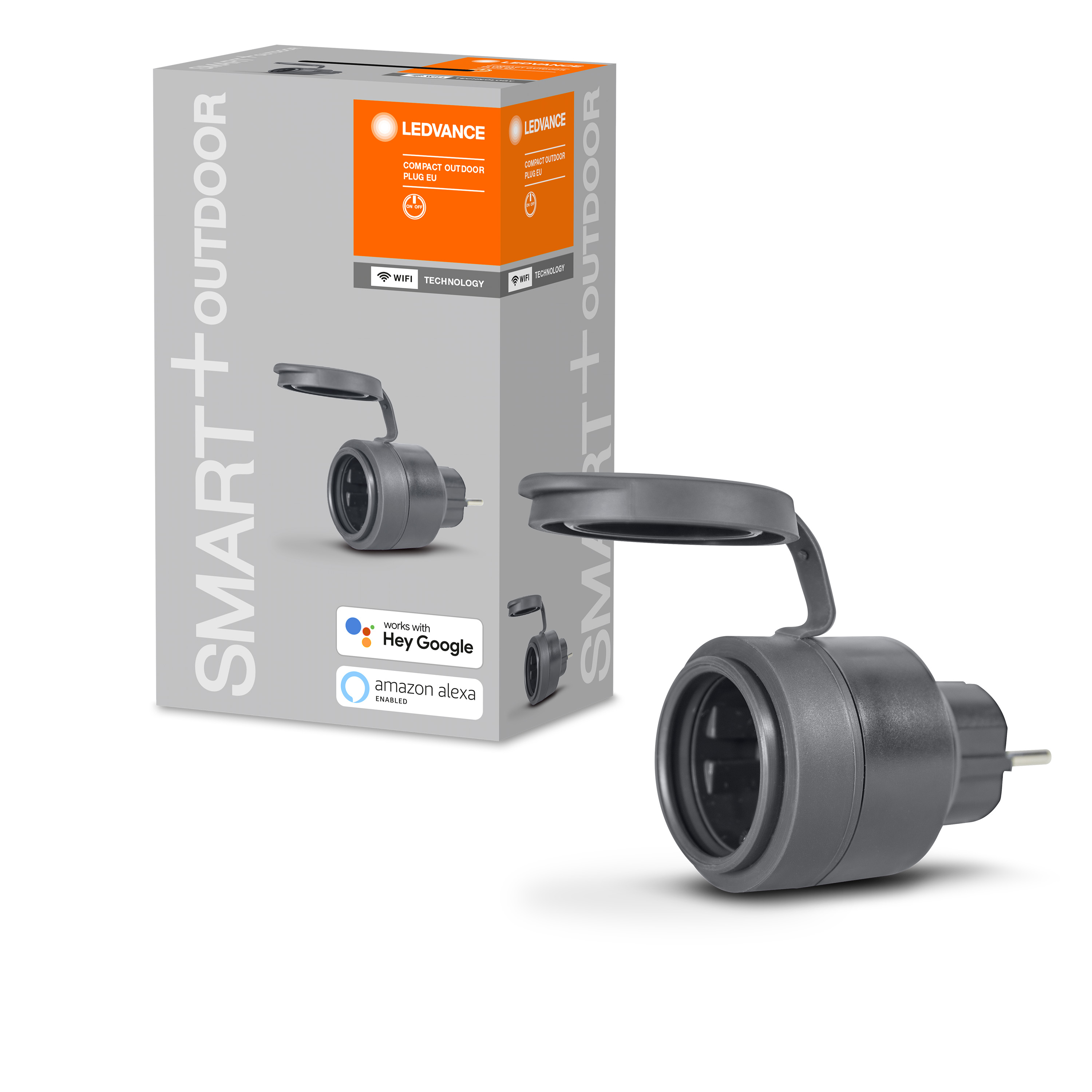

Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI COMPACT OD PLUG EU MiPRC JPG (596.54 KB)
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI COMPACT OD PLUG EU MiPRC JPG (587.54 KB)
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI COMPACT OD PLUG EU MiPRC JPG (894.35 KB)
Combo Shot = Product Beauty Shot + Packaging Image
SH FC WIFI COMPACT OD PLUG EU MiPRC LDV JPG (2.49 MB)

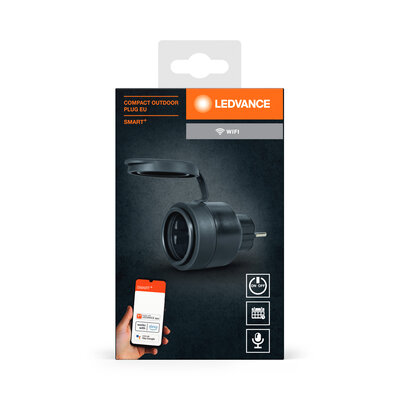

Packaging image, frontal
SH FC WIFI COMPACT OD PLUG EU MiPRC JPG (2.32 MB)

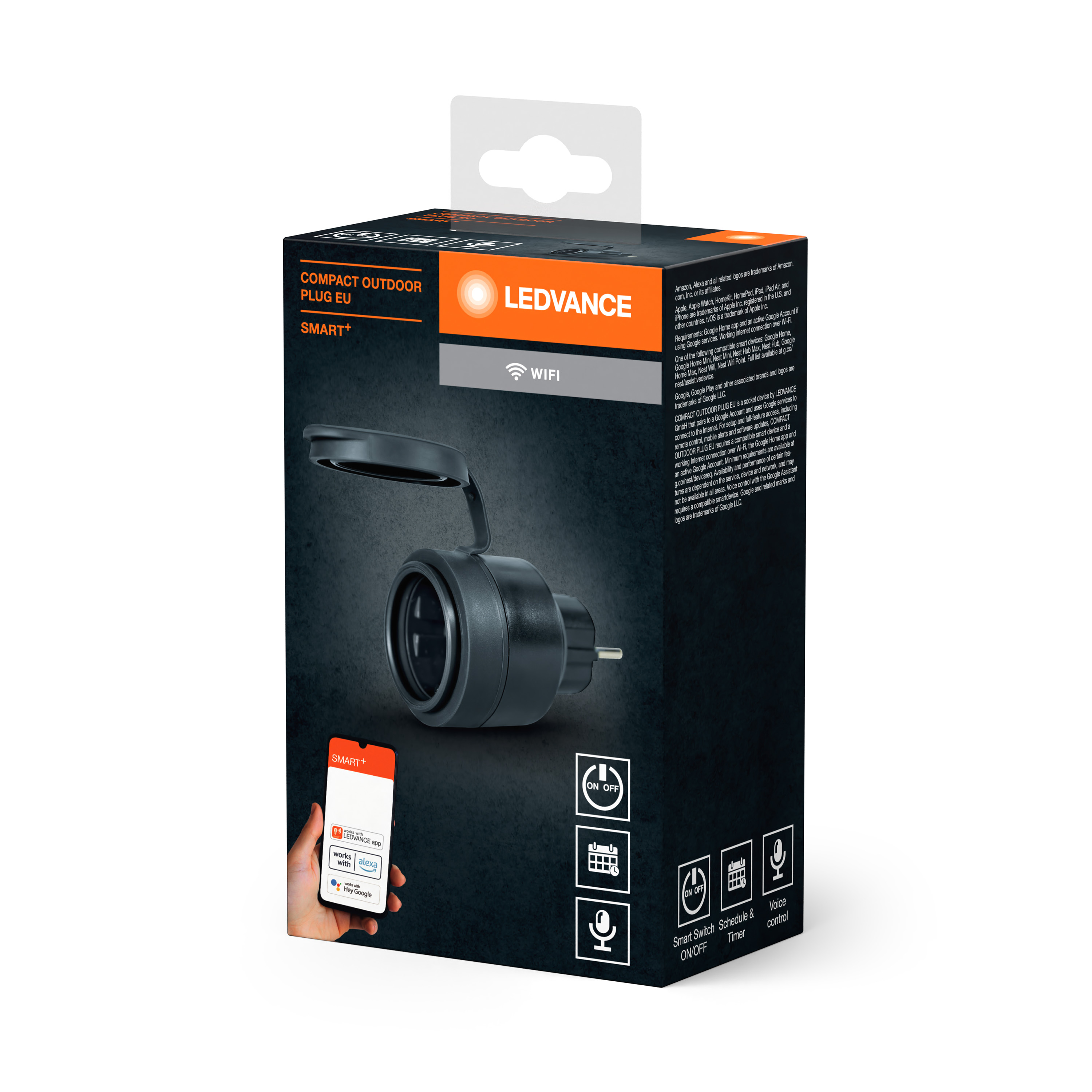

Packaging image, spacial
SH FC WIFI COMPACT OD PLUG EU MiPRC JPG (2.48 MB)

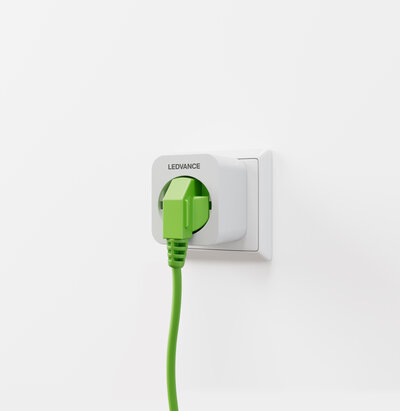

Application pictures
Smart+ Wifi Plug JPG (2.31 MB)

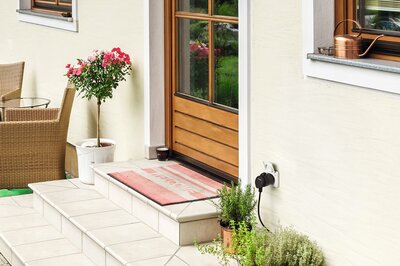

Application pictures Getty
SMART OUTDOOR COMPACT PLUG EU JPG (3.47 MB)
EAN SEG number STK number EFO number
4058075570979 7985367 2405708 1407940
